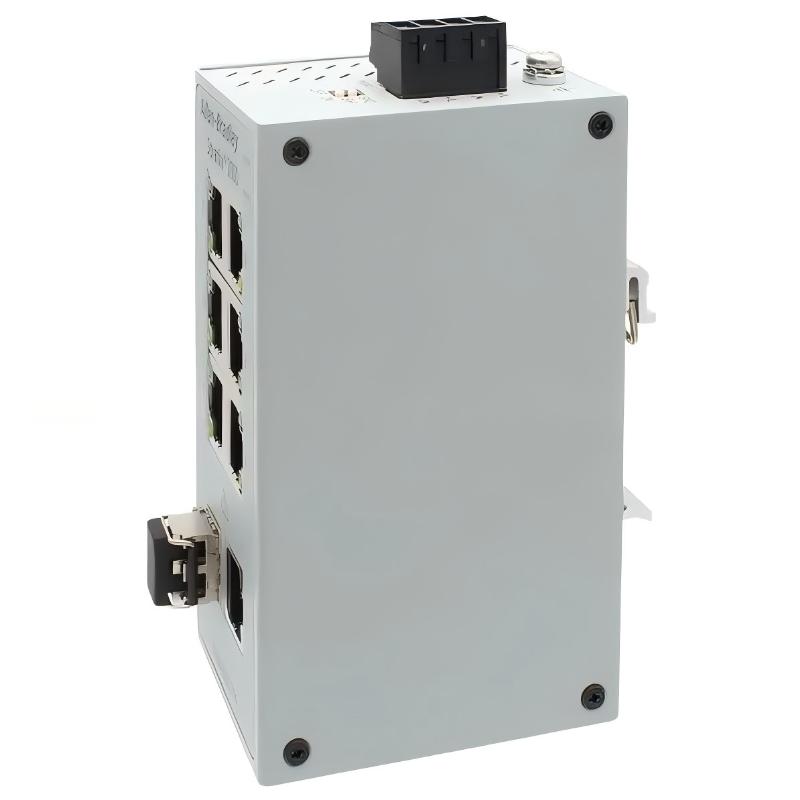

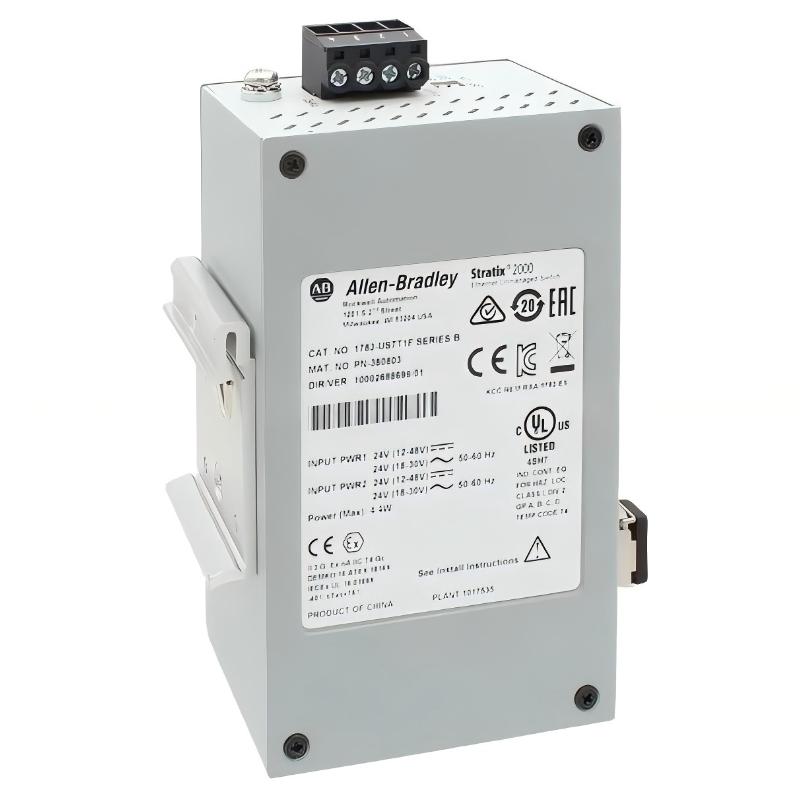

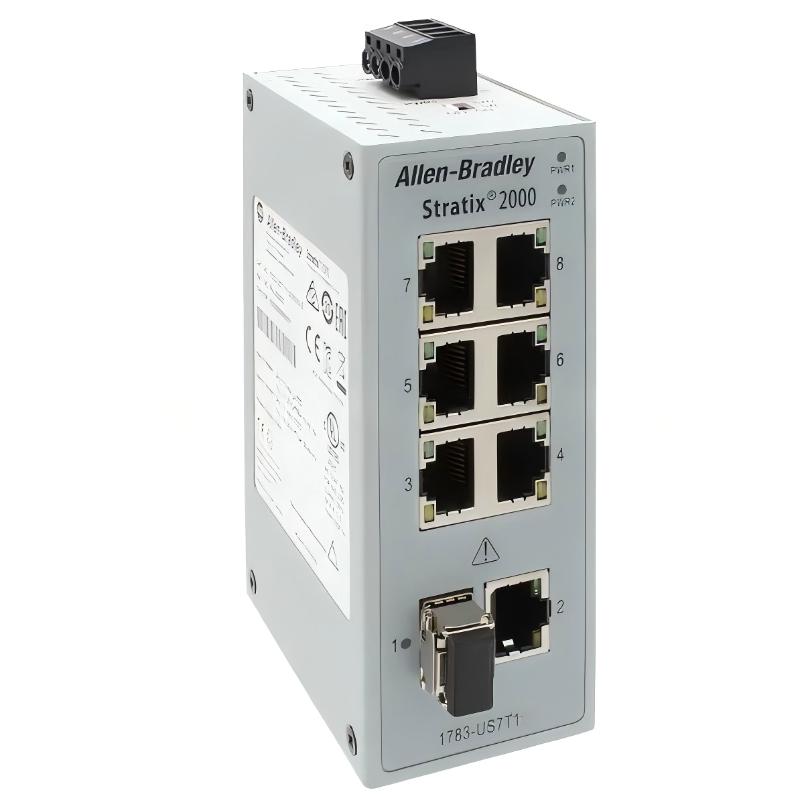

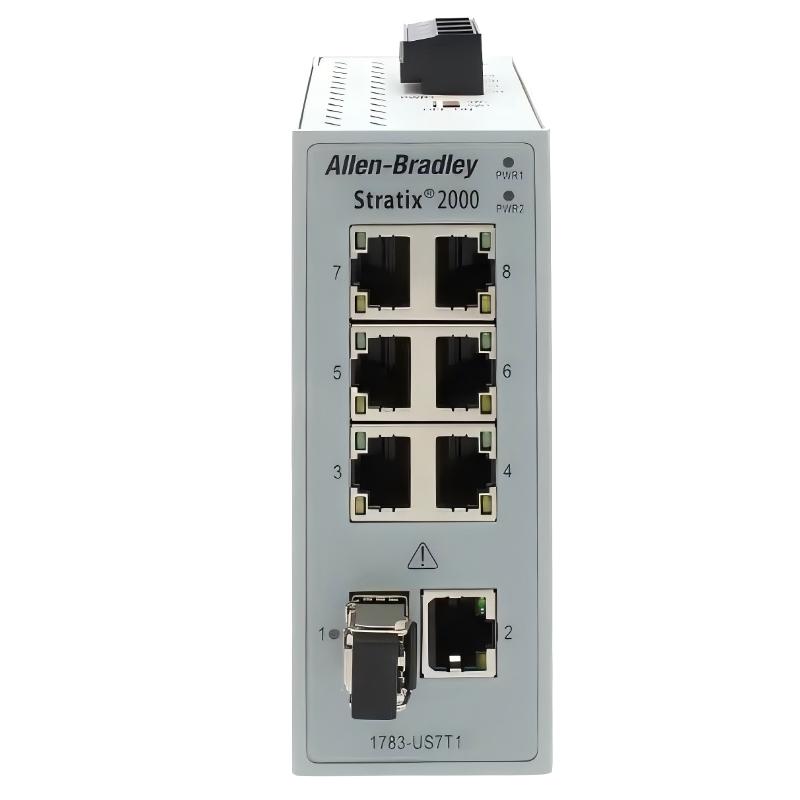

Allen Bradley 1783-US7T1H/B Stratix 2000 Unmanaged Ethernet Switch
Allen Bradley 1783-US7T1H/B Stratix 2000 Unmanaged Ethernet Switch
0.0
Points
Brand:Allen Bradley PLC Item No.:1783-US7T1H/B Product Origin:USA Product Dimensions:114.5 × 45.6 × 76.8 mm Product Weight:1.22 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1783-US7T1H/B Stratix 2000 Unmanaged Ethernet Switch delivers reliable, straightforward Ethernet connectivity for industrial automation systems. Designed for simplicity and durability, it enables fast deployment of machine-level networks without configuration overhead. Its combination of copper and fiber interfaces makes it suitable for both short-range device communication and extended industrial network links.
Technical Specifications
Category
Specification
Product Series
Stratix 2000
Model
1783-US7T1H/B
Switch Type
Unmanaged Ethernet Switch
Port Configuration
7 × 10/100 Mbps RJ45 + 1 × 100 Mbps Fiber Port
Switching Method
Store-and-forward
Network Speed
Fast Ethernet (10/100 Mbps)
Protocol Support
Industrial Ethernet / EtherNet/IP compatible
Mounting Type
DIN Rail
Operating Concept
Plug-and-play, no configuration required
Diagnostic Features
Link/activity LED indicators
Dimensions
114.5 × 45.6 × 76.8 mm
Weight
1.22 kg
Recommended Related Models
Model
Product Name
1783-US4T1F/B
Stratix 2000 4-Port Unmanaged Switch with Fiber
1783-US8T/B
Stratix 2000 8-Port Unmanaged Ethernet Switch
1783-US6T2F/B
Stratix 2000 6-Port Unmanaged Switch with Dual Fiber
1783-US5T/B
Stratix 2000 5-Port Copper Unmanaged Switch
Popular Related Models
Model
Product Name
1783-BMS10CGL
Stratix 5700 Managed Ethernet Switch
1783-BMS06SL
Stratix 5700 Slim Managed Switch
1783-US7T1F
Stratix 2000 7T+1F Unmanaged Switch
1783-SFP1
Stratix Fiber Optic SFP Module
Applications
• Machine-level industrial Ethernet distribution
Used in OEM machinery where multiple control devices require simple and stable network connectivity without configuration complexity.
• Factory automation sub-networks
Supports local communication between PLCs, drives, sensors, and HMI panels within production cells.
• Industrial control cabinet networking
Deployed inside electrical enclosures for organized Ethernet signal distribution across automation components.
• Material handling systems
Provides reliable communication for conveyors, sorting systems, and logistics automation equipment.
• Process equipment integration
Suitable for energy, chemical, and utility systems requiring robust unmanaged switching.
• Retrofit and expansion of legacy systems
Commonly used to upgrade or extend existing unmanaged Ethernet infrastructure in industrial environments.
Key Advantages
• Plug-and-play unmanaged architecture
No configuration required, enabling immediate deployment in industrial environments.
• Mixed copper and fiber connectivity
Supports both standard Ethernet and fiber uplink for flexible network design.
• Compact industrial form factor
Optimized for DIN-rail mounting in space-constrained control cabinets.
• Stable Fast Ethernet performance
Ensures consistent 10/100 Mbps communication for industrial devices.
• Rugged industrial design
Built to withstand vibration, electrical noise, and temperature variations.
• Low-maintenance operation
Eliminates the need for network administration or software configuration.
Technical FAQs
1. Does the 1783-US7T1H/B require configuration before operation?
No, it is a fully unmanaged plug-and-play switch.
2. How many ports does this model support?
It typically provides 7 copper Ethernet ports and 1 fiber port.
3. Does it support VLAN or managed switching features?
No, VLAN and advanced management functions are not supported.
4. Is it suitable for EtherNet/IP communication?
Yes, it supports standard industrial Ethernet protocols including EtherNet/IP.
5. Can it be used in control cabinet installations?
Yes, it is designed for DIN-rail mounting in industrial enclosures.
6. Does it support redundancy protocols?
No, redundancy features are not included in unmanaged models.
7. What type of fiber connection does it use?
It uses a preinstalled 100 Mbps single-mode fiber interface.
8. Is it suitable for high-density industrial networks?
It is best suited for small to medium localized machine networks.
9. Does it provide diagnostic or monitoring features?
Only basic link/activity LED indicators are available.
10. Can it operate in harsh environments?
Yes, it is designed for industrial temperature and EMI resistance.
