Brand:Allen Bradley PLC Item No.:1794-CE1 Product Origin:USA Product Dimensions:Cable Length: 0.3 meter Product Weight:Shipping weight: 3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

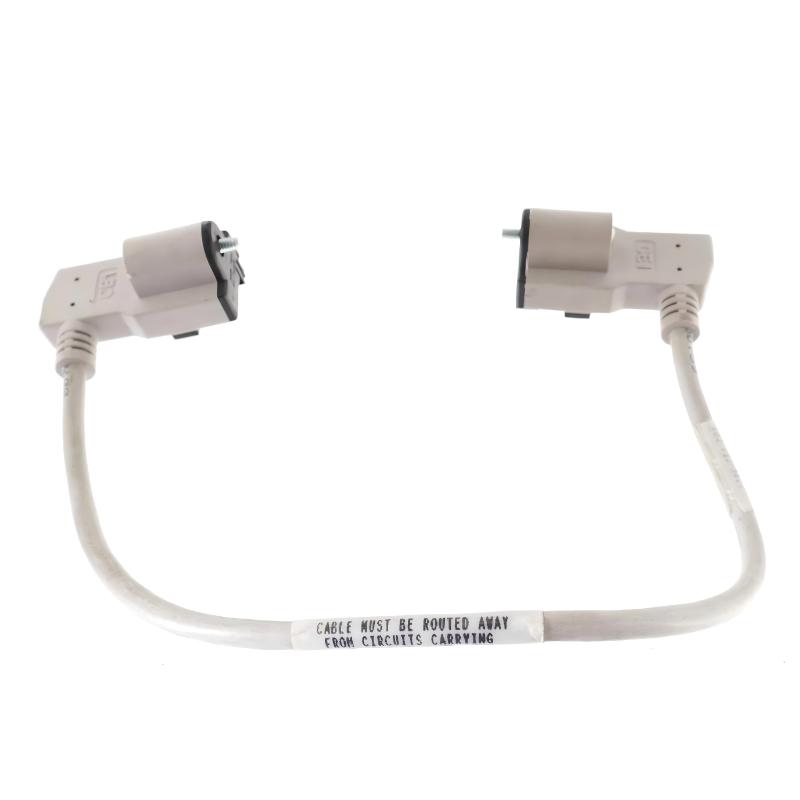

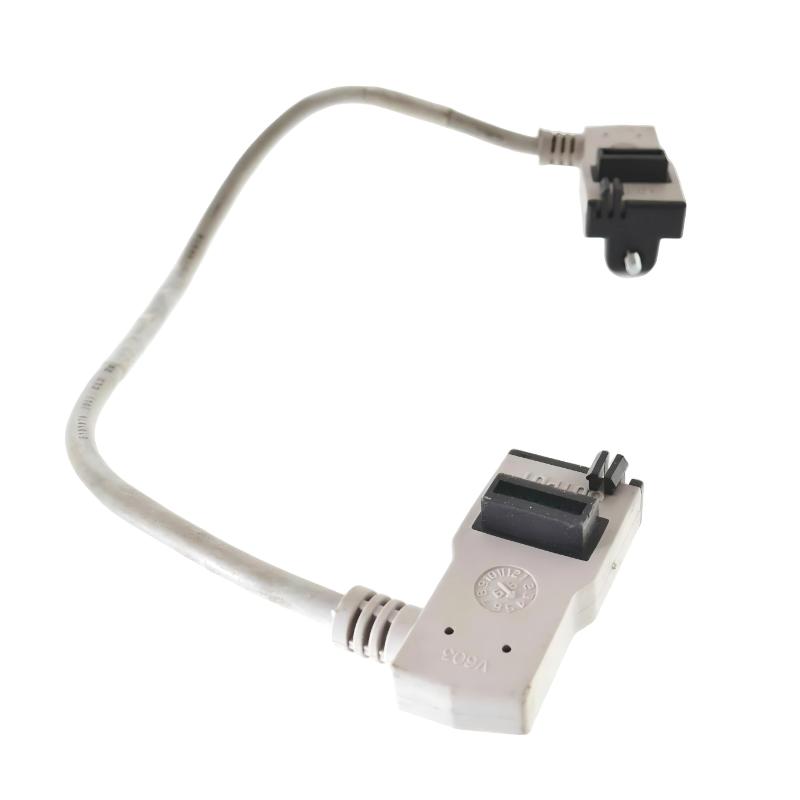

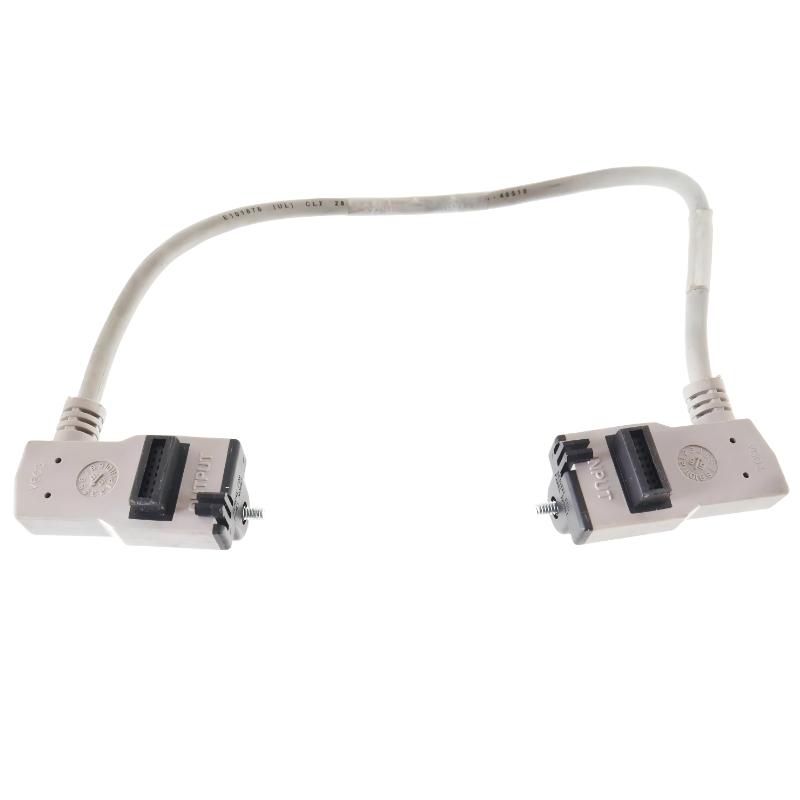

The Allen Bradley 1794-CE1 FLEX I/O Extension Line Cable is a dedicated interconnect solution designed for FLEX I/O systems requiring physical separation between modules. It enables reliable communication and power continuity between distributed I/O sections, allowing engineers to build more flexible and space-efficient control cabinet layouts without compromising system integrity.
Technical Specifications
Category
Specification
Product Series
FLEX I/O
Model
1794-CE1
Device Type
Extension / Interconnect Cable
Cable Length
0.3 m
Function
FLEX I/O system extension
Connection Type
Industrial FLEX I/O connector system
Application Use
Adapter-to-base or split-system connection
Installation Type
Plug-in interconnect cable
Operating Temperature
Industrial-rated range
Environmental Resistance
Vibration and EMI resistant design
Dimensions
0.3 m cable length (system-dependent form factor)
Weight
3 kg (shipping weight)
Recommended Related Models
Model
Product Name
1794-AENTR
FLEX I/O EtherNet/IP Dual-Port Adapter Module
1794-IB16
FLEX I/O 16-Point Digital Input Module
1794-OB16
FLEX I/O 16-Point Digital Output Module
1794-IE8
FLEX I/O Analog Input Module
Popular Related Models
Model
Product Name
1794-AENTRXT
FLEX I/O Extreme Environment EtherNet/IP Adapter
1794-ACN15
FLEX I/O ControlNet Adapter Module
1783-BMS10CGL
Stratix 5700 Managed Ethernet Switch
1756-EN2T
ControlLogix EtherNet/IP Communication Module
Applications
• FLEX I/O system physical expansion
Used to extend and interconnect FLEX I/O adapter assemblies when modules are mounted in split or multi-row cabinet layouts.
• Distributed control cabinet design
Enables separation of I/O groups across different DIN-rail sections while maintaining system continuity.
• Complex machine architecture wiring
Supports machine designs where I/O blocks must be positioned around mechanical or space constraints.
• Retrofit of existing FLEX I/O installations
Commonly used when expanding legacy FLEX I/O systems without redesigning the full backplane layout.
• Panel layout optimization
Allows engineers to improve cabinet organization by splitting I/O racks into more flexible physical arrangements.
• Industrial system maintenance support
Used as a replacement interconnect component during servicing or reconfiguration of FLEX I/O stations.
Key Advantages
• Reliable FLEX I/O interconnection
Ensures stable communication between FLEX I/O modules and adapters without signal degradation.
• Flexible cabinet layout design
Enables separation of I/O banks while maintaining system integrity.
• Simple installation structure
Designed for straightforward plug-in connection without complex setup.
• Industrial-grade durability
Built to withstand vibration and continuous operation in control cabinet environments.
• Space optimization capability
Helps engineers design more efficient and compact panel layouts.
• Stable signal transmission
Maintains consistent electrical performance across connected FLEX I/O segments.
Technical FAQs
1. What is the main function of the 1794-CE1 cable?
It is used to extend and interconnect FLEX I/O modules and adapters in a split system layout.
2. What is its length?
It is 0.3 meters long.
3. Can it be used between any FLEX I/O modules?
It is designed specifically for compatible FLEX I/O adapter and terminal base connections.
4. Does it require configuration in software?
No, it is a passive interconnect cable with no configuration required.
5. Can it be used for signal transmission?
Yes, it supports both power and communication signal continuity within the FLEX I/O system.
6. Is it suitable for harsh industrial environments?
Yes, it is designed for industrial cabinet use with vibration resistance.
7. Does it support hot swapping?
It is not a hot-swappable device and should be handled during system shutdown.
8. Can it be used to extend beyond 0.3 m?
No, it is a fixed-length cable and must be used as specified.
9. Is shielding included?
Yes, industrial shielding is typically integrated for noise resistance.
10. What is its main installation purpose?
To physically link separated FLEX I/O banks within a single system architecture.
