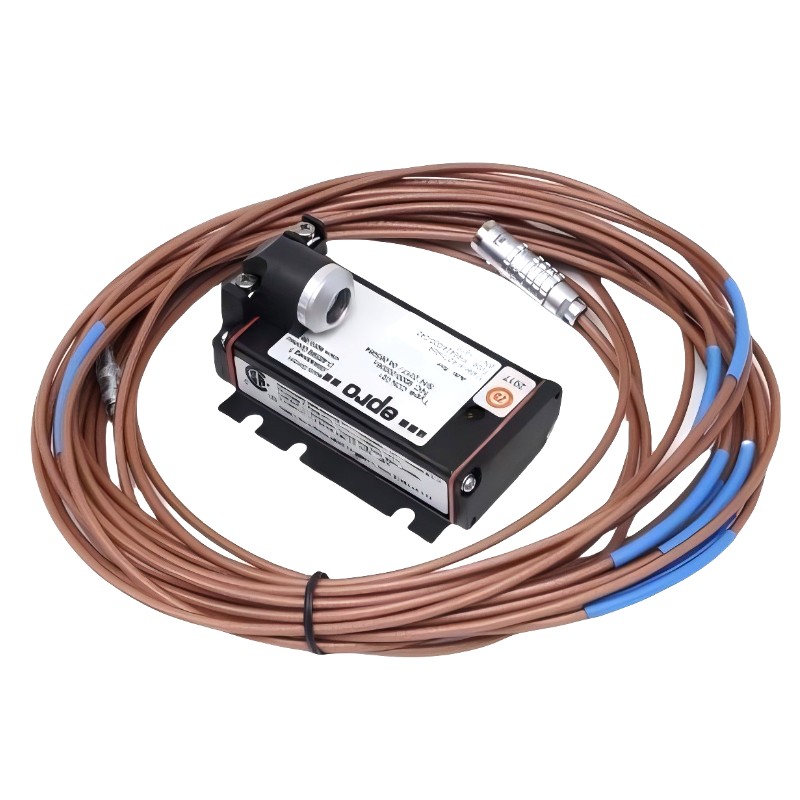

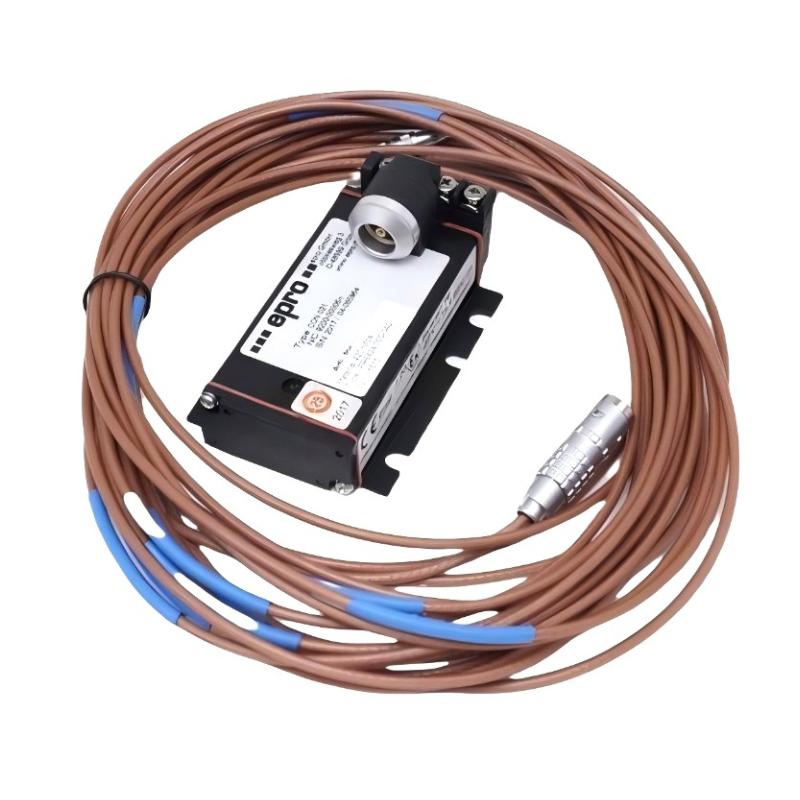

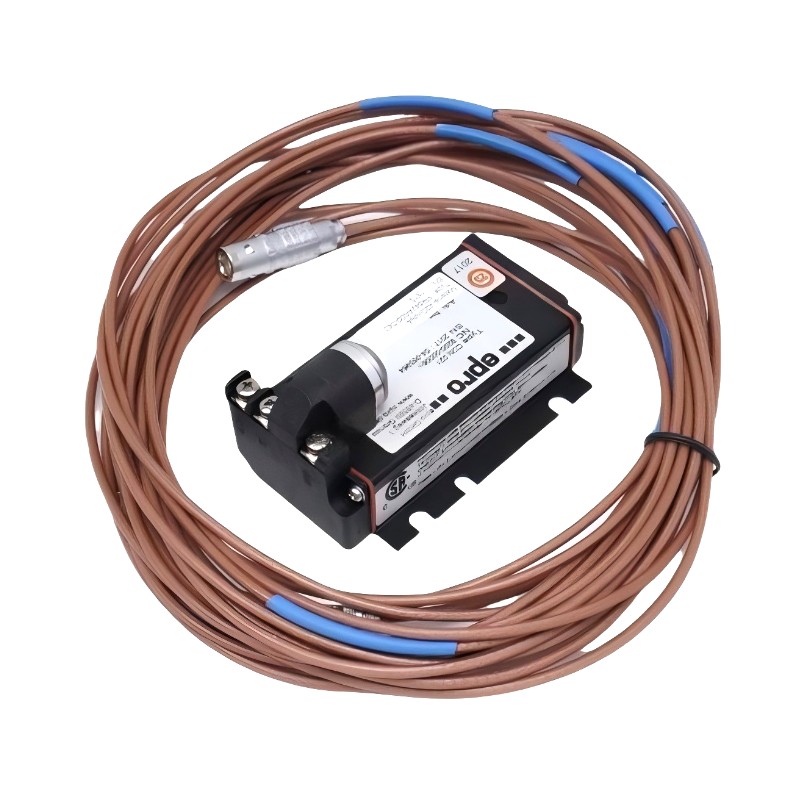

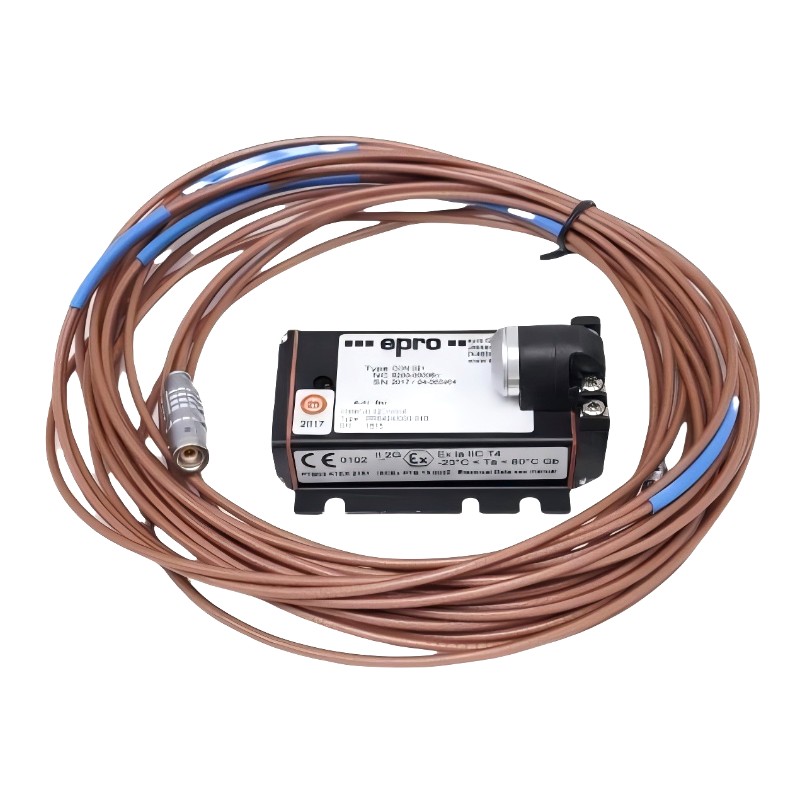

Epro PR6424/000-000+CON021 16 mm Eddy Current Sensor
Epro PR6424/000-000+CON021 16 mm Eddy Current Sensor
0.0
Points
Brand:Epro PLC Item No.:PR6424/000-000+CON021 Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.32 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Epro PR6424/000-000 + CON021 16 mm Eddy Current Sensor System is a high-precision non-contact measurement solution designed for critical rotating machinery. It delivers stable and accurate monitoring of shaft vibration and displacement, enabling early detection of mechanical faults and improving long-term equipment reliability. With rugged industrial construction and integrated signal conversion, it is widely used in power generation, oil & gas, and heavy industrial environments where continuous monitoring is essential.
Technical Specifications
Category
Specification
Product Series
EPRO PR6424 + CON021
Model
PR6424/000-000 + CON021
Sensor Type
Eddy Current Displacement Sensor System
Sensor Head Diameter
16 mm
Measurement Principle
Non-contact eddy current
Linear Measurement Range
±2.0 mm (static), ~0–1,000 μm (dynamic)
Nominal Air Gap
~2.7 mm
Sensitivity
4 V/mm ± 1.5%
Frequency Response
Up to ~10–20 kHz (system dependent)
Operating Temperature
-35 °C to +150~180 °C (system dependent)
Pressure Resistance
Up to ~10,000 hPa
Shock/Vibration
5 g @ 60 Hz
Target Material
Ferromagnetic steel (e.g., 42CrMo4)
Shaft Diameter Requirement
≥ 80 mm
Protection Class
IP65–IP67 (sensor dependent)
Connector Type
LEMO industrial connector
Weight
0.32 kg
Recommended Related Models
Model
Product Name
PR6424/001-030 + CON021
Epro 16 mm Eddy Current Sensor System
PR6424/010-100 + CON021
Epro High-Sensitivity 16 mm Sensor System
PR6424/000-100 + CON021
Epro 16 mm Standard Sensor System
PR6423/019-030 + CON021
Epro 8 mm Eddy Current Sensor System
Popular Related Models
Model
Product Name
PR6423/002-030 + CON021
Epro 8 mm Eddy Current Sensor System
PR6423/003-110 + CON021
Epro 8 mm Eddy Current Sensor System
MMS 6410
Epro Machinery Protection Module
CON021
Epro Signal Converter Module
Applications
• Turbomachinery shaft displacement monitoring
Used for precise non-contact measurement of shaft vibration, axial displacement, and eccentricity in turbines, compressors, and high-speed rotating equipment.
• Power generation condition monitoring systems
Applied in steam, gas, and hydro turbine units to ensure continuous protection and stable machine operation.
• Oil & gas rotating equipment monitoring
Widely used in compressors, pumps, and expansion turbines operating under harsh industrial conditions.
• Industrial predictive maintenance systems
Supports early fault detection including imbalance, misalignment, and bearing degradation.
• Heavy industrial process machinery
Used in refinery, steel, and chemical plants requiring continuous reliability monitoring of critical assets.
• Rotor dynamic analysis and engineering testing
Provides accurate non-contact vibration data for advanced machinery diagnostics.
Key Advantages
• 16 mm large-diameter probe design
Provides stable measurement performance for larger shaft and high-energy rotating equipment.
• Integrated PR6424 probe + CON021 converter system
Ensures consistent signal conditioning and standardized industrial output.
• High-precision non-contact measurement
Eddy current technology eliminates mechanical wear and ensures long-term stability.
• Strong performance in harsh environments
Designed for high temperature, vibration, and industrial contamination conditions.
• Wide frequency response capability
Supports real-time monitoring of dynamic shaft vibration behavior.
• API 670 compliant monitoring compatibility
Suitable for machinery protection and condition monitoring systems.
Technical FAQs
1. What does the PR6424/000-000 + CON021 system measure?
It measures shaft vibration, displacement, eccentricity, and position.
2. What is the sensing principle?
It uses eddy current non-contact displacement measurement technology.
3. What is the probe diameter?
The sensor head diameter is 16 mm.
4. What is the typical measurement range?
Typically ±2.0 mm static and up to 1,000 μm dynamic range depending on setup.
5. What type of machinery is it used for?
Turbines, compressors, pumps, and other rotating industrial machines.
6. Can it operate in high-temperature environments?
Yes, it is designed for up to around 150–180°C depending on configuration.
7. Does it require physical contact with the shaft?
No, it is a fully non-contact sensor system.
8. What is the role of CON021?
It converts probe signals into standardized output for monitoring systems.
9. Is it used in predictive maintenance systems?
Yes, it is widely used in condition monitoring applications.
10. Is it suitable for machinery protection systems?
Yes, it is commonly integrated into protection-grade monitoring systems.
