Introduction

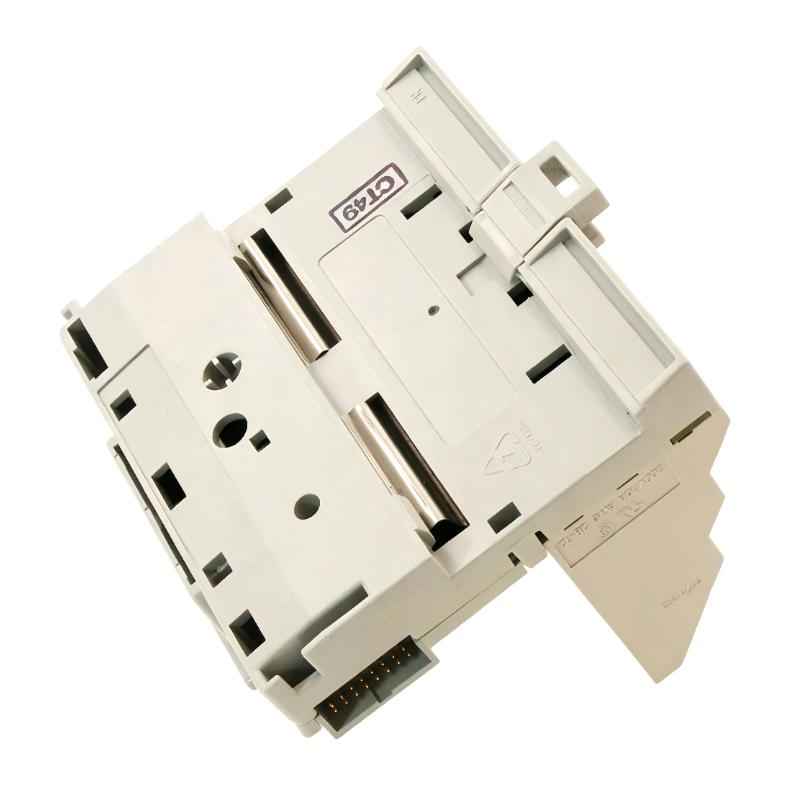

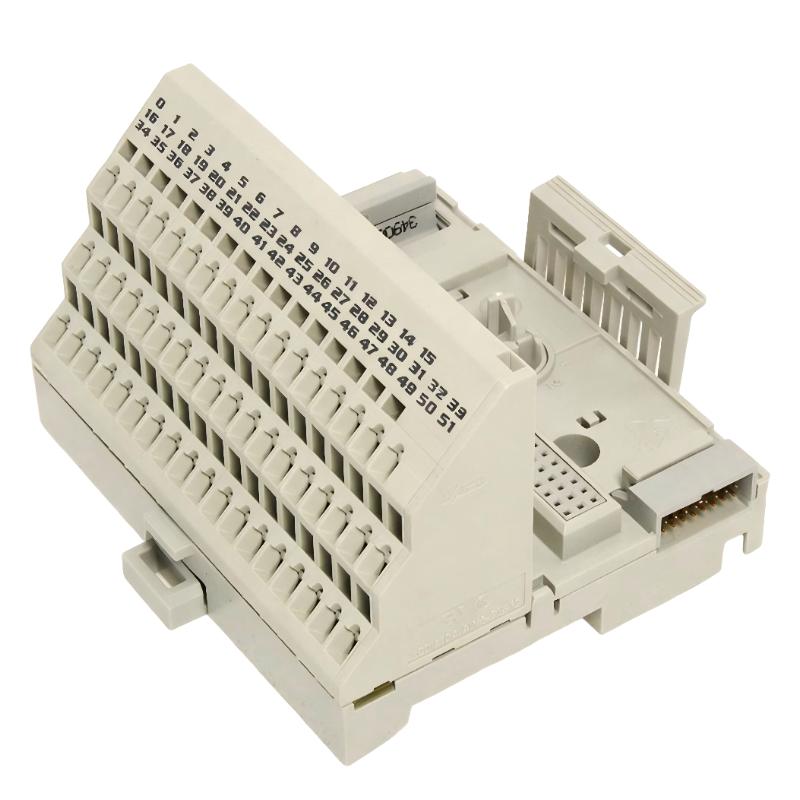

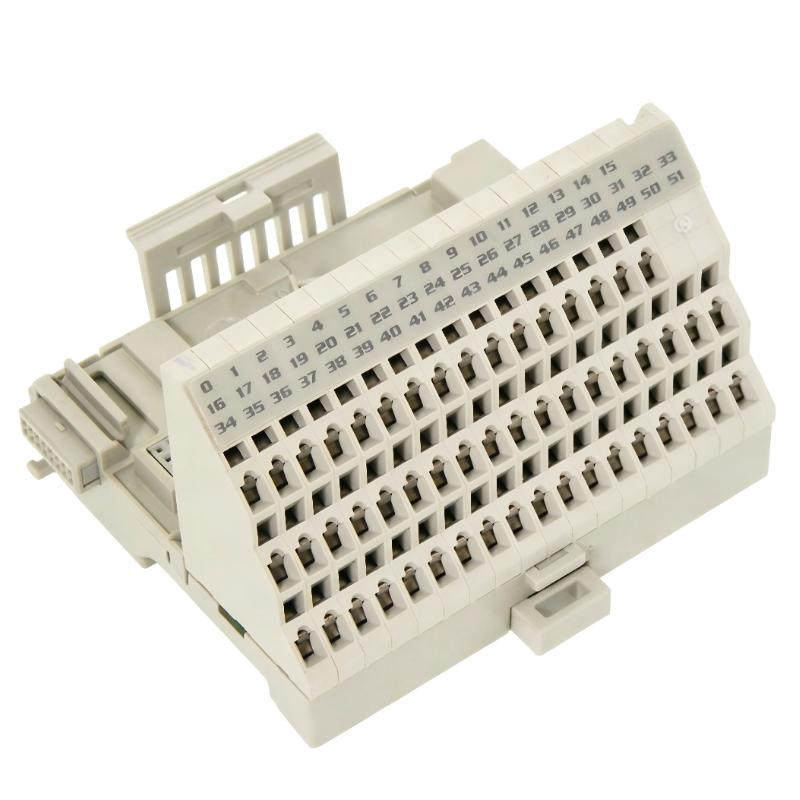

The Allen-Bradley 1794-TB3GS Flex I/O Terminal Base Unit is a key infrastructure component in modern industrial automation systems. It provides a structured and reliable interface for connecting field wiring to Flex I/O modules, enabling scalable and efficient system design.

Unlike active control devices such as VFDs, this module serves as a foundational connectivity layer, ensuring that signals from sensors, actuators, and controllers are properly terminated and distributed. Its spring-clamp design enhances installation speed and long-term reliability, especially in environments exposed to vibration and continuous operation.

When used within systems that include PowerFlex drives or PLC architectures, it plays a supporting but essential role in maintaining signal integrity and system organization.

Technical Specifications

Parameter	Specification
Product Model	1794-TB3GS
Product Type	Flex I/O Terminal Base Unit
Brand	Allen-Bradley
Function	Field wiring termination for Flex I/O modules
System Compatibility	Flex I/O, PLC, PowerFlex-related control systems
Termination Type	Spring-clamp
Signal Support	Analog and digital (module dependent)
Mounting	DIN rail / panel mount
Dimensions	234.6 × 171.7 × 179.8 mm
Weight	3.6 kg

Applications

The Allen-Bradley 1794-TB3GS is a Flex I/O terminal base unit designed to provide reliable field wiring connectivity for modular industrial control systems. Although it is often associated with broader automation architectures such as drive and PLC systems (including PowerFlex-based setups), its primary role is signal termination and distribution within control panels.

Typical applications include:

Industrial automation and machine control systems
Flex I/O distributed control architectures
PowerFlex 70 system integration environments
Motor control and drive interface panels
Process control and manufacturing automation
Remote I/O signal termination for PLC systems
Conveyor, pump, and fan control systems
Industrial data acquisition and control wiring hubs

Advantages

Spring-clamp termination ensures fast and vibration-resistant wiring connections
Compact modular design simplifies dense control panel layouts
High signal reliability with stable field wiring integrity
Supports flexible I/O expansion in industrial automation systems
Designed for harsh industrial environments with shock and vibration resistance
Reduces wiring complexity and installation time
Compatible with Allen-Bradley Flex I/O ecosystem
Improves maintenance efficiency with plug-in module architecture
Supports both analog and digital I/O configurations
Long service life under continuous industrial operation

Technical FAQs

What is the main function of the 1794-TB3GS?
It serves as a terminal base unit for Flex I/O modules, providing secure field wiring connections.
Is it a drive (VFD) or part of a drive system?
No, it is not a VFD; it is an I/O terminal base often used alongside PLCs and drive systems like PowerFlex 70.
What type of wiring technology does it use?
It uses spring-clamp termination for fast and vibration-resistant connections.
Can it be used in PowerFlex 70 applications?
Yes, it can be part of the control and I/O infrastructure used with PowerFlex 70 systems.
Does it support analog and digital signals?
Yes, depending on the installed Flex I/O modules.
Is it suitable for harsh environments?
Yes, it is designed for industrial vibration, shock, and temperature variation conditions.
Can modules be replaced without rewiring everything?
Yes, the modular design allows easier replacement and maintenance.
What is its role in automation systems?
It acts as the physical termination point for field wiring in distributed I/O systems.
Does it require special mounting hardware?
It is designed for standard DIN rail or panel mounting systems used in Flex I/O setups.
Why is it important in industrial control systems?
It ensures reliable, organized, and scalable field signal connections, which are critical for stable automation performance.
