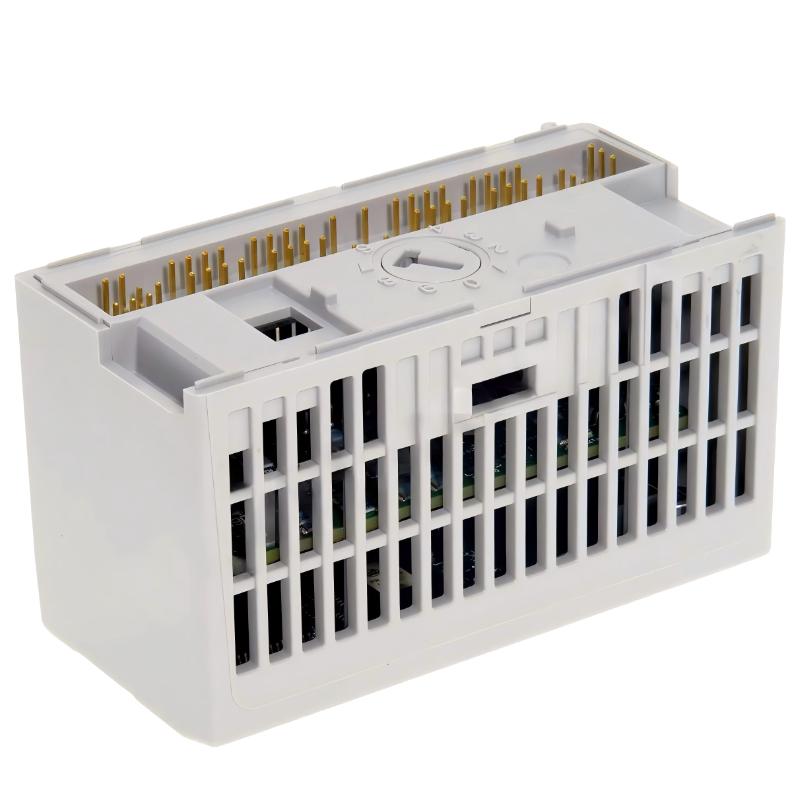

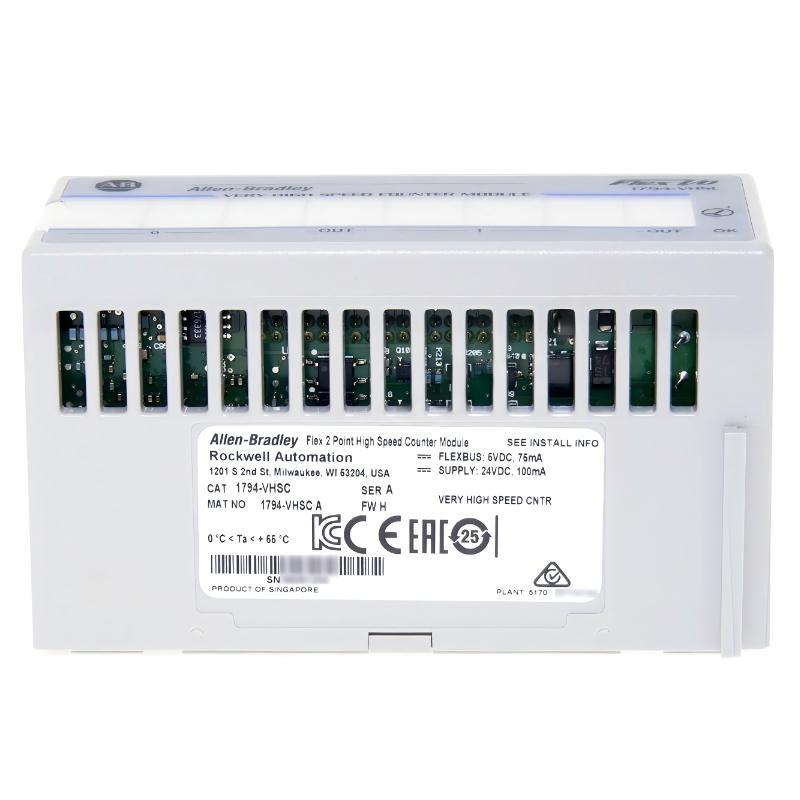

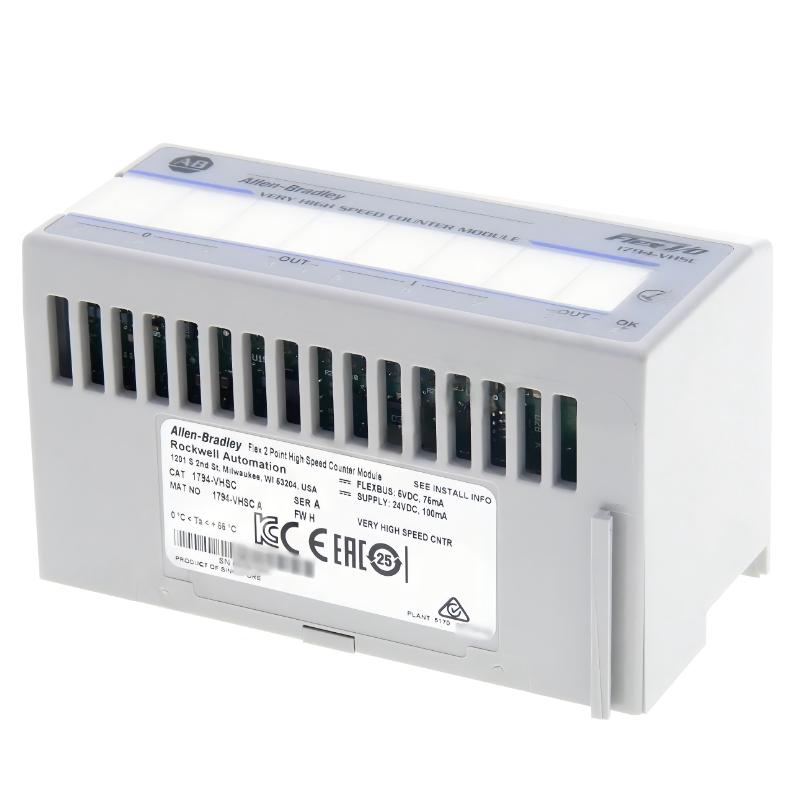

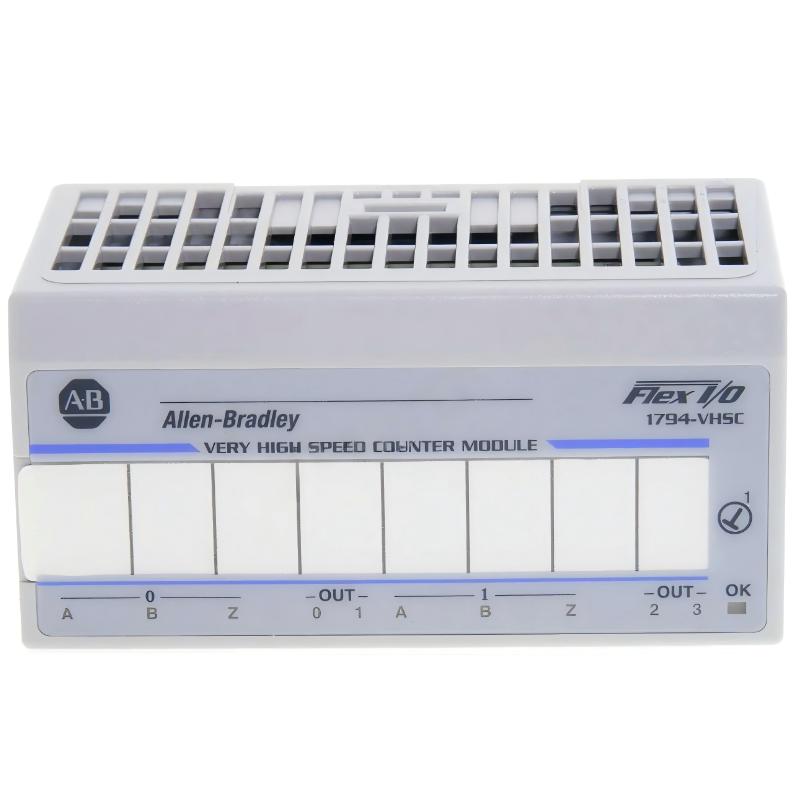

Allen Bradley 1794-VHSC Flex I/O Ultra-high Speed Counter Module
Allen Bradley 1794-VHSC Flex I/O Ultra-high Speed Counter Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1794-VHSC Product Origin:USA Product Dimensions:97 x 46 x 53 mm Product Weight:0.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 1794-VHSC Flex I/O Ultra-high Speed Counter Module is a high-performance industrial automation component designed for precise pulse counting and high-speed signal acquisition. It is especially suited for applications where accurate measurement of fast-moving mechanical systems is essential.
Integrated into the Flex I/O platform, it enables seamless communication with PLC systems while maintaining high-speed data integrity. Its compact design and robust industrial construction make it ideal for demanding environments such as packaging lines, robotics systems, and CNC machinery.
By delivering accurate real-time counting and motion tracking, the 1794-VHSC enhances system efficiency, synchronization, and overall production reliability.
Technical Specifications
Parameter
Specification
Product Model
1794-VHSC
Product Type
Ultra-high Speed Counter Module
Brand
Allen-Bradley
Function
High-speed pulse counting and frequency measurement
System Compatibility
Flex I/O distributed control systems
Input Type
Digital pulse / encoder signals
Performance
Ultra-high-speed counting capability
Mounting
DIN rail / Flex I/O base unit
Dimensions
97 × 46 × 53 mm
Weight
0.1 kg (0.22 lb)
Applications
The Allen-Bradley 1794-VHSC Flex I/O Ultra-high Speed Counter Module is designed for precise high-speed pulse counting in demanding industrial automation environments. It is widely used where fast signal capture and accurate motion tracking are required.
Typical applications include:
High-speed production line counting systems
Packaging and labeling machinery
Conveyor belt position and speed monitoring
Encoder-based motion control systems
Industrial robotics and automation cells
CNC and precision machining systems
Material handling and sorting systems
Flow measurement and pulse-based instrumentation
Advantages
Ultra-high-speed input processing for precise real-time counting
Reliable pulse detection even in high-noise industrial environments
Supports advanced motion and position tracking applications
Compact Flex I/O design saves panel space
High accuracy for encoder and sensor-based systems
Flexible integration with PLC-based automation systems
Reduces signal loss at high switching frequencies
Industrial-grade durability for continuous operation
Improves machine synchronization and process efficiency
Easy module replacement within Flex I/O architecture
Technical FAQs
1. What is the main function of the 1794-VHSC?
It performs ultra-high-speed counting of digital pulses from sensors and encoders.
2. What types of signals does it handle?
It processes high-frequency digital pulse signals from encoders, switches, and sensors.
3. Is it suitable for motion control systems?
Yes, it is commonly used in motion tracking and position control applications.
4. Can it be used in high-noise environments?
Yes, it is designed for industrial environments with strong electromagnetic interference.
5. Does it support encoder inputs?
Yes, it is widely used with rotary and linear encoders.
6. What industries use this module most?
Manufacturing, packaging, robotics, CNC machining, and material handling industries.
7. Is it compatible with other Flex I/O modules?
Yes, it integrates fully within the Allen-Bradley Flex I/O system.
8. Can it measure speed as well as count pulses?
Yes, it can be configured for frequency and speed measurement applications.
9. Does it require special configuration?
Yes, parameters must be set via PLC or control system configuration tools.
10. Why is ultra-high-speed counting important?
It ensures accurate real-time tracking of fast-moving mechanical systems without signal loss.
