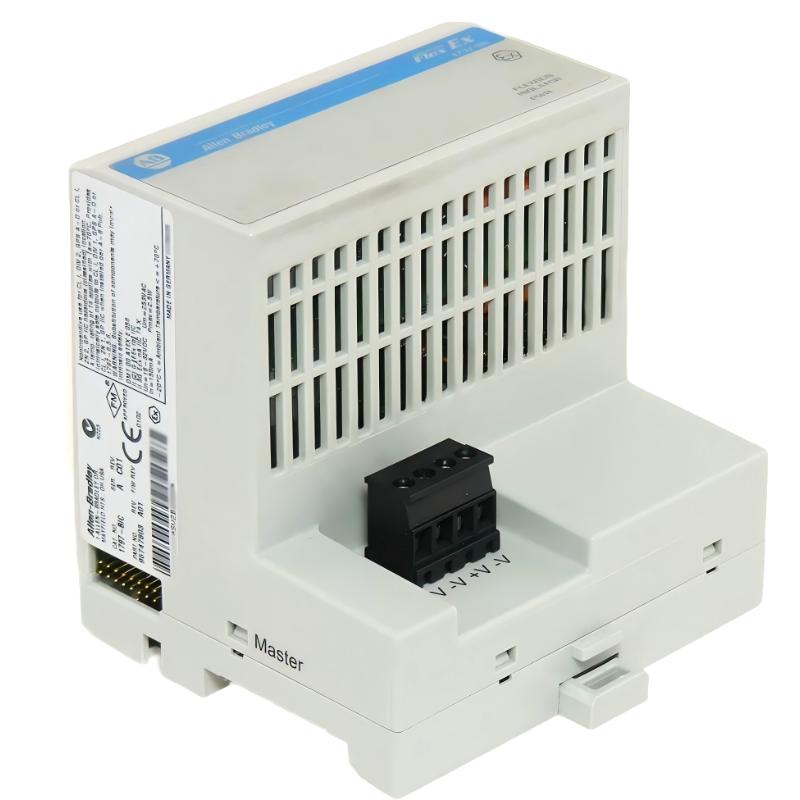

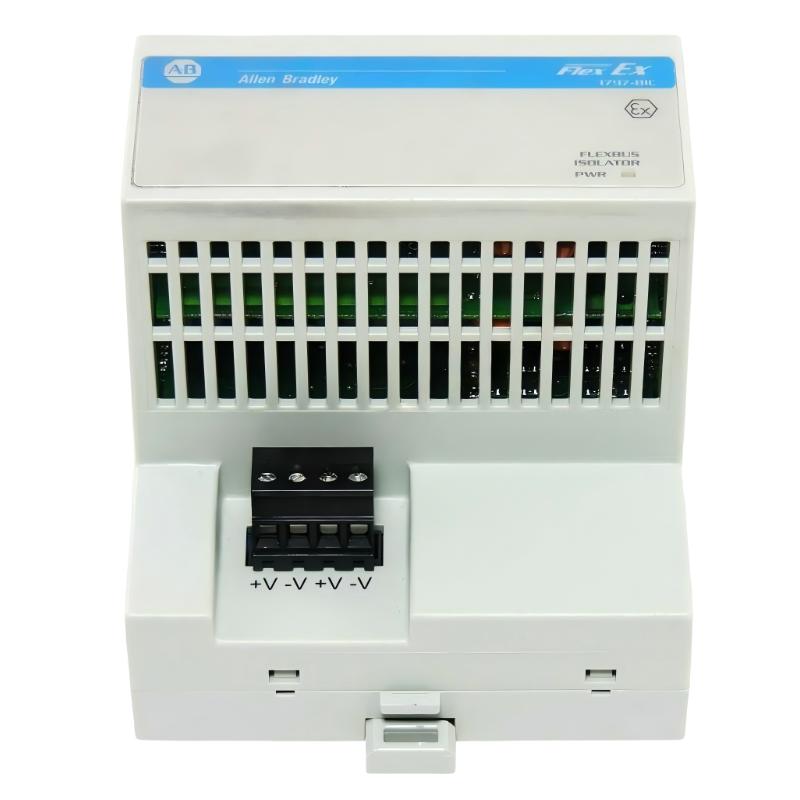

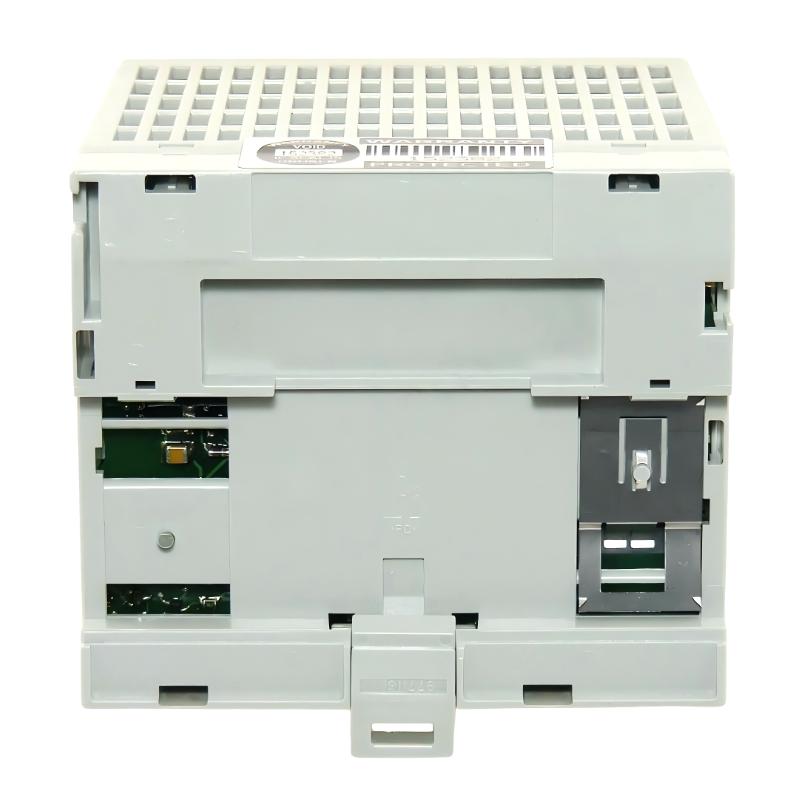

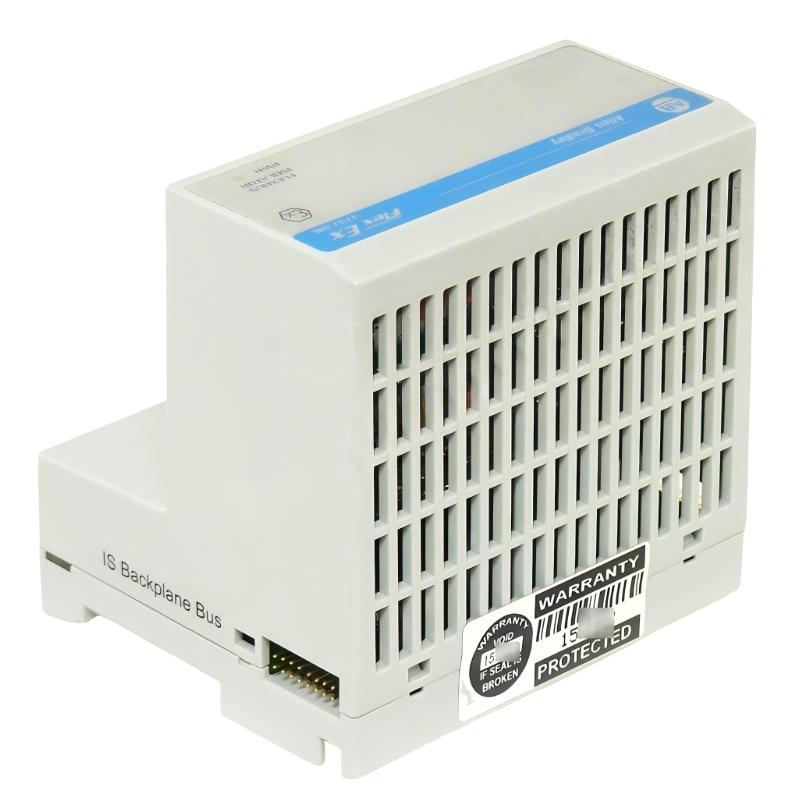

Allen Bradley 1797-BIC Flex Ex I/O Bus Isolator Module

Industrial Applications

The Allen-Bradley 1797-BIC Flex Ex I/O Bus Isolator Module is engineered to provide electrical isolation between intrinsically safe Flex Ex I/O segments and standard industrial control systems. It plays a crucial role in maintaining safe communication and power separation in hazardous process automation environments.

Common applications include:

• Oil & gas production and refining systems
• Hazardous-area distributed I/O installations
• Petrochemical processing plants
• Offshore drilling and platform automation
• Intrinsically safe process control systems
• Chemical manufacturing facilities
• Turbine monitoring and control systems
• Explosion-proof industrial automation networks

Key Benefits

• Provides reliable isolation between hazardous and safe-area I/O networks
• Enhances operational safety in explosive industrial environments
• Minimizes electrical interference and signal disturbances
• Supports stable communication within Flex Ex architectures
• Compact housing simplifies cabinet integration
• Rugged industrial construction for continuous-duty applications
• Improves overall system reliability and fault containment
• Compatible with Allen-Bradley Flex Ex distributed I/O systems
• Supports scalable hazardous-area automation designs
• Reduces risk of fault propagation between network segments

Technical FAQs

1. What is the primary purpose of the 1797-BIC module?

It isolates intrinsically safe Flex Ex I/O segments from standard industrial control systems.

2. Why is isolation important in hazardous environments?

Isolation prevents unsafe electrical energy from reaching explosive atmospheres.

3. Is the 1797-BIC used with standard Flex I/O systems?

It is specifically intended for Flex Ex intrinsically safe I/O architectures.

4. Can this module improve system reliability?

Yes, it helps reduce electrical disturbances and fault propagation.

5. Does the module support hazardous-area applications?

Yes, it is designed for Ex-rated industrial environments.

6. What industries commonly use this isolator module?

Oil & gas, petrochemical, chemical processing, and energy sectors.

7. Is special configuration required during installation?

Configuration depends on the connected Flex Ex network architecture and system requirements.

8. Can it be mounted on DIN rail systems?

Yes, it is designed for standard industrial DIN rail installation.

9. Does it affect communication performance?

It is designed to maintain stable and reliable communication across isolated segments.

10. Why is bus isolation critical in process automation?

It enhances safety, protects equipment, and maintains network integrity in hazardous operations.
