Introduction

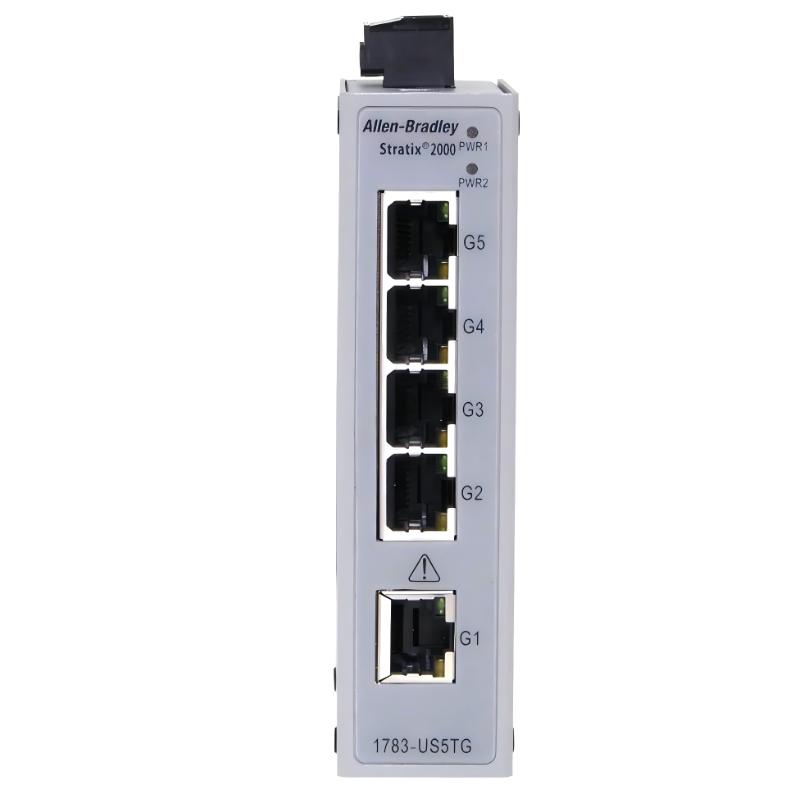

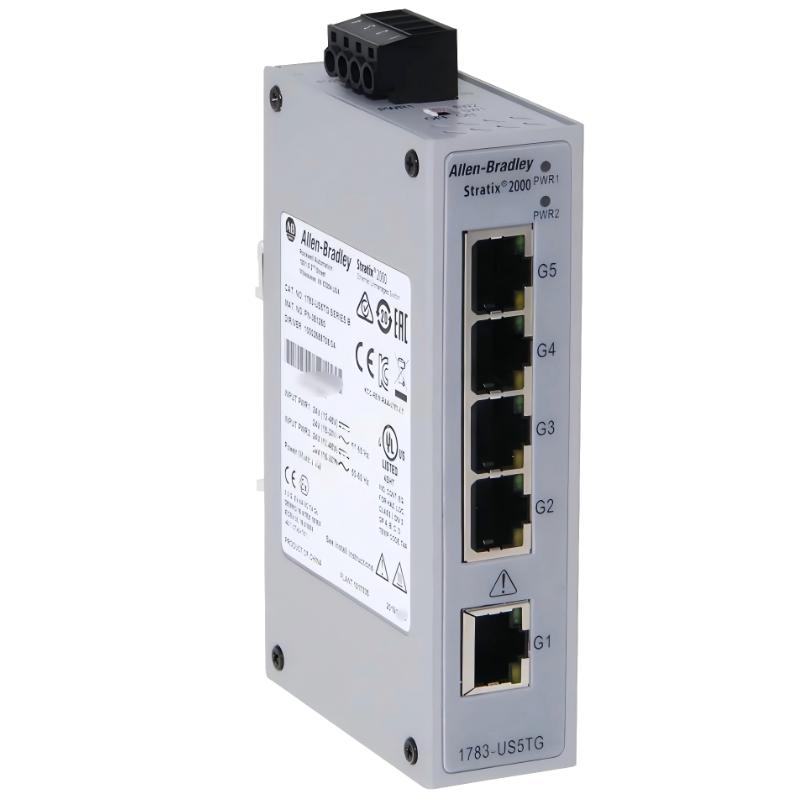

The Allen-Bradley 1783-US5TG/B Stratix 2000 Unmanaged Ethernet Switch is designed to deliver dependable and straightforward Ethernet connectivity in industrial environments where simplicity and reliability are critical. As part of Rockwell Automation’s Stratix family, it focuses on providing stable network performance without requiring configuration or advanced network management skills.

Technical Specifications

Parameter	Details
Product Model	1783-US5TG/B
Series	Stratix 2000
Type	Unmanaged Ethernet Switch
Ports	5 × Gigabit Ethernet
Speed	10/100/1000 Mbps Auto-Negotiation

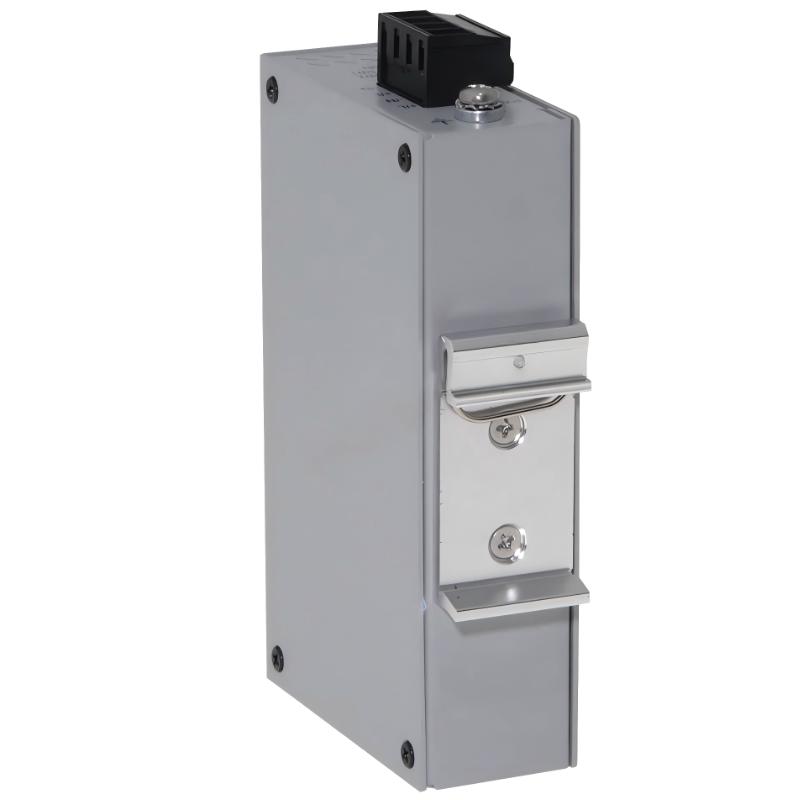

Mounting	DIN Rail
Housing	Industrial metal enclosure
Power Input	24V DC Industrial Supply
Dimensions	110 mm × 45 mm × 105 mm
Weight	0.35 kg

Recommended Related Models

Model	Product Name
1783-US5T	Stratix 2000 5-Port Unmanaged Ethernet Switch
1783-US8T	Stratix 2000 8-Port Unmanaged Industrial Switch
1783-US5TG	Stratix 2000 Gigabit 5-Port Unmanaged Switch
1783-US8TG	Stratix 2000 Gigabit 8-Port Unmanaged Switch

Popular Related Models

Model	Product Name
1783-EMS08T	Stratix 5700 Managed Ethernet Switch 8-Port
1783-BMS06T	Stratix 5700 Basic Managed Switch 6-Port
1783-ETAP	Stratix Ethernet TAP Module for Industrial Monitoring
1783-NS5T	Stratix 2000 Compact 5-Port Network Switch

Applications

• Factory automation networks requiring simple plug-and-play Ethernet expansion

• Machine-level communication between PLCs, HMIs, and distributed I/O systems

• Conveyor, packaging, and assembly line control environments

• Utility infrastructure and substation communication networks

• OEM equipment integration where minimal setup is required

• Industrial edge connectivity in control cabinets

• Production line segmentation without managed switching complexity

Key Advantages

• True plug-and-play operation with no configuration required

• Industrial-grade rugged design for vibration and electrical noise resistance

• Gigabit Ethernet support for high-speed deterministic communication

• Compact footprint optimized for dense control panel installation

• Reliable long-term operation in continuous-duty industrial environments

• Seamless integration within Rockwell Automation architecture

• Cost-effective networking solution for device-level connectivity

Technical FAQs

1. Does this switch require software configuration?
No, it is fully unmanaged and operates immediately after installation.

2. What Ethernet speeds are supported?
It supports 10/100/1000 Mbps auto-negotiation on all ports.

3. Can it operate in electrically noisy environments?
Yes, it is designed for industrial EMI-resistant environments.

4. Does it support VLAN segmentation?
No, VLAN and Layer 3 features are not supported.

5. Is DIN rail mounting supported?
Yes, it is designed for standard DIN rail installation.

6. Can it be used in SCADA systems?
Yes, it is widely used at the device and edge communication layer.

7. Does it support PoE functionality?
No, this model does not support Power over Ethernet.

8. What devices can connect to it?
PLCs, HMIs, drives, sensors, and industrial controllers.

9. Is redundant power supported?
It supports industrial DC input; redundancy depends on system design.

10. Is it suitable for continuous operation?
Yes, it is engineered for 24/7 industrial duty cycles.
