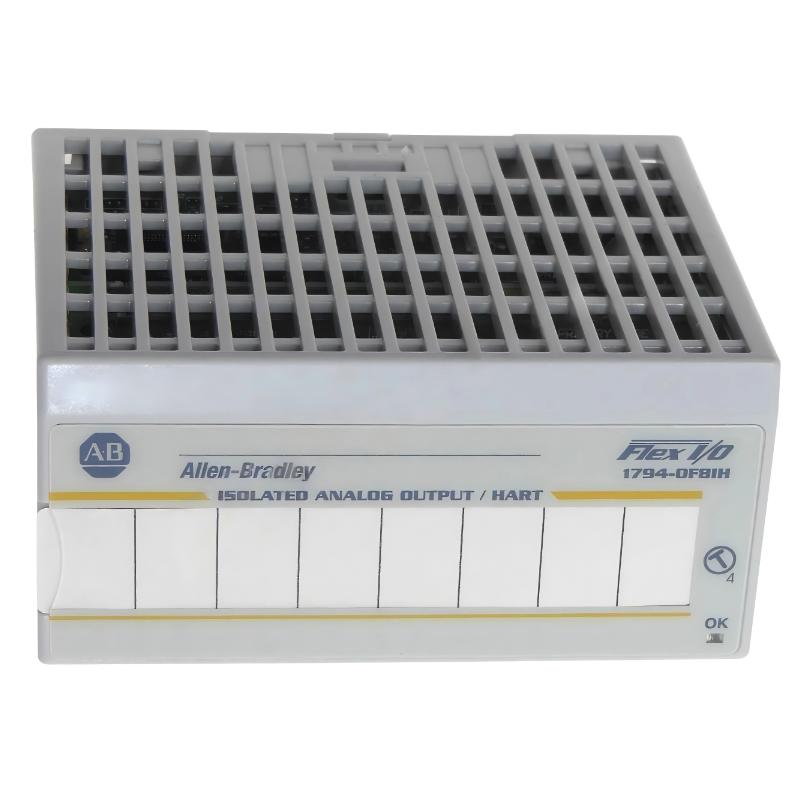

The Allen-Bradley 1794-OF8IH Flex I/O HART Analog Output Module delivers reliable, high-precision analog output for demanding industrial applications. Its HART capability allows direct communication with smart field devices, simplifying diagnostics and configuration. Compact and durable, it integrates effortlessly into Flex I/O systems, ensuring smooth operation and scalable deployment in process automation environments.

Technical Specifications

Parameter	Specification
Dimensions (L × W × H)	94 × 46 × 75 mm
Weight	0.1 kg (0.22 lb)
Channels	8 analog output channels
Output Signal	4–20 mA with HART communication
Operating Temperature	0°C to 60°C
Power Supply	24 VDC ±10%
Protection	Electrical noise filtering and isolation

Applications

The Allen-Bradley 1794-OF8IH Flex I/O HART module is ideal for process control systems requiring precise analog output management. It excels in applications such as chemical processing, water treatment, oil and gas, and industrial automation where accurate control signals and seamless integration with HART-enabled devices are critical. The module’s flexible configuration allows it to be deployed in both centralized and distributed control architectures.

Advantages

Precise Analog Output: Offers high-resolution analog signal control for critical process applications.
HART Compatibility: Enables communication with HART-enabled field devices for diagnostics and configuration.
Compact Footprint: Small size allows easy integration into Flex I/O racks without occupying excessive space.
Robust Performance: Designed to withstand industrial electrical noise and environmental fluctuations.
Easy Integration: Compatible with Rockwell Automation control systems for plug-and-play functionality.

Technical FAQs

Q: What type of signals does this module output?
A: Supports 4–20 mA analog output with HART communication protocol.
Q: How many channels does the module provide?
A: The 1794-OF8IH provides 8 analog output channels.
Q: Can it be mounted in a standard Flex I/O rack?
A: Yes, it is fully compatible with all Flex I/O mounting configurations.
Q: Is the module hot-swappable?
A: Yes, it supports hot-swapping without disrupting other I/O modules.
Q: How does it handle electrical interference?
A: Built-in filtering and isolation protect signals from electrical noise.
Q: What is the operating temperature range?
A: 0°C to 60°C, suitable for most industrial environments.
Q: Can HART diagnostics be accessed remotely?
A: Yes, the module supports remote diagnostics via the control system software.
Q: How is calibration performed?
A: Calibration is software-assisted and can be performed without removing the module.
Q: What is the module’s protection rating?
A: It is designed for industrial environments with surge protection and robust insulation.
Q: Can it integrate with legacy Allen-Bradley I/O systems?
A: Yes, it maintains backward compatibility with existing Flex I/O setups.
