Brand:Allen Bradley PLC Item No.:1797-PS1N Product Origin:USA Product Dimensions:174 x 174 x 140 mm Product Weight:7.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

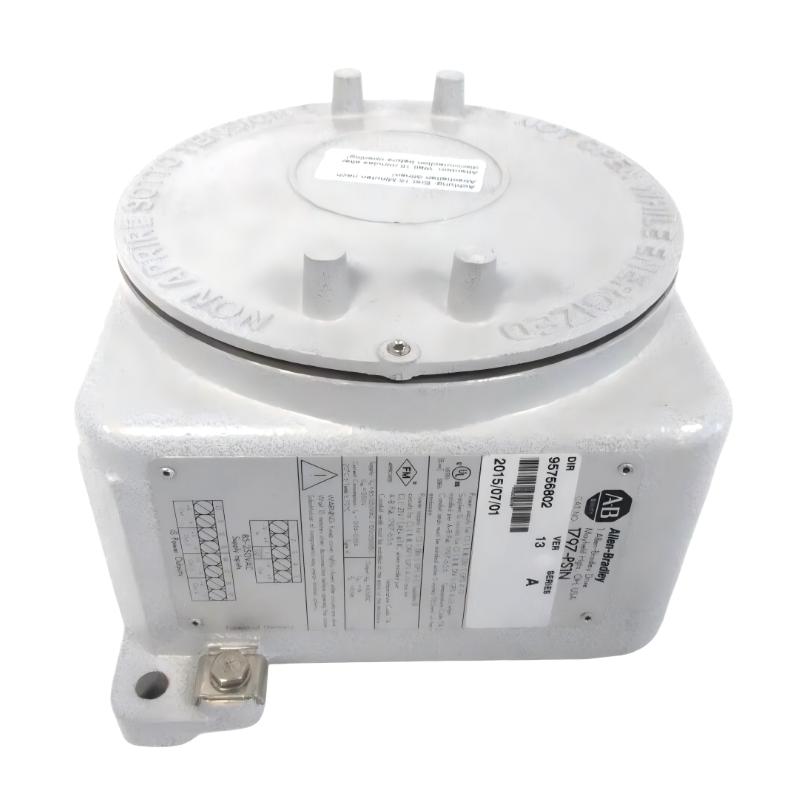

The Allen-Bradley 1797-PS1N FlexEx Power Supply is a high-performance, industrial-grade solution designed to provide reliable DC power to distributed FlexEx I/O systems. Combining safety, efficiency, and durability, it ensures uninterrupted operation for large-scale industrial automation setups. Its compact design and robust protection features make it an ideal choice for engineers seeking dependable power delivery in complex control systems.
Technical Specifications
Parameter
Specification
Dimensions (L × W × H)
174 × 174 × 140 mm
Weight
7.3 kg (16.09 lb)
Output Voltage
24 VDC
Maximum Output Current
20 A
Operating Temperature
0°C to 60°C
Mounting
DIN Rail or Panel Mount
Protection Features
Overload, Overvoltage, Short-Circuit
Compatibility
Allen-Bradley FlexEx & Flex I/O Modules
Applications
The Allen-Bradley 1797-PS1N FlexEx Power Supply is specifically designed for demanding industrial automation environments. It provides stable and reliable power to distributed FlexEx I/O systems, making it ideal for large-scale manufacturing operations, process control, packaging systems, and high-availability production lines. Its robust design ensures seamless power delivery even in harsh industrial conditions, including areas with high electrical noise or temperature fluctuations.
Advantages
High Reliability: Delivers consistent and stable DC output to distributed control modules.
Flexible Integration: Supports a wide range of FlexEx I/O modules and system configurations.
Overload & Short-Circuit Protection: Built-in safety mechanisms protect both the power supply and connected modules.
Efficient Thermal Management: Designed to maintain optimal performance in elevated temperatures.
Compact & Modular: Optimized footprint for control cabinets while allowing easy expansion.
Industrial Durability: Designed for harsh conditions with high resistance to electrical noise and vibration.
Technical FAQs
Q: What is the output voltage of the 1797-PS1N? A: Provides 24 VDC regulated output to support FlexEx I/O modules.
Q: What is the maximum current output? A: Delivers up to 20 A of continuous current.
Q: Can this power supply operate in hot environments? A: Yes, it is rated for operation between 0°C and 60°C.
Q: Does it include overload protection? A: Yes, it has built-in overload, overvoltage, and short-circuit protection.
Q: Is the module compatible with legacy Flex I/O systems? A: Fully compatible with FlexEx and Flex I/O modules.
Q: Can the power supply be monitored remotely? A: Yes, status indicators allow monitoring of power and fault conditions.
Q: What type of mounting is supported? A: Supports standard DIN rail or panel mounting in industrial control cabinets.
Q: Is the power supply hot-swappable? A: No, it is designed for static installation in fixed racks.
Q: How is thermal management handled? A: Integrated heat sinks and ventilation allow safe operation in high ambient temperatures.
Q: Can multiple power supplies be used in parallel? A: Yes, for higher capacity, multiple units can be combined according to the manufacturer’s guidelines.
