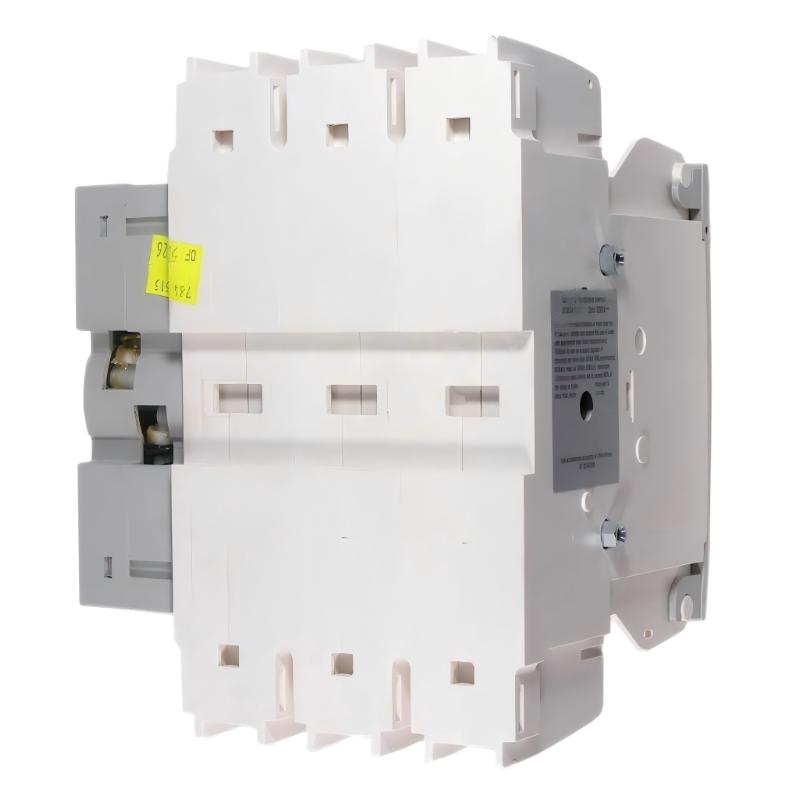

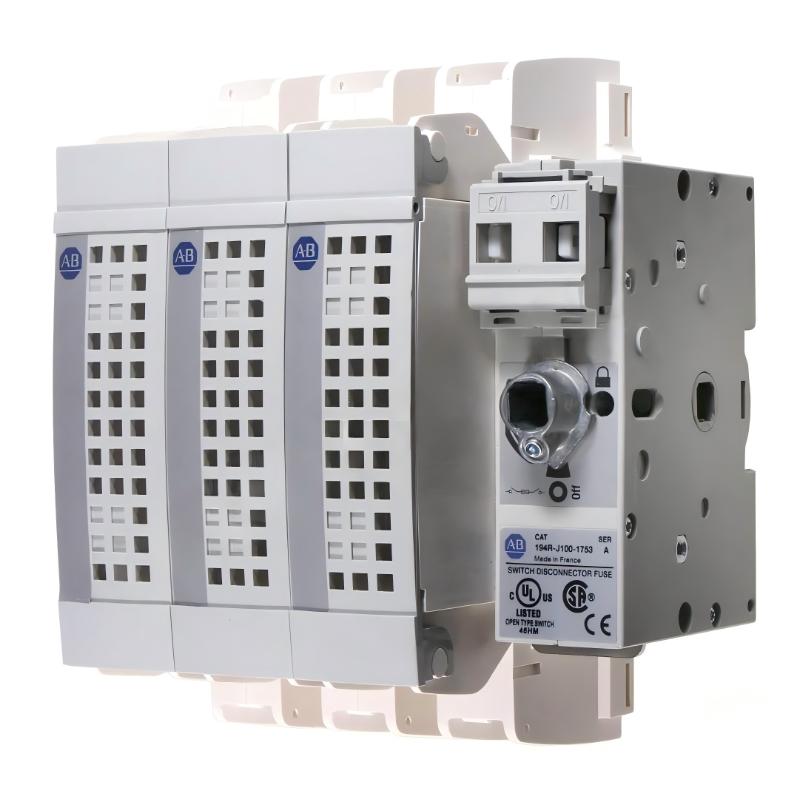

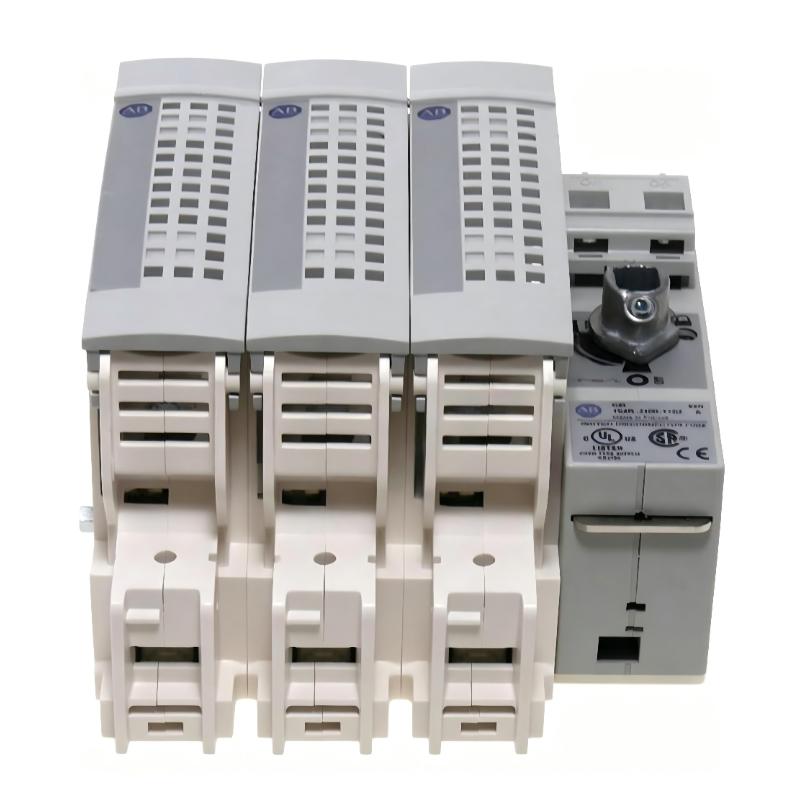

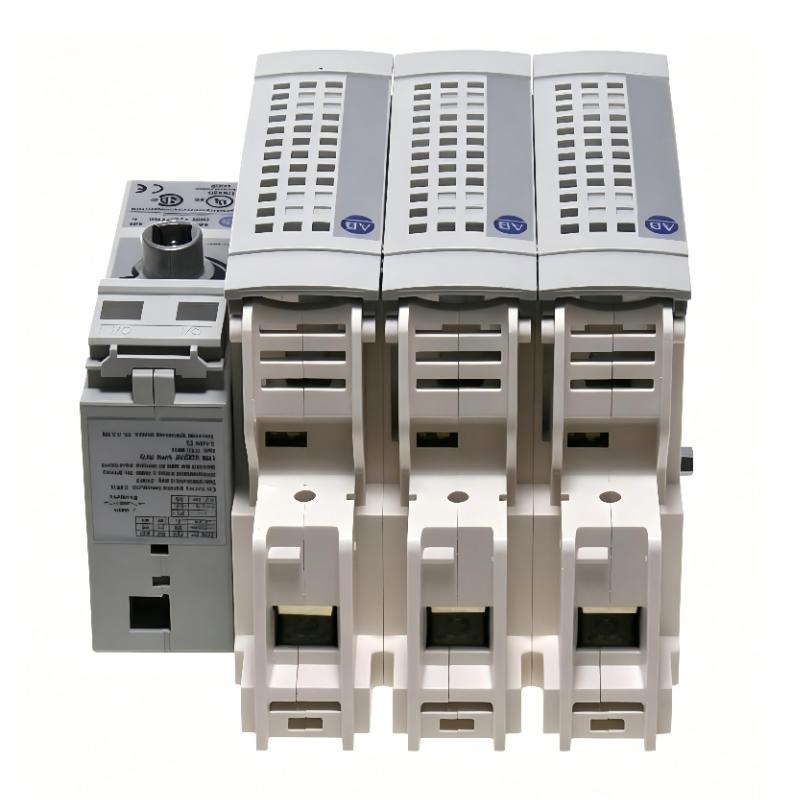

Allen Bradley 194R-J100-1753 Isolating Rotary Switch
Allen Bradley 194R-J100-1753 Isolating Rotary Switch
0.0
Points
Brand:Allen Bradley PLC Item No.:194R-J100-1753 Product Origin:USA Product Dimensions:610 x 152 x 406 mm Product Weight:2.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 194R-J100-1753 Isolating Rotary Switch offers a reliable and safe method to disconnect electrical circuits in industrial applications. Its robust construction, high current handling capability, and clear ON/OFF visibility make it a critical component for power distribution and maintenance safety systems. Designed for long-term reliability, this switch simplifies operational control while ensuring the highest standards of industrial safety.
Technical Specifications
Parameter
Specification
Dimensions (L × W × H)
610 × 152 × 406 mm
Weight
2.4 kg (5.29 lb)
Rated Voltage
Up to 600 VAC
Rated Current
100 A
Mounting
Panel / Control Cabinet / Switchgear
Operating Temperature
0°C to 60°C
Actuator Type
Rotary Handle
Safety Features
Visible ON/OFF, Padlockable Options
Certifications
UL, IEC, Industrial Safety Standards
Applications
The Allen-Bradley 194R-J100-1753 Isolating Rotary Switch is designed for industrial control systems where safe isolation of electrical circuits is critical. It is ideal for applications such as motor control centers, power distribution panels, manufacturing plants, and maintenance safety systems. This switch provides a reliable and highly visible means to disconnect electrical circuits, enabling secure operation during service, troubleshooting, or system modifications.
Advantages
High Safety Performance: Provides clear isolation and secure operation to protect personnel and equipment.
Large Operational Capacity: Handles high current ratings suitable for heavy-duty industrial environments.
Durable Construction: Built with robust materials to withstand harsh industrial conditions.
Visible ON/OFF Indication: Rotational position clearly shows whether the circuit is engaged or isolated.
Flexible Mounting: Can be installed in panels, control cabinets, or switchgear assemblies.
Low Maintenance: Designed for long service life with minimal maintenance requirements.
Technical FAQs
Q: What is the rated voltage for this rotary switch? A: The 194R-J100-1753 is rated for up to 600 VAC, suitable for industrial applications.
Q: How much current can the switch handle? A: Designed for a maximum current of 100 A.
Q: Is the switch suitable for panel mounting? A: Yes, it can be securely installed in panels, control cabinets, or switchgear.
Q: Does it provide visible ON/OFF indication? A: Yes, the rotary position clearly indicates whether the circuit is energized or isolated.
Q: Can the switch be operated under load? A: Yes, it is rated for load switching in accordance with industrial safety standards.
Q: What type of actuator does it use? A: Features a rotary handle for precise manual operation.
Q: Is the switch suitable for outdoor installations? A: It is primarily designed for indoor industrial environments; outdoor use requires protective enclosures.
Q: Does it meet industrial safety certifications? A: Yes, it complies with UL, IEC, and other standard industrial safety certifications.
Q: Can the switch be locked for safety? A: Yes, it supports padlock or interlock options for maintenance safety.
Q: How long is the expected service life? A: Rated for tens of thousands of operational cycles under normal industrial conditions.
