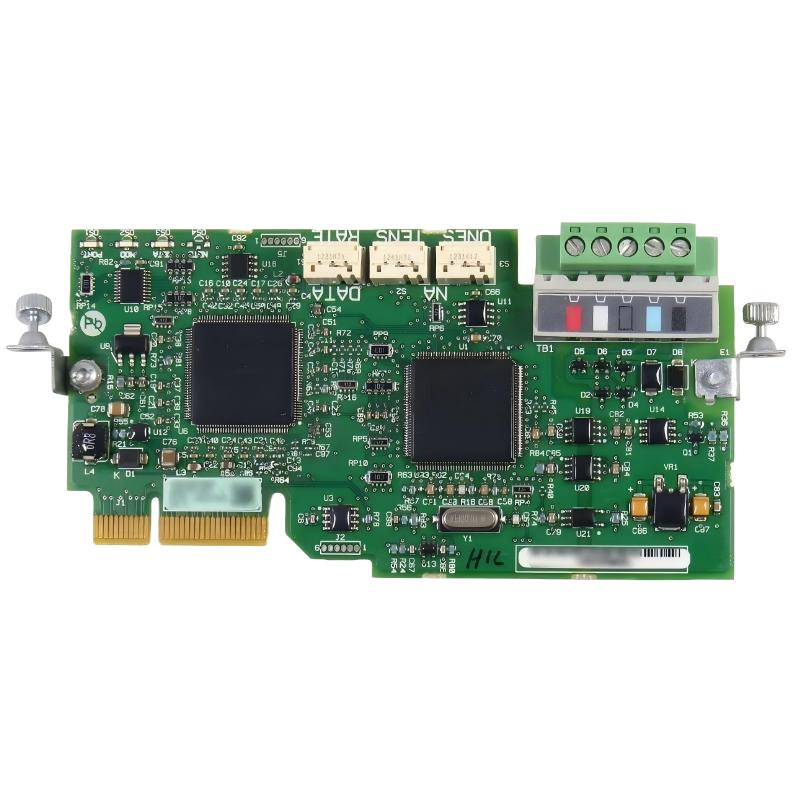

Allen Bradley 20-750-DNET PowerFlex 750 DeviceNet Option Card
Allen Bradley 20-750-DNET PowerFlex 750 DeviceNet Option Card
0.0
Points
Brand:Allen Bradley PLC Item No.:20-750-DNET Product Origin:USA Product Dimensions:150 x 26 x 68 mm Product Weight:0.062 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 20-750-DNET PowerFlex 750 DeviceNet Option Card enhances the connectivity of PowerFlex 750 drives, providing a reliable and efficient interface to DeviceNet networks. Its compact design and robust functionality enable fast, real-time communication for monitoring, diagnostics, and precise control. This card simplifies networked drive integration while maintaining high operational reliability in industrial automation environments.
Technical Specifications
Parameter
Specification
Dimensions (L × W × H)
150 × 26 × 68 mm
Weight
0.062 kg (0.137 lb)
Communication Protocol
DeviceNet (CAN-based)
Compatible Drives
PowerFlex 750 Series
Operating Temperature
0°C to 55°C
Installation
Drive-mounted Option Card
Diagnostics
LED Indicators for Status & Communication
Configuration
RSNetWorx for DeviceNet
Applications
The Allen-Bradley 20-750-DNET PowerFlex 750 DeviceNet Option Card enables seamless DeviceNet communication for PowerFlex 750 drives, making it ideal for industrial automation and motion control applications. It is commonly used in manufacturing lines, material handling systems, conveyor operations, packaging machinery, and process automation where real-time monitoring and control of drives are required. This option card simplifies network integration, allowing engineers to enhance system communication efficiency without redesigning the control architecture.
Compact Form Factor: Small size allows easy installation inside the drive enclosure.
Real-Time Control: Supports fast communication for precise motor and process control.
Diagnostics & Monitoring: Enables drive health monitoring and troubleshooting via DeviceNet.
Flexible Configuration: Compatible with a wide range of PowerFlex 750 drive models.
Low Installation Complexity: Simplifies network integration with plug-and-play design.
Technical FAQs
Q: Which drives are compatible with this option card? A: Compatible with all Allen-Bradley PowerFlex 750 drives that support DeviceNet communications.
Q: What type of network does the card support? A: Supports DeviceNet networks using CAN-based communication.
Q: Can the card be installed while the drive is powered? A: No, the drive must be powered down before installation.
Q: Does the card support multiple nodes on the network? A: Yes, it supports standard DeviceNet node addressing and multiple node configurations.
Q: Can it provide diagnostic data to the PLC? A: Yes, it allows transmission of drive status, faults, and operational parameters to a connected controller.
Q: Is the card backward compatible with previous PowerFlex 750 models? A: Yes, backward compatibility is supported for most previous firmware versions.
Q: What is the operating temperature range? A: Rated for 0°C to 55°C.
Q: How is the card configured? A: Configuration is performed using Rockwell Automation software tools like RSNetWorx for DeviceNet.
Q: Is LED status provided on the card? A: Yes, the card includes status LEDs for communication and operational feedback.
Q: Does the card require additional hardware for DeviceNet connectivity? A: No, it includes the necessary interface to connect directly to the DeviceNet network.
