Introduction

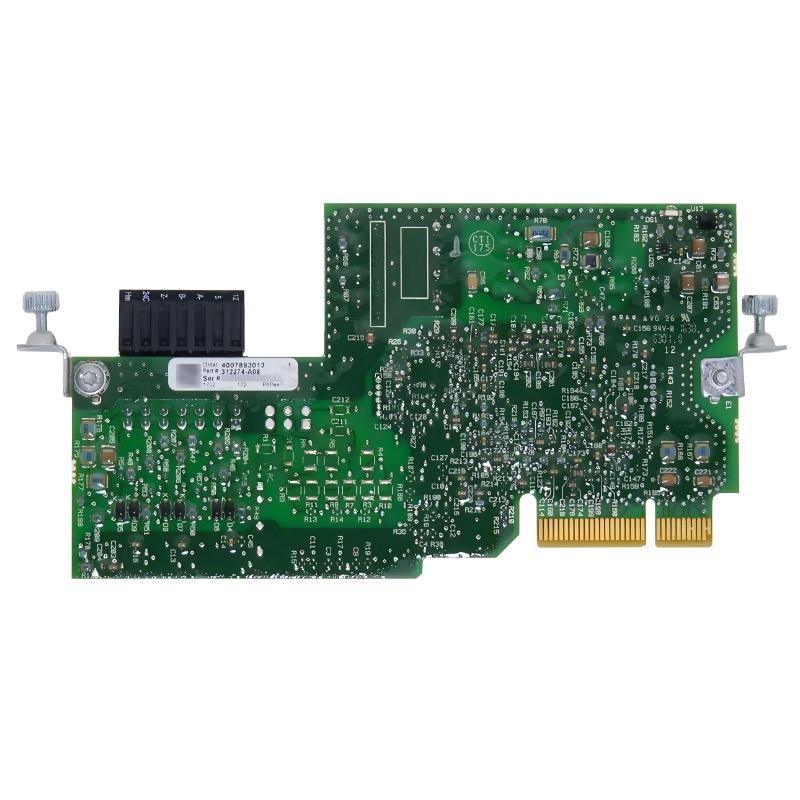

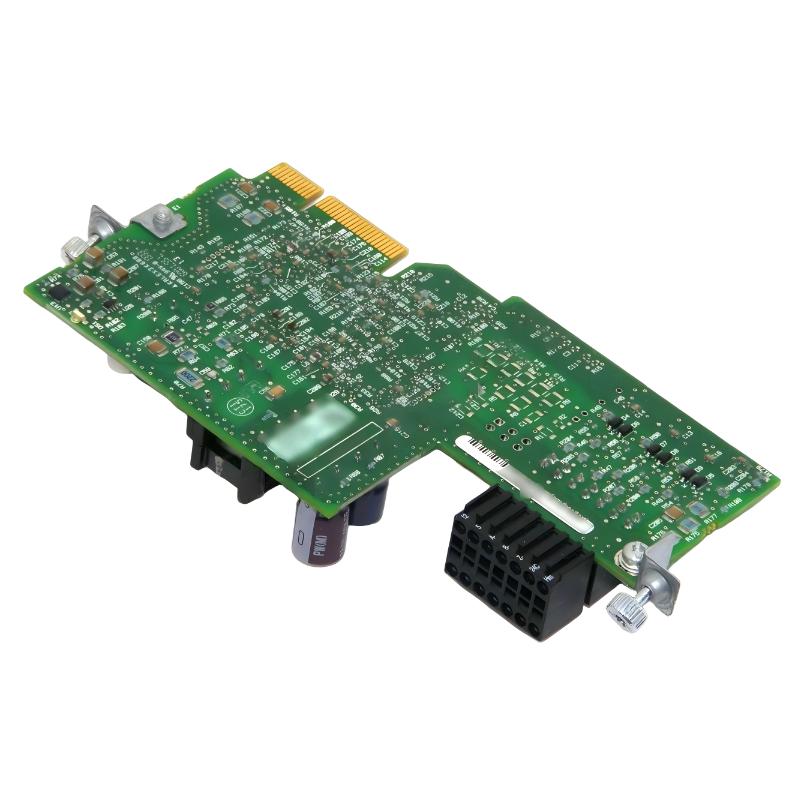

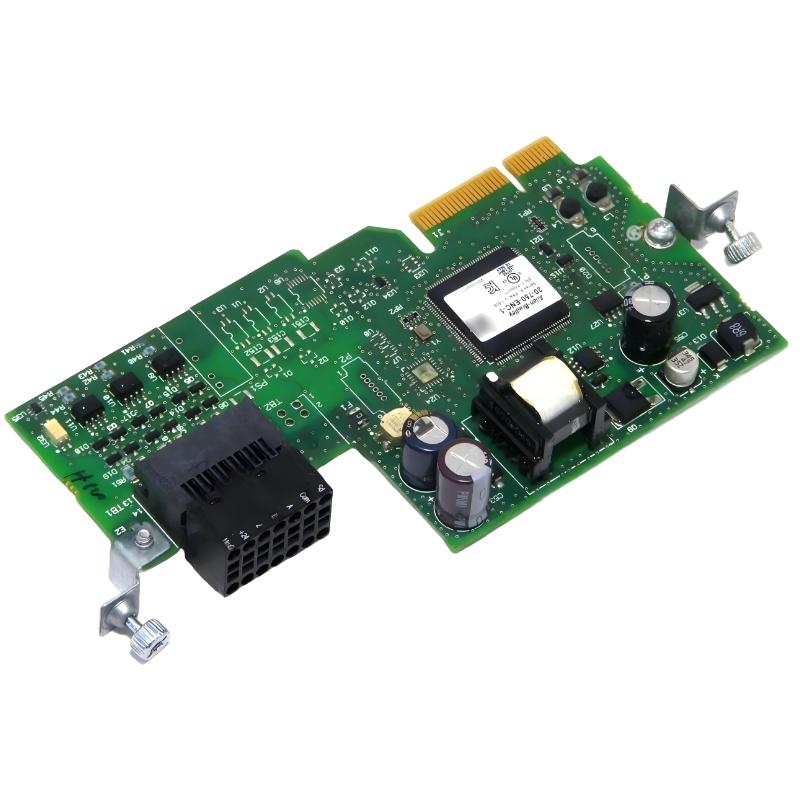

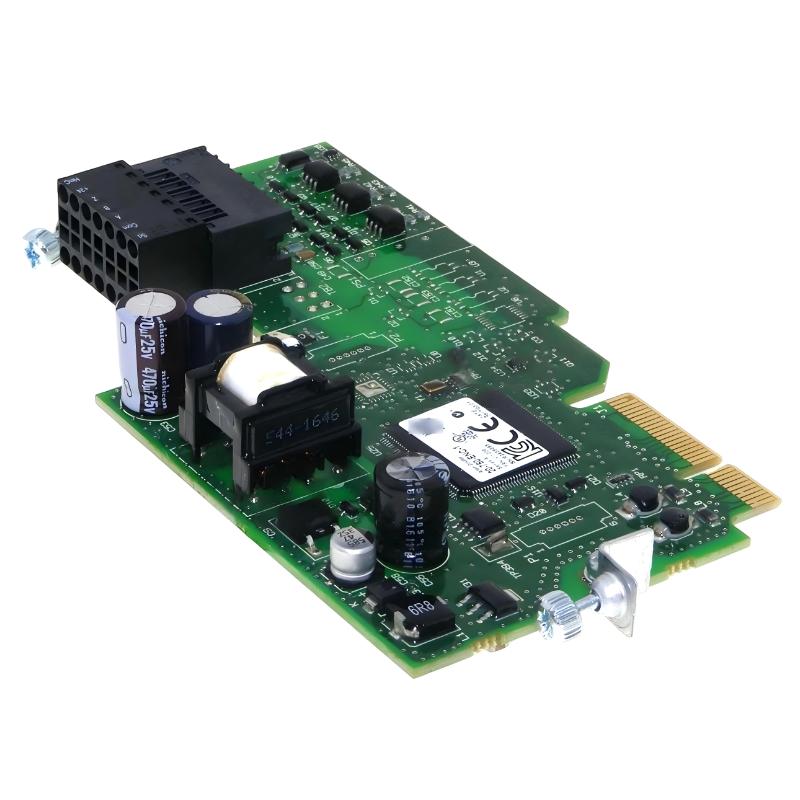

The Allen-Bradley 20-750-ENC-1 PowerFlex 750 Incremental Encoder Module provides precise motor feedback for high-performance industrial automation applications. Designed to enhance the control capabilities of PowerFlex 750 drives, it ensures accurate speed and position monitoring while maintaining seamless integration into the existing system. Its compact, reliable design makes it an ideal choice for engineers seeking precise motion control without compromising space or efficiency.

Technical Specifications

Parameter	Specification
Dimensions (L × W × H)	150 × 26 × 68 mm
Weight	0.068 kg (0.15 lb)
Encoder Type	Incremental Encoder
Compatible Drives	PowerFlex 750 Series
Signal Channels	A/B Quadrature + Index Channel
Operating Temperature	0°C to 55°C
Installation	Drive-mounted Module
Diagnostics	Encoder signal monitoring via software
Communication	Integrated with PowerFlex 750 drive system

Applications

The Allen-Bradley 20-750-ENC-1 PowerFlex 750 Incremental Encoder Module is designed to provide precise feedback for motor control in industrial automation environments. It is ideal for applications such as conveyor systems, packaging machinery, material handling equipment, robotics, and other motion control processes that require accurate speed and position monitoring. The module integrates seamlessly with PowerFlex 750 drives, enhancing performance and reliability in complex industrial systems.

Advantages

High-Precision Feedback: Provides accurate incremental encoder signals for precise motor speed and position control.
Seamless Integration: Compatible with all PowerFlex 750 drives for simplified system implementation.
Compact Design: Small footprint allows installation inside the drive enclosure without additional space requirements.
Real-Time Performance: Ensures fast feedback for responsive drive control.
Diagnostics and Monitoring: Supports drive and encoder monitoring through the integrated system software.
Reliable Operation: Industrial-grade components ensure long-term reliability in harsh environments.

Technical FAQs

Q: Which drives are compatible with this module?
A: Compatible with all Allen-Bradley PowerFlex 750 drives that support incremental encoder feedback.
Q: What type of encoder signals does it support?
A: Supports standard incremental encoder signals, including A/B quadrature channels and optional index channel.
Q: Can it be installed while the drive is powered?
A: No, the drive must be powered down before installation.
Q: Does it provide diagnostic feedback?
A: Yes, it allows monitoring of encoder connection and signal quality via drive software.
Q: Is the module hot-swappable?
A: No, it requires static installation into the PowerFlex 750 drive.
Q: What is the operating temperature range?
A: Rated for 0°C to 55°C, suitable for most industrial environments.
Q: How is the module configured?
A: Configuration is performed using Rockwell Automation Studio 5000 or drive software tools.
Q: Can it handle high-speed encoder inputs?
A: Yes, it supports high-speed incremental encoder signals to maintain accurate motor feedback.
Q: Is the module backward compatible with previous firmware versions?
A: Yes, it is compatible with most previous PowerFlex 750 firmware revisions.
Q: Does it require additional wiring?
A: The module interfaces directly with the drive’s encoder terminals, simplifying installation.
