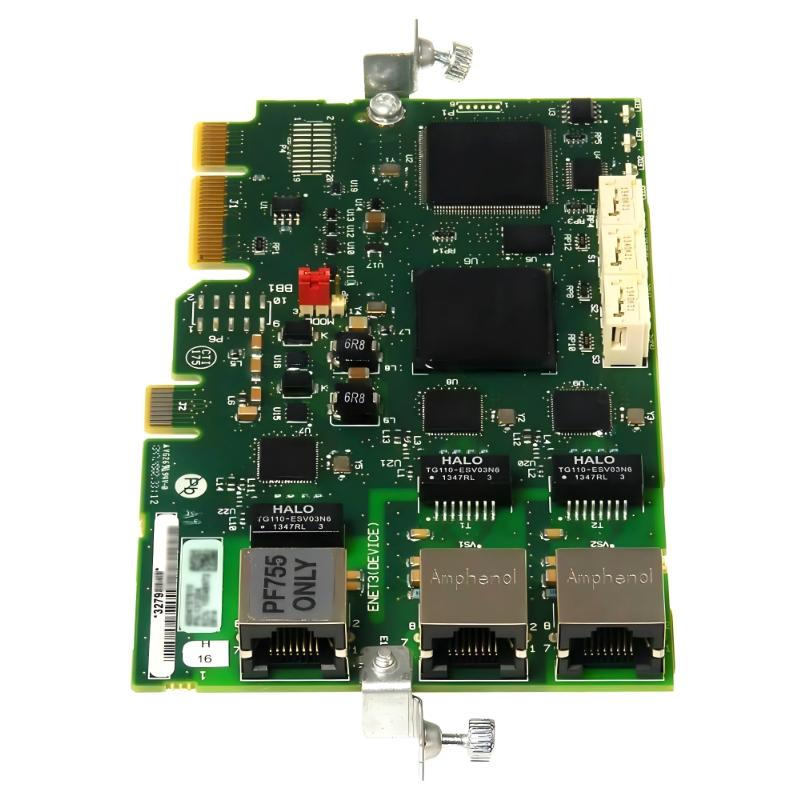

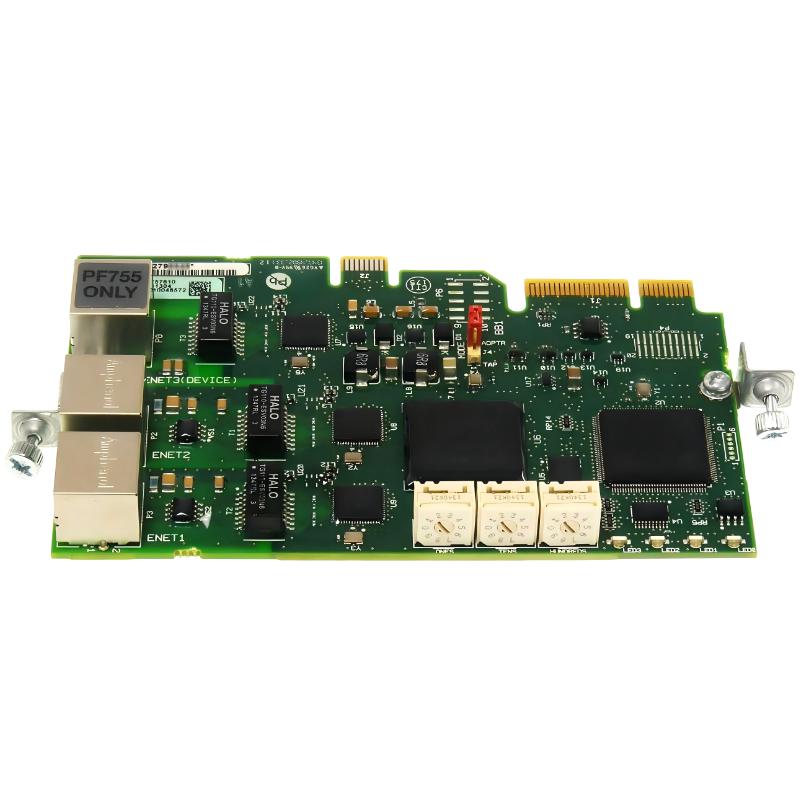

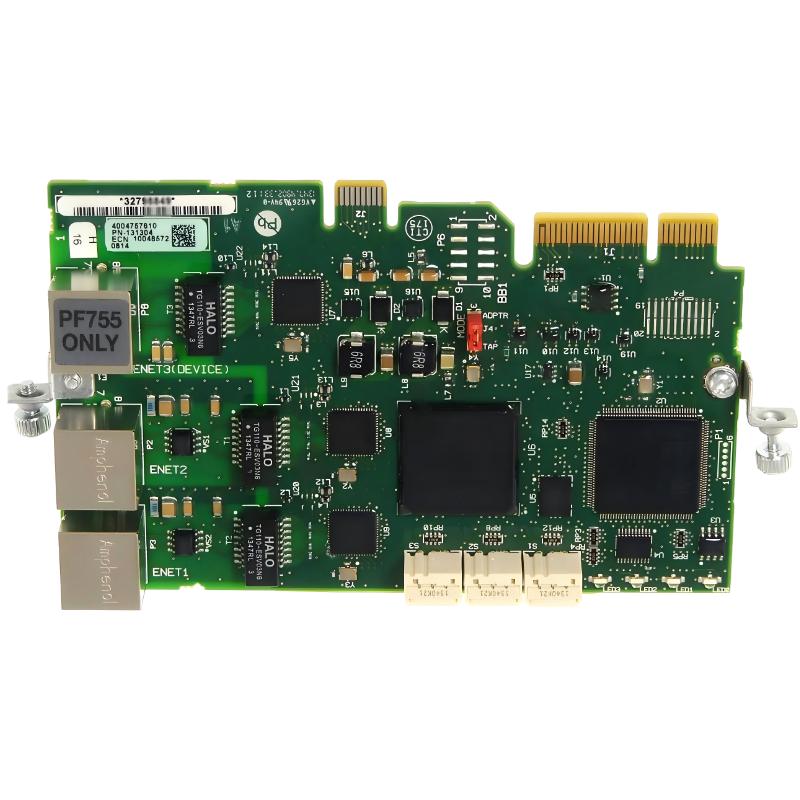

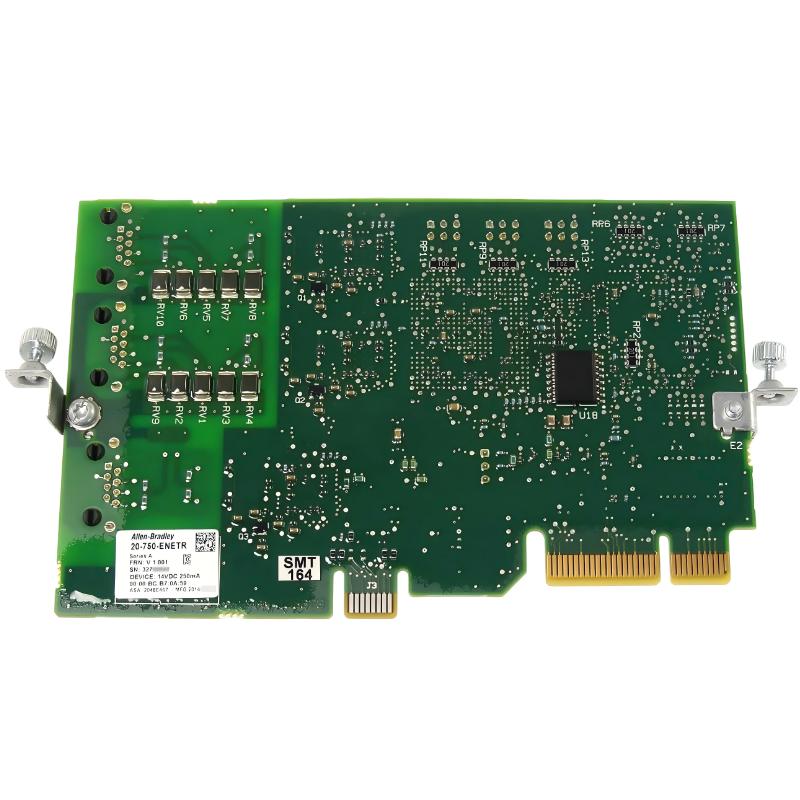

Allen Bradley 20-750-ENETR PowerFlex 750 Dual-Port EtherNet/IP Module
Allen Bradley 20-750-ENETR PowerFlex 750 Dual-Port EtherNet/IP Module
0.0
Points
Brand:Allen Bradley PLC Item No.:20-750-ENETR Product Origin:USA Product Dimensions:150 x 26 x 68 mm Product Weight:0.062 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 20-750-ENETR PowerFlex 750 Dual-Port EtherNet/IP Module enhances network connectivity for PowerFlex 750 drives, enabling high-speed communication, real-time monitoring, and easy integration into EtherNet/IP networks. Its dual-port design simplifies cabling and supports network redundancy, ensuring reliable operation in critical industrial automation applications. Compact yet robust, this module is ideal for engineers seeking scalable, efficient, and maintainable networked drive solutions.
Technical Specifications
Parameter
Specification
Dimensions (L × W × H)
150 × 26 × 68 mm
Weight
0.062 kg (0.137 lb)
Network Protocol
EtherNet/IP
Ports
Dual RJ-45 Ports
Compatible Drives
PowerFlex 750 Series
Operating Temperature
0°C to 55°C
Installation
Drive-mounted Option Module
Diagnostics
LED Indicators for Network & Drive Status
Configuration
Studio 5000, RSLinx
Applications
The Allen-Bradley 20-750-ENETR PowerFlex 750 Dual-Port EtherNet/IP Module enables high-speed, real-time communication between PowerFlex 750 drives and EtherNet/IP networks. It is ideal for industrial automation applications such as manufacturing lines, material handling systems, process control, robotics, and packaging machinery. This module allows seamless integration into existing EtherNet/IP networks, simplifying monitoring, diagnostics, and control of multiple drives within distributed automation systems.
Advantages
Dual-Port Connectivity: Enables daisy-chaining of drives for simplified network topology.
High-Speed Communication: Supports real-time control and monitoring of drives over EtherNet/IP.
Compact Form Factor: Fits neatly inside the PowerFlex 750 drive enclosure.
Seamless Integration: Fully compatible with Studio 5000 and RSLinx for easy configuration.
Diagnostics and Monitoring: Provides drive status, health, and fault information in real time.
Flexible Network Architecture: Supports ring, line, and star topologies for scalable system design.
Technical FAQs
Q: Which drives are compatible with this module? A: Compatible with all PowerFlex 750 drives that support EtherNet/IP communications.
Q: How many network ports are available on the module? A: The module has dual RJ-45 ports for EtherNet/IP daisy-chaining and network redundancy.
Q: Can the module be installed while the drive is powered? A: No, the drive must be powered down before installation.
Q: What network protocols are supported? A: Supports EtherNet/IP communication protocol, including I/O and explicit messaging.
Q: Does the module provide status LEDs? A: Yes, LEDs indicate network connection, communication status, and fault conditions.
Q: Can multiple drives be connected using this module? A: Yes, supports multiple drives in line or ring topologies for distributed control.
Q: What is the operating temperature range? A: Rated for 0°C to 55°C, suitable for most industrial environments.
Q: How is the module configured? A: Configuration is performed through Studio 5000, RSLinx, or other Rockwell Automation software tools.
Q: Is network redundancy supported? A: Yes, the dual-port design supports ring network topologies for enhanced reliability.
Q: Does the module require additional cabling? A: No, it uses standard Ethernet cabling (Cat5e or better) for direct network connection.
