Introduction

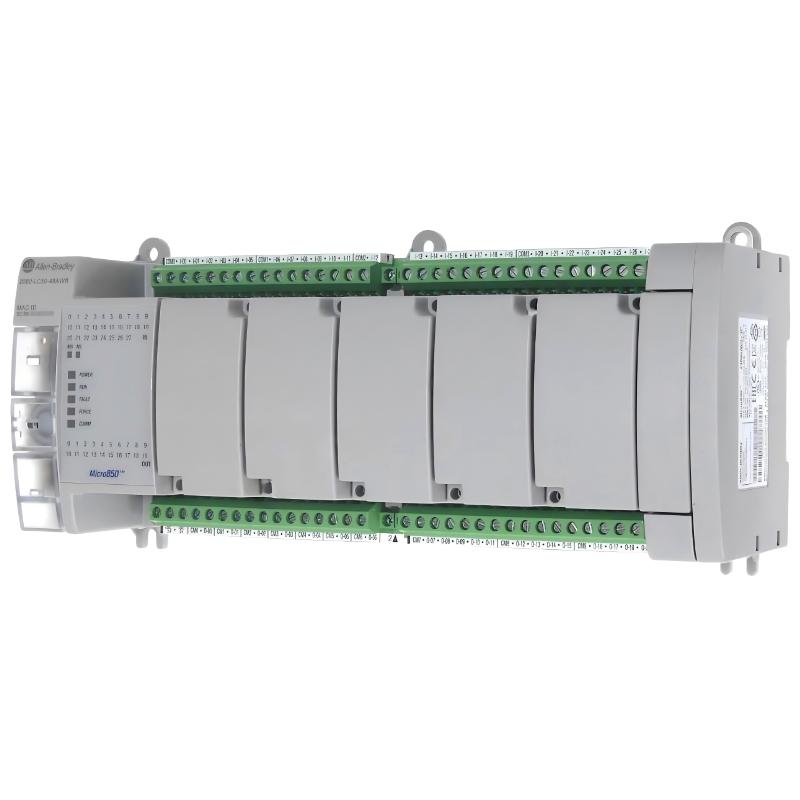

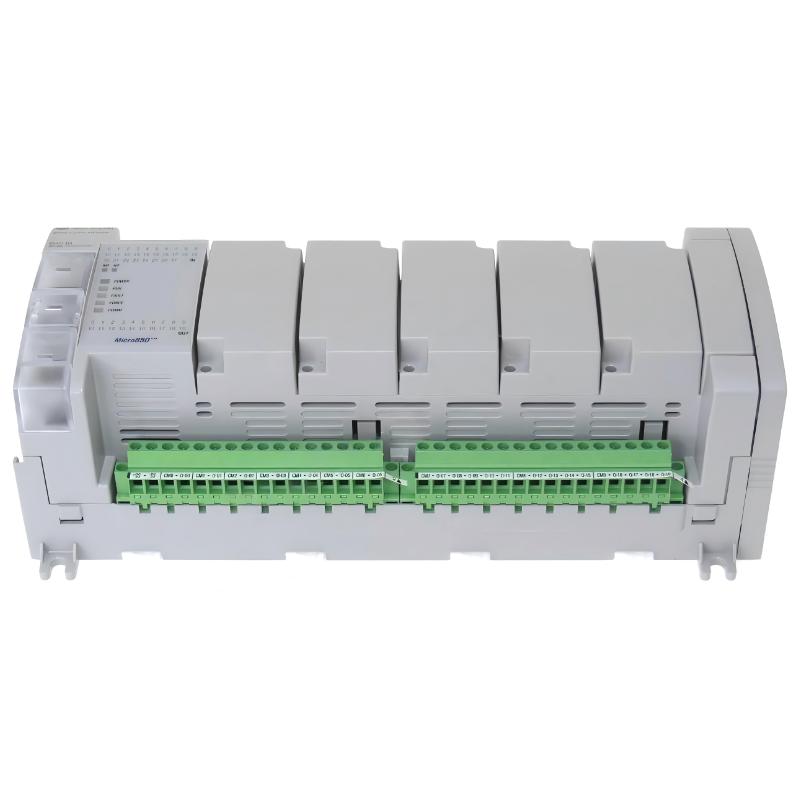

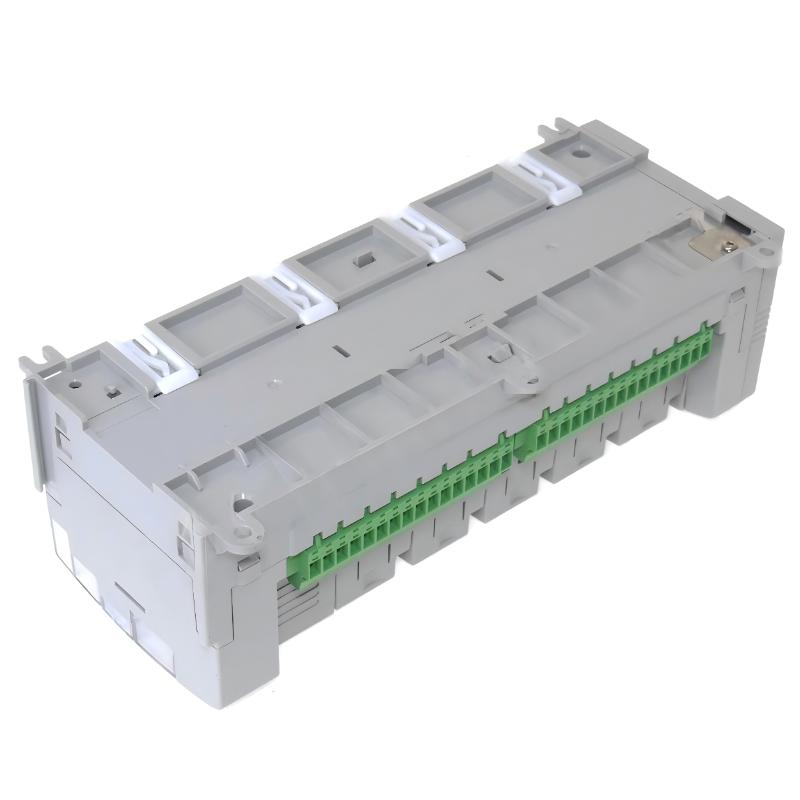

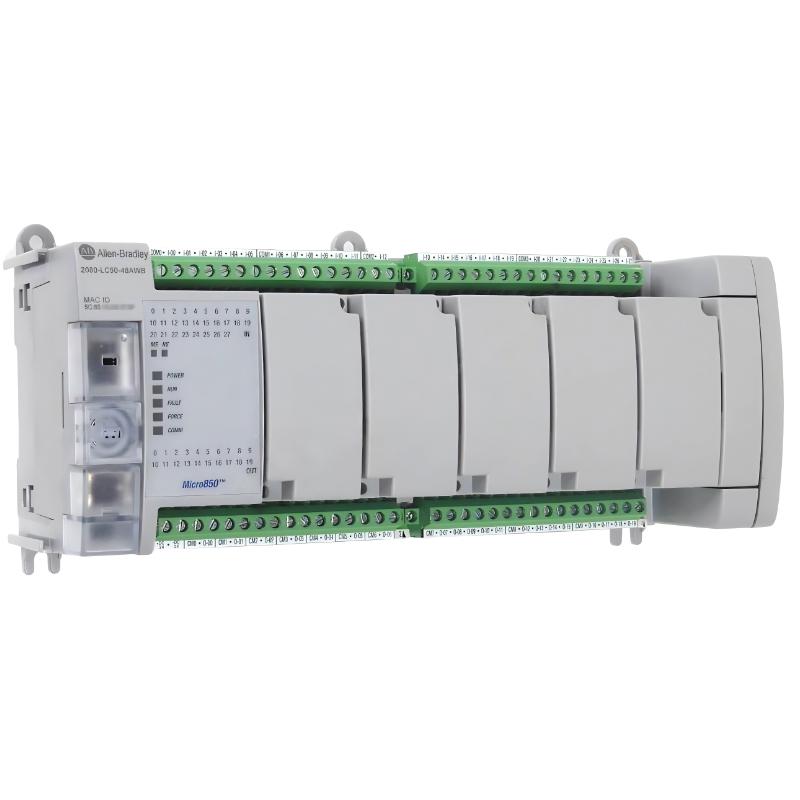

The Allen-Bradley 2080-L50E-48QWB Micro850 Programmable Controller delivers a powerful combination of flexibility, communication capability, and compact design for modern industrial automation. It is engineered to support demanding machine control applications while maintaining simplicity in programming and integration.

With its embedded Ethernet interface, expandable architecture, and robust I/O configuration, this controller provides a reliable foundation for OEMs and system integrators seeking efficient and scalable automation solutions.

Technical Specifications

Parameter	Specification
Dimensions (L × W × H)	238 × 80 × 90 mm
Weight	0.725 kg (1.60 lb)
I/O Capacity	48 built-in I/O points
Output Type	Relay outputs
Communication	EtherNet/IP, USB, RS-232/RS-485
Programming Software	Connected Components Workbench (CCW)
High-Speed Functions	High-speed counters, PTO outputs
Mounting	DIN rail
Operating Temperature	-20°C to 65°C (typical industrial range)

Applications

The Allen-Bradley 2080-L50E-48QWB Micro850 Programmable Controller is designed for mid-range industrial automation applications that require flexible I/O handling, strong communication capabilities, and scalable control performance. It is widely used in packaging systems, material handling, conveyor control, HVAC automation, OEM machine building, and distributed standalone machine control.

With built-in EtherNet/IP connectivity and expandable architecture, this controller is ideal for applications requiring real-time data exchange, remote monitoring, and integration into modern industrial networks.

Advantages

High I/O Capacity: Supports up to 48 built-in I/O points for versatile control applications
Integrated Ethernet Communication: Native EtherNet/IP support for seamless industrial networking
Flexible Expansion: Supports plug-in modules and expansion I/O for scalable system design
Compact Industrial Design: Space-efficient controller suitable for DIN-rail installations
Multi-Protocol Support: Includes serial communication (RS-232/RS-485) for legacy integration
High-Speed Performance: Supports high-speed counters and pulse train outputs for motion-related tasks
Cost-Effective Automation Solution: Delivers advanced PLC functionality in a compact platform

Technical FAQs

Q: What type of controller is the 2080-L50E-48QWB?
A: It is a Micro850 programmable logic controller (PLC) designed for industrial automation.
Q: How many I/O points does it support?
A: It supports 48 built-in I/O points, including digital inputs and relay outputs.
Q: Does it support Ethernet communication?
A: Yes, it includes an embedded EtherNet/IP port for industrial networking.
Q: Can it be expanded with additional modules?
A: Yes, it supports plug-in expansion modules and external I/O expansion units.
Q: What programming software is used?
A: It is programmed using Connected Components Workbench (CCW).
Q: Does it support motion control functions?
A: Yes, it supports high-speed counters and pulse train outputs for basic motion control.
Q: What communication ports are available?
A: Ethernet, USB programming port, and RS-232/RS-485 serial communication.
Q: Is it suitable for standalone machine control?
A: Yes, it is specifically designed for standalone and small-to-mid industrial systems.
Q: Can it be integrated into SCADA systems?
A: Yes, via EtherNet/IP or supported industrial communication protocols.
Q: What type of outputs does it use?
A: It includes relay outputs suitable for switching industrial loads.
