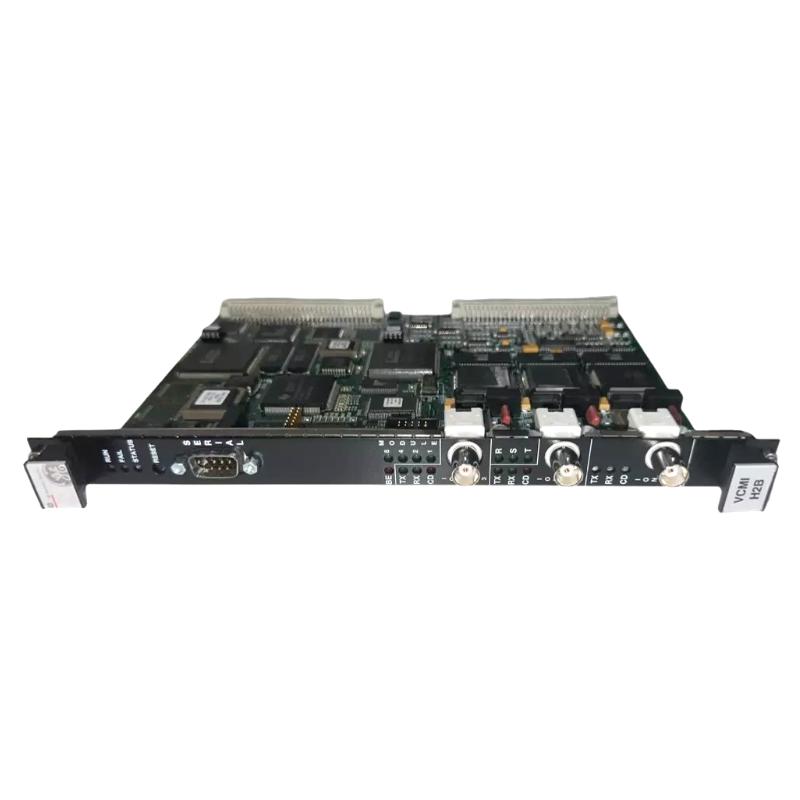

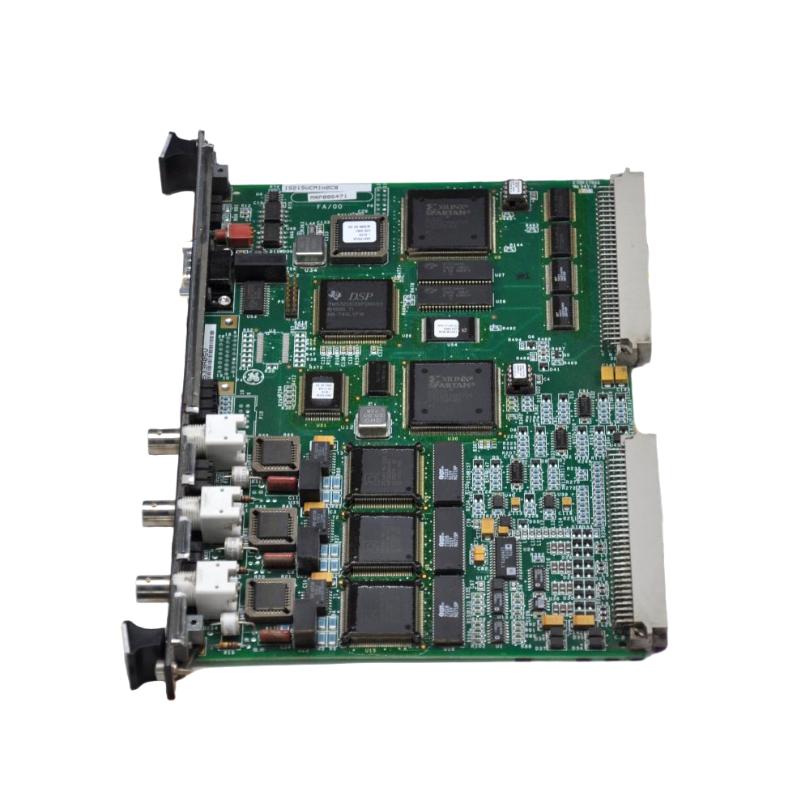

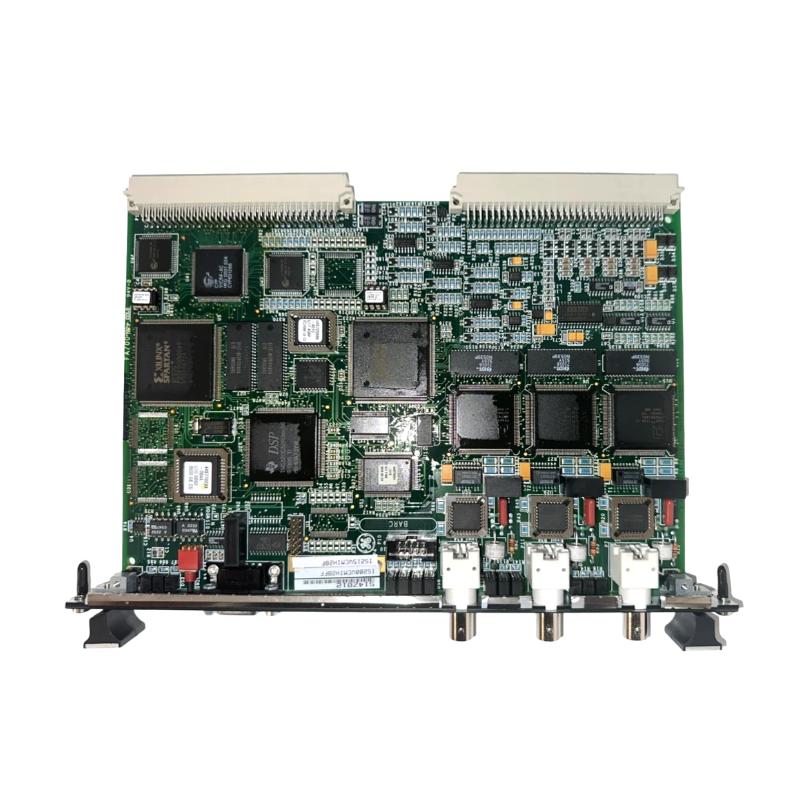

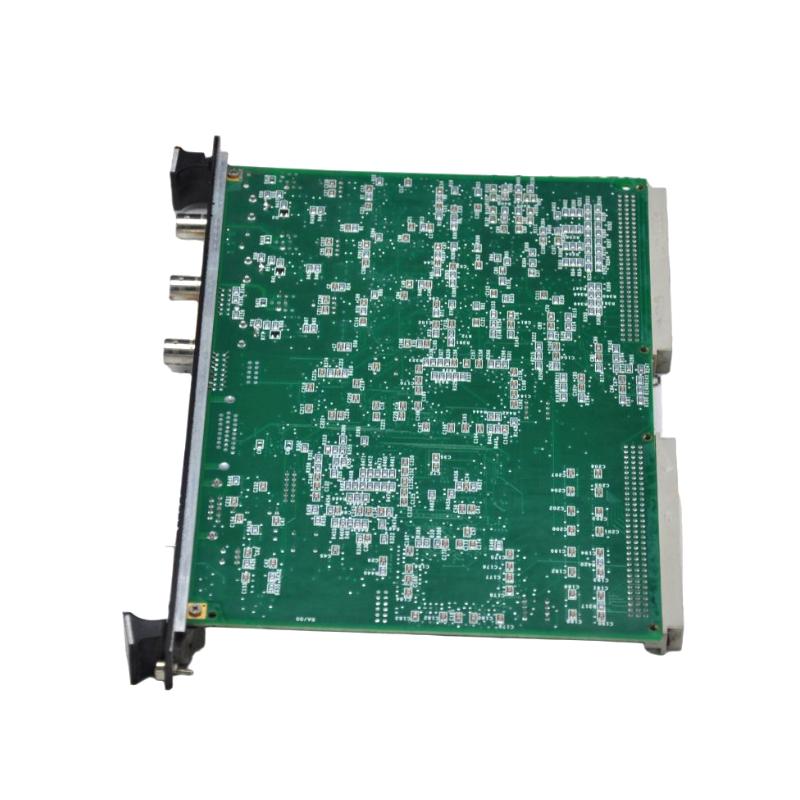

The GE IS215VCMIH2BE is a VCMI (VME Communications Interface) Module designed for GE Mark VI turbine control systems. It functions as a high-reliability communication gateway, enabling fast and deterministic data exchange between controller CPUs, I/O subsystems, and plant-level networks.
In power generation environments, this module ensures stable real-time communication integrity, supporting turbine control, diagnostics, and system synchronization across distributed architectures.
Technical Specifications — Industrial Communication Hardware Profile
| Category | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Series | Mark VI Speedtronic |
| Product Type | VME Communications Interface Module |
| Functional Code | VCMI |
| Main Function | System communication & I/O network interface |
| Processor | DSP-based communication controller (TMS320 family typical) |
| Memory | Dual-port SRAM (configuration dependent) |
| Flash Memory | Embedded system firmware storage |
| Communication Interfaces | Ethernet (10Base2), RS-232C, I/O network ports |
| Network Protocol | IONet communication support |
| VME Bus | Full VME backplane integration |
| Diagnostic Features | LED status indicators (RUN / FAIL / COMM) |
| Redundancy Support | Simplex / TMR compatible architecture |
| PCB Protection | Industrial conformal coating |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (L × W × H) | 6U VME standard (approx. 233 × 160 × 40 mm) |
| Weight | ~2.3 – 3.0 kg |
The module is designed to operate as a central communication backbone inside GE Mark VI racks, ensuring stable data flow between control processors and field devices.
Recommended Related Models — System Integration Components
For full turbine control architecture, IS215VCMIH2BE is commonly paired with:
- IS215UCVFH2A — Universal Control Unit processor module
- IS215UCVEH2AF — VME controller module
- IS215ACLEH1C — Application control layer module
- IS215GFOIH1A — Fiber optic interface module
- IS210BPPCH1AD — I/O processor board
These modules together provide processing, communication, signal acquisition, and system coordination.
