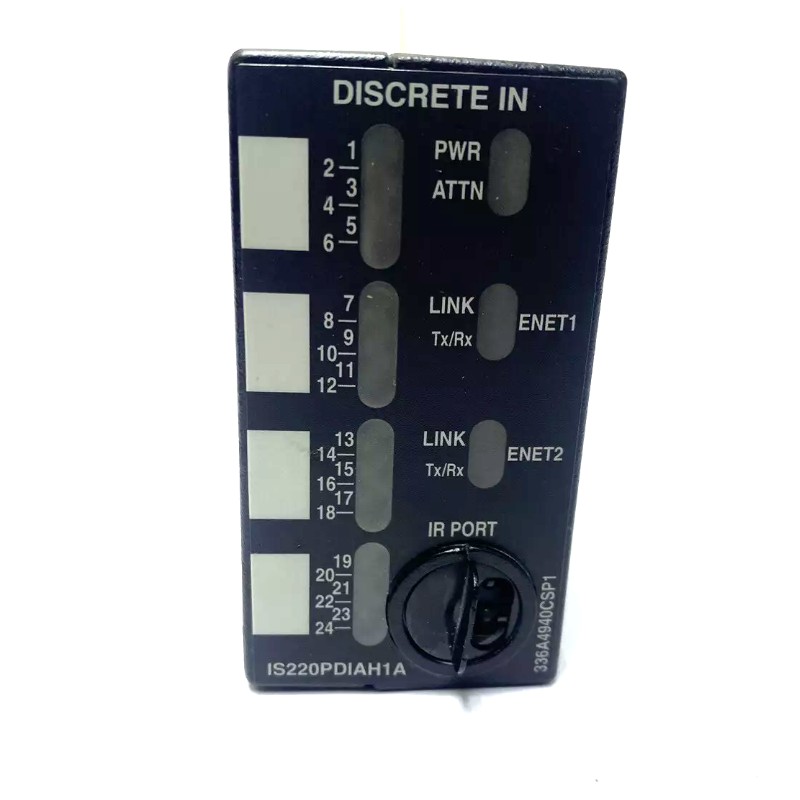

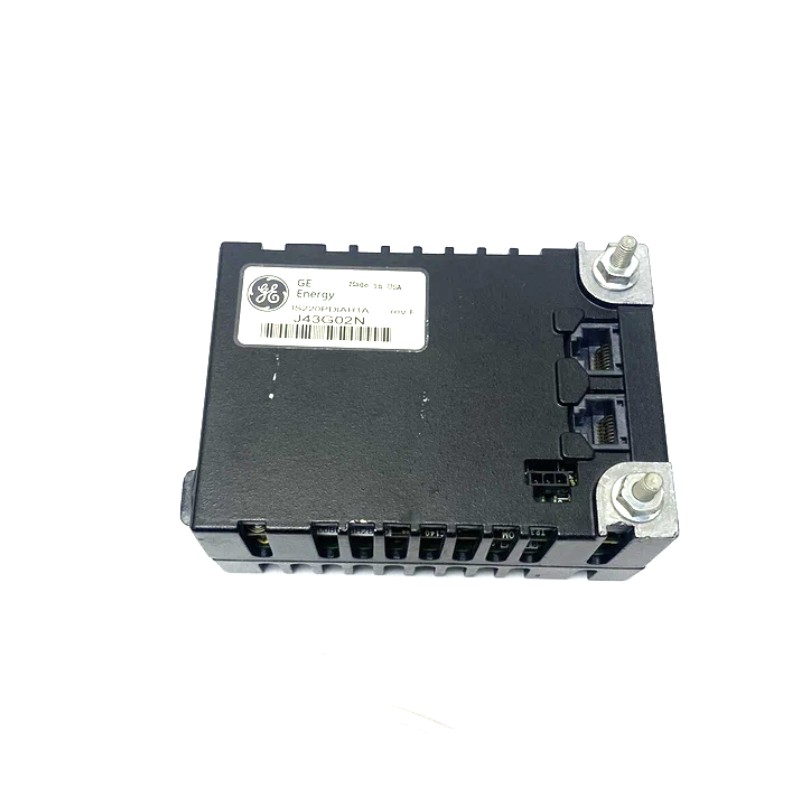

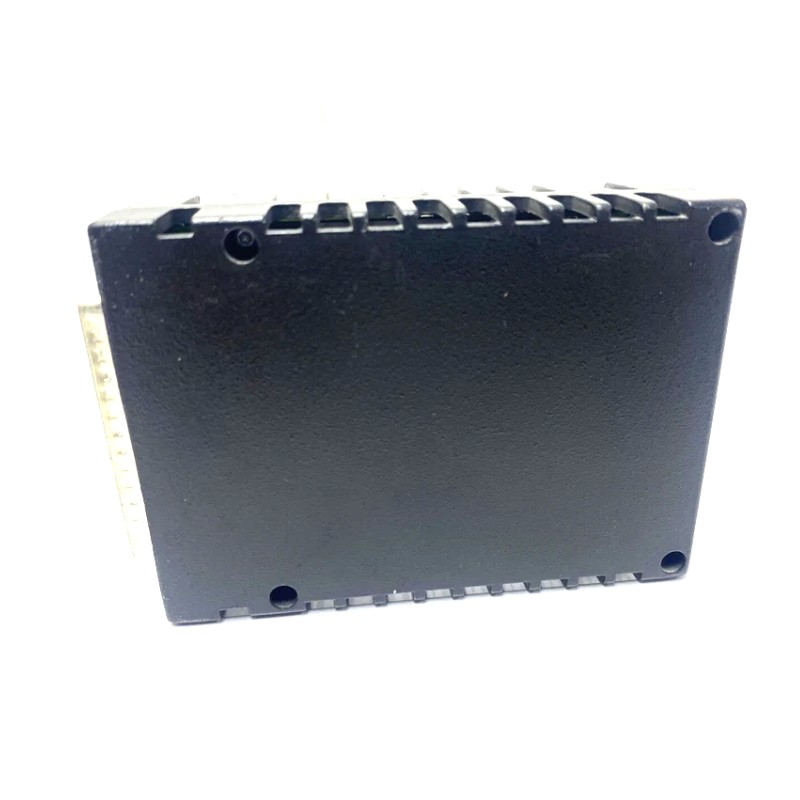

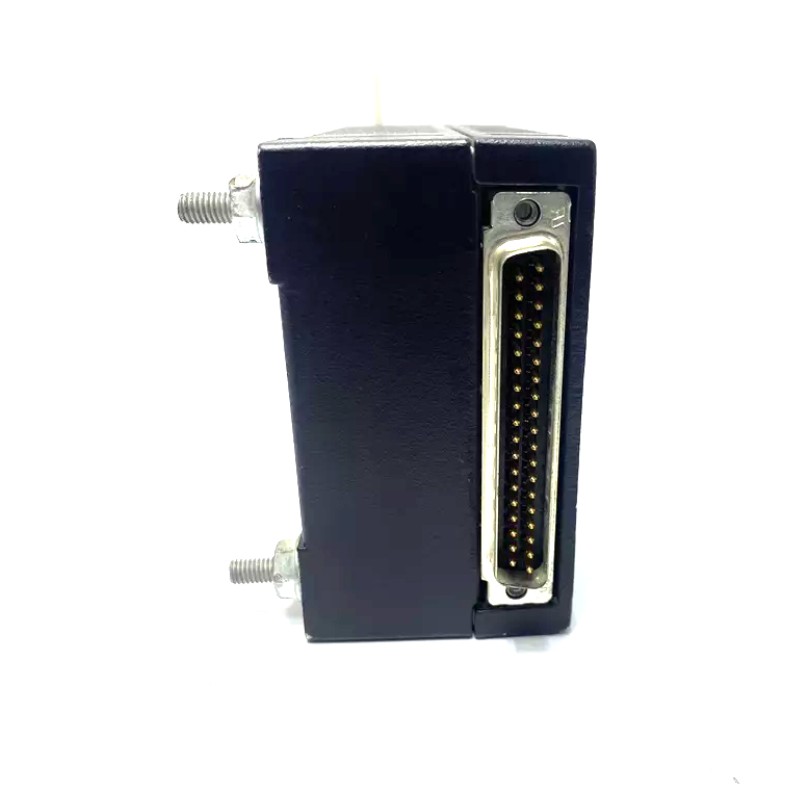

The GE IS220PDIAH1BC is a Discrete Input I/O Pack Module engineered for GE Mark VIe control platforms. Designed for high-speed industrial automation environments, this module provides accurate digital signal acquisition, field status monitoring, and real-time protection input processing for turbine and process control applications.
With robust communication capability and industrial-grade reliability, the IS220PDIAH1BC ensures stable integration between field devices and the central control system, helping operators maintain safe and efficient plant operation.
Technical Specifications — Digital Signal Processing Hardware
| Category | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Product Series | Mark VIe Speedtronic |
| Module Type | Discrete Input I/O Pack Module |
| Functional Code | PDIA |
| Main Function | Digital signal acquisition & monitoring |
| Input Channels | 24 discrete input channels |
| Supported Input Types | Dry contact / voltage input |
| Input Voltage | 24 VDC / 125 VDC system dependent |
| Isolation Protection | Optical isolation for field protection |
| Processor | Embedded industrial processor |
| Communication Interfaces | Dual Ethernet RJ45 ports |
| Network Support | IONet industrial Ethernet |
| Diagnostic Features | RUN / STATUS / FAULT LED indicators |
| Redundancy Compatibility | Simplex / TMR architectures |
| PCB Protection | Industrial conformal coating |
| Mounting Type | DIN rail / cabinet installation |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Rating | 5% – 95% non-condensing |
| Dimensions (L × W × H) | 190 × 120 × 45 mm (approx.) |
| Weight | Approx. 1.1 kg |
The IS220PDIAH1BC is optimized for continuous-duty industrial applications where stable digital signal monitoring and fast response are critical to turbine safety and operational reliability.
Recommended Related Models — GE Mark VIe Integration Solutions
The IS220PDIAH1BC is commonly used together with:
- IS220PAOCH1A — Analog Output I/O Pack Module
- IS220PPDAH1A — Power Distribution I/O Pack Module
- IS220PCLAH1A — Control Logic Application Module
- IS215UCVEH2AF — VME Controller Module
- IS215VCMIH2CC — Communication Interface Module
These modules collectively provide a complete control, communication, and field I/O infrastructure for GE turbine systems.
