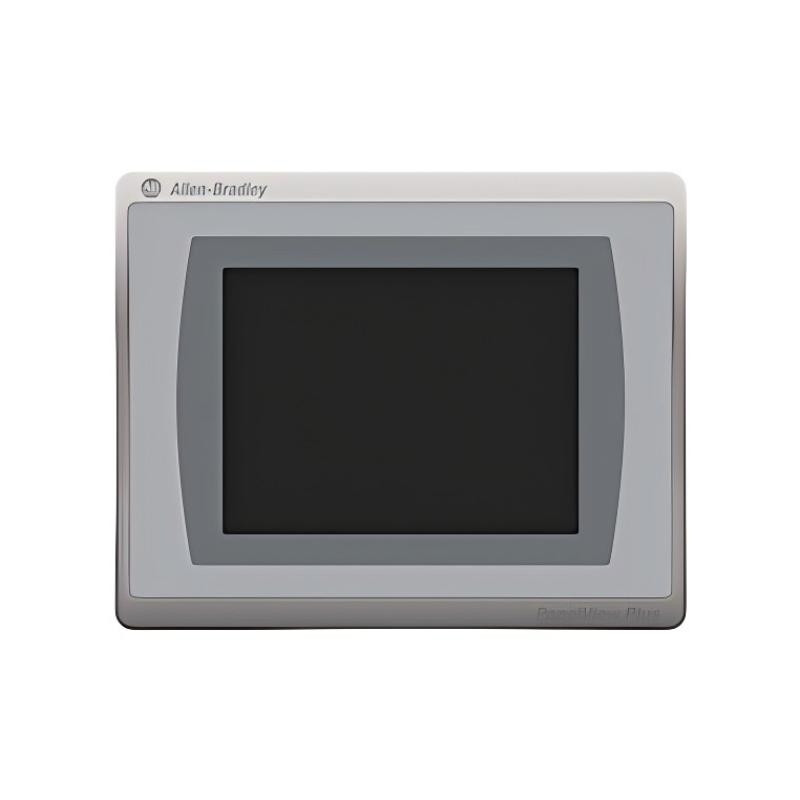

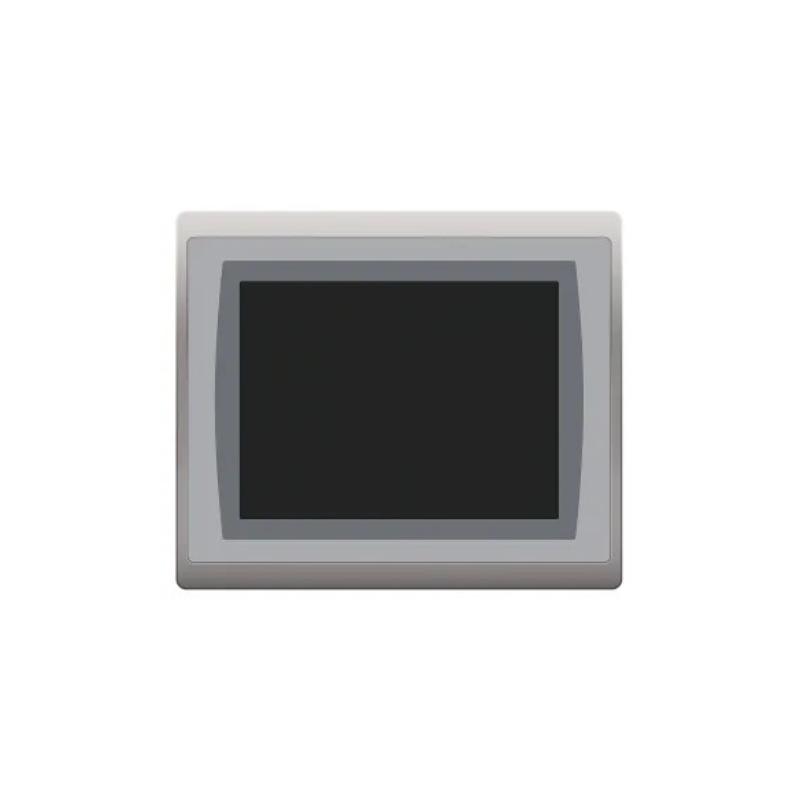

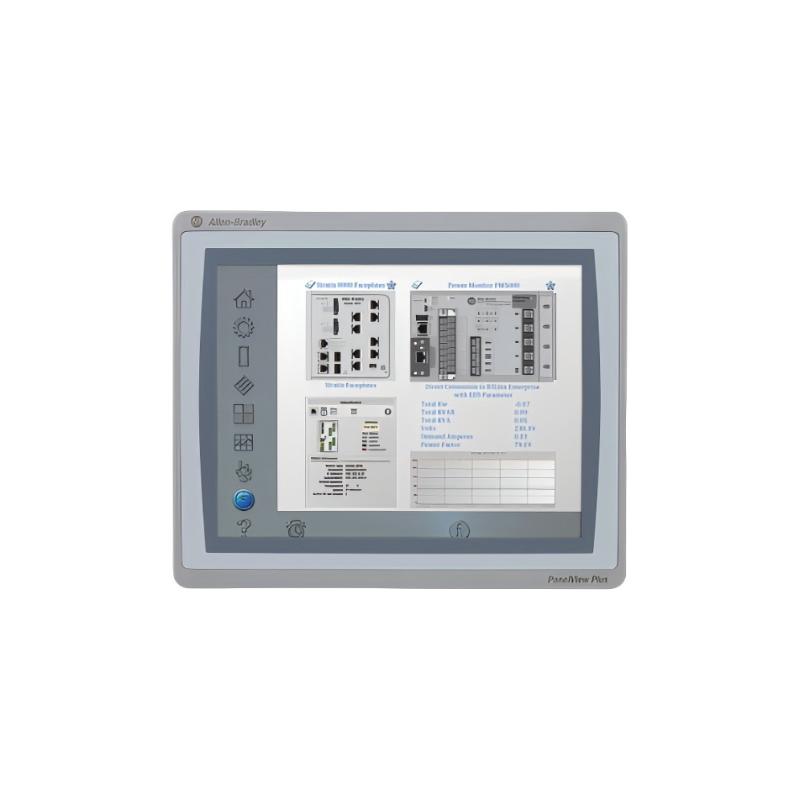

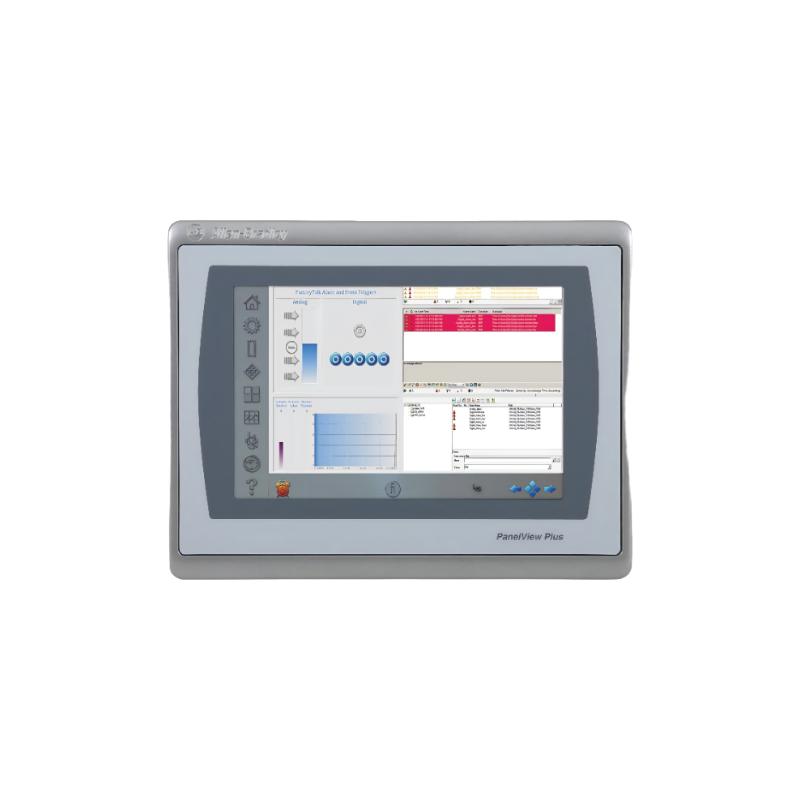

The Allen Bradley 2711P-T7C21D8S PanelView Plus 7 Standard Terminal is a compact yet powerful industrial Human-Machine Interface (HMI) designed for real-time machine visualization and control. Built on Rockwell Automation’s trusted architecture, it delivers seamless integration with CompactLogix and ControlLogix systems, offering operators a responsive, intuitive interface for modern automation environments.

Engineered for reliability and clarity, this 6.5-inch touchscreen terminal is widely used in manufacturing lines where fast decision-making and clear process visibility directly impact productivity and uptime.

Technical Specifications

Category	Specification
Product Family	PanelView Plus 7 Standard
Model Number	2711P-T7C21D8S
Display Type	TFT color LCD
Screen Size	6.5 inches
Resolution	640 × 480 (VGA)
Touch Type	Analog resistive touchscreen
Operating System	Windows CE
Communication	1× Ethernet, USB, RS-232
Input Voltage	18–30 V DC (24V nominal)
Memory	512 MB RAM / 512 MB storage
User Memory	~80 MB application space
Backlight Life	Up to 50,000 hours
Operating Temperature	0°C to 55°C

Physical Dimensions & Weight

Parameter	Value
Dimensions (L × W × H)	170 mm × 212 mm × 56.5 mm
Weight	Approx. 0.85 kg

Recommended Related Models

To build a stable Allen Bradley visualization and control system, the following models are commonly paired with 2711P-T7C21D8S:

Allen Bradley 1769-L33ER CompactLogix Controller
Allen Bradley 1756-L8 ControlLogix CPU Modules
Allen Bradley 2711P-T6C21D8S PanelView Plus 7 (smaller variant)
Allen Bradley 2711P-T10C4D8 PanelView Plus 7 (larger display version)
Allen Bradley 1784-SD1 Industrial SD Memory Card

These components ensure smooth HMI-to-PLC communication and scalable automation architecture.

Popular Allen Bradley PanelView Models

2711P-T7C21D8S PanelView Plus 7 Standard
2711P-T10C4D8 PanelView Plus 7 Performance
2711P-T6C21D8S PanelView Plus 7 Compact
2711P-RP Series Logic Modules
2711P-B Series PanelView Plus 7 Units

Applications

The 2711P-T7C21D8S is widely used in industrial environments requiring real-time operator interaction:

Factory automation and production lines
Packaging and bottling systems
Food and beverage manufacturing control
Automotive assembly monitoring
Water treatment and pumping stations
HVAC and building automation systems

Its compact design makes it ideal for control cabinets where space efficiency is important.

Advantages

This PanelView Plus 7 terminal offers strong industrial usability with a modern operator experience:

Intuitive touchscreen interface for fast operation
Seamless integration with Rockwell PLC ecosystems
Reliable Windows CE-based industrial OS
Compact design ideal for space-limited panels
High durability for continuous industrial operation
Easy application deployment via FactoryTalk View ME

It is particularly valued for its balance between performance, cost-efficiency, and long lifecycle stability.

Technical FAQs

1. What is the main function of 2711P-T7C21D8S?
It is an HMI terminal used for machine monitoring and operator control.

2. Which PLC systems is it compatible with?
It works with CompactLogix and ControlLogix systems.

3. What software is used to program it?
FactoryTalk View Studio ME is typically used.

4. Does it support Ethernet communication?
Yes, it has a single built-in Ethernet port.

5. What is the screen size?
It features a 6.5-inch color display.

6. Is it touchscreen?
Yes, it uses an analog resistive touchscreen.

7. What is its operating system?
It runs Windows CE.

8. Can it use external storage?
Yes, it supports USB and SD card expansion.

9. What is its expected backlight life?
Approximately 50,000 hours under normal use.

10. Where is it commonly used?
In industrial automation systems like manufacturing, packaging, and process control.
