Introduction

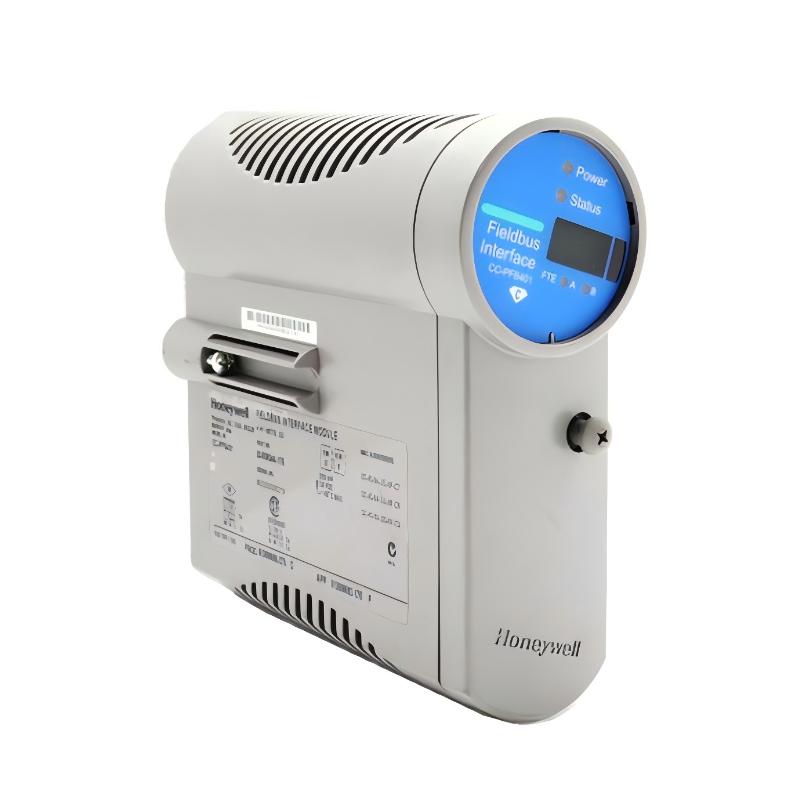

The Honeywell CC-PFB402 Fieldbus Interface Module redefines industrial communication efficiency. Designed for modern process automation systems, it bridges field devices and controllers with exceptional reliability. Its combination of compact form factor, rugged construction, and advanced diagnostics ensures uninterrupted operations and minimal maintenance downtime. Whether upgrading legacy networks or building new installations, the CC-PFB402 is a versatile solution for enhancing your process control infrastructure.

Technical Specifications

Feature	Specification
Dimensions	63.5 x 124.46 x 307.34 mm
Weight	0.408 kg
Power Supply	24 VDC
Communication Protocol	FOUNDATION Fieldbus H1
Operating Temperature	-40°C to +70°C (-40°F to +158°F)
Safety Certification	ATEX Zone 2 / IECEx
Mounting	DIN rail or panel mount
Redundancy	Dual fieldbus connection supported
Diagnostics	LED indicators, error logs, health monitoring
MTBF	>100,000 hours

Recommended Related Models

Honeywell CC-PFB401 Fieldbus Interface Module
Honeywell CC-PFB403 Redundant Interface Module
Honeywell CC-PFB405 Power Supply Module

Popular Related Models

Honeywell HC900 Control System Modules
Honeywell UDC3200 Digital Controllers
Honeywell Fieldbus H1 Transmitters

Applications

The Honeywell CC-PFB402 Fieldbus Interface Module is engineered for high-performance industrial automation environments. It seamlessly integrates with process control systems to ensure reliable data communication between field devices and control networks. Ideal for chemical processing plants, oil & gas facilities, and large-scale manufacturing systems, it simplifies complex network architectures and boosts operational efficiency.

Advantages

Reliable Field Communication: Minimizes downtime through robust and stable fieldbus connectivity.
Simplified Integration: Plug-and-play compatibility with Honeywell and third-party devices.
Compact & Durable Design: Fits into tight panel spaces while withstanding industrial environmental conditions.
Enhanced Diagnostic Capabilities: Provides real-time status and error reporting for proactive maintenance.
Energy Efficient: Optimized for low power consumption without compromising performance.

Technical FAQs

What network protocols does CC-PFB402 support?
Supports FOUNDATION Fieldbus H1 communication.
Can it operate in hazardous areas?
Yes, it meets industrial safety certifications for Zone 2 applications.
What is the operating temperature range?
-40°C to +70°C (-40°F to +158°F).
Does it support redundant fieldbus connections?
Yes, it allows dual redundant connections for critical processes.
What is the typical MTBF?
Exceeds 100,000 hours under standard operating conditions.
How is the module powered?
It uses a 24 VDC industrial power supply.
Is remote configuration possible?
Yes, via Honeywell control system software.
What diagnostic features are included?
Error logs, device health monitoring, and network status indicators.
What is the expected installation environment?
Indoor control panels or cabinets with standard industrial protection.
Are firmware updates supported?
Yes, updates can be applied without removing the module from the rack.
