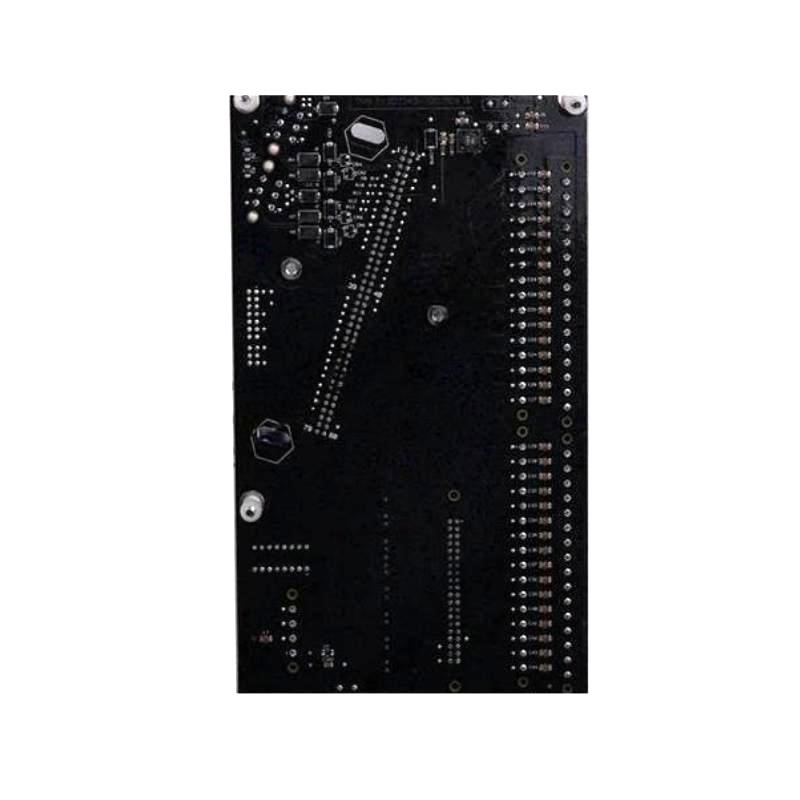

Honeywell 8C-TDOLA1 Numeric Input Module

Applications

The Honeywell 8C-TDOLA1 Numeric Input Module is engineered for precise digital input processing in advanced automation systems. It efficiently captures numeric signals from field devices and transmits them to Honeywell controllers for accurate monitoring and control. Ideal for manufacturing plants, chemical processing, and energy facilities, it ensures consistent performance and reliability.

Key Advantages

• Accurate Numeric Input Processing: Converts digital numeric signals with high precision.

• Compact & Space-Saving Design: Slim module fits easily into crowded control panels.

• Seamless System Integration: Fully compatible with Honeywell CC-series and third-party control systems.

• Real-Time Diagnostics: LED indicators provide immediate feedback on channel status.

• Industrial-Grade Reliability: Built to withstand harsh environmental conditions and long-term use.

Technical FAQs

1. What is the main function of the 8C-TDOLA1?
   Converts and processes numeric input signals for Honeywell control systems.

2. How many channels does it support?
   Supports up to 8 numeric input channels.

3. What voltage does it require?
   Operates on a 24 VDC industrial power supply.

4. What is the operating temperature range?
   -20°C to +60°C (-4°F to +140°F).

5. Can it be mounted in standard control panels?
   Yes, it supports DIN rail or panel mounting.

6. Does it have diagnostics features?
   Yes, LED indicators display real-time channel and module status.

7. Is it suitable for hazardous locations?
   Designed for standard industrial environments; local certification checks recommended for hazardous areas.

8. What types of signals does it process?
   Digital numeric signals within specified voltage/current limits.

9. Is firmware upgradable?
   Yes, through Honeywell configuration software.

10. What are the module’s dimensions and weight?
    Dimensions: 120 × 25 × 100 mm, Weight: 0.3 kg.
