Product Introduction

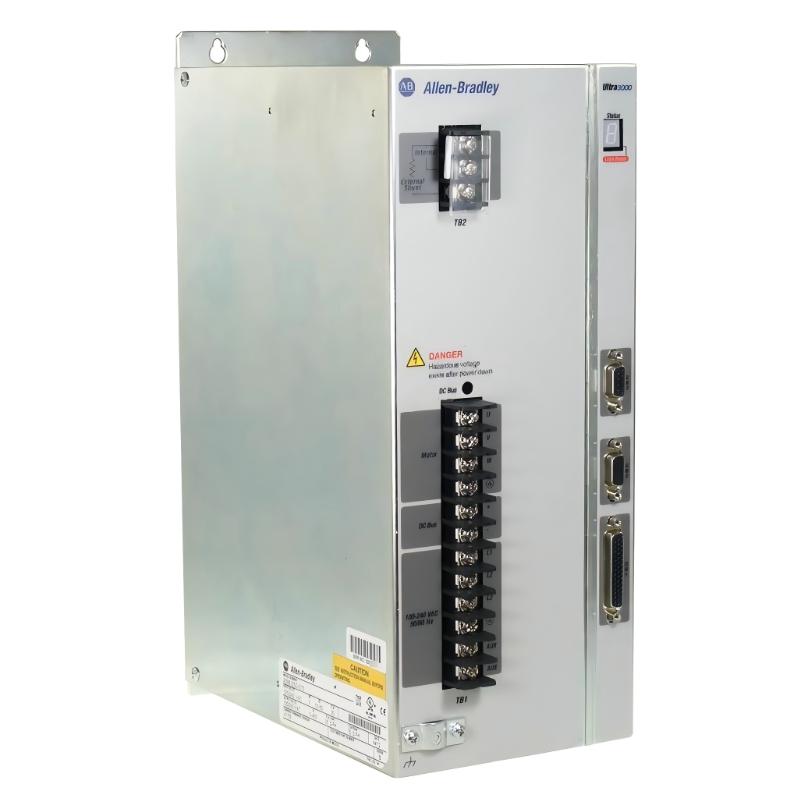

The Allen Bradley 2098-DSD-075 Ultra3000 Digital Servo Driver is a high-power solution for advanced industrial automation systems. Designed for 7.5 kW applications, it provides precise control of torque, speed, and position while supporting SERCOS-based multi-axis coordination. Its robust construction ensures reliable performance under heavy industrial loads, making it suitable for CNC machinery, robotics, and automated production lines.

Technical Specifications

Parameter	Specification
Product Model	2098-DSD-075
Product Type	Digital Servo Driver
Series	Ultra3000
Manufacturer	Allen Bradley
Control Interface	SERCOS
Power Rating	7.5 kW
Input Voltage	100–240 VAC
Output Current	30 A continuous / 75 A peak
Application	Motion Control Systems
Installation Environment	Industrial Automation
Dimensions (H × W × D)	360.68 × 138.68 × 247.14 mm
Weight	9.30 kg (20.50 lb)

Heavy-Duty Digital Servo Control for High-Power Motion Systems

The Allen Bradley 2098-DSD-075 Ultra3000 Digital Servo Driver is engineered for demanding industrial applications that require high-power, precise motion control. As part of the Ultra3000 series, this drive supports SERCOS communication and is designed for large-scale CNC machines, robotics, packaging lines, and other high-load automation systems.

With a robust 7.5 kW power rating, it delivers reliable torque, speed, and position control in multi-axis coordinated motion environments, ensuring accuracy and stability under heavy industrial workloads.

Key Advantages

High-power 7.5 kW servo driver for demanding industrial applications
SERCOS communication for deterministic, high-speed motion control
Accurate torque, speed, and position regulation
Supports multi-axis synchronized motion systems
Rugged construction suitable for continuous-duty industrial environments
Ideal for CNC, robotics, and heavy-duty automated machinery
Enables precise, repeatable motion even under high load
Compatible with Ultra3000 series motion architectures

Technical FAQs

What is the primary purpose of this servo driver?
It controls high-power servo motors with precise torque, speed, and position regulation.
What communication protocol does it use?
SERCOS interface, supporting deterministic and high-speed motion control.
Is it suitable for multi-axis coordinated systems?
Yes, it is designed for synchronized multi-axis industrial applications.
What power class does this drive support?
It is a 7.5 kW-class servo driver for high-load applications.
Can it be used in CNC machinery?
Yes, it is commonly deployed in CNC, robotics, and automated production lines.
Is this model still actively manufactured?
No, it is part of the discontinued Ultra3000 series but remains widely used in existing systems.
Does it support continuous operation?
Yes, it is engineered for continuous-duty industrial environments.
Can it integrate with existing Ultra3000 motion systems?
Yes, it is compatible with other Ultra3000 drives and controllers.
Does it provide diagnostics and monitoring?
Yes, it offers drive-level monitoring and fault diagnostics.
Is it suitable for high-speed automation?
Yes, it supports rapid and precise motion control for industrial production.
