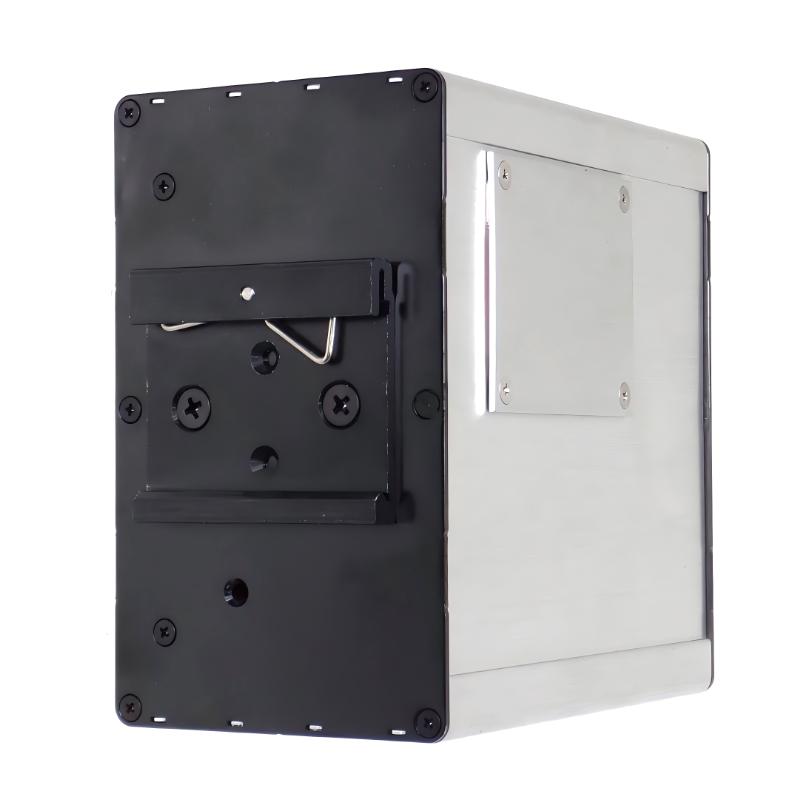

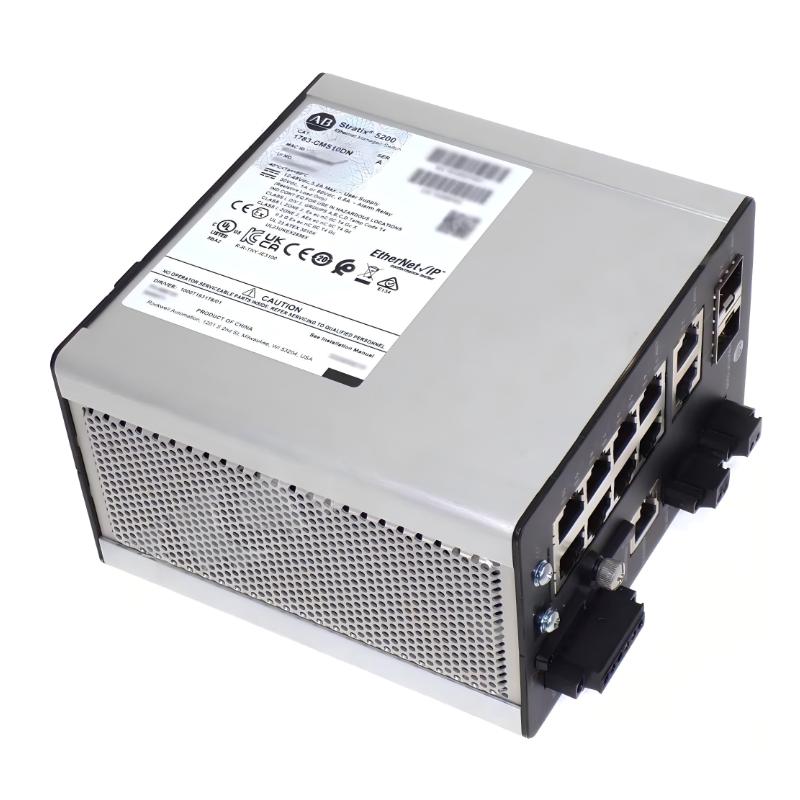

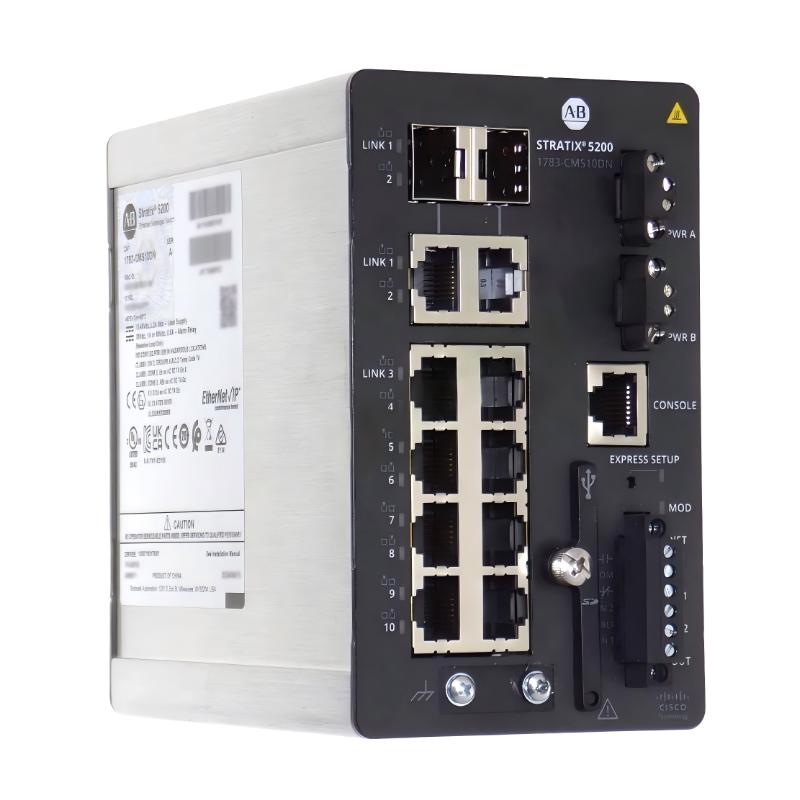

Allen Bradley 1783-CMS10DN Stratix 5200 Ethernet Managed Switch

Applications

• Industrial Ethernet networking in EtherNet/IP™ automation architectures.

• Machine-level and plant-wide network switching for PLC systems.

• Control network integration for ControlLogix™ and CompactLogix™ platforms.

• High-speed communication backbone for distributed I/O systems.

• Oil and gas automation networks requiring segmented and managed traffic flow.

• Power generation control systems with redundant and deterministic communication needs.

• SCADA and MES systems requiring secure and stable industrial data exchange.

• Factory automation systems using VLAN, DLR, PRP, and NAT network segmentation.

Key Advantages

• Provides managed Layer 2 switching optimized for industrial EtherNet/IP networks.

• Supports advanced redundancy protocols including DLR (Device Level Ring) and PRP.

• Enhances cybersecurity with NAT and firewall functionality in industrial environments.

• Built on a Cisco IOS-based industrial networking platform for reliability.

• Enables network segmentation through VLAN configuration for structured traffic control.

• Reduces downtime with redundant power input support and resilient architecture.

• Simplifies integration into Rockwell Automation Integrated Architecture systems.

• Designed for harsh environments with stable long-term industrial operation.

Technical FAQs

Q1: What is the main function of the 1783-CMS10DN switch?
A: It is a managed industrial Ethernet switch used to connect and control communication between PLCs, I/O devices, and industrial networks.

Q2: What type of ports does it include?
A: It typically includes 8 copper Gigabit Ethernet ports and 2 combo Gigabit ports (copper/fiber).

Q3: Does it support redundancy features?
A: Yes, it supports DLR and PRP redundancy protocols for high-availability networks.

Q4: Is it suitable for EtherNet/IP systems?
A: Yes, it is specifically designed for Rockwell EtherNet/IP industrial automation networks.

Q5: Can it be used in harsh industrial environments?
A: Yes, it is built for industrial temperature ranges and electrical noise resistance.

Q6: Does it support network segmentation?
A: Yes, VLAN configuration allows traffic separation between different industrial systems.

Q7: Is it easy to configure?
A: It provides a web-based interface and Cisco IOS-based management tools for setup and monitoring.

Q8: Can it be used for system migration projects?
A: Yes, it is commonly used in plant upgrades and industrial network modernization.

Q9: Does it support security functions?
A: Yes, it includes NAT, firewall capabilities, and industrial network security features.

Q10: What is the main benefit of this switch?
A: It provides reliable, secure, and high-performance communication infrastructure for industrial automation systems.
