Introduction

The Allen-Bradley 1783-MMS10ER Stratix Ethernet Managed Switch is an industrial networking device designed for high-performance automation environments. It provides reliable Layer 2 Ethernet switching for EtherNet/IP networks, enabling seamless communication between controllers, I/O systems, and industrial devices.

Technical Specifications

Parameter	Specification

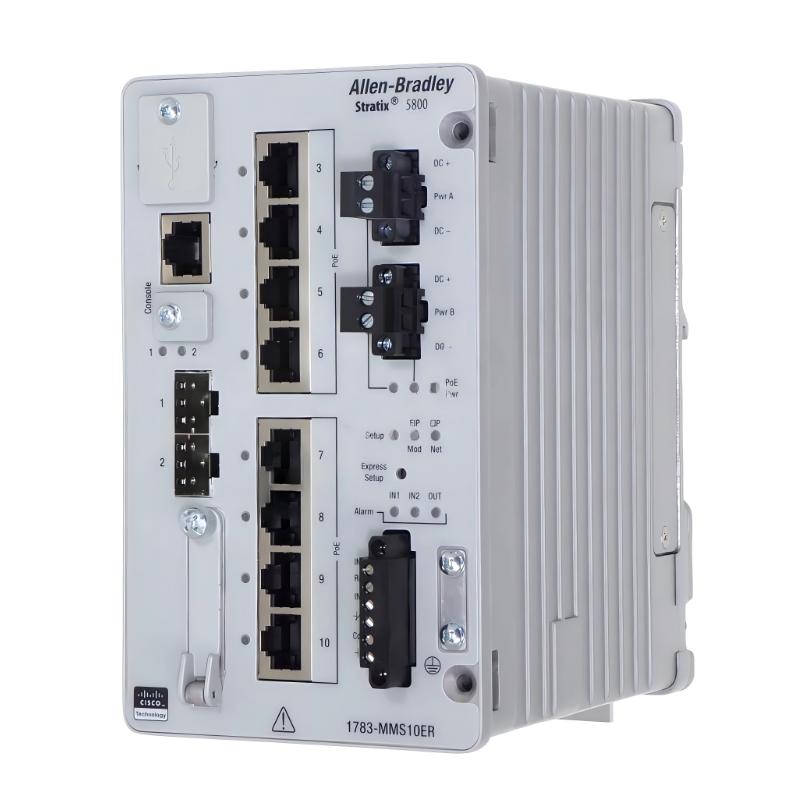

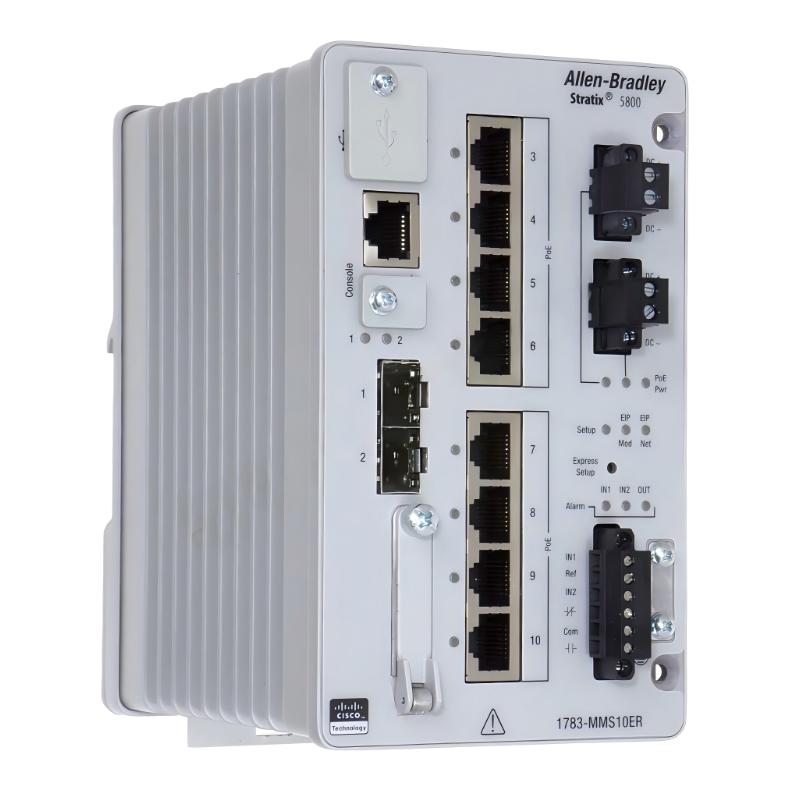

Product Name	Allen-Bradley 1783-MMS10ER Stratix Managed Switch
Manufacturer	Rockwell Automation (Allen-Bradley)
Series	Stratix 5800
Product Type	Managed Industrial Ethernet Switch
Ports	10-Port Gigabit Ethernet (model-dependent)
Switching Layer	Layer 2
Network Protocol	EtherNet/IP, TCP/IP
Redundancy Features	REP / ring support (model-dependent)
VLAN Support	Yes
Management Interface	Web-based / Cisco-style management tools
Mounting Type	DIN Rail
Dimensions	153.23 × 91.4 × 151.6 mm
Weight	0.95 kg

Recommended Related Models

Model Number	Product Name
1783-CMS10DN	Stratix 5200 Managed Switch
1783-CMS20DP	Stratix 5200 20-Port Switch
1756-EN2T	ControlLogix EtherNet/IP Module
1756-L83EP	ControlLogix 5580 Processor

Popular Related Models

Model Number	Product Name
1756-IB16	ControlLogix Digital Input Module
1756-OB16E	ControlLogix Digital Output Module
VE4050E1C0 KJ4001X1-BE1	I/O Interface Carrier
SE3007 KJ2005X1-BK1	DeltaV SX Controller Module

Applications

• Industrial Ethernet switching for EtherNet/IP™ automation networks.

• Plant-wide communication backbone for PLC, HMI, and remote I/O systems.

• Control network integration for ControlLogix™ and CompactLogix™ architectures.

• Machine-level networking in discrete manufacturing and packaging systems.

• Oil and gas automation systems requiring segmented and managed Ethernet traffic.

• Power generation control networks for distributed process communication.

• SCADA and MES systems requiring stable, deterministic industrial data exchange.

• Factory automation environments using VLAN and redundancy-based network design.

Key Advantages

• Provides reliable managed Layer 2 switching for industrial Ethernet systems.

• Supports high-speed deterministic communication in EtherNet/IP environments.

• Enhances network segmentation through VLAN configuration and traffic control.

• Designed for rugged industrial environments with long-term operational stability.

• Improves network uptime with redundancy and resilient architecture features.

• Integrates seamlessly into Rockwell Automation Integrated Architecture systems.

• Enables simplified troubleshooting through advanced diagnostics and monitoring.

• Optimized for continuous 24/7 industrial operation in harsh conditions.

Technical FAQs

Q1: What is the main function of the 1783-MMS10ER switch?
A: It is a managed industrial Ethernet switch used to connect PLCs, I/O devices, and industrial networks in EtherNet/IP systems.

Q2: Is it part of the Stratix 5200 series?
A: No, the 1783-MMS10ER belongs to the Stratix 5800 series, although it is often used in similar industrial networking applications.

Q3: What type of switching does it provide?
A: It provides Layer 2 managed switching for industrial Ethernet communication.

Q4: Can it be used with ControlLogix systems?
A: Yes, it is commonly used in ControlLogix and CompactLogix-based networks.

Q5: Does it support redundancy features?
A: Yes, it supports industrial redundancy protocols depending on configuration.

Q6: Is it suitable for harsh environments?
A: Yes, it is designed for industrial-grade temperature, vibration, and EMI conditions.

Q7: Can it handle VLAN configuration?
A: Yes, it supports VLAN-based network segmentation.

Q8: Is it used in new installations or retrofits?
A: It is widely used in both modern plant networks and upgrades of legacy systems.

Q9: Does it require programming?
A: No PLC programming is required; it is configured via network management tools.

Q10: What is the main benefit of this switch?
A: It ensures stable, secure, and efficient industrial Ethernet communication across automation systems.
