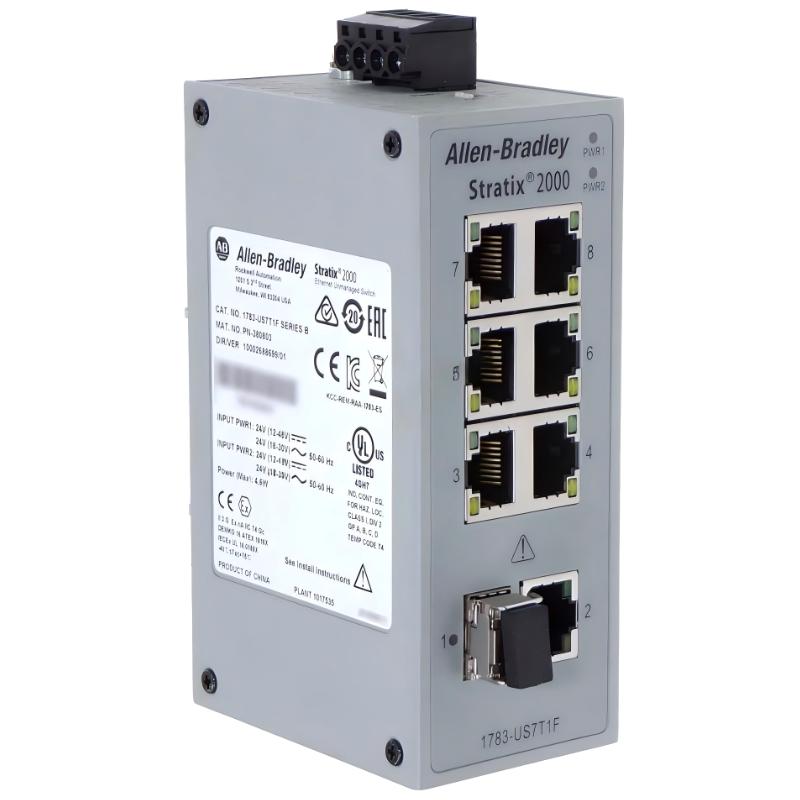

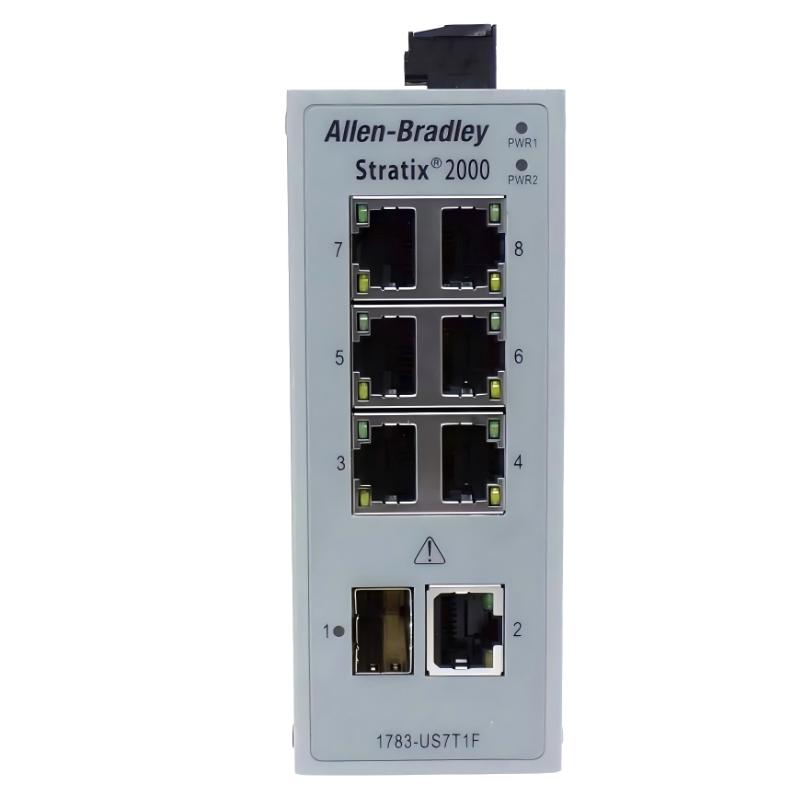

Allen Bradley 1783-US7T1F/B Stratix 2000 Unmanaged Ethernet Switch

Applications

• Industrial Ethernet connectivity for small and medium automation networks.

• PLC-to-device communication in Allen-Bradley ControlLogix™ and CompactLogix™ systems.

• Factory automation systems requiring simple plug-and-play network switching.

• Machine-level networking for sensors, HMIs, drives, and remote I/O.

• Oil and gas and process industries using basic Ethernet device interconnection.

• Power distribution and auxiliary control systems in industrial plants.

• SCADA-connected systems requiring straightforward, non-configured Ethernet access.

• Retrofit projects replacing point-to-point Ethernet wiring with centralized switching.

Key Advantages

• Provides simple unmanaged Ethernet switching with no configuration required.

• Supports reliable plug-and-play operation for fast deployment in industrial networks.

• Compact industrial design suitable for DIN-rail control cabinet installation.

• Designed for stable performance in harsh industrial environments.

• Reduces wiring complexity compared to direct device-to-device Ethernet connections.

• Supports automatic speed and duplex negotiation for connected devices.

• Cost-effective solution for basic industrial network infrastructure.

• Integrates easily into EtherNet/IP-based automation architectures.

Technical FAQs

Q1: What is the main function of the 1783-US7T1F/B switch?
A: It is an unmanaged industrial Ethernet switch used to connect multiple devices in a simple network without configuration.

Q2: How many ports does it have?
A: It typically has 8 ports total: 7 copper 10/100 Mbps ports and 1 fiber SFP port.

Q3: Does it require programming or setup?
A: No, it is plug-and-play with no software configuration required.

Q4: Is it part of the Stratix 2000 series?
A: Yes, it belongs to the Allen-Bradley Stratix 2000 unmanaged switch family.

Q5: Can it be used in industrial environments?
A: Yes, it is designed for rugged industrial control cabinet environments.

Q6: Does it support VLAN or routing?
A: No, it is an unmanaged switch and does not support advanced networking features.

Q7: What type of devices can be connected?
A: PLCs, HMIs, drives, sensors, and other Ethernet-enabled industrial devices.

Q8: Is it suitable for high-reliability networks?
A: It is suitable for basic industrial networking but not for advanced redundancy or segmentation needs.

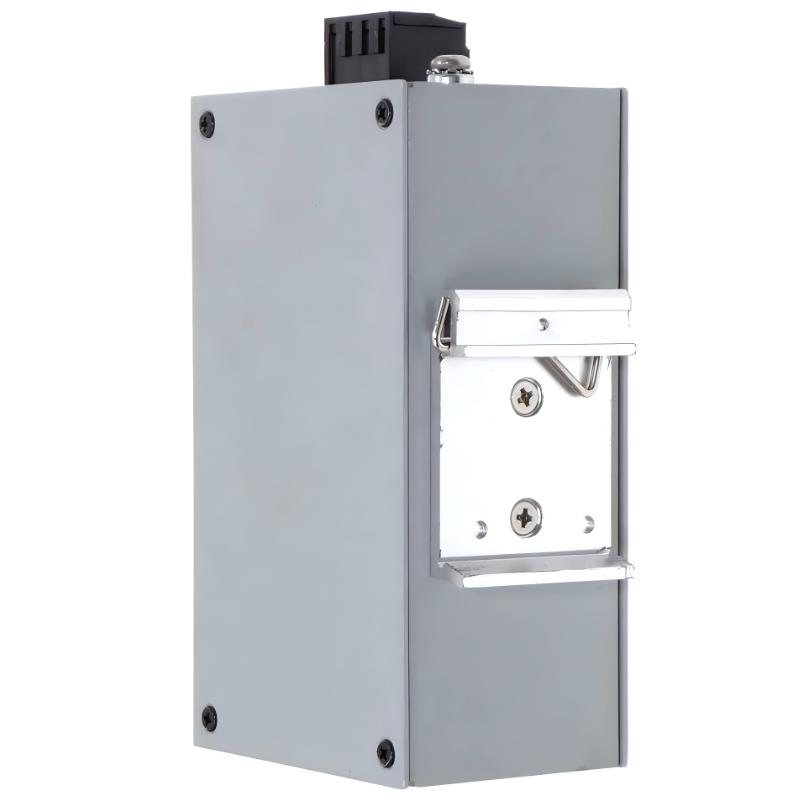

Q9: Can it be DIN-rail mounted?
A: Yes, it is designed for industrial DIN-rail installation.

Q10: What is the main benefit of this switch?
A: It provides simple, reliable Ethernet connectivity for industrial automation with minimal setup effort.
