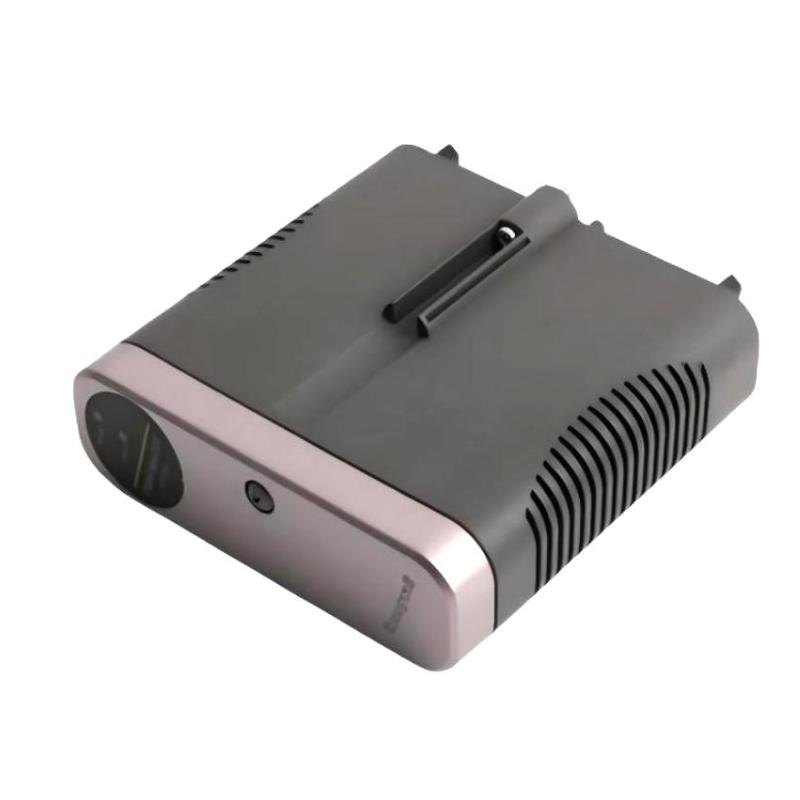

Honeywell 8C-PDISA1 Numeric Input Module

Applications

The Honeywell 8C-PDISA1 Numeric Input Module is engineered for precise digital signal acquisition in advanced automation systems. It captures numeric inputs from field devices and transmits them seamlessly to Honeywell controllers, ensuring accurate monitoring and control. Ideal for process plants, manufacturing lines, and energy systems, it enhances system efficiency and operational reliability.

Advantages

• High-Precision Input Processing: Ensures numeric signals are accurately captured and transmitted.

• Robust Industrial Design: Built to withstand demanding industrial conditions.

• Compact & Efficient: Slim design allows easy integration into crowded control panels.

• Seamless Integration: Fully compatible with Honeywell CC-series control platforms.

• Enhanced Diagnostics: LED indicators and monitoring functions provide instant feedback for proactive maintenance.

Technical FAQs

1. What is the primary function of the 8C-PDISA1?
   Converts and processes numeric input signals for Honeywell control systems.

2. How many channels are supported?
   Supports 8 numeric input channels.

3. What is the power requirement?
   24 VDC industrial power supply.

4. What is the operating temperature range?
   -20°C to +60°C (-4°F to +140°F).

5. Can it be mounted in standard control panels?
   Yes, compatible with DIN rail or panel mounting.

6. Does it provide diagnostics?
   Yes, LED indicators show real-time channel and module status.

7. Is it suitable for hazardous locations?
   Designed for standard industrial environments; local certifications required for hazardous areas.

8. What signal types are compatible?
   Digital numeric signals within specified voltage/current ranges.

9. Can firmware be upgraded?
   Yes, through Honeywell configuration software.

10. What are the dimensions and weight?
    Dimensions: 125 × 30 × 200 mm, Weight: 0.38 kg.
