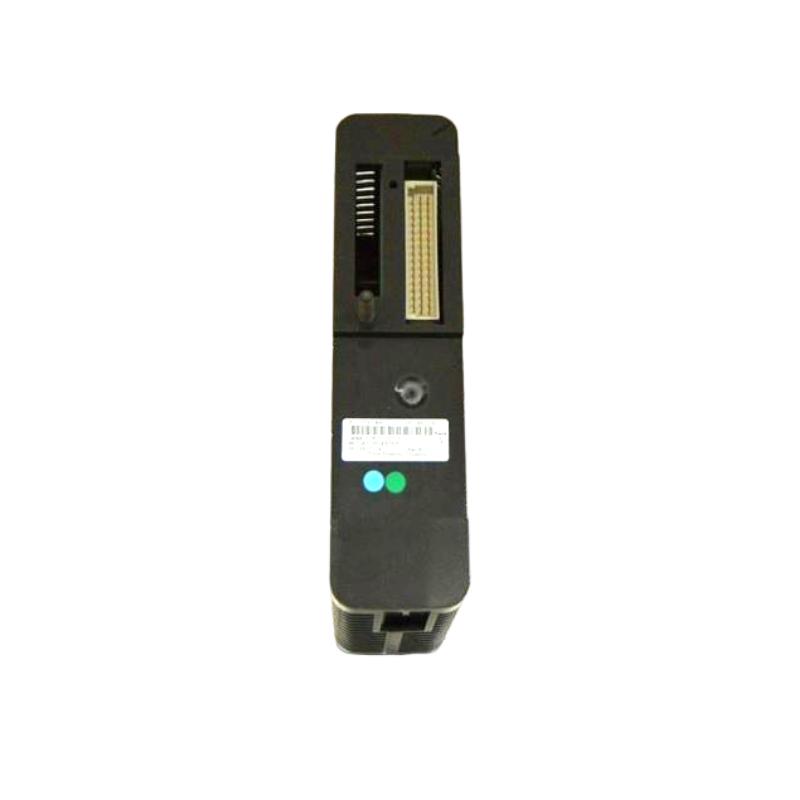

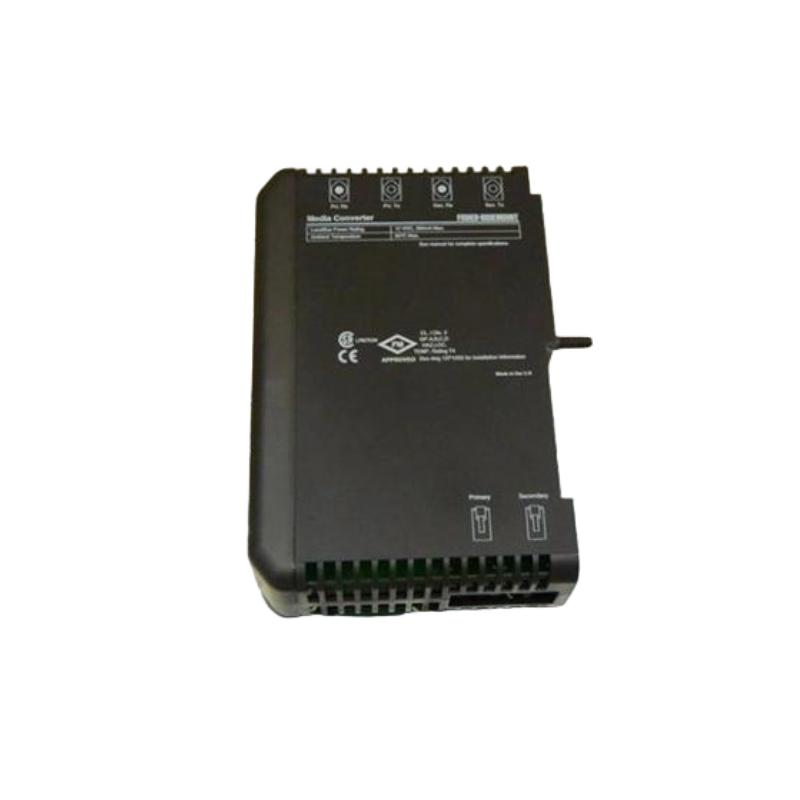

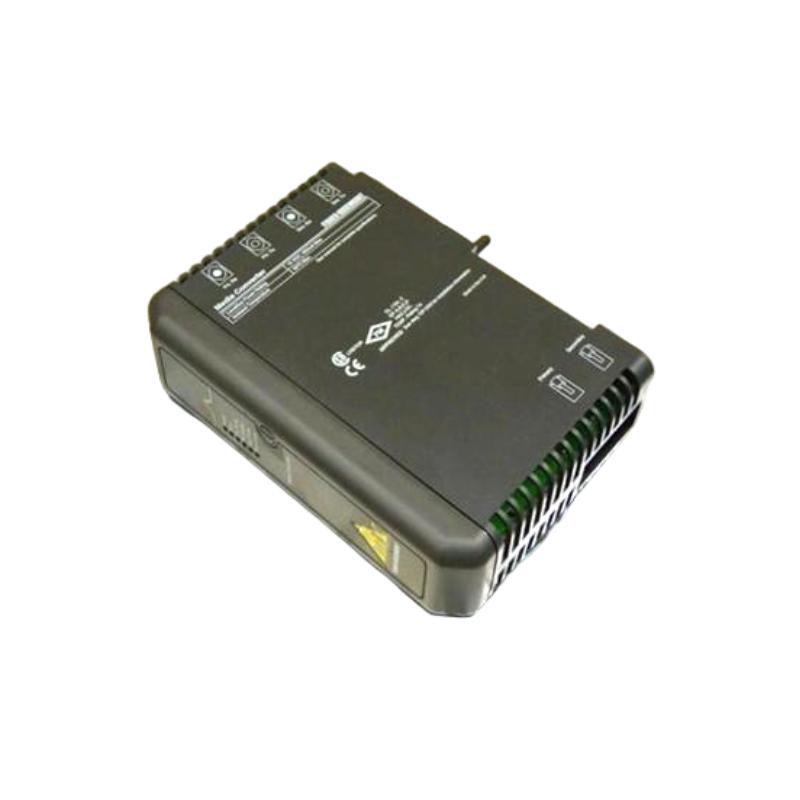

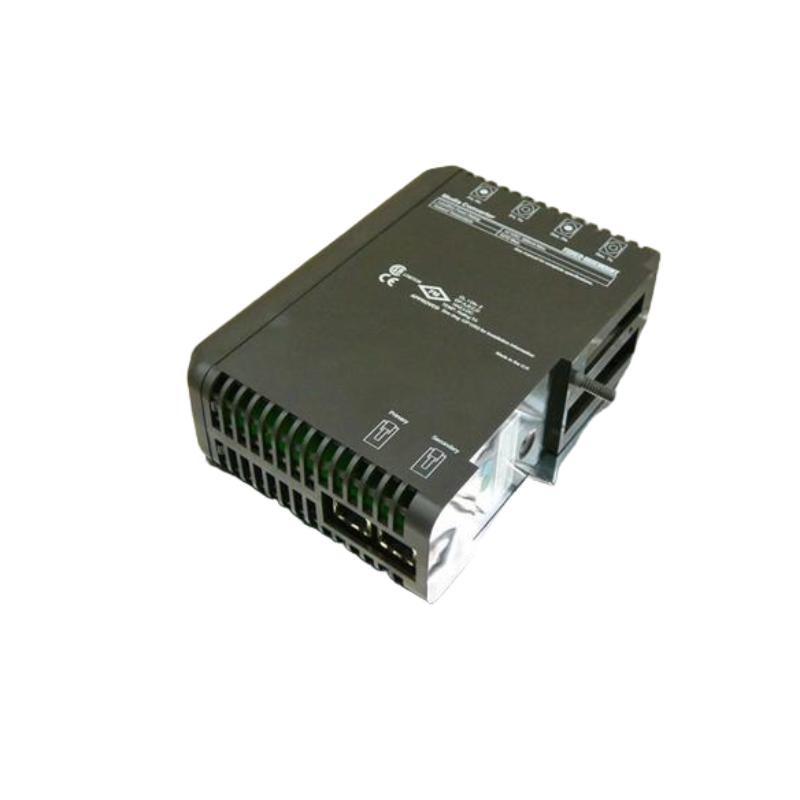

The Emerson VE6006 is a DeltaV system media converter module designed to enable reliable communication between different network media types within industrial automation environments. As part of the DeltaV control network infrastructure, it plays a critical role in ensuring stable signal transmission, network flexibility, and communication integrity across distributed control systems (DCS).
Engineered for industrial-grade performance, the VE6006 supports robust data transfer between copper and alternative network media, helping extend communication distances while maintaining signal quality. It is widely used in process automation systems where network reliability directly impacts control performance and operational continuity.
This module is especially important in legacy DeltaV architectures and hybrid upgrades where different network segments must be integrated seamlessly without compromising system stability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE6006 |
| Product Type | Media Converter / Communication Interface Module |
| System Platform | DeltaV Distributed Control System |
| Communication Function | Network media conversion (Ethernet-based systems) |
| Network Role | Signal transmission and media adaptation |
| Data Interface | Industrial Ethernet (DeltaV network integration) |
| Protocol Support | DeltaV system communication protocols |
| Power Supply | 24 VDC system power |
| LocalBus Power | 12 VDC, 300 mA max |
| Power Consumption | Low-power industrial design |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| EMC Protection | Industrial noise immunity design |
| Mounting Type | DIN rail / control cabinet installation |
| Environmental Rating | Industrial indoor use (IP20 class typical) |
| Shock Resistance | 10g, 11 ms half-sine |
| Vibration Resistance | 1 mm (5–16 Hz), 0.5 g (16–150 Hz) |
| Dimensions (H × W × D) | ~120 mm × 40 mm × 110 mm (typical industrial enclosure) |
| Weight | ~0.4–0.6 kg |
Recommended System Integration Modules
For stable DeltaV network architecture, VE6006 is typically used alongside the following Emerson components:
| Module | Function |
|---|---|
| VE6001P1 | Ethernet hub module (legacy network distribution) |
| VE6015 Series | Industrial Ethernet switch modules |
| VE6017 Series | High-performance network switch modules |
| VE6004 | Communication interface module |
| VE4070 | System carrier and interface adapter |
| VE5008 | System power redundancy module |
These modules collectively ensure stable, scalable, and fault-tolerant DeltaV communication networks.
Popular Emerson DeltaV Communication Modules
Within Emerson’s DeltaV ecosystem, VE6006 belongs to the industrial communication and networking family, which includes:
- VE6001P1 Ethernet Hub Module
- VE6004 System Communication Interface
- VE6006 Media Converter Module
- VE6015 Industrial Fast Ethernet Switch
- VE6017 Advanced Network Switch Series
- VE4070 System Interface Adapter
- VE4201 Remote Communication Interface Module
These components support robust plant-wide communication infrastructure for distributed control systems.
