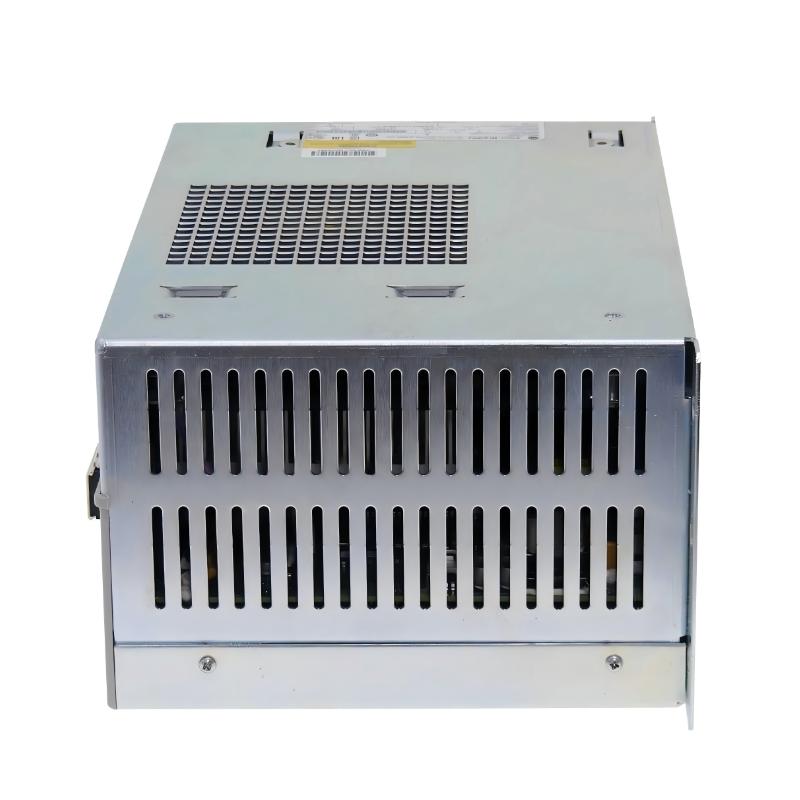

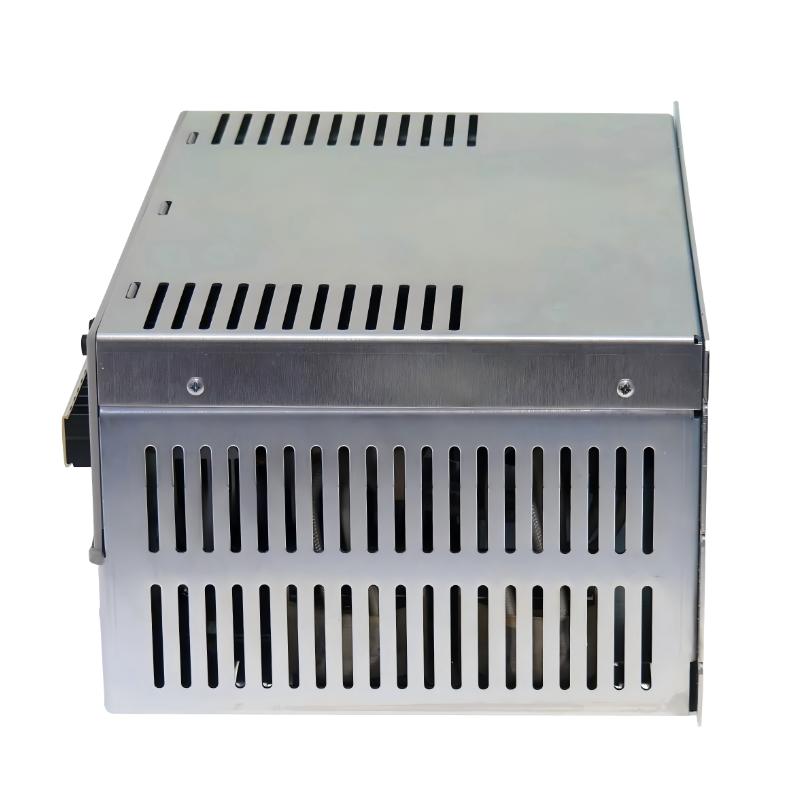

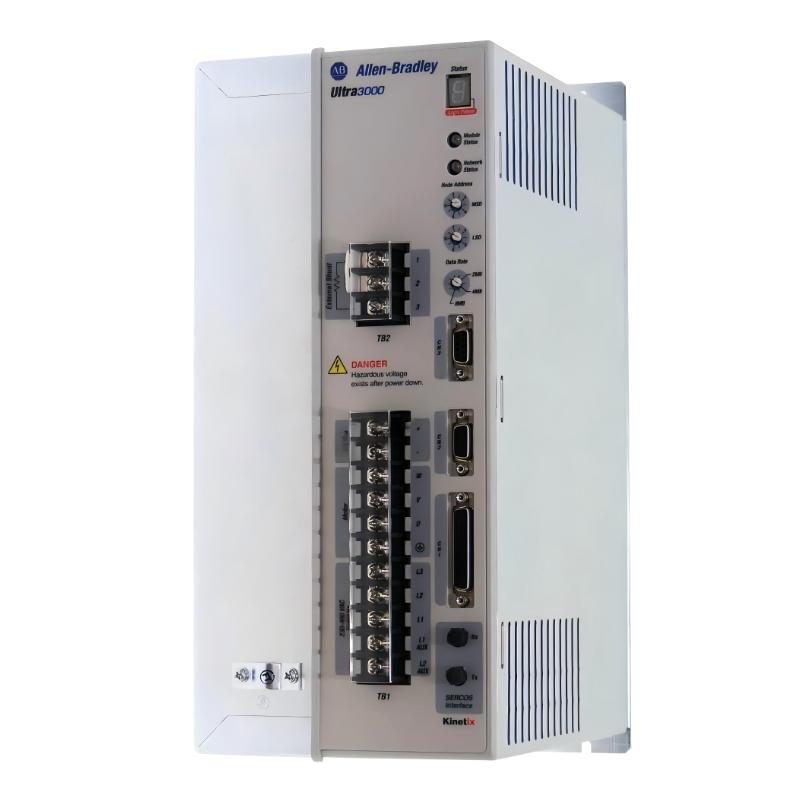

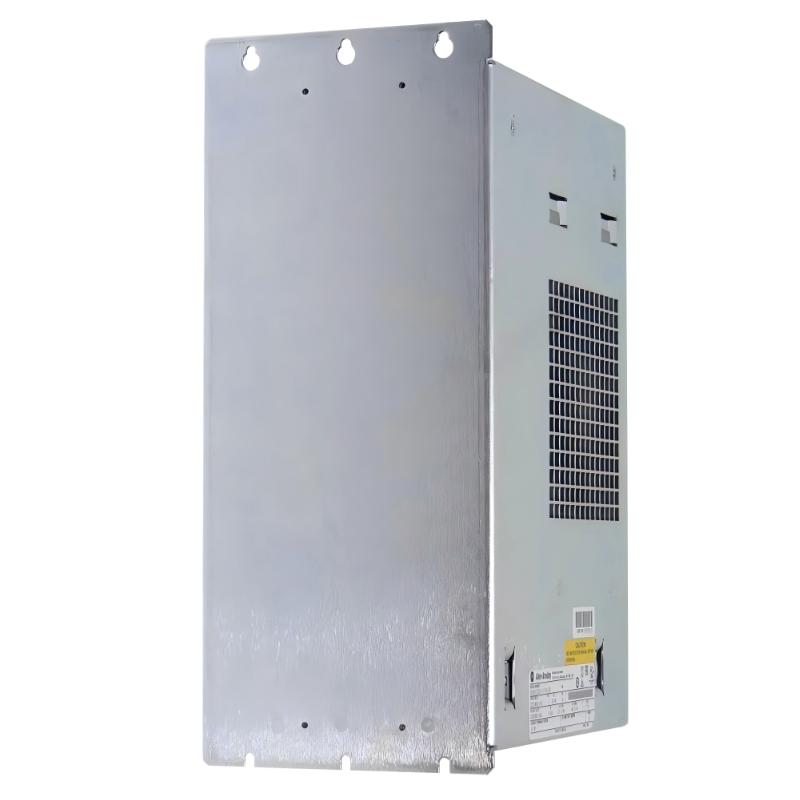

Allen Bradley 2098-DSD-HV100-SE Ultra3000 Digital Servo Driver
Allen Bradley 2098-DSD-HV100-SE Ultra3000 Digital Servo Driver
0.0
Points
Brand:Allen Bradley PLC Item No.:2098-DSD-HV100-SE Product Origin:USA Product Dimensions:360.7 x 151.6 x 242.2 mm Product Weight:10.44 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 2098-DSD-HV100-SE Ultra3000 Digital Servo Driver is designed for high-voltage, high-precision motion control applications requiring stable and synchronized performance. With SERCOS communication and advanced servo control capability, it enables accurate coordination across multi-axis systems in demanding industrial environments.
Its robust construction and high power capacity make it suitable for heavy-duty automation tasks. Although part of a discontinued platform, it remains widely deployed in existing industrial installations due to its reliability and strong motion control performance.
Technical Specifications
Parameter
Specification
Product Model
2098-DSD-HV100-SE
Product Type
Digital Servo Driver
Series
Ultra3000
Manufacturer
Allen Bradley
Control Interface
SERCOS
Power Rating
10 kW
Input Voltage
230–480 VAC
Output Current
23 A continuous / 46 A peak
Application
Motion Control Systems
Installation Environment
Industrial Automation
Dimensions (H × W × D)
360.7 × 151.6 × 242.2 mm
Weight
10.44 kg (22.99 lb)
High-Power Servo Drive for Demanding Industrial Motion Systems
The Allen Bradley 2098-DSD-HV100-SE Ultra3000 Digital Servo Driver is a high-voltage, high-performance motion control solution designed for complex industrial automation environments. As part of the Ultra3000 series, it uses SERCOS fiber-optic communication to deliver deterministic, high-speed control for multi-axis synchronized motion systems.
It is commonly applied in CNC machinery, robotics, heavy manufacturing lines, packaging systems, and high-load automation processes where precision and stability under high power are required.
Key Advantages
High-power 10 kW-class servo drive for industrial automation
SERCOS fiber-optic communication for real-time deterministic control
Supports precise torque, speed, and position regulation
Designed for multi-axis synchronized motion systems
Robust industrial construction for continuous-duty operation
Suitable for CNC, robotics, and heavy production equipment
High dynamic response for complex motion profiles
Compatible with Ultra3000 system architecture
Technical FAQs
1. What is the main function of this servo driver?
It controls servo motors by regulating torque, speed, and position in high-power motion systems.
2. What communication protocol does it use?
It uses SERCOS fiber-optic communication for fast and deterministic motion control.
3. Is it suitable for multi-axis systems?
Yes, it is designed for synchronized multi-axis industrial motion control.
4. What is its power rating?
It is a 10 kW-class high-voltage servo drive.
5. Can it be used in CNC and robotics applications?
Yes, it is widely used in CNC machining, robotics, and automated production lines.
6. Does it support continuous industrial operation?
Yes, it is built for continuous-duty heavy industrial environments.
7. Is this model still actively manufactured?
No, it is part of the discontinued Ultra3000 product family, but remains widely used in legacy systems.
8. Can it integrate with modern motion systems?
It is mainly used in existing Ultra3000 installations or migration setups.
9. Does it provide diagnostic functions?
Yes, it includes drive-level diagnostics and fault monitoring capabilities.
10. What type of feedback systems does it support?
It supports compatible servo feedback systems used within Ultra3000 architectures.
