The Emerson VE6014P3 is a DeltaV fiber-optic industrial Ethernet switch module designed for high-reliability communication in distributed control system (DCS) environments. As part of the DeltaV M-series network infrastructure, it provides deterministic Fast Ethernet switching across fiber-based plant networks, ensuring stable data transmission between controllers, workstations, and automation subsystems.
The “P3” suffix typically represents a configuration variant within the VE6014 series family, commonly associated with regional hardware or power-cord specifications, while maintaining the same core fiber switch architecture as other VE6014 models.
Engineered for mission-critical industrial environments, the VE6014P3 is widely deployed in large-scale process plants where long-distance communication, electromagnetic immunity, and network stability are essential for continuous operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE6014P3 |
| Product Type | Industrial Fiber Ethernet Switch Module |
| System Platform | DeltaV Distributed Control System |
| Network Type | 100BASE-FX Fiber Optic Ethernet |
| Data Rate | 100 Mbps Fast Ethernet |
| Port Configuration | Up to 24-port fiber switch architecture (platform dependent) |
| Media Type | Multimode fiber (industrial FX standard) |
| Switching Layer | Layer 2 Ethernet switching |
| Communication Role | DeltaV network backbone distribution |
| Power Supply | 24 VDC system power |
| Power Consumption | ~8–15 W typical (industrial low-power design) |
| Redundancy Support | System-level redundancy via DeltaV architecture |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5%–95% non-condensing |
| EMC Protection | High industrial noise immunity design |
| Mounting Type | Rack / control cabinet installation |
| Status Indicators | Per-port Link/Activity LEDs |
| Fiber Connector Type | SC / ST (system dependent) |
| Dimensions (H × W × D) | ~130 mm × 440 mm × 250 mm |
| Weight | ~3.5–5.0 kg |
Recommended System Integration Modules
For a stable DeltaV communication architecture, the VE6014P3 is typically used alongside the following Emerson modules:
| Module | Function |
|---|---|
| VE6014P1 | Base fiber switch variant (same platform family) |
| VE6014P2 | Alternate configuration variant |
| VE6015 Series | Fast Ethernet copper switch modules |
| VE6017 Series | Advanced industrial Ethernet switches |
| VE6018 Series | High-density fiber switch platforms |

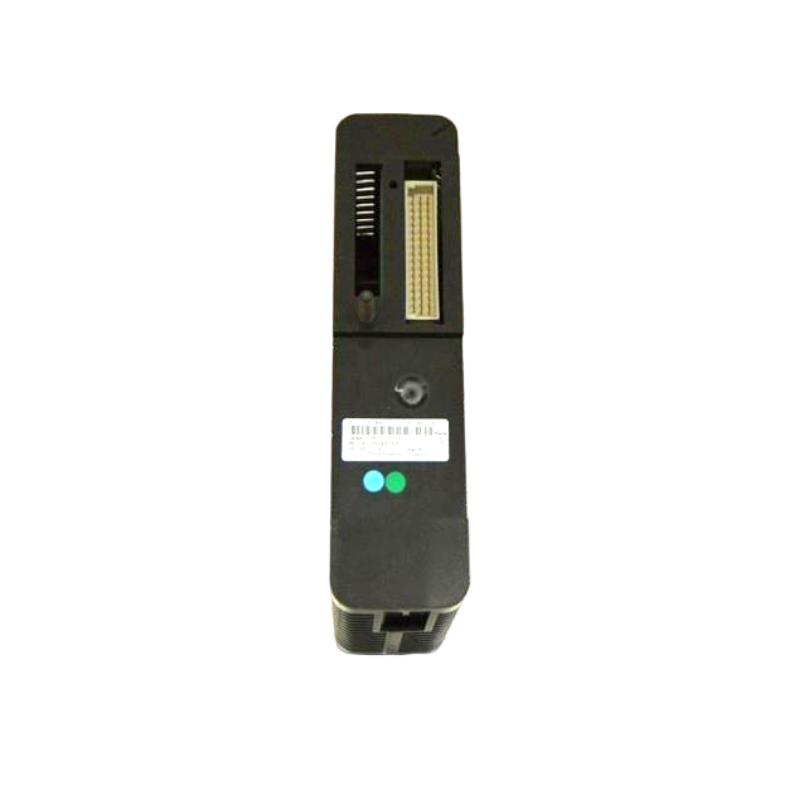

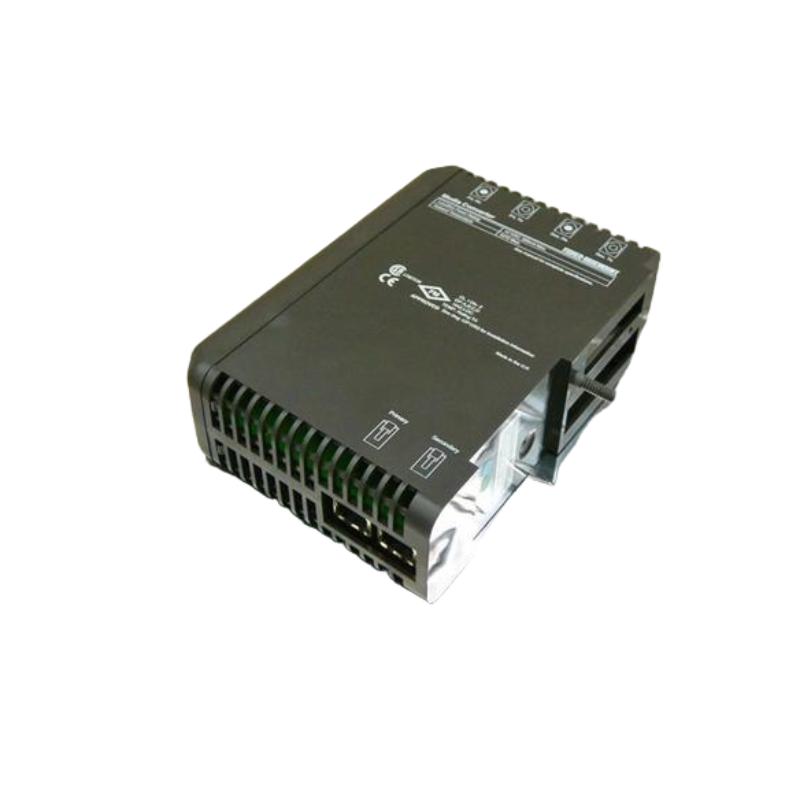

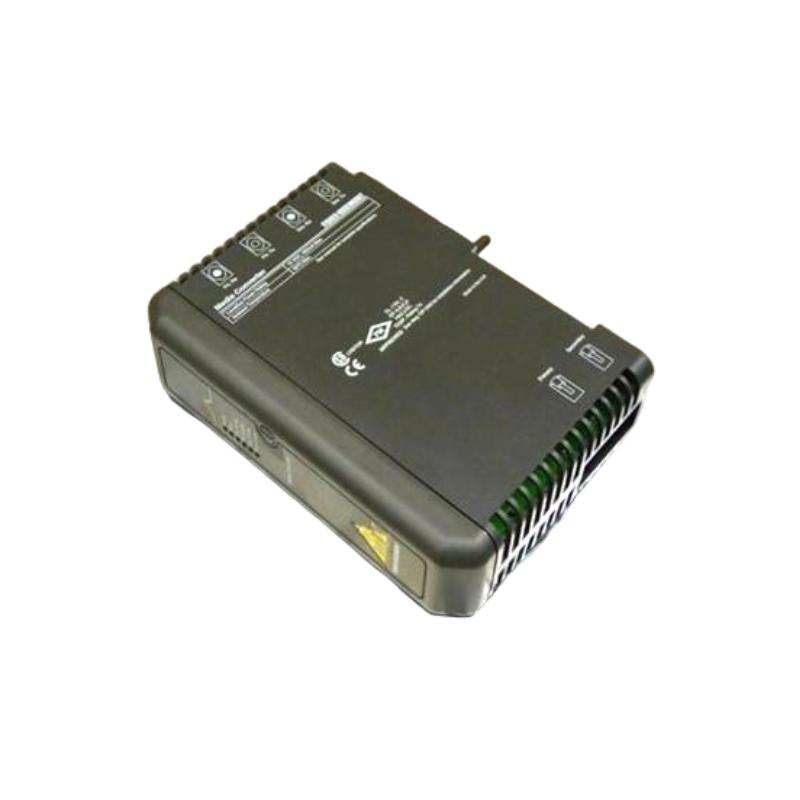

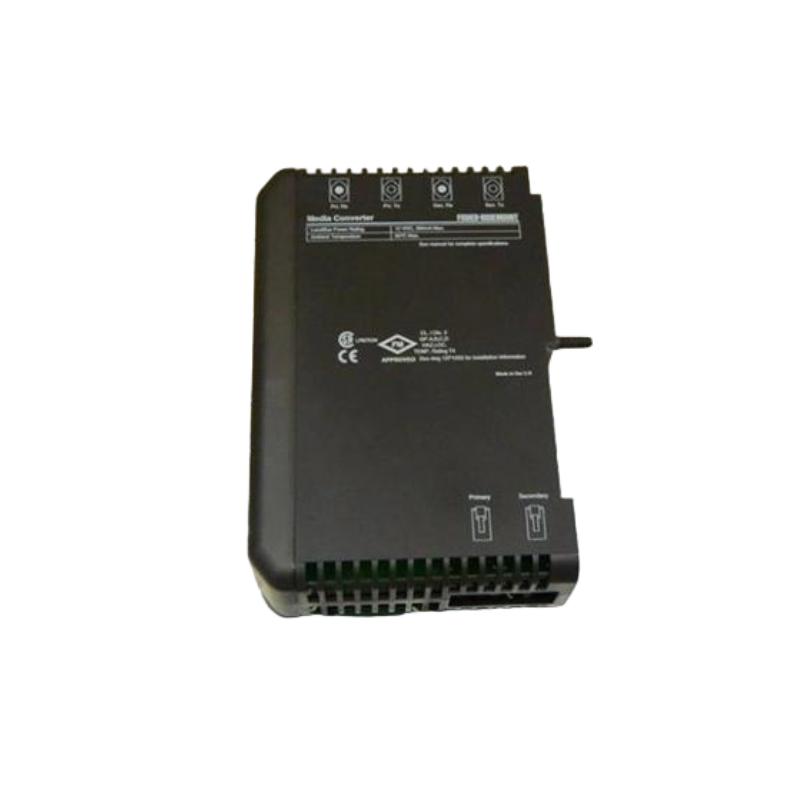

| VE6006 | Media converter module (fiber ↔ copper bridging) |
| VE6001P1 | Legacy Ethernet hub module |
| VE4070 | System interface and carrier module |
These modules collectively form a scalable and fault-tolerant DeltaV industrial communication backbone.
Popular Emerson DeltaV Communication Modules
Within Emerson’s DeltaV ecosystem, VE6014P3 belongs to the fiber Ethernet switching family:
- VE6014P1 / P2 / P3 / P4 Fiber Switch Variants
- VE6015 Series Fast Ethernet Switch Modules
- VE6017 Series Industrial Network Switches
- VE6018 High-Density Fiber Switch Systems
- VE6021 Advanced Ethernet Switch Platforms
- VE6001P1 Legacy Ethernet Hub Module
- VE6006 Media Converter Module
- VE4070 System Interface Module
These components are designed to ensure deterministic communication across distributed industrial automation systems.
