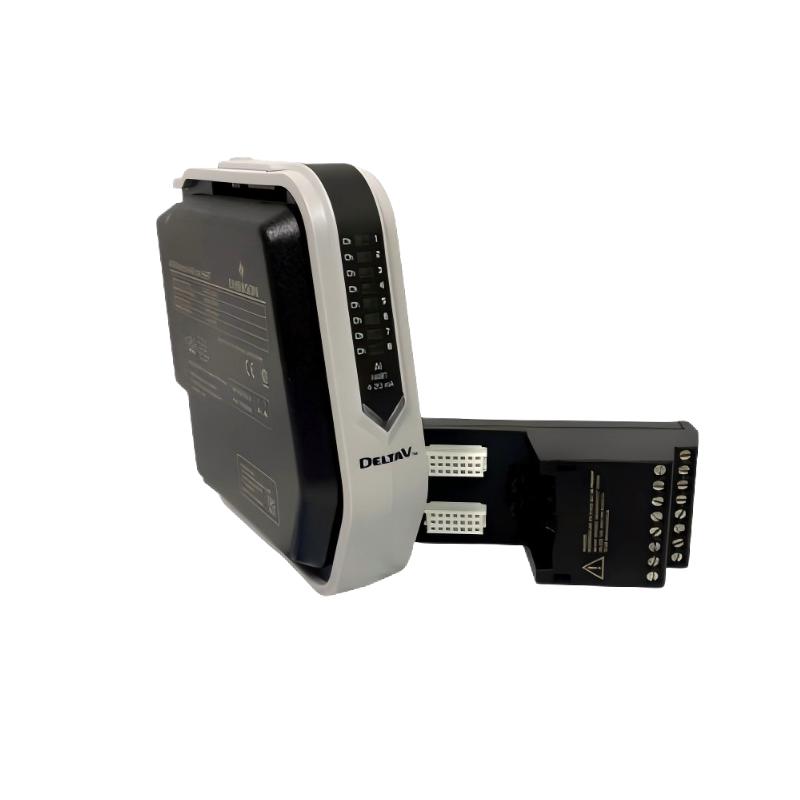

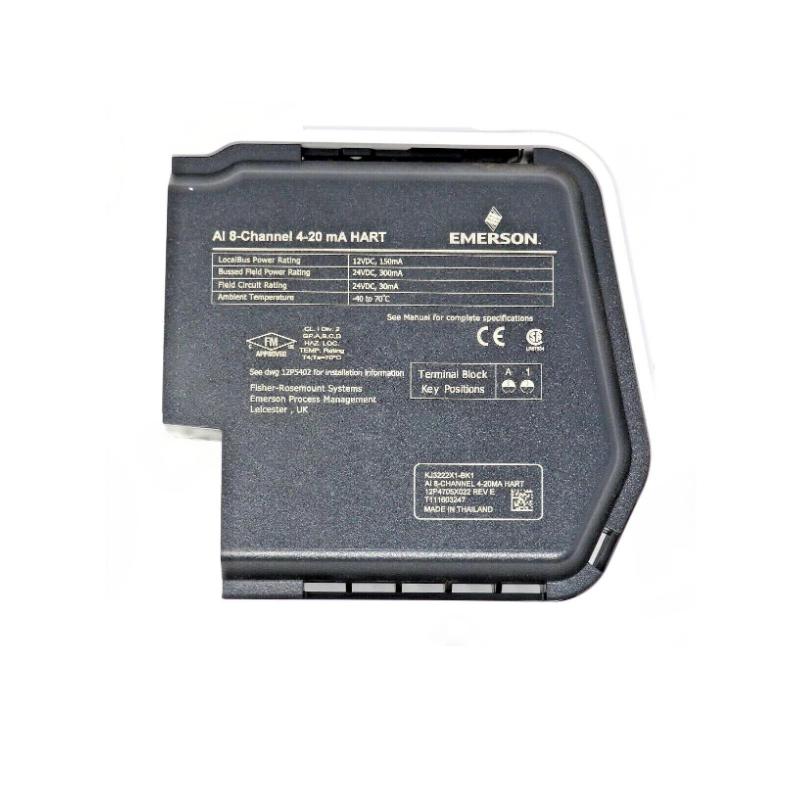

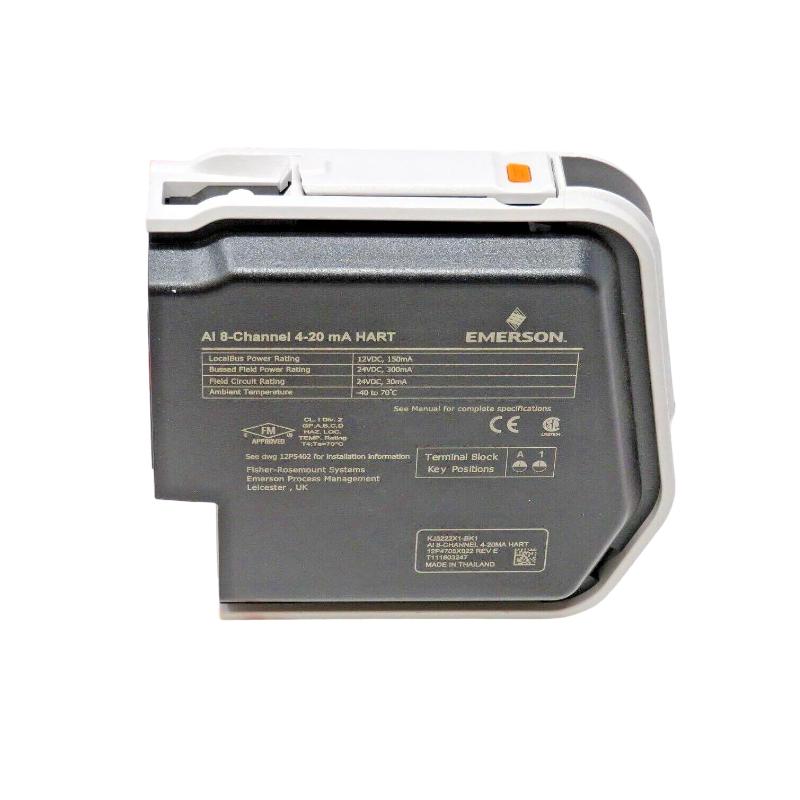

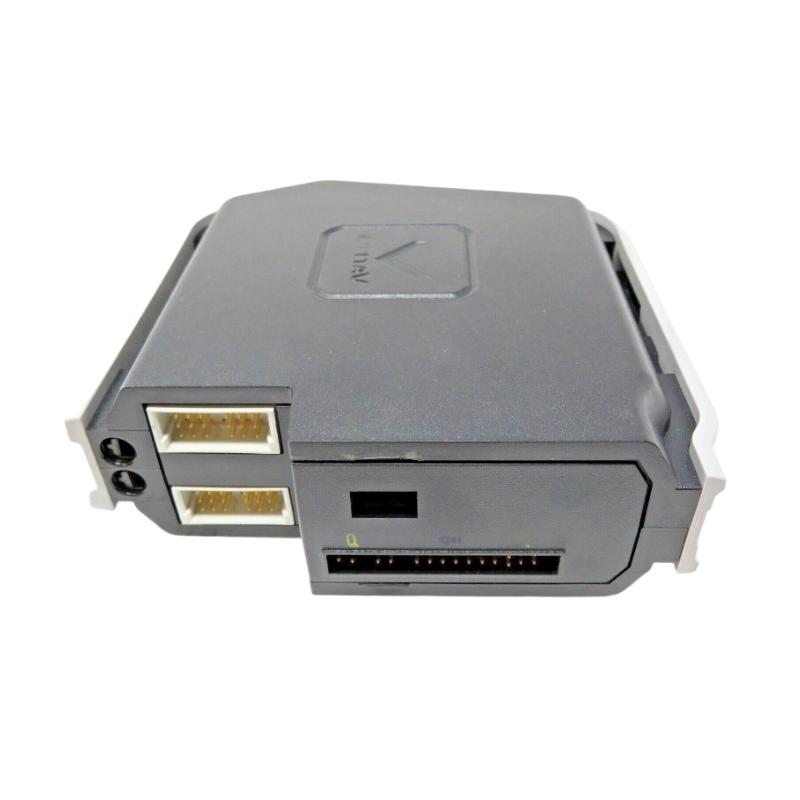

The Emerson SE4003S2B5 (KJ3222X1-BK1) is a DeltaV S-Series / Series 2 high-density analog input module assembly designed for mission-critical process signal acquisition in distributed control system (DCS) environments. It combines Emerson’s DeltaV analog input card architecture with a mass termination solution, enabling compact, high-channel-density wiring for large-scale industrial automation systems.
This module is widely recognized as a factory-matched pairing where SE4003S2B5 defines the I/O termination configuration (24-pin mass termination), while KJ3222X1-BK1 is the DeltaV card hardware identifier used in Emerson cataloging and cross-referencing. Together, they form a complete 8-channel 4–20 mA HART-enabled analog input solution for process industries.
It is commonly deployed in environments requiring stable signal acquisition, advanced field diagnostics, and efficient cabinet wiring—especially in oil & gas, petrochemical, and power generation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model Pairing | SE4003S2B5 / KJ3222X1-BK1 |
| System Platform | DeltaV S-Series / Series 2 I/O |
| Product Type | Analog Input Module Assembly |
| Input Channels | 8 channels |
| Signal Type | 4–20 mA (process signals) |
| HART Communication | Supported |
| Resolution | 16-bit high-resolution conversion |
| Accuracy | ~±0.1% typical full scale |
| Isolation | Channel-to-system isolation |
| Terminal Block Type | 24-pin mass termination (high-density wiring) |
| LocalBus Power | 12 VDC (typical DeltaV backplane supply) |
| Field Power | 24 VDC loop power support |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| EMC Immunity | Industrial-grade EMI/RFI protection |
| Mounting Type | DeltaV rack / carrier system |
| Dimensions (H × W × D) | ~130 mm × 40 mm × 110 mm |
| Weight | ~0.25–0.5 kg |
Recommended System Integration Modules
For full DeltaV system architecture, SE4003S2B5 is typically used with:
| Module | Function |
|---|---|
| SE4003S2B1 | Standard 8-channel AI module |
| SE4003S2B2 | Fused terminal block AI module |
| SE4003S2B4 | 16-pin mass termination AI module |
| SE4003S2B6 | 16-channel high-density AI module |
| SE4033S2B1 | Redundant analog input module |
| SE4005S2B2 | Analog output module |
| KJ3222X1-BK1 | Core DeltaV AI card hardware reference |
| DeltaV Controller Series | System-level processing and control |
These components enable scalable analog signal acquisition across complex industrial control systems.
Popular Emerson DeltaV Analog Input Modules
Within Emerson’s DeltaV ecosystem, SE4003S2B5 / KJ3222X1-BK1 belongs to the high-density AI family:
- SE4003S2B1 8-channel AI module
- SE4003S2B2 fused AI module
- SE4003S2B4 16-pin mass termination AI module
- SE4003S2B5 24-pin mass termination AI module
- SE4003S2B6 16-channel AI module
- SE4033S2B1 redundant AI module
- KJ3222X1-BK1 DeltaV AI card assembly
- VE4003S series analog input modules
- VE4033S series redundant input modules
These modules support flexible deployment in modern and legacy DeltaV systems.
