Brand:Honeywell DCS Item No.:TK-MDP081 Product Origin:USA Product Dimensions:201 x 166 x 35 mm Product Weight:0.27 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

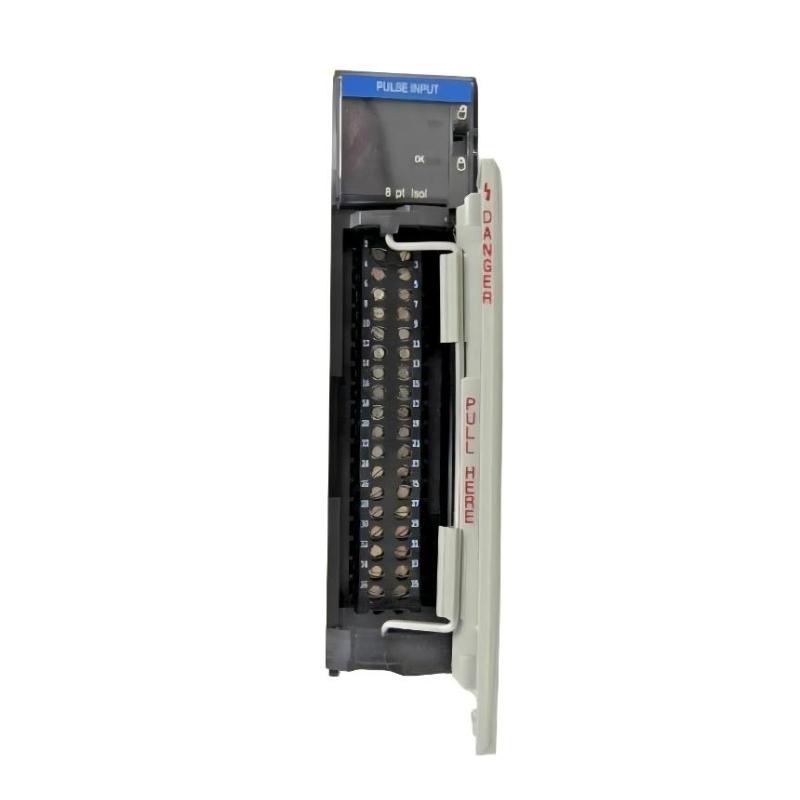

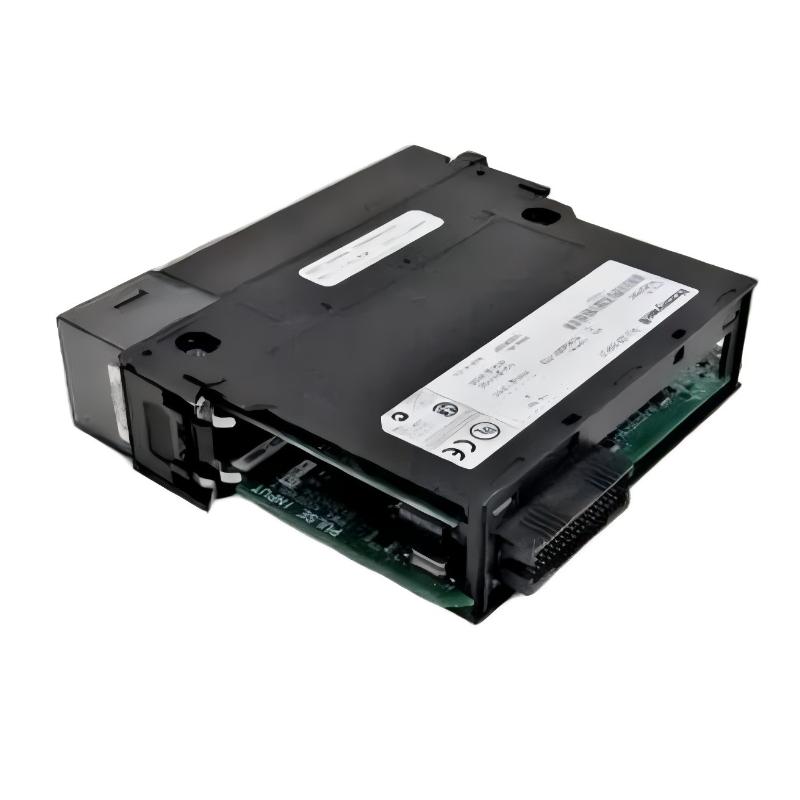

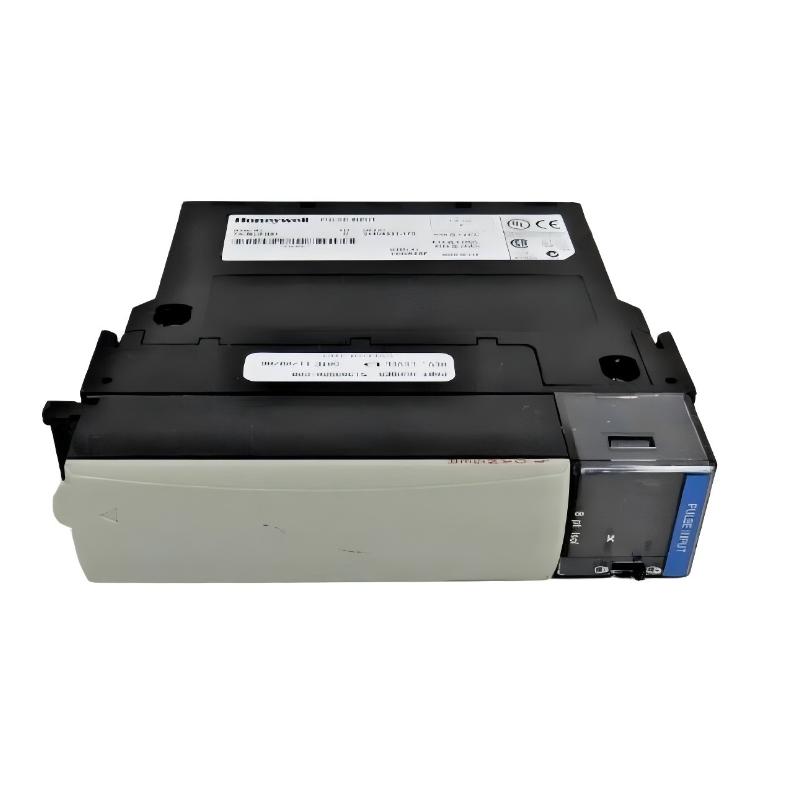

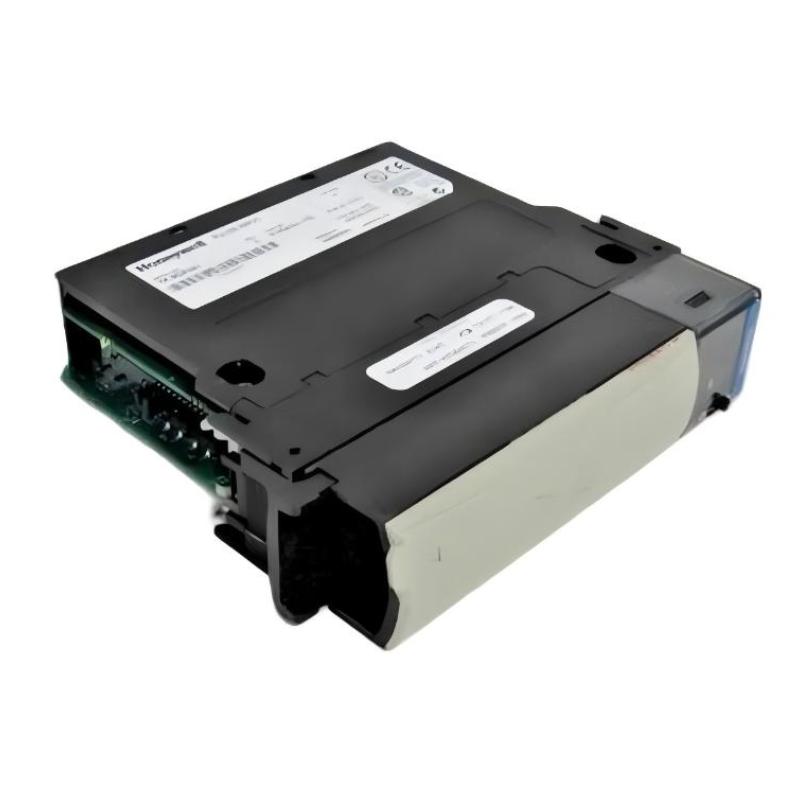

The Honeywell TK-MDP081 Pulse Input Module combines precision pulse monitoring with a compact and robust design. Its high reliability, advanced diagnostics, and seamless integration make it ideal for modern automation systems. By ensuring accurate data acquisition and minimizing downtime, it improves operational efficiency and supports better control system performance.
Technical Specifications
Feature
Specification
Dimensions
201 mm × 166 mm × 35 mm
Weight
0.27 kg
Input Channels
8 pulse input channels
Signal Type
Digital pulse signals
Power Supply
24 VDC
Mounting
DIN rail or panel mount
Operating Temperature
-20°C to +60°C (-4°F to +140°F)
Diagnostics
LED indicators for channel status and signal integrity
Construction
Industrial-grade, vibration-resistant
Firmware
Upgradeable via Honeywell software
Recommended Related Models
Honeywell TK-MDP082 Pulse Input Module
Honeywell CC-PDO02 Digital Output Module
Honeywell CC-PDB0824 Distribution Board
Popular Related Models
Honeywell HC900 Control System Modules
Honeywell UDC3200 Digital Controllers
Honeywell CC-TFB402 Control Circuit Board
Applications
The Honeywell TK-MDP081 Pulse Input Module is designed to capture and process pulse signals from field devices with high accuracy. It enables reliable data transfer to Honeywell controllers for monitoring flow rates, rotational speeds, and other pulse-based measurements. Ideal for process plants, manufacturing lines, and energy facilities, it ensures dependable system performance and seamless network integration.
Key Advantages
Accurate Pulse Signal Processing: Ensures precise monitoring of pulse inputs from field devices.
Compact, Lightweight Design: With dimensions of 201 × 166 × 35 mm and weight of 0.27 kg, it fits easily in standard control panels.
Seamless System Integration: Compatible with Honeywell CC-series and other control modules.
Advanced Diagnostics: LED indicators provide real-time feedback on channel status and signal integrity.
Durable Construction: Industrial-grade components ensure reliable operation in demanding environments.
Technical FAQs
What is the primary function of the TK-MDP081?
Monitors and processes pulse input signals from field devices.
How many pulse input channels are supported?
Up to 8 channels.
What is the operating voltage?
24 VDC industrial power supply.
What is the operating temperature range?
-20°C to +60°C (-4°F to +140°F).
Is it suitable for panel mounting?
Yes, supports both DIN rail and panel installation.
Does the module provide diagnostics?
Yes, LED indicators display real-time channel and signal status.
Can it be used in hazardous areas?
Designed for standard industrial environments; local certification should be verified for hazardous areas.
What types of signals are compatible?
Digital pulse signals from devices such as flow meters and speed sensors.
Is firmware upgradeable?
Yes, updates can be applied via Honeywell configuration software.
What are the module’s dimensions and weight?
Dimensions: 201 × 166 × 35 mm, Weight: 0.27 kg.
