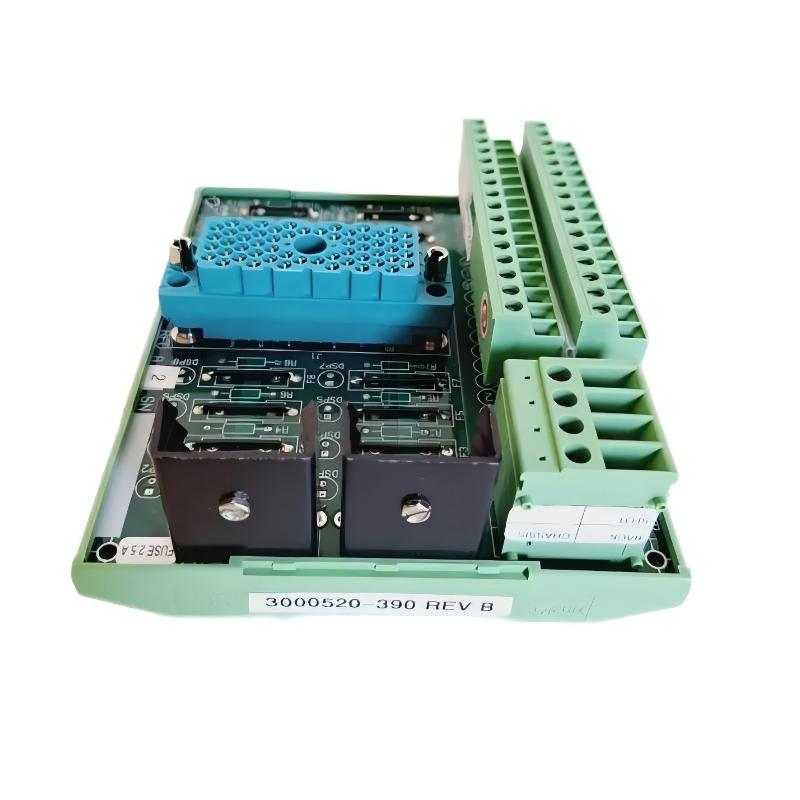

Invensys Triconex 9562 3000520-390 Terminal Panel Module

Applications

The Triconex 9562 Terminal Panel Module is designed for efficient signal management in industrial safety and control systems. It is commonly used in:

• Oil & gas facilities requiring precise input/output signal routing

• Chemical and petrochemical plants for scalable automation systems

• Power generation stations where reliable terminal connections are critical

• Manufacturing plants with complex redundant control networks

• Any Triconex system needing modular terminal expansion for additional I/O

Advantages

• Modular Flexibility: Easily integrates into existing Triconex racks, allowing system expansion.

• Reliable Signal Handling: Maintains integrity of input/output signals even in harsh industrial conditions.

• Diagnostic Transparency: Status LEDs provide clear feedback for maintenance and troubleshooting.

• Industrial-Grade Design: Resistant to vibration, temperature fluctuations, and electrical noise.

• Safety-Compliant: Meets IEC 61508 SIL 3 standards for critical safety applications.

Technical FAQs

1. What is the purpose of the 9562 Terminal Panel Module?

   • Provides centralized terminal connections for digital and analog I/O signals.

2. How many terminals does it support?

   • Supports 32 terminal connections for various field devices.

3. Can it be used in redundant systems?

   • Yes, fully compatible with dual-redundant Triconex setups.

4. What is the input/output voltage range?

   • Designed for standard industrial 24V DC signals.

5. Does it provide visual diagnostic indicators?

   • Yes, onboard LEDs display terminal and module status.

6. Is it suitable for hot-swapping?

   • Yes, modules can be replaced without shutting down the system.

7. What is the operating temperature range?

   • -25°C to 70°C (-13°F to 158°F).

8. Does it require maintenance?

   • Minimal; periodic inspection of terminals and clean wiring recommended.

9. Does it comply with industrial safety standards?

   • Yes, IEC 61508 SIL 3 certified.

10. What type of connections are used?

    • Screw terminal blocks for secure field device connections.
