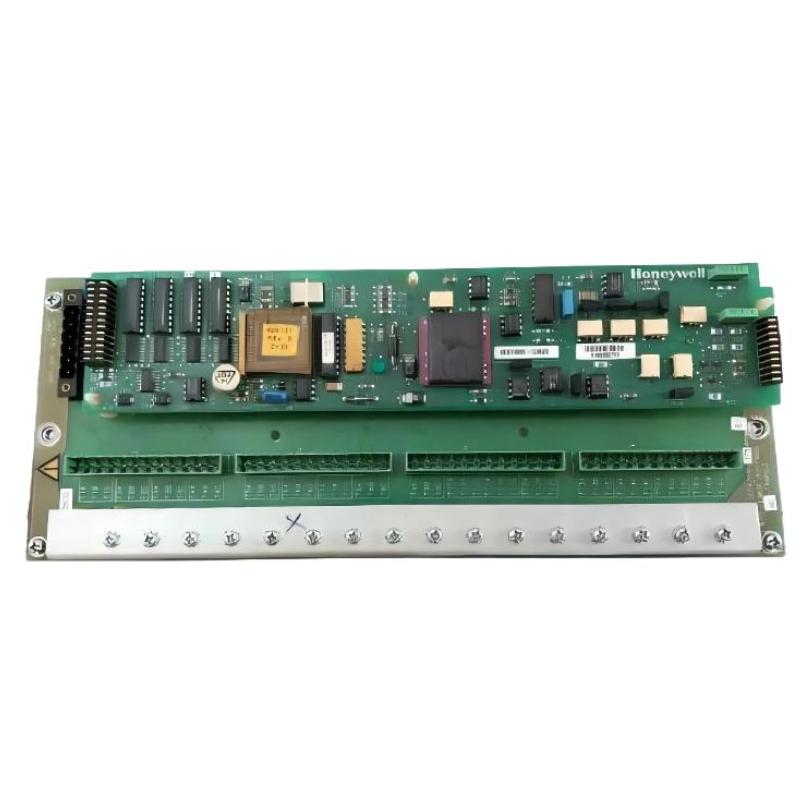

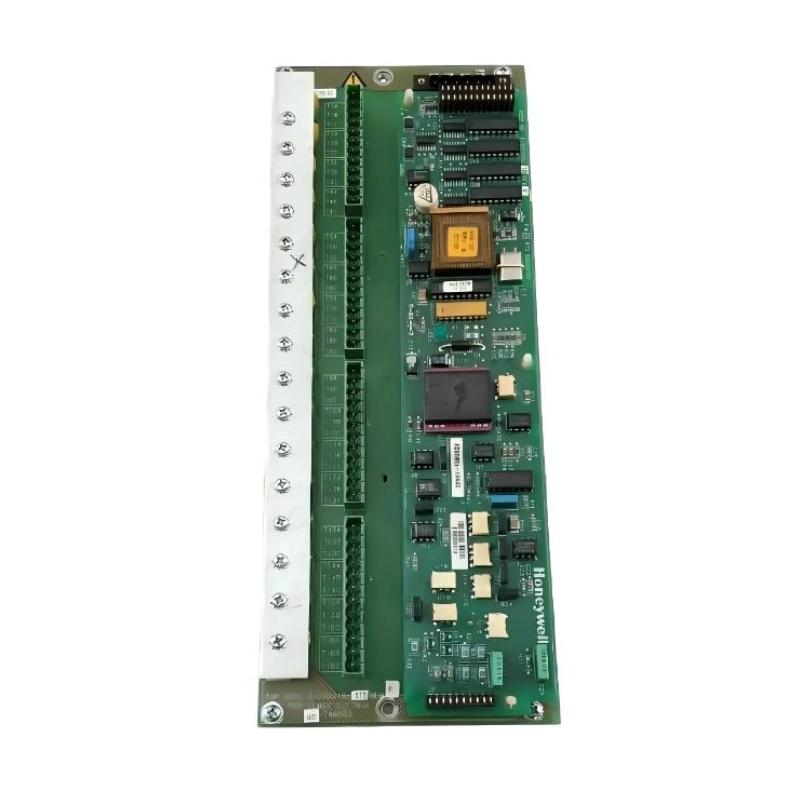

Product Overview

The Honeywell MC-TAMR03 Low-Level Analog Input Module delivers precise, reliable analog signal monitoring in a compact and durable package. Its high accuracy, advanced diagnostics, and seamless integration make it ideal for new installations or system upgrades. By providing dependable data acquisition, the MC-TAMR03 enhances operational efficiency, reduces downtime, and supports better process control.

Technical Specifications

Feature	Specification
Dimensions	180 mm × 130 mm × 44 mm
Weight	0.6 kg
Input Channels	8 low-level analog input channels
Signal Types	4–20 mA, 0–10 V
Power Supply	24 VDC
Mounting	DIN rail or panel mount
Operating Temperature	-20°C to +60°C (-4°F to +140°F)
Diagnostics	LED indicators for channel status and error reporting
Construction	Industrial-grade components
Firmware	Upgradeable via Honeywell software

Recommended Related Models

Honeywell MC-TAMR02 Low-Level Analog Input Module
Honeywell CC-PDO02 Digital Output Module
Honeywell CC-PDB0824 Distribution Board

Popular Related Models

Honeywell HC900 Control System Modules
Honeywell UDC3200 Digital Controllers
Honeywell CC-TFB402 Control Circuit Board

Applications

The Honeywell MC-TAMR03 Low-Level Analog Input Module is engineered for precise monitoring of low-level analog signals in industrial automation systems. It efficiently integrates sensors into Honeywell controllers for accurate measurement of parameters such as temperature, pressure, and flow. Ideal for process plants, manufacturing facilities, and energy systems, it ensures high reliability and system efficiency.

Advantages

High-Precision Signal Acquisition: Captures low-level analog signals with exceptional accuracy.
Robust Industrial Design: Built to withstand harsh environmental conditions and ensure long-term reliability.
Compact & Space-Saving: Dimensions of 180 × 130 × 44 mm and weight of 0.6 kg make panel integration straightforward.
Seamless Integration: Fully compatible with Honeywell CC-series control platforms.
Advanced Diagnostics: Provides real-time monitoring and status indicators for proactive maintenance.

Technical FAQs

What is the primary function of the MC-TAMR03?
Monitors and converts low-level analog signals for Honeywell control systems.
What types of analog signals are supported?
4–20 mA and 0–10 V signals.
How many input channels are available?
Supports 8 low-level analog input channels.
What is the operating voltage?
24 VDC industrial power supply.
What is the operating temperature range?
-20°C to +60°C (-4°F to +140°F).
Can it be mounted in standard control panels?
Yes, supports DIN rail or panel mounting.
Does the module provide diagnostics?
Yes, LED indicators provide channel status and error reporting.
Is it suitable for hazardous locations?
Designed for standard industrial environments; check local certifications for hazardous areas.
Is firmware upgradable?
Yes, via Honeywell configuration software.
What are the module’s dimensions and weight?
Dimensions: 180 × 130 × 44 mm, Weight: 0.6 kg.
