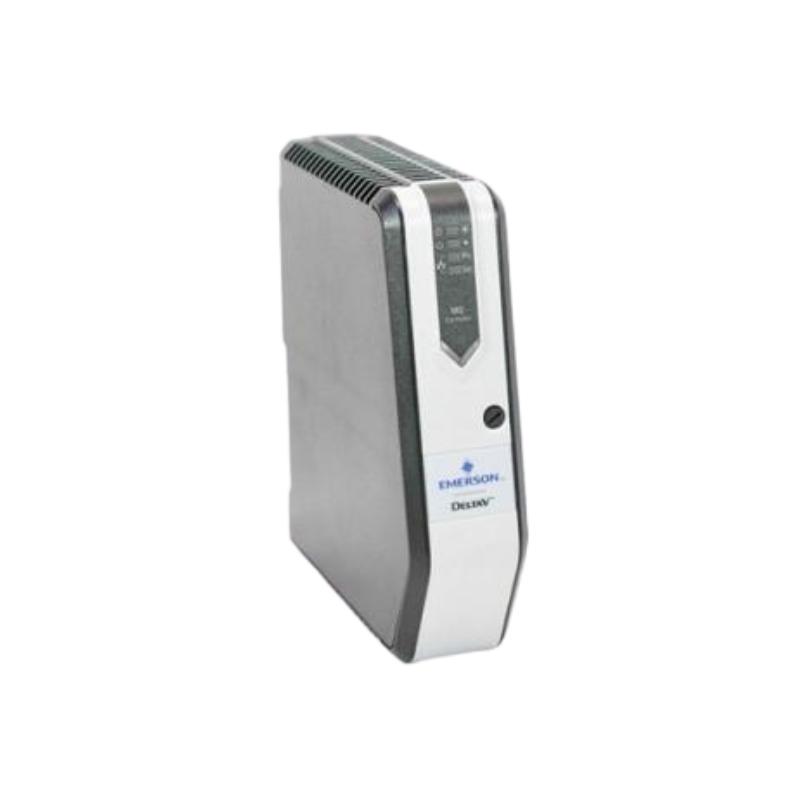

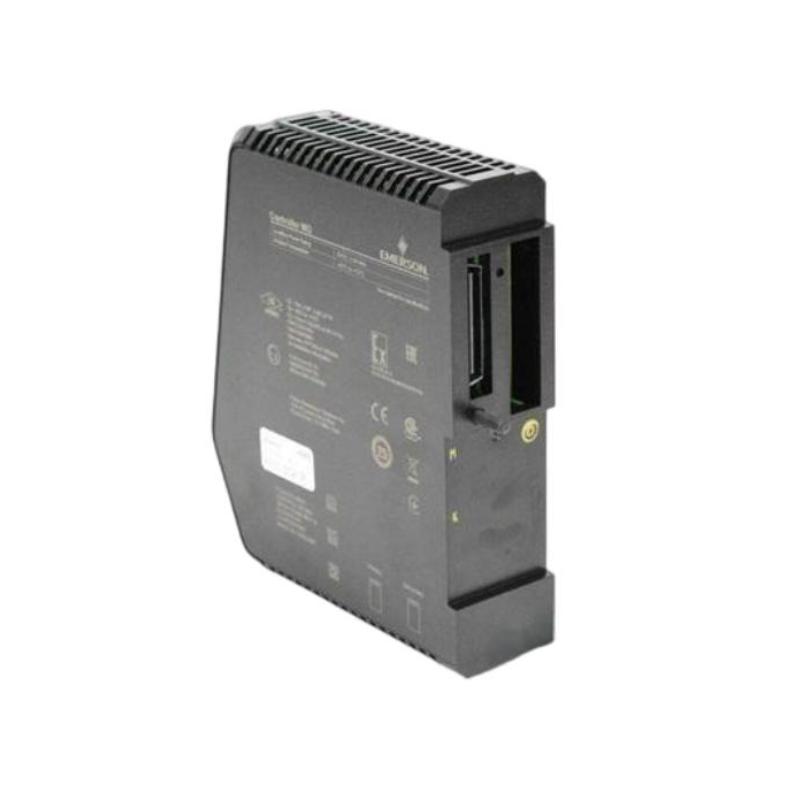

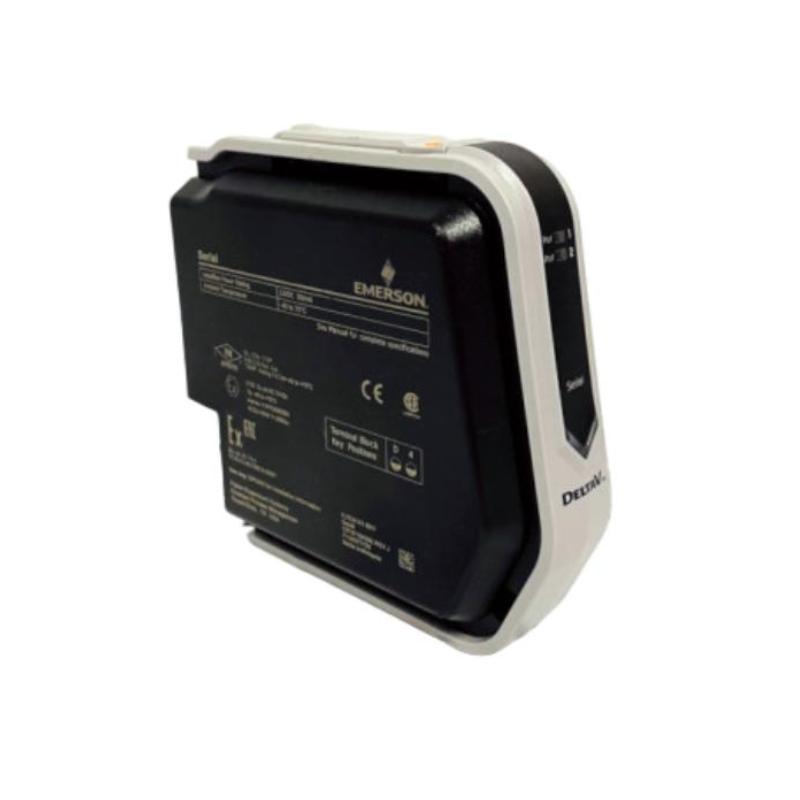

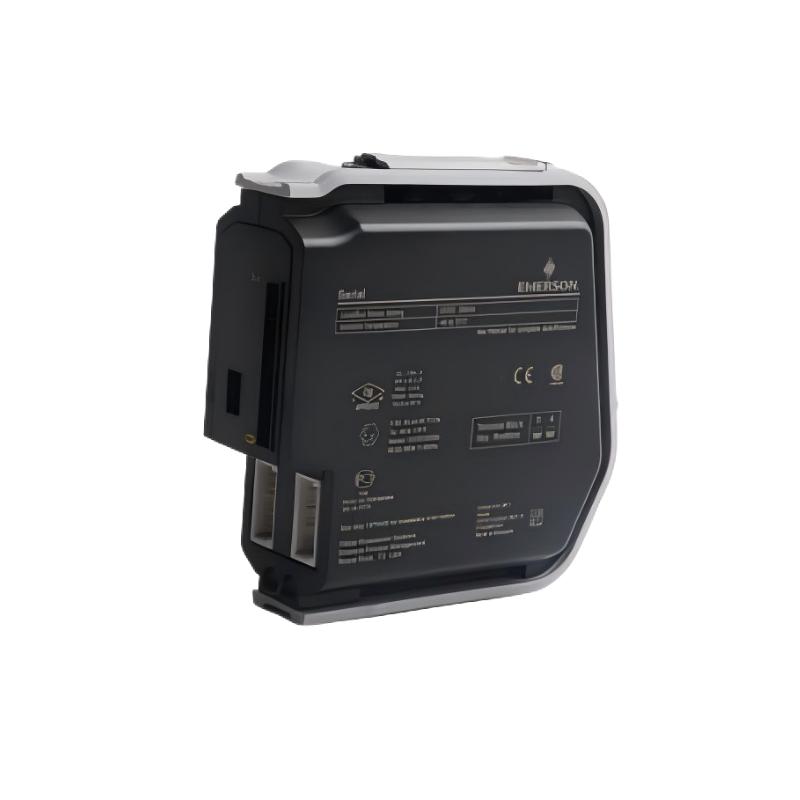

The Emerson SE4006P2 is a DeltaV S-Series Serial Interface Module designed to provide seamless communication between the DeltaV Distributed Control System (DCS) and third-party devices using industry-standard serial communication protocols. It serves as a powerful integration platform that enables controllers, PLCs, analyzers, smart instruments, SCADA systems, and legacy automation equipment to exchange data with the DeltaV environment.
Engineered for demanding industrial applications, the SE4006P2 supports multiple serial communication standards including RS232, RS422, and RS485. The module is supplied with Modbus communication drivers and can be configured for numerous industrial protocol implementations, allowing users to extend the operational life of existing equipment while maintaining centralized process visibility and control.
Its redundant-capable architecture, isolated communication ports, and plug-and-play integration make it an ideal solution for facilities seeking reliable interoperability between modern DeltaV systems and external field devices.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | SE4006P2 |
| Product Type | Serial Interface Module |
| System Platform | DeltaV S-Series |
| Communication Ports | 2 Serial Ports |
| Supported Protocols | Modbus, Serial Protocol Integration |
| Port Types | RS232, RS422, RS485 Half Duplex, RS485 Full Duplex |
| Number of Data Sets | 32 per Interface Card (16 per Port) |
| Isolation | Port-to-Port and Port-to-System Isolation |
| Baud Rates | 300, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Parity Options | Even, Odd, None |
| Data Bits | 7 or 8 |
| Stop Bits | 1 or 2 |
| Retry Count | 0–255 |
| Message Timeout | 100–25,500 ms |
| LocalBus Power Rating | 12 VDC, 300 mA |
| Redundancy Support | Yes |
| Driver Support | Factory Preloaded Modbus Drivers |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% Non-condensing |
| Shock Resistance | 10 g Half-Sine Wave, 11 ms |
| Vibration Resistance | 1 mm Peak-to-Peak (2–13.2 Hz), 0.7 g (13.2–150 Hz) |
| Protection Rating | IP20 |
| Installation Type | DeltaV Carrier Mounted |
| Dimensions (H × W × D) | Approx. 263 mm × 138 mm × 88 mm |
| Weight | Approx. 2.0–2.35 kg |
Technical values may vary slightly depending on hardware revision and project configuration.
Recommended Related Modules
The SE4006P2 is commonly integrated with the following DeltaV communication and control components:
| Module | Function |
|---|---|
| SE4036P2 | Redundant Serial Interface Module |
| KJ3241X1-BK1 | Serial Interface Card Assembly |
| KJ4006X1-BD1 | Serial Interface Terminal Block |
| SE4003S2B1 | Analog Input Module |
| SE4005S2B4 | Analog Output Module |
| SE4003S7B1 | Discrete Input Module |
| SE4003S8B1 | Discrete Output Module |
| DeltaV MQ Controller | Advanced Process Controller |
| DeltaV MX Controller | High-Performance Controller |
| DeltaV PK Controller | Compact Control Platform |
These modules create a fully integrated communication and control infrastructure within DeltaV automation systems.
Popular Emerson DeltaV Communication Modules
The SE4006P2 belongs to Emerson’s industrial communication and interface product family:
- SE4006P2 Serial Interface Module
- SE4036P2 Redundant Serial Interface Module
- KJ3241X1-BK1 Serial Interface Card
- KJ4006X1-BD1 Terminal Block Assembly
- VE4006P2 M-Series Serial Interface Card
- DeltaV Smart Switch Integration Modules
- DeltaV Ethernet Communication Interfaces
- DeltaV OPC Connectivity Solutions
- DeltaV Foundation Fieldbus Interface Modules
These products enable communication between DeltaV systems and a wide range of industrial devices and networks.
