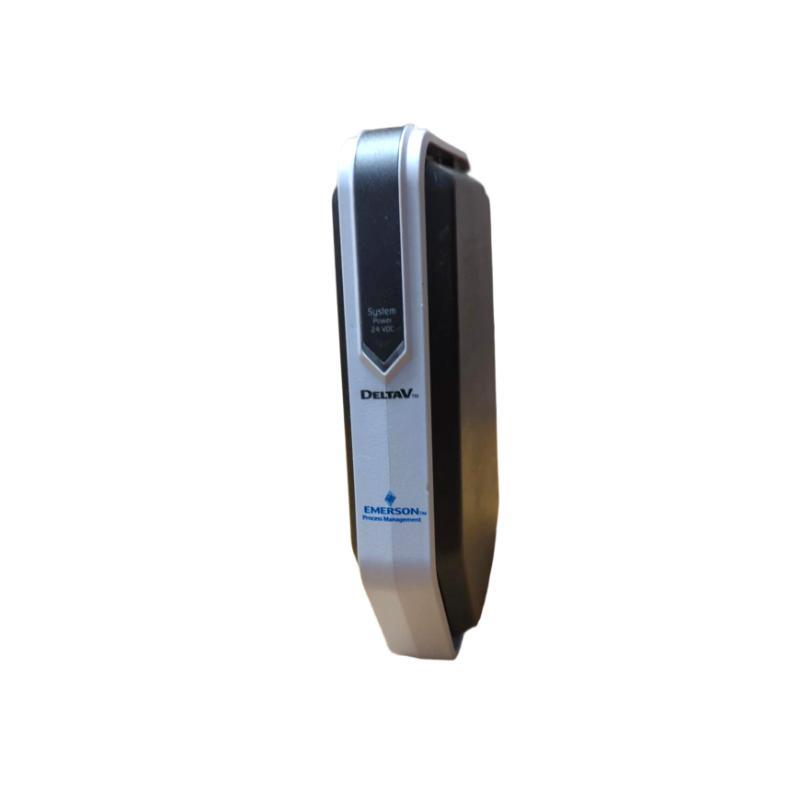

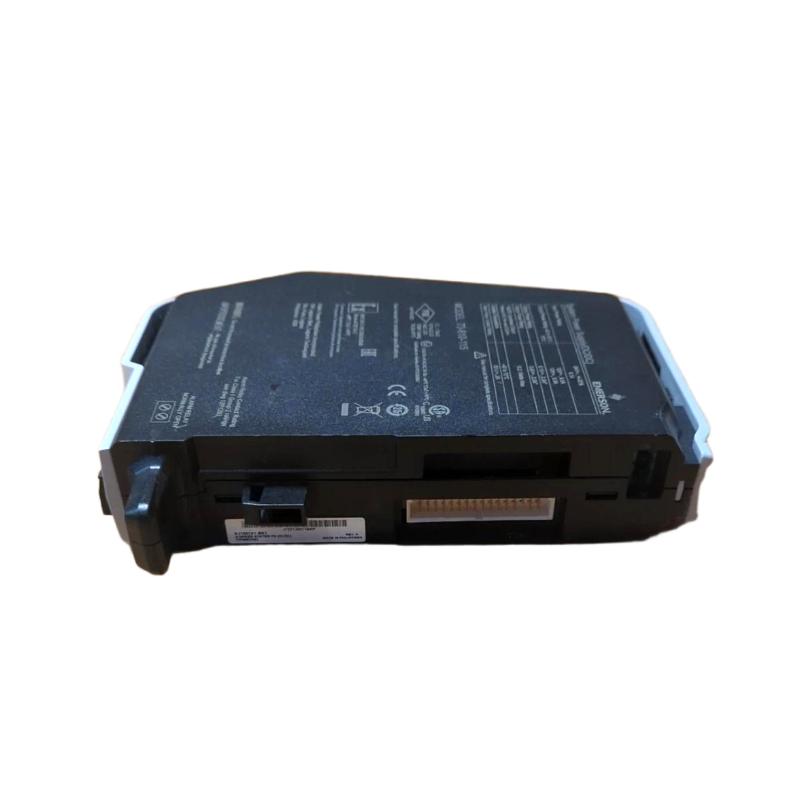

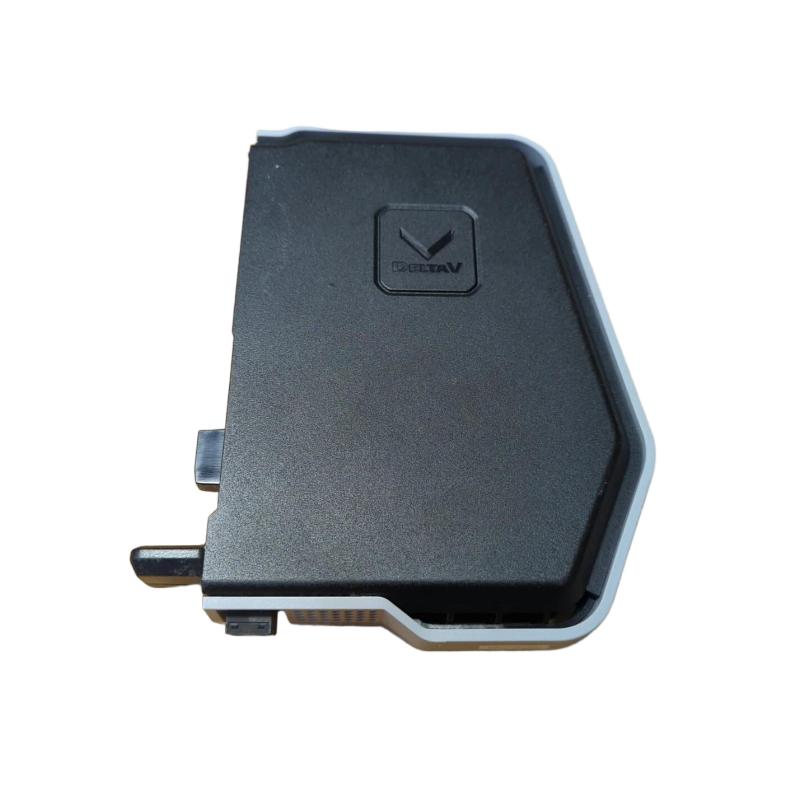

The Emerson SE4032S1T2B1 is a DeltaV S-Series Redundant Analog Input Module designed to provide highly reliable signal acquisition for mission-critical industrial automation systems. Built for applications where continuous operation and process availability are essential, this module supports redundant analog input architectures that minimize the risk of signal loss, improve fault tolerance, and enhance overall plant reliability.
As part of Emerson’s advanced DeltaV Distributed Control System (DCS) platform, the SE4032S1T2B1 delivers accurate analog measurement performance while supporting seamless redundancy switchover capabilities. The module is engineered for process industries that demand uninterrupted monitoring of field instrumentation, including transmitters, sensors, analyzers, and process control devices.
Its robust design, high signal integrity, and integrated diagnostics make it an ideal solution for facilities operating under strict safety, production, and regulatory requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | SE4032S1T2B1 |
| Product Type | Redundant Analog Input Module |
| Platform | DeltaV S-Series |
| Input Type | Analog Input |
| Signal Range | 4–20 mA |
| Channel Configuration | Redundant Input Architecture |
| Resolution | 16-bit A/D Conversion |
| Signal Accuracy | High-Precision Industrial Measurement |
| Redundancy Support | Integrated Redundant Operation |
| Diagnostics | Advanced Channel and Module Diagnostics |
| Isolation | Channel-to-System Electrical Isolation |
| HART Compatibility | Supported (Configuration Dependent) |
| Input Processing | Continuous Signal Monitoring |
| LocalBus Power Supply | 12 VDC |
| Status Indicators | LED Diagnostic Indicators |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% Non-condensing |
| EMC Protection | Industrial EMI/RFI Immunity |
| Shock Resistance | Industrial Standard Compliance |
| Vibration Resistance | Industrial Standard Compliance |
| Protection Rating | IP20 |
| Installation Type | DeltaV Carrier Mounted |
| Dimensions (H × W × D) | Approx. 130 mm × 42 mm × 107 mm |
| Weight | Approx. 0.4–0.8 kg |
Actual specifications may vary depending on system revision, carrier configuration, and project architecture.
Recommended Related Models
The SE4032S1T2B1 is frequently integrated with the following DeltaV modules to build high-availability automation systems:
| Model | Function |
|---|---|
| SE4003S2B1 | Analog Input Module |
| SE4003S2B2 | Fused Analog Input Module |
| SE4003S2B6 | 16-Channel Analog Input Module |
| SE4005S2B4 | Analog Output Module |
| SE4003S7B1 | Discrete Input Module |
| SE4003S8B1 | Discrete Output Module |
| SE4006P2 | Serial Interface Module |
| DeltaV PK Controller | Compact Controller |
| DeltaV MQ Controller | Advanced Process Controller |
| DeltaV Redundant Controllers | High-Availability Control Platform |
These components help create resilient process control systems capable of supporting critical industrial operations.
Popular Emerson DeltaV Redundant I/O Modules
The SE4032S1T2B1 belongs to Emerson’s high-availability DeltaV module family:
- SE4032S1T2B1 Redundant Analog Input Module
- SE4033S2B1 Redundant Analog Input Module
- SE4035S2B4 Redundant Analog Output Module
- SE4036P2 Redundant Serial Interface Module
- SE4003S2B1 Analog Input Module
- SE4003S2B6 High-Density Analog Input Module
- SE4005S2B4 Analog Output Module
- SE4003S7B1 Discrete Input Module
- SE4003S8B1 Discrete Output Module
These modules are widely selected for automation projects requiring maximum system availability and operational continuity.
