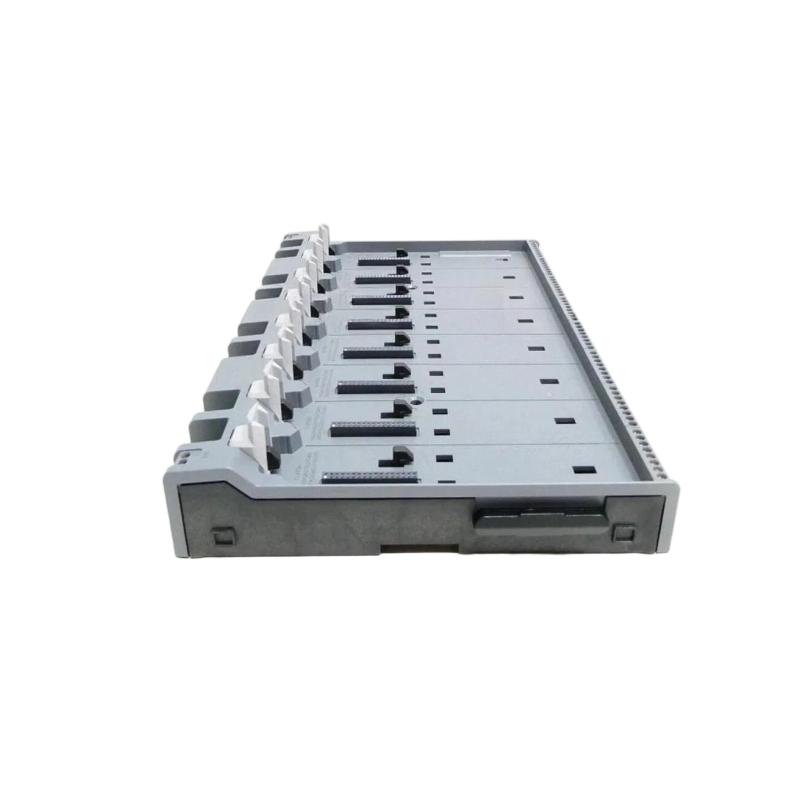

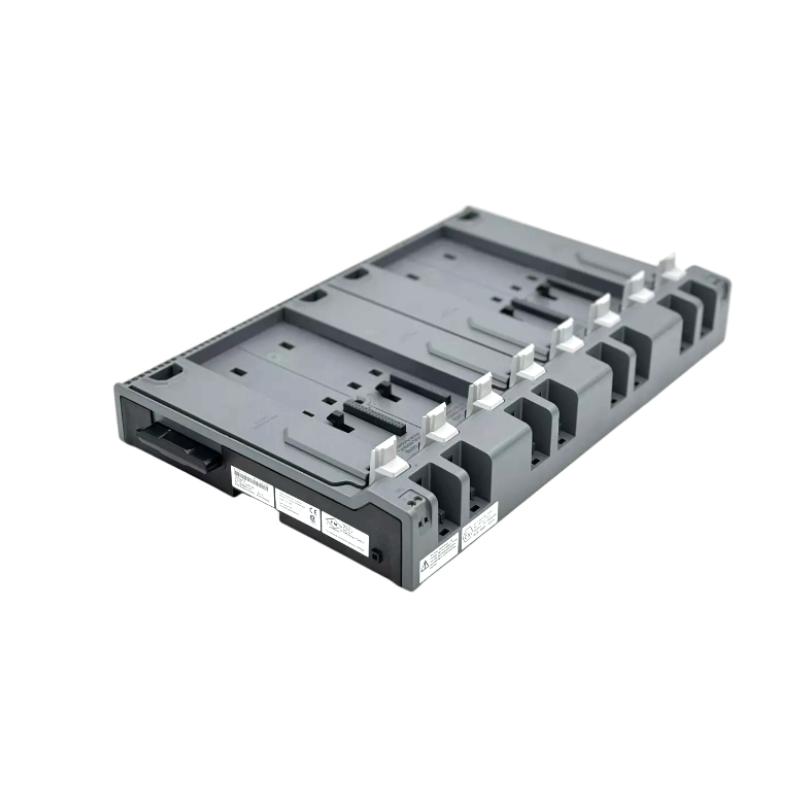

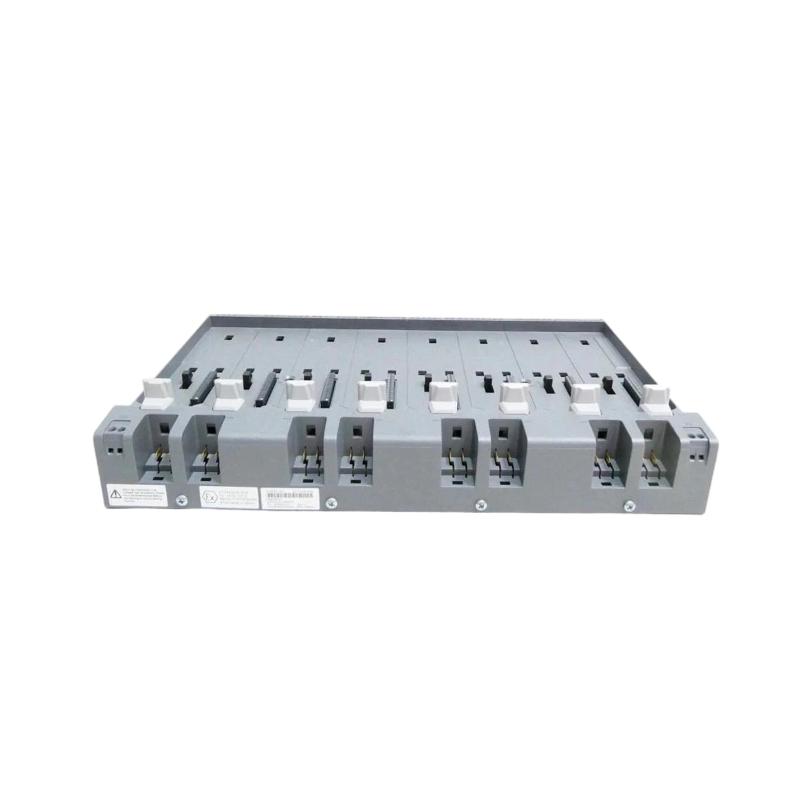

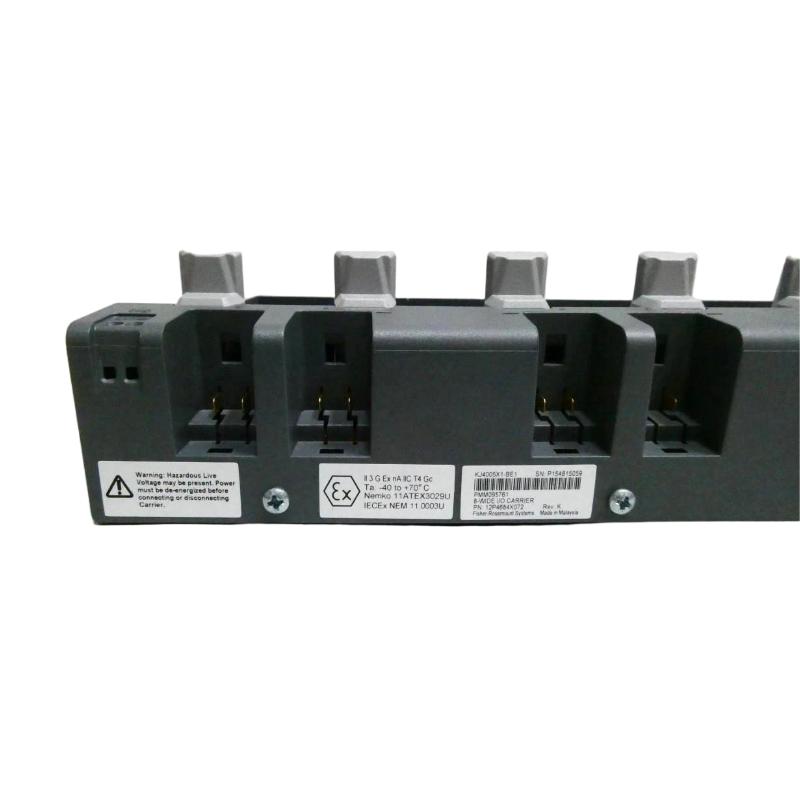

The Emerson SE4050E0C0 is a DeltaV S-Series 8-Wide I/O Interface Carrier, designed as the structural and electrical backbone for mounting and powering DeltaV I/O modules within a Distributed Control System (DCS) cabinet. It provides the physical platform, power distribution, shielding, and communication backplane required to support Emerson DeltaV I/O cards in industrial automation environments.
This carrier plays a foundational role in DeltaV hardware architecture, enabling up to eight I/O modules to be installed in a single horizontal assembly. It integrates power distribution and signal shielding through an engineered carrier shield bar, ensuring stable operation and reduced electrical noise in high-interference industrial environments.
Widely used in oil & gas, power generation, chemical processing, and large-scale manufacturing systems, the SE4050E0C0 is essential for building scalable, modular, and maintainable DeltaV control cabinets.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | SE4050E0C0 |
| Product Type | 8-Wide I/O Interface Carrier |
| Platform | DeltaV S-Series I/O System |
| Slot Capacity | 8 I/O Module Slots |
| Carrier Type | Horizontal I/O Carrier |
| Shielding | Integrated Carrier Shield Bar |
| Power Distribution | Integrated 24 VDC I/O power distribution |
| Backplane Communication | DeltaV I/O Bus |
| Mounting Type | DIN Rail / Panel Mount |
| Expansion Capability | Supports modular carrier expansion |
| Redundancy Support | System-dependent (via architecture design) |
| Field Power Support | Integrated fused power distribution options |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Environmental Protection | Industrial enclosure dependent |
| Material | Industrial-grade aluminum alloy chassis |
| Weight | Approx. 1.0–1.5 kg |
| Dimensions (H × W × D) | Approx. 130 mm × 450 mm × 80 mm |
Recommended Related Modules
The SE4050E0C0 is not an I/O module itself but a carrier platform used with DeltaV I/O cards such as:
| Module | Function |
|---|---|
| SE4003S2B1 | Analog Input Module |
| SE4003S2B6 | 16-Channel Analog Input Module |
| SE4005S2B4 | Analog Output Module |
| SE4003S7B1 | Discrete Input Module |
| SE4003S8B1 | Discrete Output Module |
| SE4003S6B1 | RTD Input Module |
| SE4003S4B1 | Thermocouple Input Module |
| SE4033S2B1 | Redundant Analog Input Module |
| SE4035S2B1 | Redundant Analog Output Module |
| SE4006P2 | Serial Interface Module |
These modules are installed directly into the SE4050E0C0 carrier to form a complete DeltaV I/O subsystem.
Popular Emerson DeltaV I/O Infrastructure Components
Within Emerson DeltaV hardware systems, the SE4050E0C0 is part of the core infrastructure layer:
- SE4050E0C0 8-Wide I/O Interface Carrier
- SE4050E1C0 Extended Carrier Variant (system-dependent)
- SE4035S2B4 Redundant Output Carrier Systems
- DeltaV Power Distribution Modules
- DeltaV System Bus Extenders
- DeltaV I/O Terminal Assemblies
- DeltaV Carrier Shield Bars and Grounding Systems
- DeltaV Controller Racks and Backplanes
These components form the structural foundation of DeltaV control cabinets.
