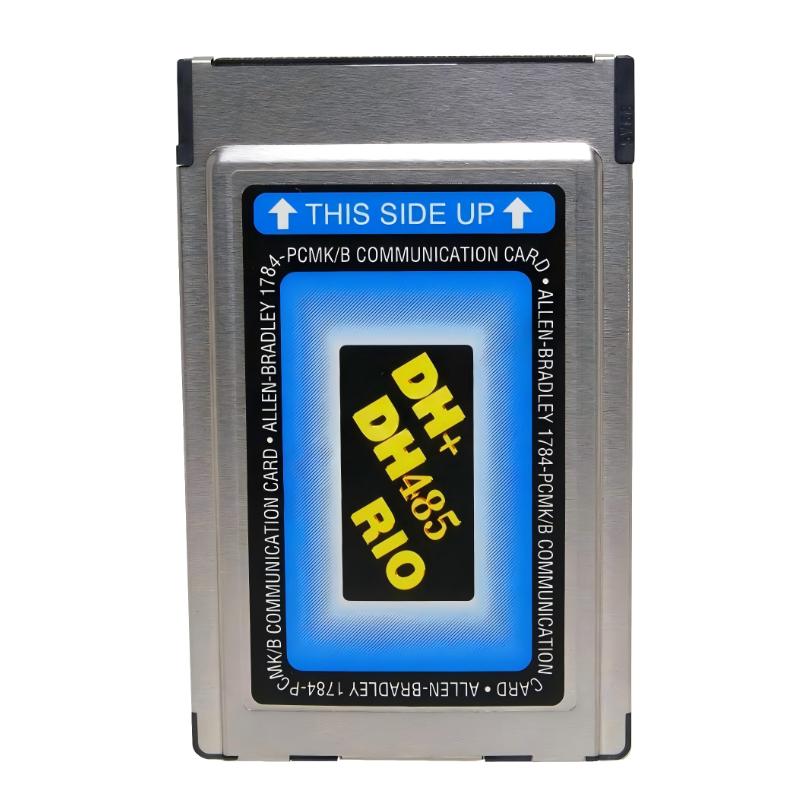

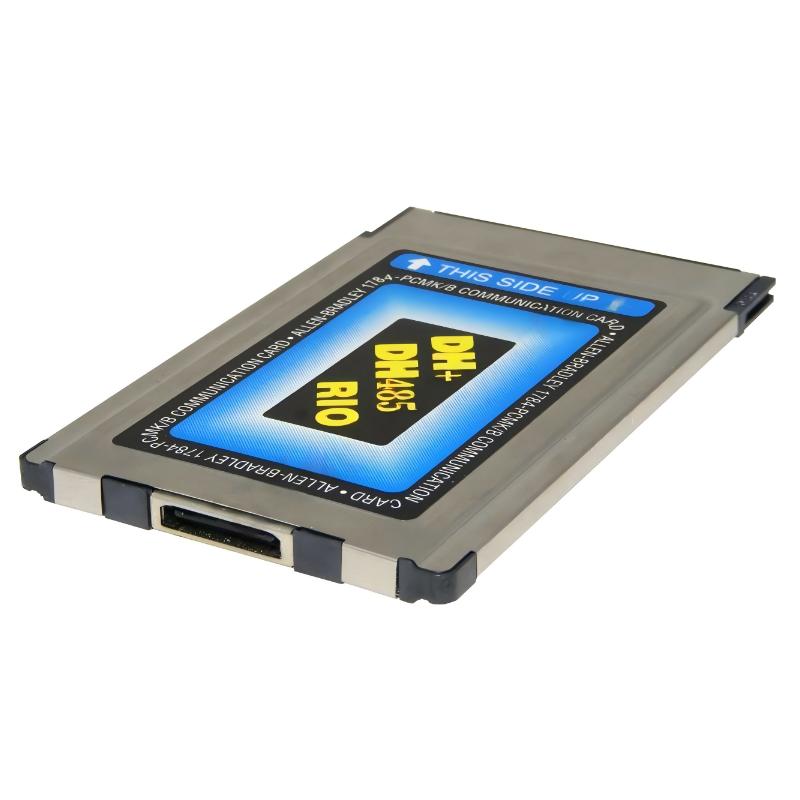

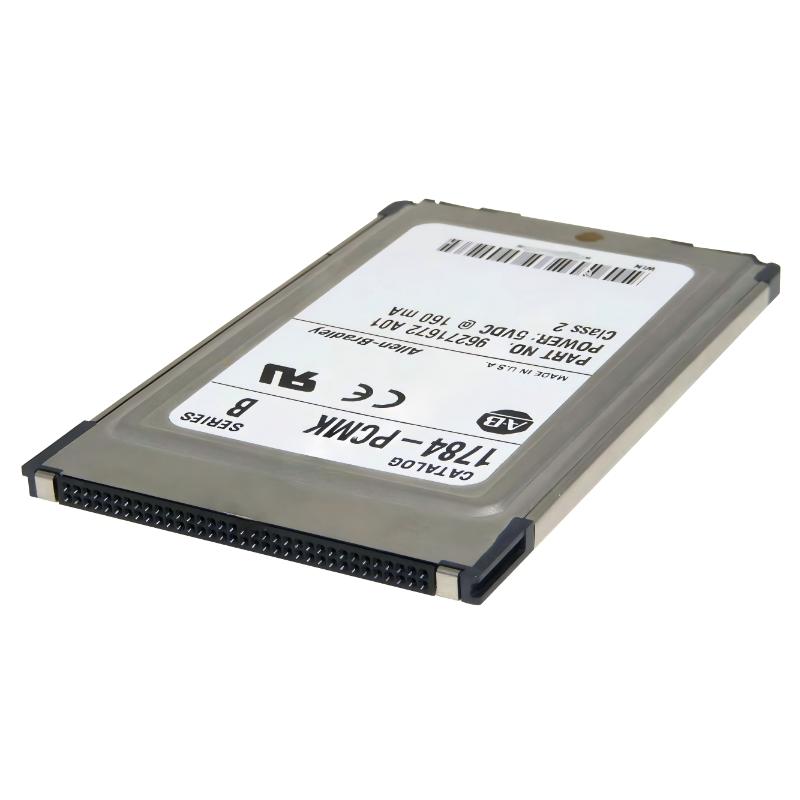

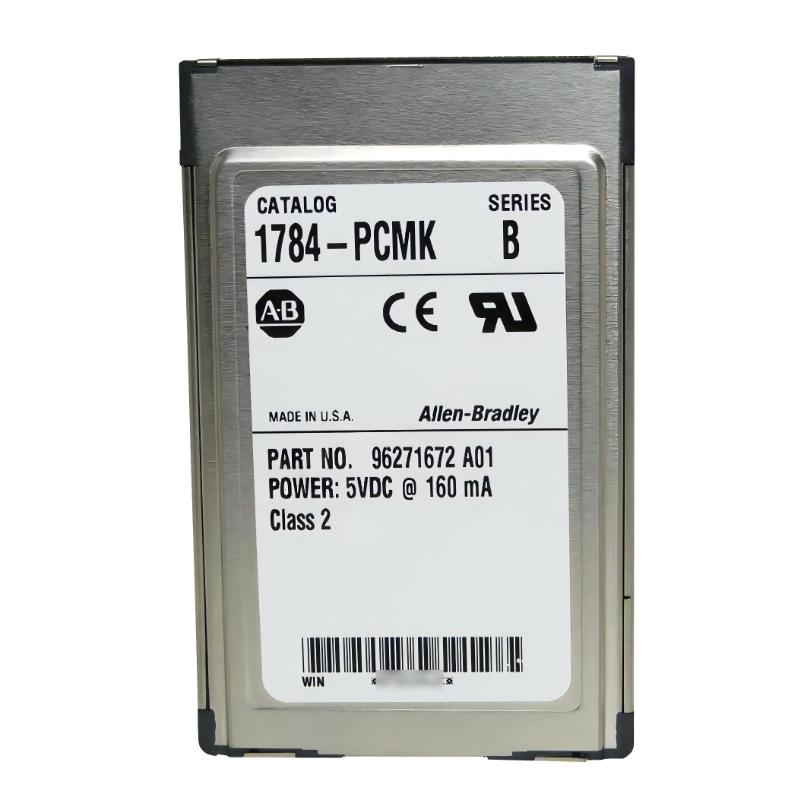

Allen Bradley 1784-PCMK Communication Interface Card

Applications

• Legacy PLC programming and system maintenance
Commonly used for configuration, troubleshooting, and monitoring of Allen-Bradley PLC-5 and SLC 500 systems in installed industrial environments.

• DH+ network connection for engineering laptops
Provides a direct interface for connecting portable engineering stations to Data Highway Plus (DH+) networks.

• Industrial control system diagnostics
Enables technicians to access controller data for fault detection, system validation, and performance checks.

• Factory equipment retrofitting and upgrades
Used in legacy system modernization projects where older PLC networks must remain operational.

Key Advantages

• Stable communication with legacy Allen-Bradley systems
Ensures reliable access to older PLC architectures without requiring full system replacement.

• Direct DH+ network integration
Allows seamless connection to industrial Data Highway Plus communication networks.

• Compact PCMCIA form factor
Designed for laptop-based engineering workstations with minimal hardware footprint.

• Efficient troubleshooting and diagnostics
Supports fast access to controller data for maintenance and service operations.

Technical FAQs

Q1: Which PLC systems are compatible with the 1784-PCMK card?
It is primarily used with PLC-5 and SLC 500 controllers.

Q2: What type of network does it support?
It supports Data Highway Plus (DH+) communication networks.

Q3: Is it suitable for modern Ethernet-based systems?
No, it is designed for legacy industrial communication systems.

Q4: What interface does the card use?
It uses a PCMCIA interface for laptop integration.

Q5: Can it be used for real-time monitoring?
Yes, it allows real-time access to controller data for diagnostics.

Q6: Is special software required?
Yes, compatible Rockwell programming software is typically required.

Q7: Can it be used in Windows-based systems?
Yes, with appropriate legacy drivers and supported environments.

Q8: Is it still used in modern factories?
It is mainly used in legacy systems that are still in operation.

Q9: Does it support remote access?
No, it requires direct physical connection to the engineering station.

Q10: Is it hot-swappable?
It depends on the host system, but generally requires safe insertion/removal procedures.
