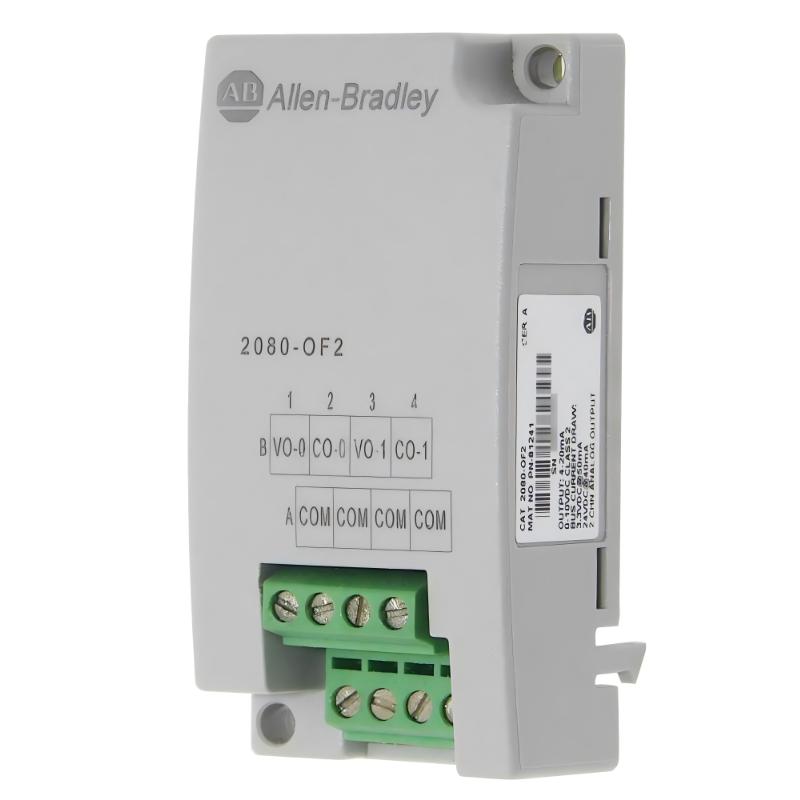

Allen Bradley 2080-OF2 Micro800 2-point Analog Output Module

Applications

• Precision analog signal output for compact automation systems
Used to generate stable voltage or current signals for controlling actuators, drives, and proportional devices in Micro800-based machines.

• OEM machine control systems
Common in packaging equipment, conveyor systems, and small production machines requiring analog speed or position control.

• Process control in small industrial systems
Supports output control for valves, dampers, heaters, and other continuously variable devices.

• Retrofit upgrades from relay-based to analog control
Enables older machines to transition from discrete control to analog modulation without redesigning full systems.

• Embedded control in space-limited automation panels
Ideal for compact installations where additional analog output capability is required without increasing controller size.

Key Advantages

• Dual-channel analog output capability
Provides two independent analog outputs for flexible control of industrial devices.

• Voltage and current output support
Configurable for 0–10V or 0–20mA signals depending on application requirements.

• Compact plug-in design for Micro800 controllers
Mounts directly into Micro810, Micro820, Micro830, and Micro850 systems without extra wiring complexity.

• High-resolution signal control
Ensures smooth and accurate analog output for precise industrial regulation.

• Stable performance in industrial environments
Designed to maintain signal integrity under electrical noise, vibration, and continuous operation conditions.

Technical FAQs

Q1: What type of outputs does the 2080-OF2 provide?
It provides 2-channel analog outputs supporting voltage and current signals.

Q2: What signal ranges are supported?
It supports 0–10V DC and 0–20mA output ranges.

Q3: Is the module isolated?
No, it is a non-isolated analog output module.

Q4: What resolution does it use?
It provides 12-bit resolution for analog output control.

Q5: Can it control variable speed drives?
Yes, it is commonly used for VFD speed reference signals.

Q6: Is configuration required in software?
Yes, output scaling and configuration are set in Micro800 programming software.

Q7: Can both channels be used independently?
Yes, each channel operates independently.

Q8: Is it suitable for high-power devices directly?
No, it outputs control signals only and requires external power devices.

Q9: Does it support hot swapping?
No, installation should be done with power removed.

Q10: Can it be used in harsh environments?
Yes, it is designed for industrial-grade operating conditions.
