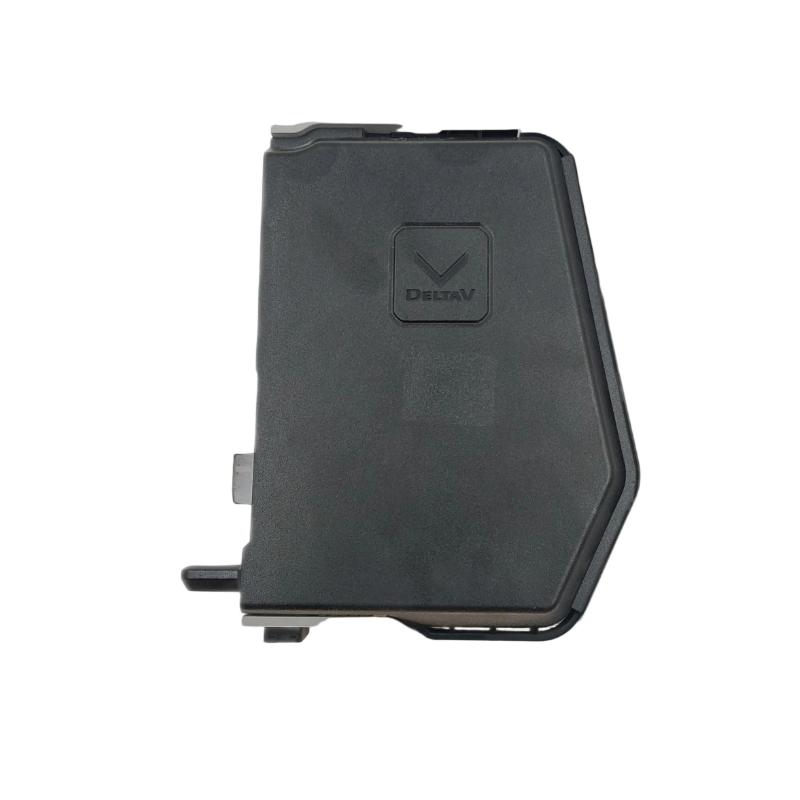

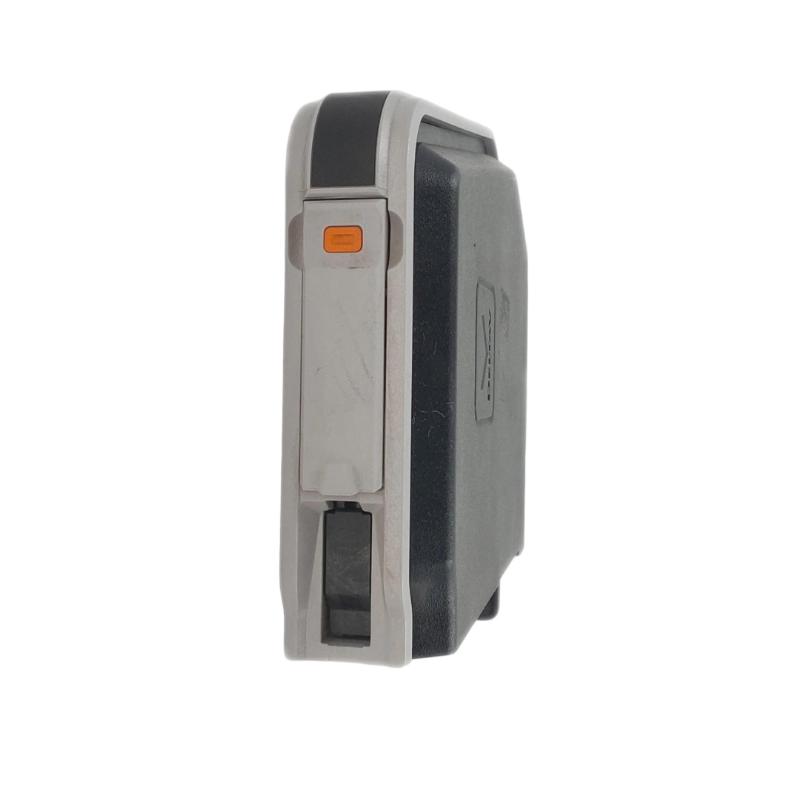

Emerson SE6101 Carrier Blank Cap (8-Wide I/O Interface Carrier)
Emerson SE6101 Carrier Blank Cap (8-Wide I/O Interface Carrier)
0.0
Points
Brand:Emerson Module Item No.:Emerson SE6101 Product Origin:USA Product Dimensions:130 × 20 × 25 mm Product Weight:0.05 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Emerson SE6101 Carrier Blank Cap is a protective accessory designed for Emerson DeltaV S-Series 8-wide I/O interface carriers. It is used to cover unused module slots, ensuring safe cabinet configuration, improved electrical isolation, and protection against dust and environmental contamination.
Although it does not process signals, it plays an important role in maintaining system integrity and long-term reliability in industrial automation cabinets where modular expansion is frequently required.
Technical Specifications
Parameter
Specification
Manufacturer
Emerson
Model
SE6101
Product Type
Carrier Blank Cap
System Compatibility
DeltaV S-Series 8-wide I/O Carrier
Function
Covers unused I/O slots
Material
Industrial-grade insulating polymer
Installation Type
Snap-in mounting
Electrical Role
Passive protection / isolation support
Operating Environment
Industrial control cabinets
Chemical Resistance
Standard industrial resistance
Physical Dimensions & Weight
Parameter
Specification
Dimensions (H × W × D)
130 × 20 × 25 mm
Weight
Approx. 0.05 kg
System Integration & Recommended Related Components
The SE6101 is commonly used in partially populated DeltaV I/O systems to maintain safe and organized cabinet structure. It is often installed alongside:
Emerson SE4059E0C0 I/O Interface Carrier
Emerson SE4053S2B11 Analog Input Plus Card
Emerson SE4055S2B5 Analog Output Plus Card
Emerson SE4083S2B11 Redundant Input Module
Emerson SE4082S1T2B8 Digital Output Module
Emerson SE4003S2B11 Input Module
Emerson SE4005S2B1 Output Module
These components support scalable, safe, and efficient automation system design.
Common Emerson DeltaV Hardware Ecosystem
In real-world DeltaV installations, the SE6101 is typically used alongside core control modules such as:
SE4053S2B11 High-Density Analog Input Module
SE4055S2B5 Analog Output Module
SE4083S2B11 Redundant Input Module
SE4082S1T2B8 Digital Output Module
SE4059E0C0 I/O Carrier System
SE4003S2B1 Standard Input Module
SE4005S2B1 Standard Output Module
Industrial Applications
While SE6101 is not an active electronic module, it is essential for maintaining system structure and protection across multiple industries:
Oil & Gas Industry
Protects unused I/O slots in control cabinets used for upstream and downstream operations.
Chemical & Petrochemical Plants
Helps maintain clean and stable cabinet environments in corrosive or dusty conditions.
Power Generation Systems
Supports long-term control cabinet integrity in continuous operation environments.
Water & Wastewater Treatment
Improves enclosure protection in humid and particulate-heavy environments.
Manufacturing & Industrial Automation
Ensures organized cabinet layouts in high-density control systems.
Key Advantages
Cabinet Protection
Prevents dust, debris, and foreign objects from entering unused I/O slots.
Improved Safety
Maintains electrical isolation and reduces exposure risk inside control cabinets.
Modular System Organization
Supports clean and structured expansion of DeltaV I/O systems.
Lightweight Design
Compact structure with minimal weight for easy handling and installation.
Tool-Free Installation
Snap-in design enables fast and efficient installation.
Cost-Efficient Maintenance
Helps protect higher-value control modules by preserving enclosure integrity.
Technical FAQs
1. What is SE6101 used for?
It is used to cover unused slots on Emerson DeltaV 8-wide I/O carriers.
2. Is it an electronic module?
No, it is a passive mechanical protective component.
3. What system is it designed for?
It is designed for Emerson DeltaV S-Series I/O carrier systems.
4. What are its dimensions?
130 × 20 × 25 mm (Height × Width × Depth).
5. What is its weight?
Approximately 0.05 kg.
6. Does it affect system performance?
No, it does not participate in signal processing.
7. Why is it used in automation systems?
To improve cabinet safety, cleanliness, and structural organization.
8. How is it installed?
It uses a snap-in mounting method.
9. Can it be reused?
Yes, it can be removed and reinstalled when needed.
10. Where is it commonly used?
It is widely used in oil & gas, chemical, power, water treatment, and manufacturing industries.
