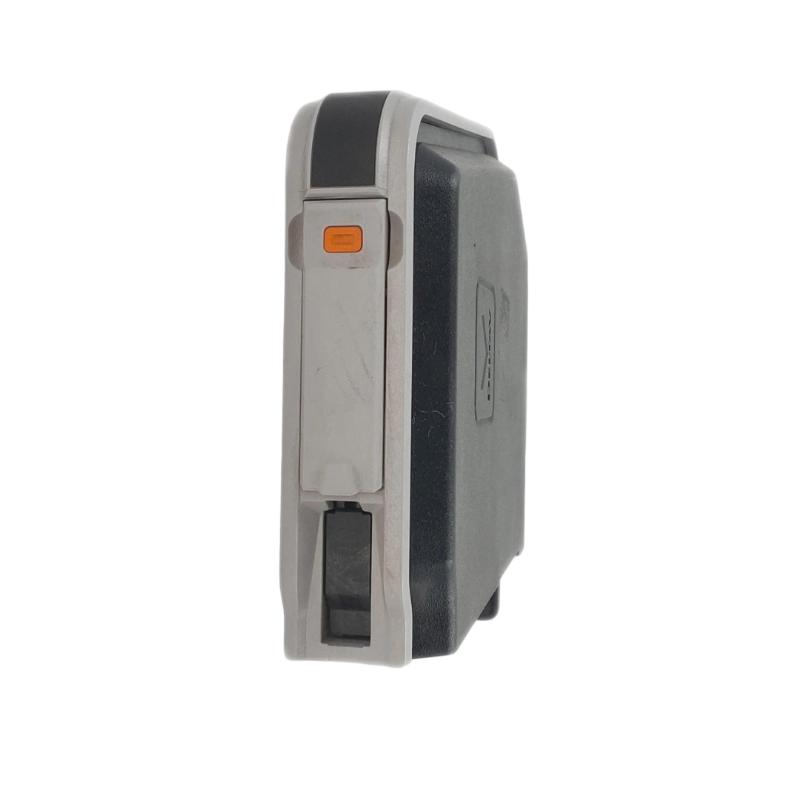

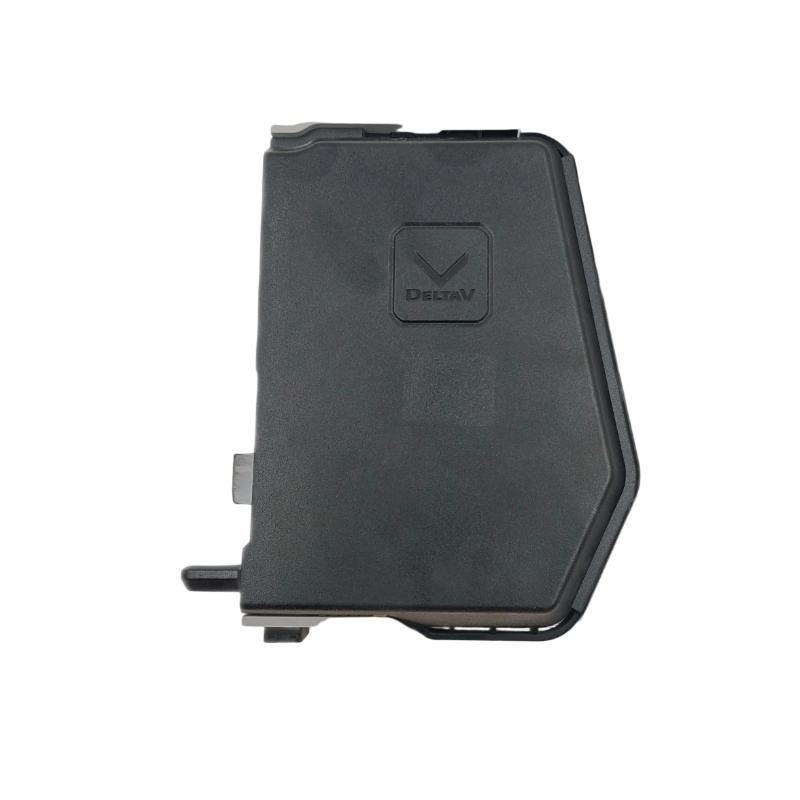

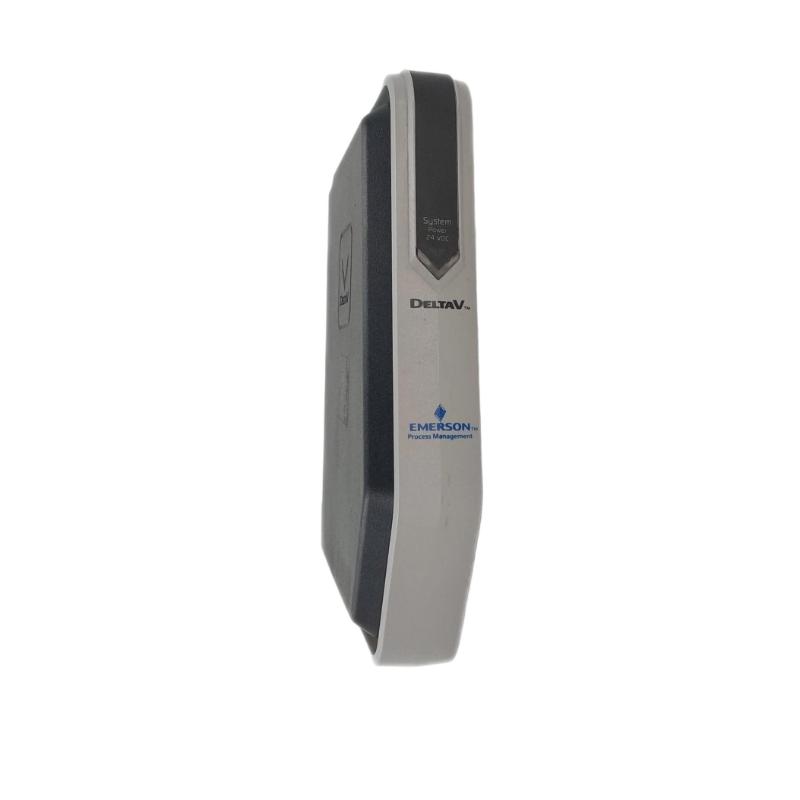

Emerson SE6101 VE4003S4B1 Analog Input Module System Kit
Emerson SE6101 VE4003S4B1 Analog Input Module System Kit
0.0
Points
Brand:Emerson Module Item No.:Emerson SE6101 VE4003S4B1 Product Origin:USA Product Dimensions:130 × 100 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Emerson SE6101 VE4003S4B1 configuration represents a combined DeltaV I/O system structure, typically pairing a carrier blank cap (SE6101) with an analog input module (VE4003S4B1). This setup is widely used in Emerson DeltaV M-series distributed control architectures, where stable signal acquisition, modular expansion, and cabinet-level protection are required.
The VE4003S4B1 analog input card is designed for high-accuracy monitoring of process variables such as pressure, temperature, flow, and level, while the SE6101 ensures unused carrier slots remain protected, maintaining system integrity and electrical safety. Together, they form a practical balance between active signal processing and passive system protection.
Technical Specifications
Parameter
Specification
Manufacturer
Emerson
Model Combination
SE6101 + VE4003S4B1
Product Type
I/O Protection + Analog Input Module
System Platform
DeltaV M-Series / Traditional I/O
Input Channels
8 Channels (VE4003S4B1)
Signal Type
4–20 mA / Process Analog Input
Communication
DeltaV System Bus
Mounting Type
Rack / Carrier mounted system
Field Wiring Interface
Terminal block based connection
Operating Environment
Industrial control cabinets
Physical Dimensions & Weight
Component
Dimensions (H × W × D)
Weight
SE6101 Blank Cap
130 × 20 × 25 mm
0.05 kg
VE4003S4B1 Module
130 × 100 × 50 mm (typical)
0.30 kg
Combined System Setup
System-dependent
~0.35 kg total
System Architecture & Recommended Related Modules
This configuration is commonly used within Emerson DeltaV M-series architectures alongside:
Emerson VE4003S4B1 Analog Input Card
Emerson VE4003S5B1 Thermocouple Input Card
Emerson VE4003S6B1 RTD Input Card
Emerson VE4033S2B1 Redundant Input Module
Emerson SE4059E0C0 I/O Interface Carrier
Emerson SE4083S2B11 Redundant Input Plus Card
These modules together support scalable process automation systems ranging from compact skids to large distributed control plants.
Popular Emerson DeltaV I/O Modules
Commonly deployed Emerson field modules in similar architectures include:
VE4003S4B1 Analog Input Module
VE4003S6B1 RTD Input Module
VE4003S5B1 Thermocouple Input Module
VE4033S2B11 Redundant Input System
SE4053S2B11 High-Density Analog Input Module
SE4055S2B5 Analog Output Module
SE4082S1T2B8 Digital Output Module
SE4059E0C0 I/O Carrier System
Industrial Applications
This combined system is widely used in industrial automation environments where reliable signal acquisition and cabinet integrity are essential.
Oil & Gas Processing
Provides stable measurement and monitoring of critical process variables in upstream and downstream operations.
Chemical & Petrochemical Plants
Supports accurate analog signal acquisition for continuous reaction and process control systems.
Power Generation Facilities
Enables dependable monitoring of boiler systems, turbines, and auxiliary plant equipment.
Water & Wastewater Treatment
Ensures stable sensor signal collection for filtration, pumping, and chemical dosing systems.
Pharmaceutical Manufacturing
Supports validated process monitoring in regulated production environments requiring high data integrity.
Key Advantages
Dual Function System Design
Combines active signal acquisition (VE4003S4B1) with passive protection (SE6101) for improved system reliability.
Stable Analog Signal Processing
Ensures accurate and consistent 4–20 mA signal acquisition for critical process variables.
