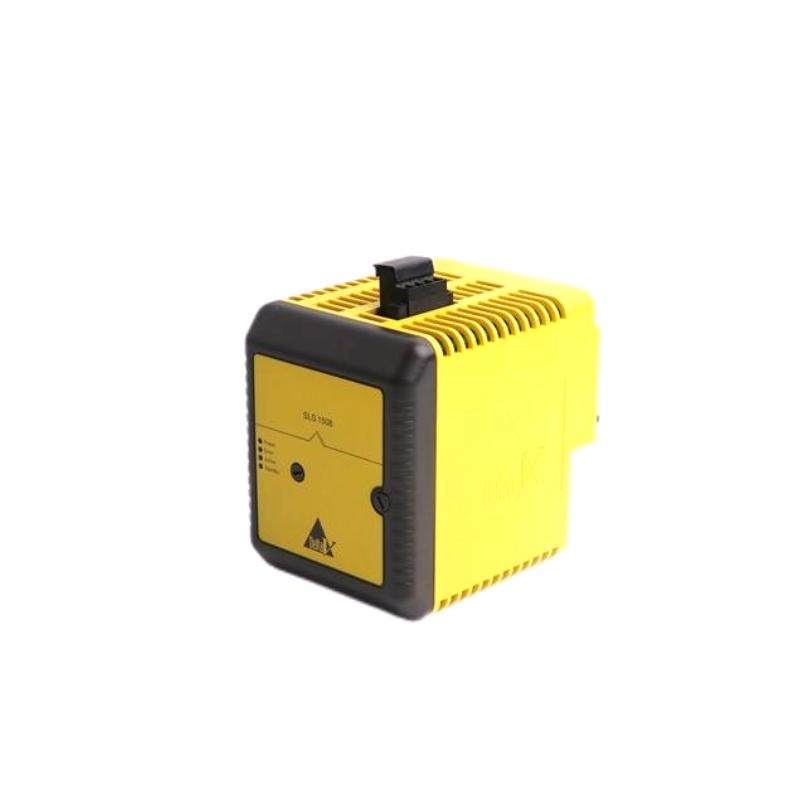

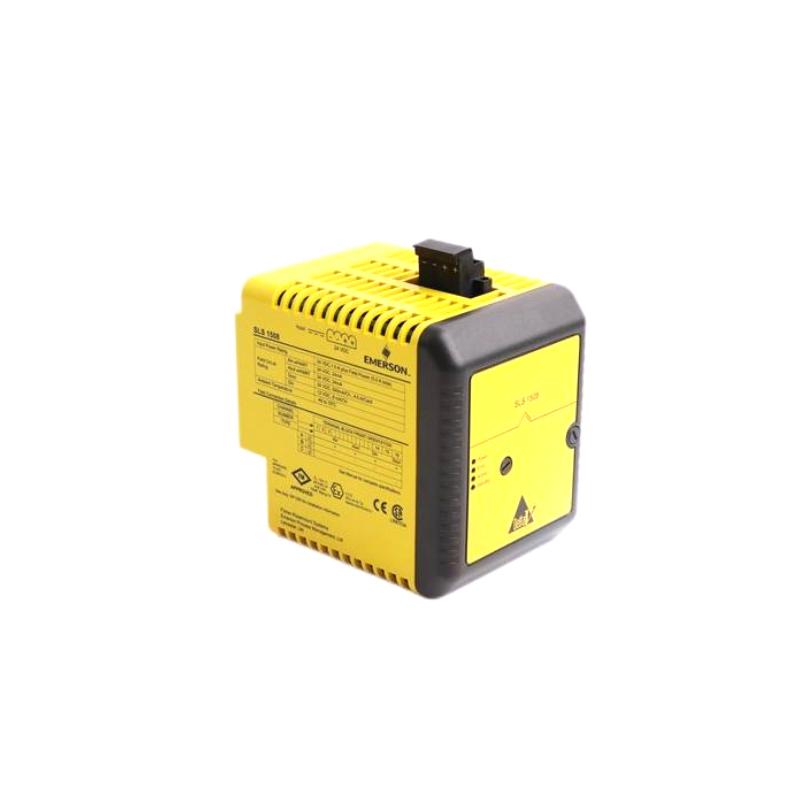

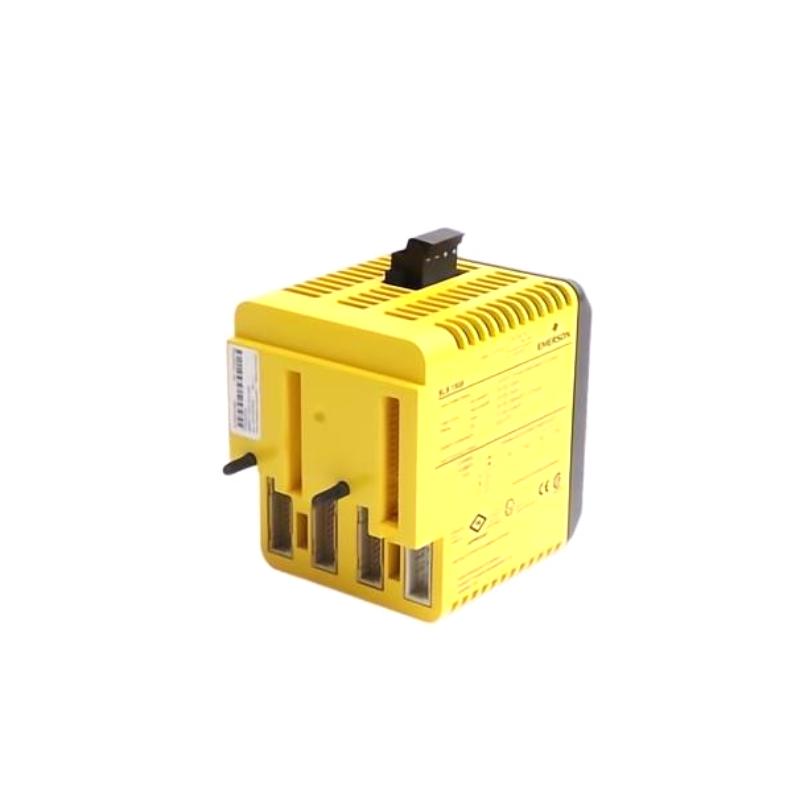

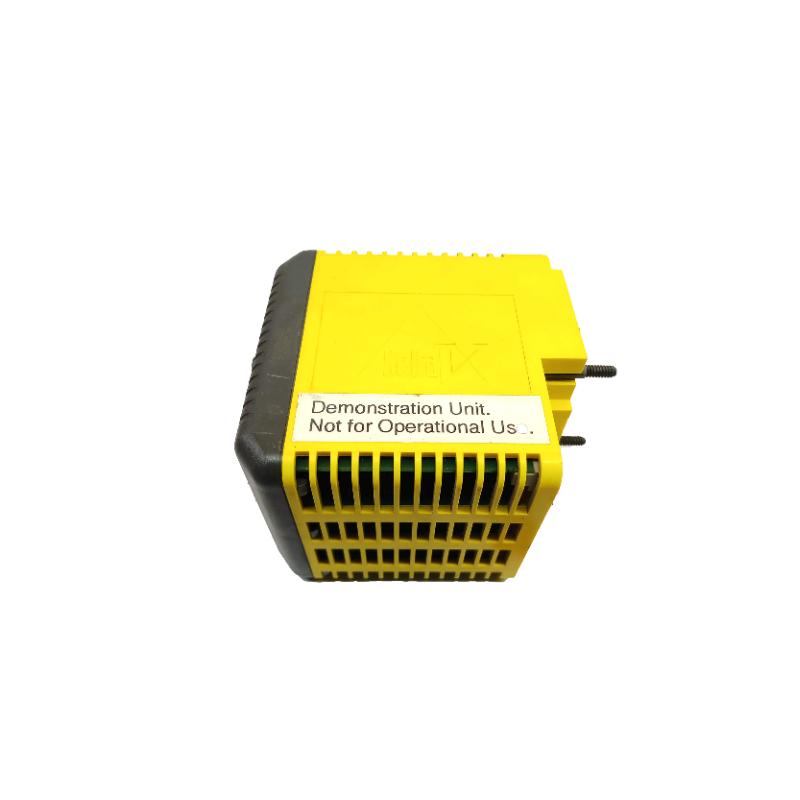

The Emerson SLS1508 (KJ2201X1-BA1 + KJ2201X1-HA1) is a Safety Instrumented System (SIS) logic solver designed for high-reliability process control and safety applications within the DeltaV automation architecture. It is engineered to execute safety logic functions, process field I/O signals, and ensure deterministic control responses in mission-critical industrial environments.
Built for high availability and fault-tolerant operation, this module is widely used in safety shutdown systems (SIS), emergency interlock systems, and critical process protection layers where system failure is not an option.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | SLS1508 (KJ2201X1-BA1 + KJ2201X1-HA1) |
| Product Type | SIS Logic Solver Module |
| System Platform | DeltaV SIS / M-Series Architecture |
| I/O Capacity | Up to 16 configurable channels |
| I/O Types | DI / DO / AI (HART) / Two-state HART outputs |
| Power Supply | 24 V DC |
| Local Bus Power | 24 V DC, 1 A |
| Field Power | Up to 4 A |
| Communication | SIS network / system backplane |
| Mounting Type | 8-wide carrier mounted system |
| Operating Temperature | -40°C to +70°C |
| Vibration Resistance | 1 mm peak-to-peak (2–13.2 Hz) |
| Shock Resistance | 10 g (½ sinewave, 11 ms) |
| Humidity | 5% to 95% non-condensing |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (H × W × D) | 165 × 127 × 51 mm |
| Weight | Approx. 0.30 kg |
System Integration & Recommended Related Modules
The SLS1508 is typically deployed in safety-critical DeltaV SIS architectures and is commonly integrated with:
- Emerson KJ2201X1-BA1 Logic Solver Base Module
- Emerson KJ2201X1-HA1 System Interface Module
- Emerson SE4083S2B11 Redundant Analog Input Module
- Emerson SE4082S1T2B8 Digital Output Module
- Emerson SE4053S2B11 Analog Input Plus Card
- Emerson SE4055S2B5 Analog Output Plus Card
- Emerson SE4059E0C0 I/O Interface Carrier
These components together support layered safety protection, process automation, and high-availability control system design.
