SLS1508（KJ2201X1-BA1+KJ2201X1-HA1）-3

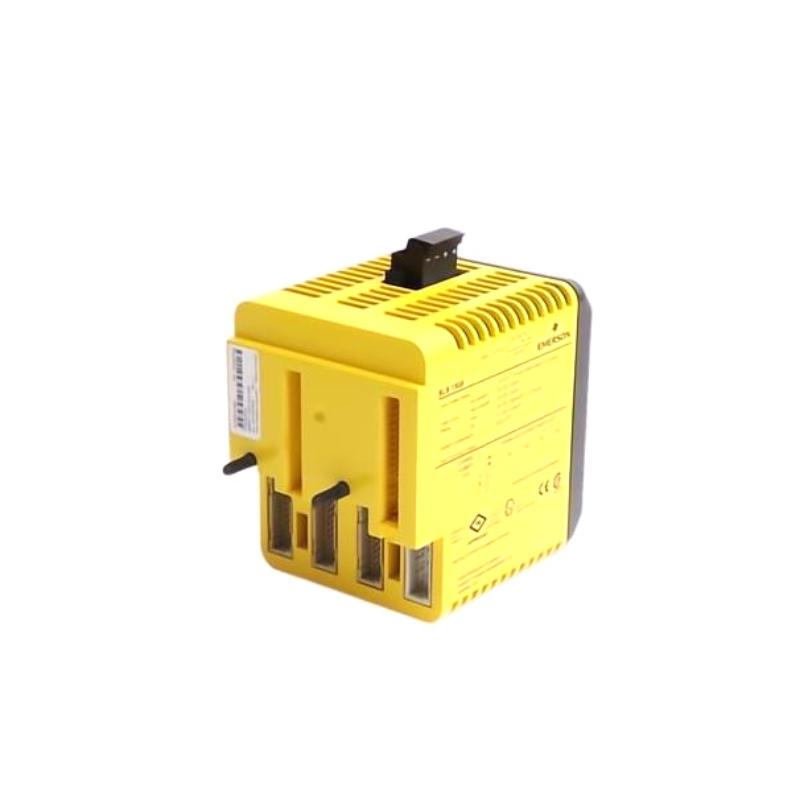

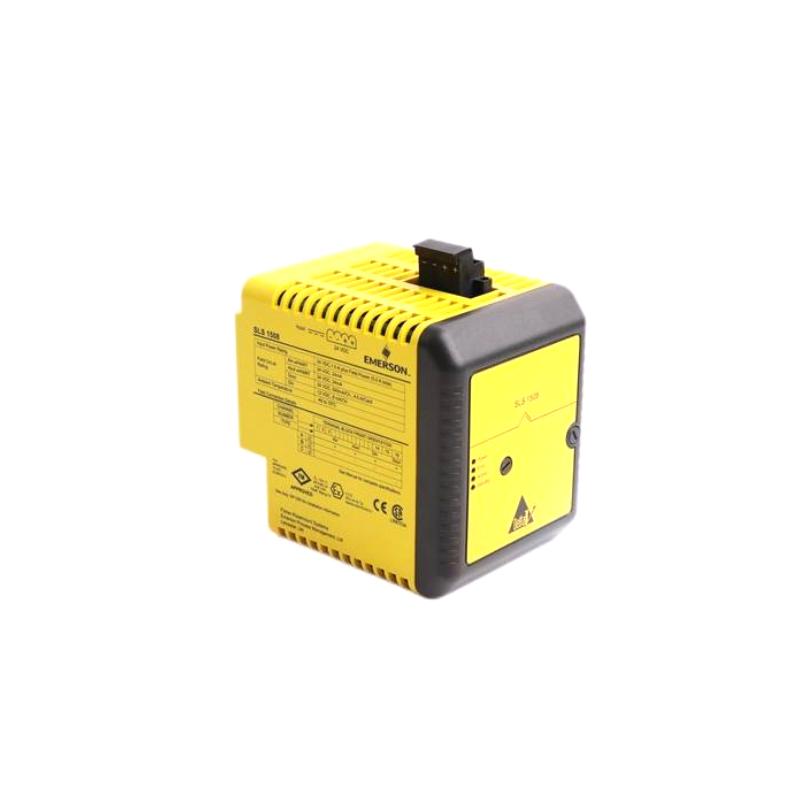

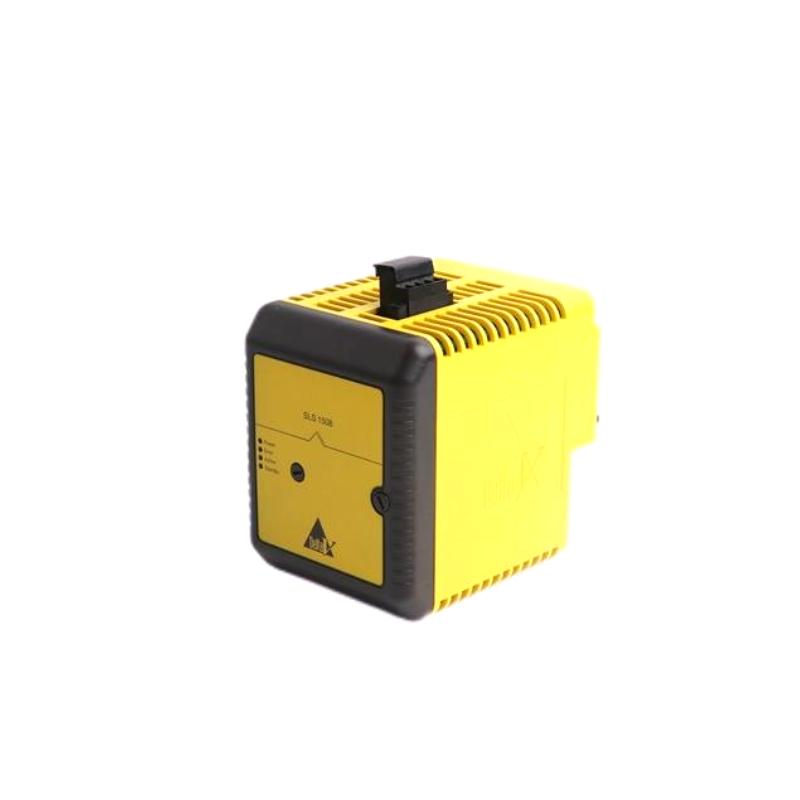

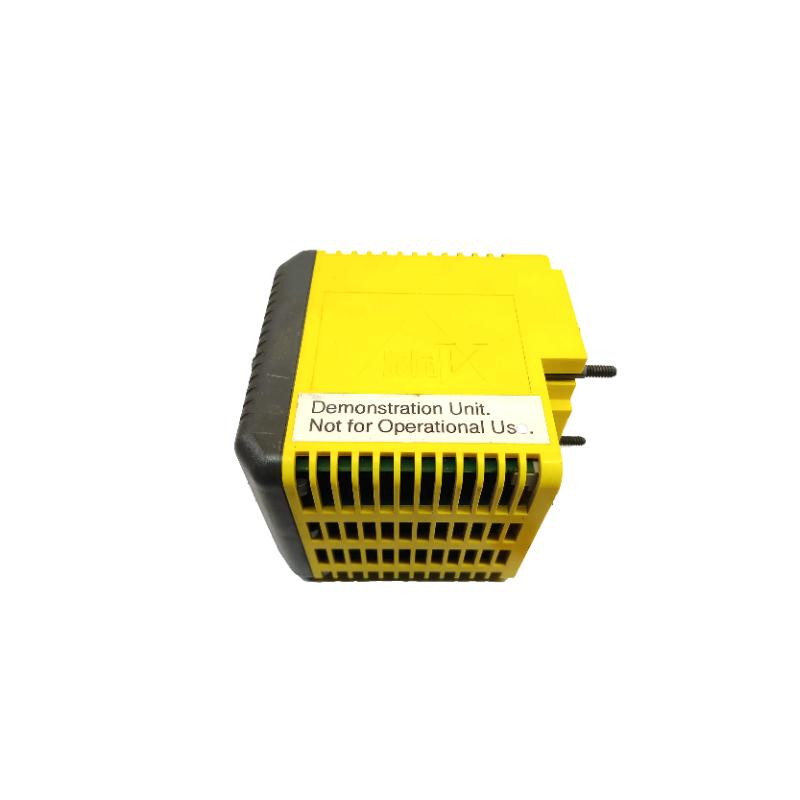

The Emerson SLS1508 (KJ2201X1-BA1 + KJ2201X1-HA1) Safety Logic Solver is a high-reliability Safety Instrumented System (SIS) module designed for DeltaV safety architectures. It is engineered to execute deterministic safety logic, monitor field inputs, and initiate protective actions in real time for critical industrial processes.

Built for high availability and fault-tolerant operation, this module is widely deployed in emergency shutdown systems (ESD), burner management systems (BMS), and other safety-critical applications where system integrity directly impacts plant safety and operational continuity.

Technical Specifications

Parameter	Specification
Manufacturer	Emerson
Model	SLS1508 (KJ2201X1-BA1 + KJ2201X1-HA1)
Product Type	SIS Safety Logic Solver Module
System Platform	DeltaV SIS / M-Series Architecture
I/O Channels	16 configurable channels
Signal Types	DI / DO / AI (HART) / two-state HART outputs
Power Supply	24 V DC
Local Bus Power	24 V DC, 1 A
Field Power	Up to 4 A
Communication	SIS backplane / system carrier bus
Mounting Type	8-wide I/O carrier system
Operating Temperature	-40°C to +70°C
Humidity Range	5% to 95% non-condensing
Vibration Resistance	1 mm peak-to-peak (2–13.2 Hz)
Shock Resistance	10 g (11 ms half-sine)

Physical Dimensions & Weight

Parameter	Specification
Dimensions (H × W × D)	165 × 127 × 51 mm
Weight	Approx. 0.30 kg

System Integration & Recommended Related Modules

The SLS1508 is typically deployed in Emerson DeltaV SIS architectures and integrated with both safety and standard control modules such as:

Emerson KJ2201X1-BA1 Logic Solver Base Module
Emerson KJ2201X1-HA1 Interface Module
Emerson SE4083S2B11 Redundant Analog Input Module
Emerson SE4053S2B11 Analog Input Plus Card
Emerson SE4055S2B5 Analog Output Plus Card
Emerson SE4082S1T2B8 Digital Output Module
Emerson SE4059E0C0 I/O Interface Carrier

These components collectively form a layered safety and control system architecture designed for high-integrity industrial automation.

Common Emerson Safety & Control Modules

Frequently used Emerson DeltaV and SIS modules include:

SLS1508 KJ2201X1-BA1 + KJ2201X1-HA1
SE4083S2B11 Redundant Input Module
SE4053S2B11 Analog Input Module
SE4055S2B5 Analog Output Module
SE4082S1T2B8 Digital Output Module
SE4059E0C0 I/O Carrier System
SE4003S2B1 Standard Input Module
SE4005S2B1 Standard Output Module

Industrial Applications

The SLS1508 is designed for safety-critical automation across high-risk industrial sectors:

Oil & Gas Industry

Used in emergency shutdown systems (ESD), process interlocks, and pipeline protection logic.

Petrochemical & Chemical Plants

Ensures safe execution of interlock and shutdown logic in hazardous processing environments.

Power Generation Facilities

Supports turbine protection, boiler safety systems, and plant-wide emergency response logic.

Offshore Platforms

Provides reliable SIS logic processing under extreme environmental conditions.

Pharmaceutical & Process Industries

Supports validated safety functions in regulated production environments.

Heavy Industrial Systems

Used in large-scale automation systems requiring high Safety Integrity Level (SIL) performance.

Key Advantages

Deterministic Safety Logic Execution

Ensures reliable and predictable execution of safety instrumented functions in real time.

High System Availability

Designed for continuous operation with strong fault tolerance and redundancy capability.

Flexible I/O Configuration

Supports multiple signal types including digital, analog, and HART-enabled inputs.

Industrial-Grade Robustness

Engineered for harsh environments with resistance to vibration, shock, temperature extremes, and electrical noise.

Seamless DeltaV SIS Integration

Fully compatible with Emerson safety system architecture for unified control and protection.

Scalable Safety Design

Suitable for both small SIS applications and large distributed safety networks.

Technical FAQs

1. What is the main function of the SLS1508?

It executes safety logic functions within a Safety Instrumented System (SIS) to protect industrial processes.

2. What components are included in this model?

It includes KJ2201X1-BA1 and KJ2201X1-HA1 modules forming the complete logic solver assembly.

3. How many I/O channels does it support?

It supports up to 16 configurable I/O channels.

4. What types of signals does it handle?

It supports DI, DO, analog inputs, and HART-based signals.

5. What is its operating temperature range?

It operates from -40°C to +70°C.

6. Is it suitable for safety-critical systems?

Yes, it is specifically designed for SIS and emergency shutdown applications.

7. What industries commonly use it?

Oil & gas, petrochemical, power generation, offshore, and chemical industries.

8. Does it support redundancy?

Yes, it can be configured in redundant system architectures depending on design.

9. How is it installed?

It is mounted on an 8-wide DeltaV I/O carrier system.

10. Why is this module important in industrial automation?

Because it provides reliable, deterministic safety logic execution that protects people, equipment, and processes in critical environments.
