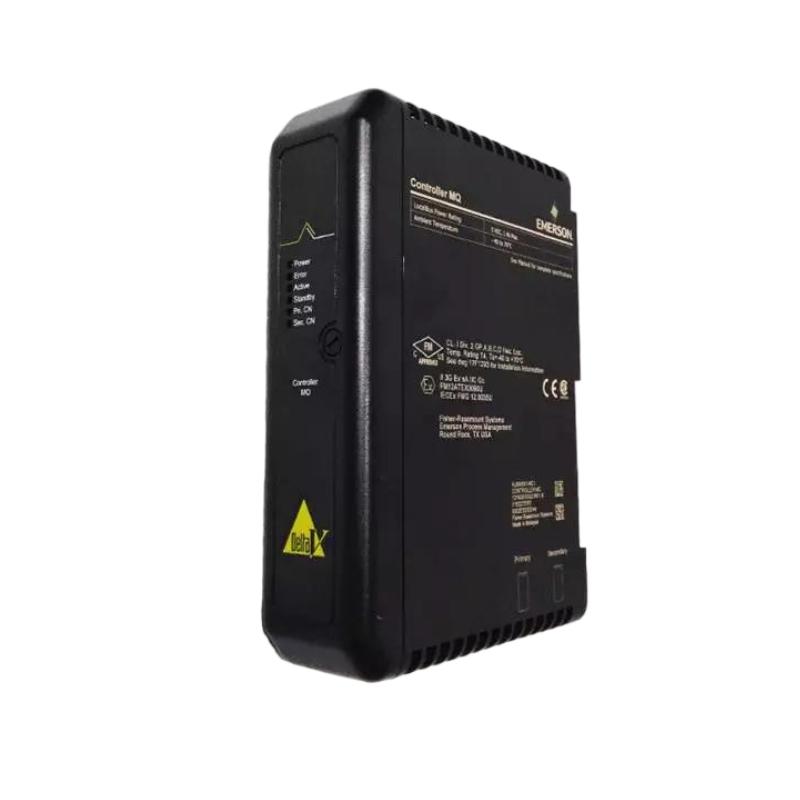

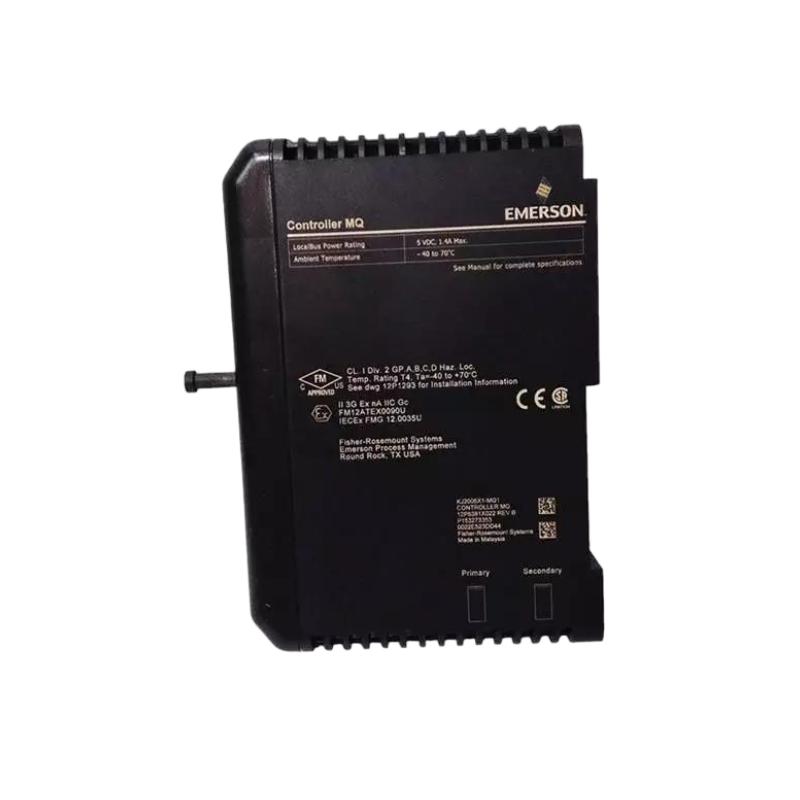

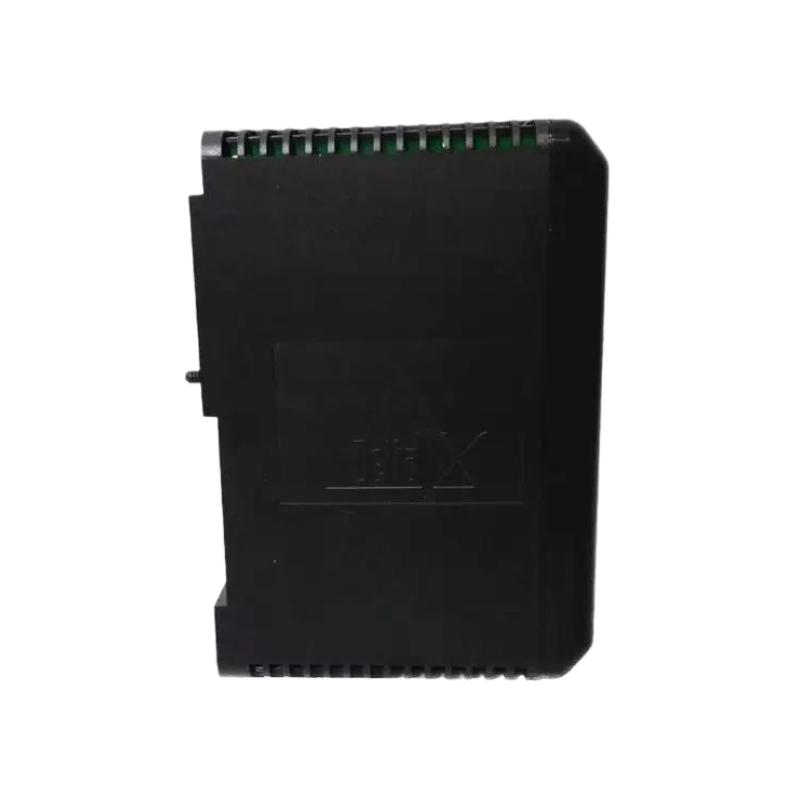

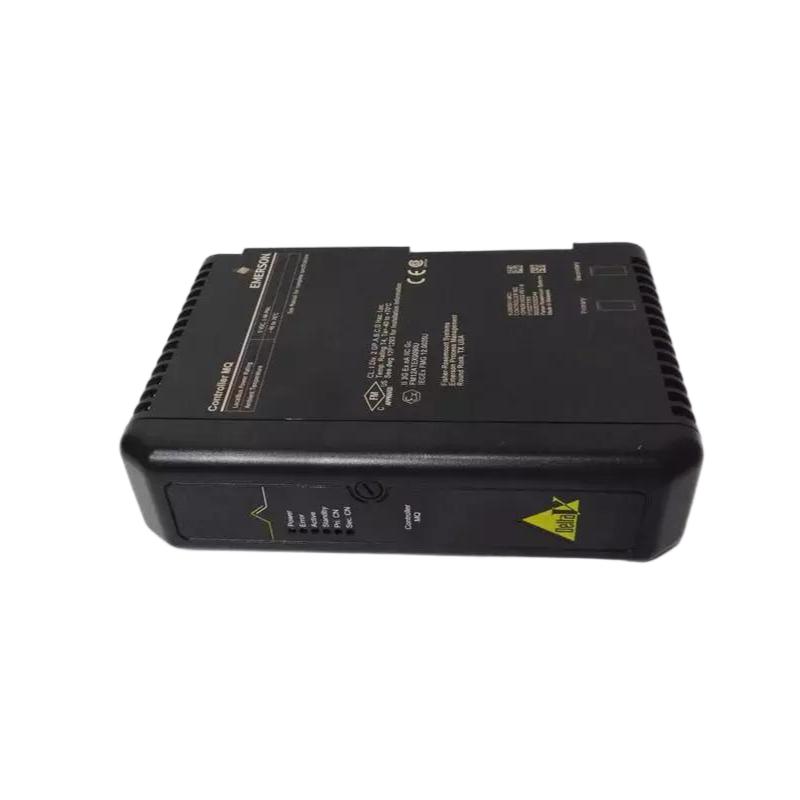

The Emerson VE3003 Controller Module is part of the DeltaV distributed control system (DCS) family, designed to deliver reliable process control, high-speed execution, and scalable system expansion for modern industrial automation environments. It functions as a core controller responsible for executing control logic, managing I/O communication, and ensuring stable plant-wide operations.
Engineered for continuous process industries, the VE3003 provides deterministic control performance, robust system integration, and seamless communication with Emerson DeltaV I/O subsystems, making it suitable for both small- and large-scale automation architectures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE3003 |
| Product Type | DeltaV Controller Module |
| System Platform | DeltaV DCS |
| Controller Class | M-Series / M3 Controller Family |
| Power Supply | 24 V DC system power |
| Communication | DeltaV system bus / Ethernet-based network |
| Control Execution Speed | Up to 100 ms scan cycle (system dependent) |
| Control Capacity | Scalable based on system configuration |
| I/O Integration | DeltaV I/O subsystems compatible |
| Redundancy Support | Available via system configuration |
| Operating Temperature | Industrial-grade environment rating |
| Humidity Range | 5% to 95% non-condensing |
| Mounting Type | Controller rack / chassis mounted |
| Dimensions (H × W × D) | Approx. 165 × 127 × 51 mm |
| Weight | Approx. 0.30 kg |
System Integration & Recommended Related Modules
The VE3003 is typically deployed within DeltaV control architectures and works in combination with a wide range of Emerson modules, including:
- Emerson VE4003S2B1 Analog Input Module
- Emerson VE4005S2B1 Analog Output Module
- Emerson VE4033S2B1 Redundant Input Module
- Emerson VE4003S6B1 RTD Input Module
- Emerson SE4053S2B11 Analog Input Plus Card
- Emerson SE4055S2B5 Analog Output Plus Card
- Emerson SE4059E0C0 I/O Interface Carrier
These modules collectively form a scalable control system capable of handling complex industrial process automation requirements.
Popular Emerson DeltaV Controller Series
Within the Emerson DeltaV ecosystem, the following controllers are commonly used:
- VE3003 M3 Controller Module
- VE3004 M5 Plus Controller Module
- VE3005 MD Controller Module
- VE3006 MD Plus Controller Module
- VE4002 Series Controller Extensions
- Redundant DeltaV Controller Configurations
These controllers are widely deployed in process industries requiring high reliability and continuous operation.
