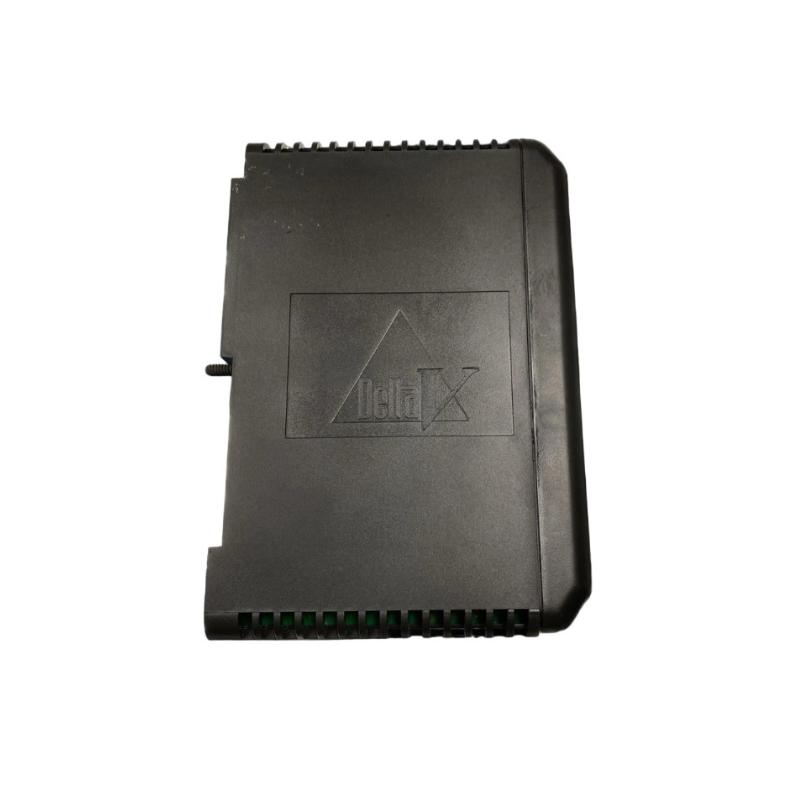

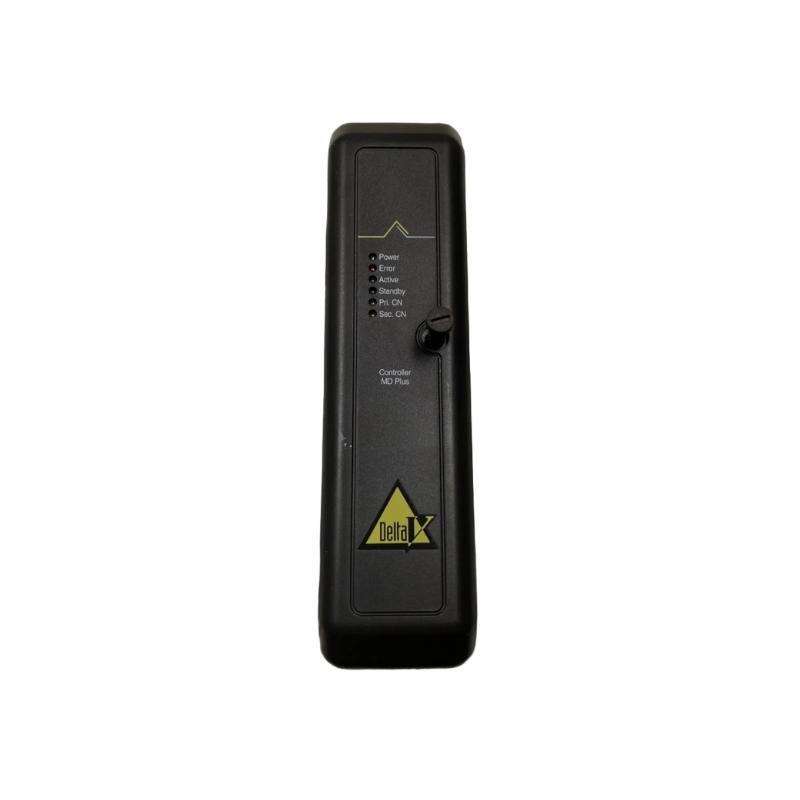

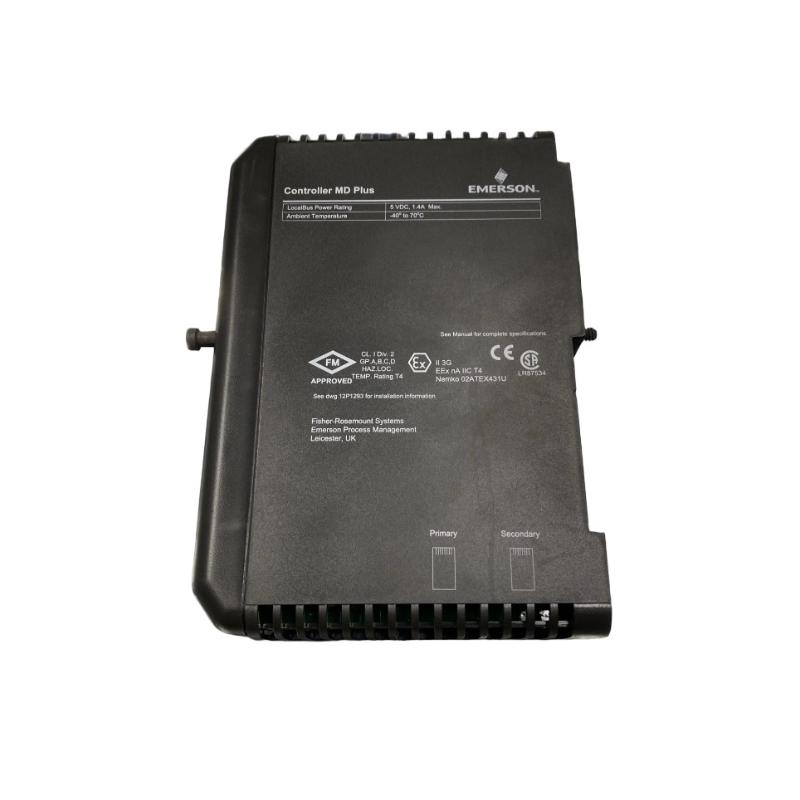

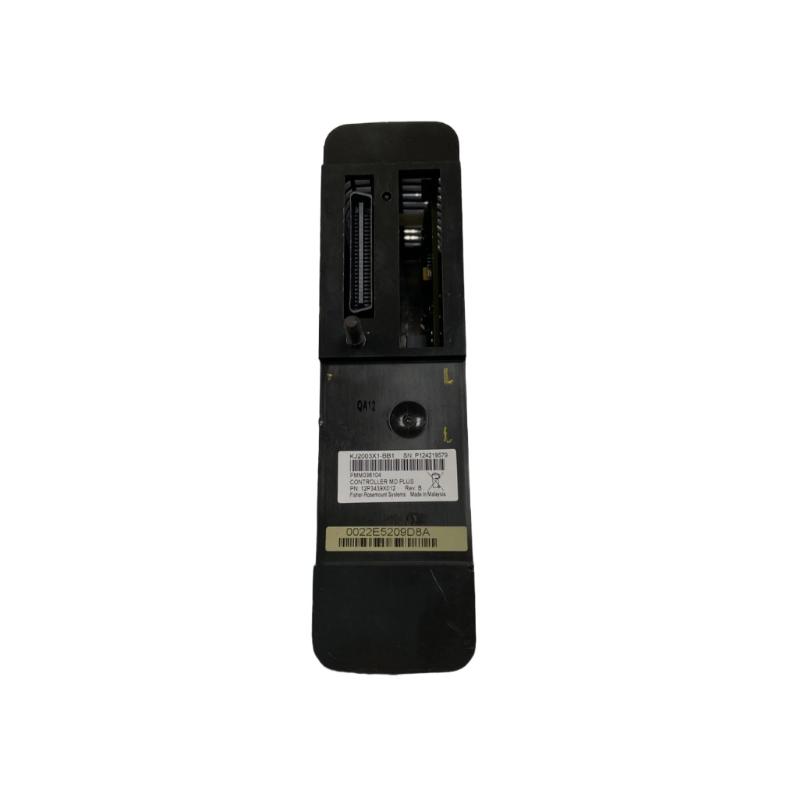

Emerson VE3006 KJ2003X1-BB1 MD Plus Controller Module
Emerson VE3006 KJ2003X1-BB1 MD Plus Controller Module
0.0
Points
Brand:Emerson Module Item No.:Emerson VE3006 KJ2003X1-BB1 Product Origin:USA Product Dimensions:43 × 125 × 160 mm Product Weight:0.36 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Emerson VE3006 (KJ2003X1-BB1) MD Plus Controller is a core processing module within the DeltaV distributed control system (DCS) architecture. It is designed to execute real-time control logic, manage system communication, and coordinate I/O data processing across complex industrial automation networks.
Engineered for high reliability and continuous operation, the VE3006 delivers stable deterministic control performance for process industries requiring precision, availability, and long lifecycle stability. It is widely deployed in large-scale automation environments where uninterrupted control execution is critical.
Technical Specifications
Parameter
Specification
Manufacturer
Emerson
Model
VE3006 (KJ2003X1-BB1)
Product Type
MD Plus Controller Module
System Platform
DeltaV DCS
Controller Series
MD Plus / M-Series Architecture
Power Supply
24 V DC system power
LocalBus Power
+5 V DC, up to 1.4 A
Field Power
24 V DC (system dependent)
Communication
DeltaV system network / backplane bus
Control Function
Real-time process control execution
Redundancy Support
Available (system architecture dependent)
Operating Temperature
0°C to 60°C (typical industrial range)
Humidity
5% to 95% non-condensing
Mounting Type
Controller rack / chassis mounted
Physical Dimensions & Weight
Parameter
Specification
Dimensions (H × W × D)
43 × 125 × 160 mm
Weight
Approx. 0.36 kg
System Integration & Recommended Related Modules
The VE3006 is typically deployed in DeltaV DCS architectures and works closely with a wide range of Emerson I/O and system components, including:
Emerson VE4003S2B1 Analog Input Module
Emerson VE4005S2B1 Analog Output Module
Emerson VE4033S2B1 Redundant Input Module
Emerson VE4003S6B1 RTD Input Module
Emerson SE4053S2B11 Analog Input Plus Card
Emerson SE4055S2B5 Analog Output Plus Card
Emerson SE4083S2B11 Redundant Input Module
Emerson SE4059E0C0 I/O Interface Carrier
These modules form a complete distributed control ecosystem for scalable industrial automation.
Common Emerson DeltaV Controller Series
Within Emerson automation systems, commonly used controllers include:
VE3003 M3 Controller Module
VE3004 M5 Plus Controller Module
VE3005 MD Controller Module
VE3006 MD Plus Controller Module
Redundant DeltaV controller configurations for high-availability systems
Industrial Applications
The VE3006 controller is widely used in mission-critical industrial environments requiring stable and deterministic process control:
Oil & Gas Industry
Supports upstream, midstream, and downstream operations including refining, pipeline control, and separation processes.
Chemical & Petrochemical Plants
Manages continuous reaction processes, blending systems, and complex multi-loop control strategies.
Power Generation Facilities
Controls turbines, boilers, and auxiliary systems with high reliability and fast response performance.
Water & Wastewater Treatment
Enables distributed control of pumping stations, filtration systems, and chemical dosing operations.
Pharmaceutical Manufacturing
Supports validated process control in regulated environments requiring high accuracy and traceability.
Heavy Industrial Automation
Used in large-scale manufacturing systems requiring centralized and stable control execution.
Key Advantages
Deterministic Control Performance
Ensures precise and stable execution of process control logic in real time.
High System Reliability
Designed for continuous 24/7 operation in industrial-grade environments.
Scalable Architecture
Supports expansion from small control systems to large distributed automation networks.
Seamless DeltaV Integration
Fully compatible with Emerson DeltaV I/O and system architecture for unified engineering.
Robust Industrial Design
Built to withstand electrical noise, vibration, temperature variations, and harsh conditions.
Efficient System Communication
Ensures fast and reliable data exchange between controller and field devices.
Technical FAQs
1. What is the main function of VE3006?
It acts as a central process controller executing real-time control logic in a DeltaV system.
2. What does KJ2003X1-BB1 refer to?
It is the Emerson part number associated with the VE3006 controller hardware.
3. What system is it used in?
It is used in the Emerson DeltaV distributed control system (DCS).
4. What is its weight?
Approximately 0.36 kg.
5. What is its size?
About 43 × 125 × 160 mm.
6. Does it support redundancy?
Yes, depending on system configuration.
7. What industries use it?
Oil & gas, chemical, power generation, water treatment, and pharmaceuticals.
8. What is its communication method?
DeltaV system bus / backplane communication.
9. Is it suitable for harsh environments?
Yes, it is designed for industrial-grade conditions.
10. Why is VE3006 widely used?
Because it provides stable, scalable, and high-reliability process control for complex industrial automation systems.
