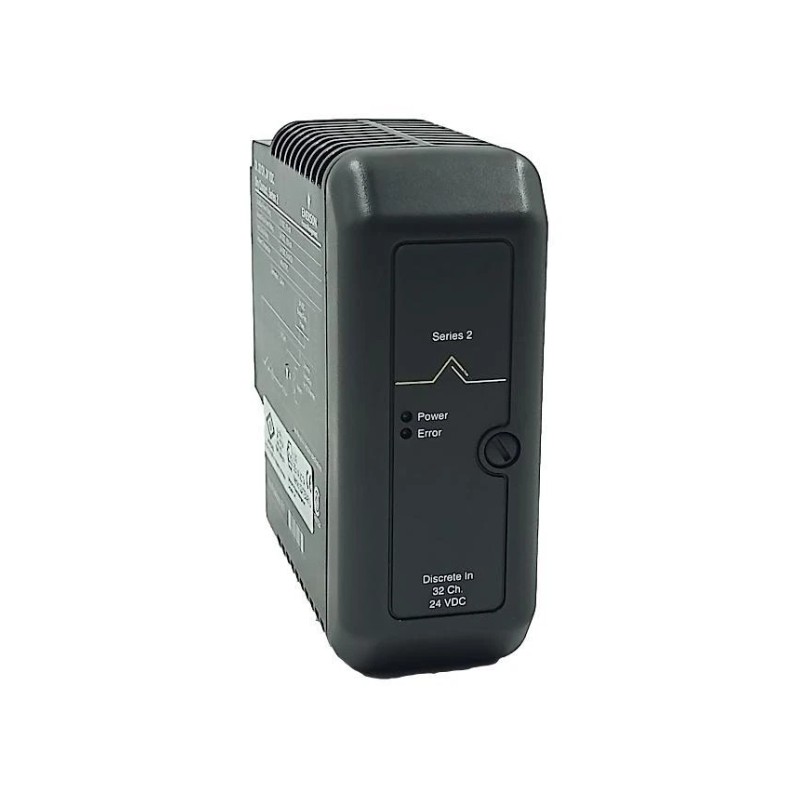

The Emerson VE3006 paired with KJ3203X1-BA1 refers to a DeltaV Series 2 discrete input solution designed for high-speed acquisition of field digital signals. It is widely used in industrial automation systems to monitor dry contact inputs such as switch states, interlocks, alarms, and field device status signals.
This module is engineered for robust performance in continuous process industries, providing stable signal acquisition, high channel density, and seamless integration with Emerson DeltaV controllers and I/O architecture.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE3006 + KJ3203X1-BA1 |
| Product Type | Discrete Input Module (DI Card) |
| System Platform | DeltaV Series 2 / M-Series Architecture |
| Input Channels | 32 channels |
| Input Type | 24 V DC dry contact |
| Signal Function | Digital status monitoring (ON/OFF) |
| Response Time | ≤ 1 ms (typical) |
| Isolation | Channel-to-system electrical isolation |
| Compatibility | DeltaV I/O carrier systems |
| Mounting Type | I/O rack / carrier mounted module |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
| EMC Protection | Industrial noise immunity design |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (H × W × D) | 160 × 100 × 60 mm |
| Weight | Approx. 0.32 kg |
System Integration & Recommended Related Modules
The VE3006 + KJ3203X1-BA1 is typically used within Emerson DeltaV distributed control systems and integrates with:
- Emerson VE3006 MD Plus Controller Module
- Emerson VE3003 M3 Controller Module
- Emerson VE4005S2B1 Analog Output Module
- Emerson VE4003S2B1 Analog Input Module
- Emerson VE4033S2B1 Redundant Input Module
- Emerson SE4053S2B11 Analog Input Plus Card
- Emerson SE4082S1T2B8 Digital Output Module
- Emerson SE4059E0C0 I/O Interface Carrier
These modules collectively support full-scale process automation and plant-wide control architectures.
Common Emerson DeltaV I/O Modules
Frequently deployed modules in similar architectures include:
- KJ3203X1-BA1 32-Channel Discrete Input Card
- VE4001S2T2B4 Series Input Module
- VE4003S2B1 Analog Input Module
- VE4005S2B1 Analog Output Module
- SE4053S2B11 High-Density Input Module
- SE4083S2B11 Redundant Input Module
- SE4082S1T2B8 Digital Output Module
