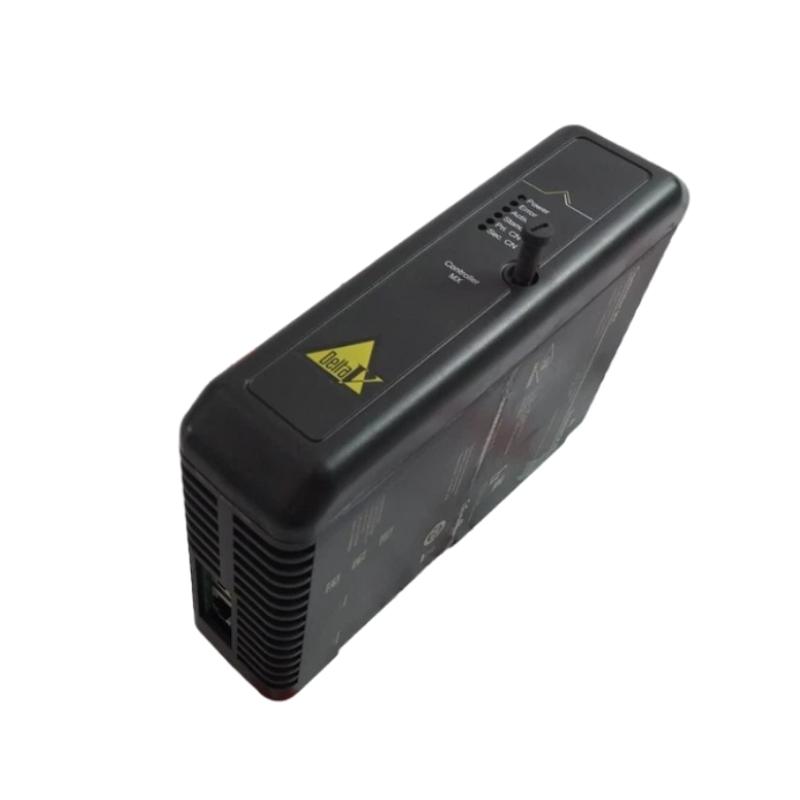

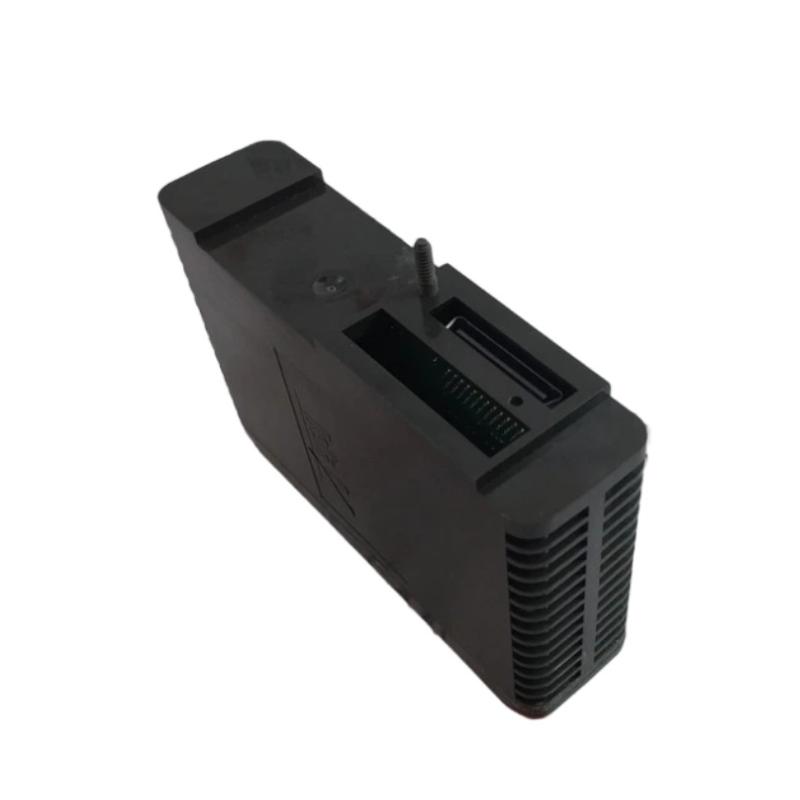

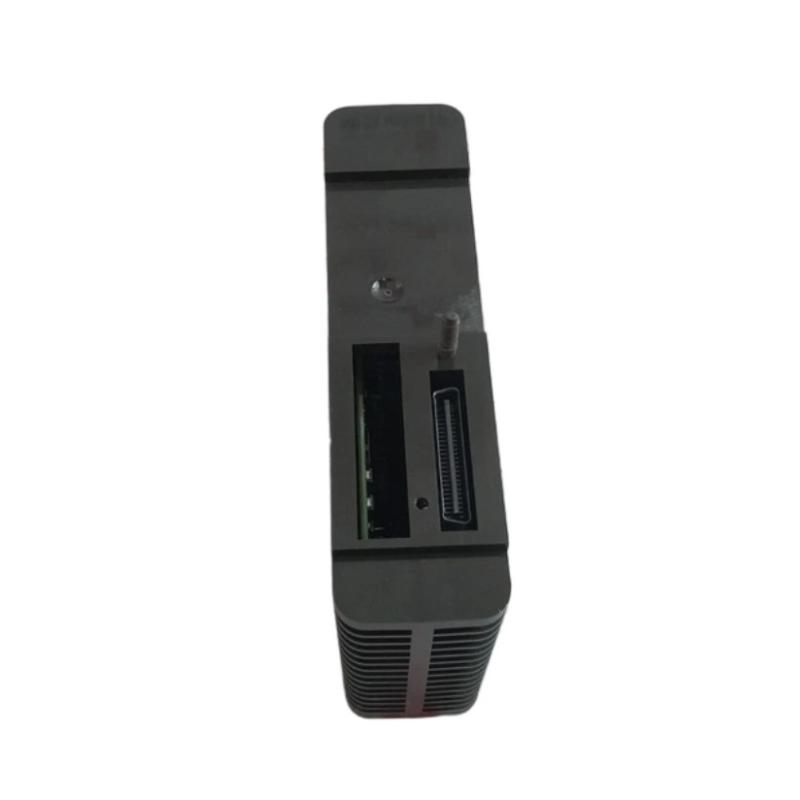

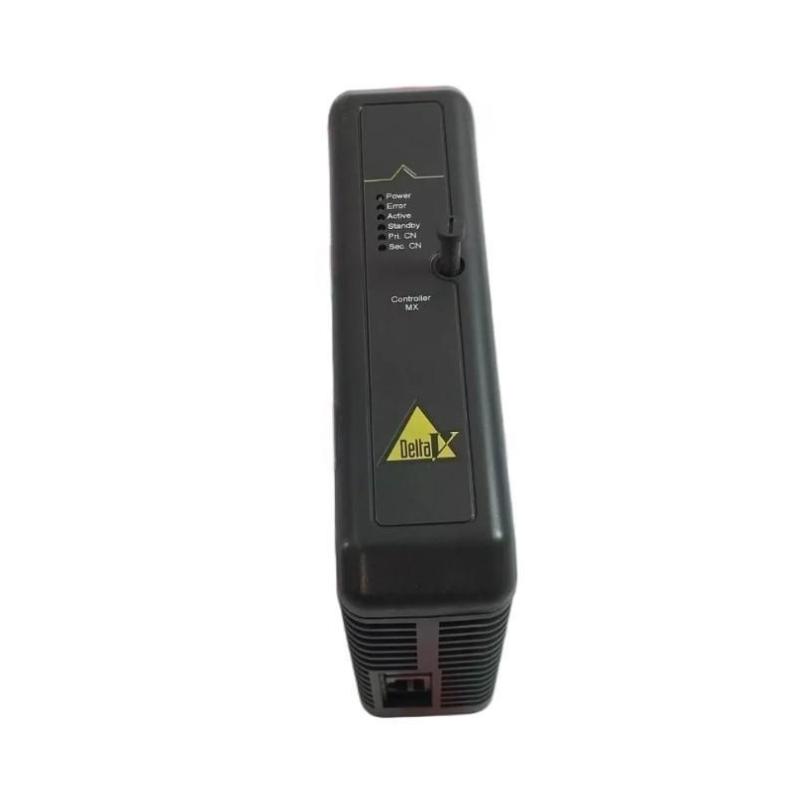

The Emerson VE3007 (KJ2005X1-BA1) is an 8-channel HART-enabled analog input module used within Emerson DeltaV M-series and related process automation architectures. It is designed to acquire precise 4–20 mA process signals from field instruments such as pressure transmitters, temperature sensors, flow meters, and level devices.
With built-in HART communication capability, the module enables not only real-time signal acquisition but also advanced device diagnostics and asset health monitoring. This makes it a key component in modern smart plant environments where reliability, transparency, and predictive maintenance are essential.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE3007 (KJ2005X1-BA1) |
| Product Type | HART Analog Input Module |
| System Platform | DeltaV M-Series / MX architecture |
| Input Channels | 8 channels |
| Input Signal | 4–20 mA DC / HART digital overlay |
| Resolution | High-precision industrial A/D conversion |
| Channel Isolation | Channel-to-channel and system isolation |
| Communication | DeltaV system backplane |
| Hot-Swap Support | Yes (system dependent) |
| Diagnostics | HART device diagnostics supported |
| Mounting Type | I/O carrier mounted module |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (H × W × D) | 160 × 100 × 60 mm |
| Weight | Approx. 0.30 kg |
System Integration & Recommended Related Modules
The VE3007 is typically deployed in DeltaV control systems alongside both controller and I/O modules, including:
- Emerson VE3006 MD Plus Controller Module
- Emerson VE3004 M5 Plus Controller Module
- Emerson VE4003S2B1 Analog Input Module
- Emerson VE4005S2B1 Analog Output Module
- Emerson VE4033S2B1 Redundant Input Module
- Emerson SE4053S2B11 Analog Input Plus Card
- Emerson SE4055S2B5 Analog Output Plus Card
- Emerson SE4059E0C0 I/O Interface Carrier
These components work together to build scalable, high-availability process automation systems.
