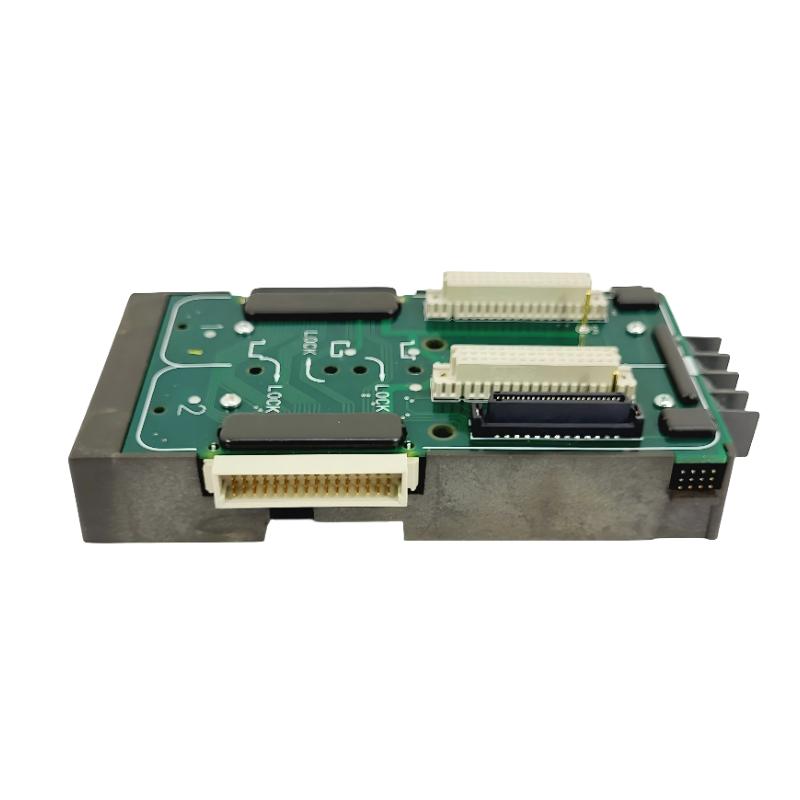

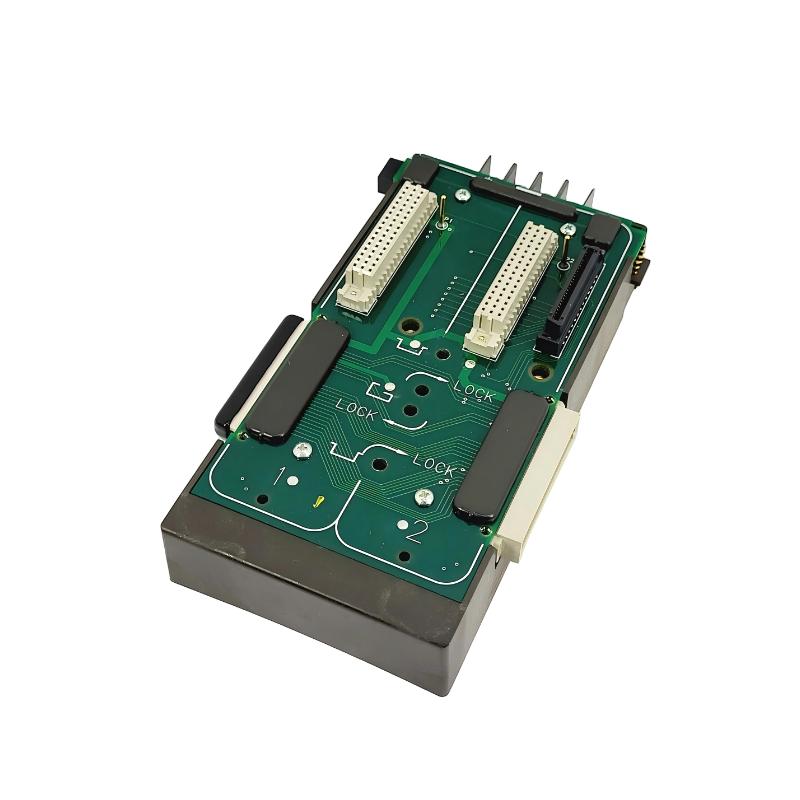

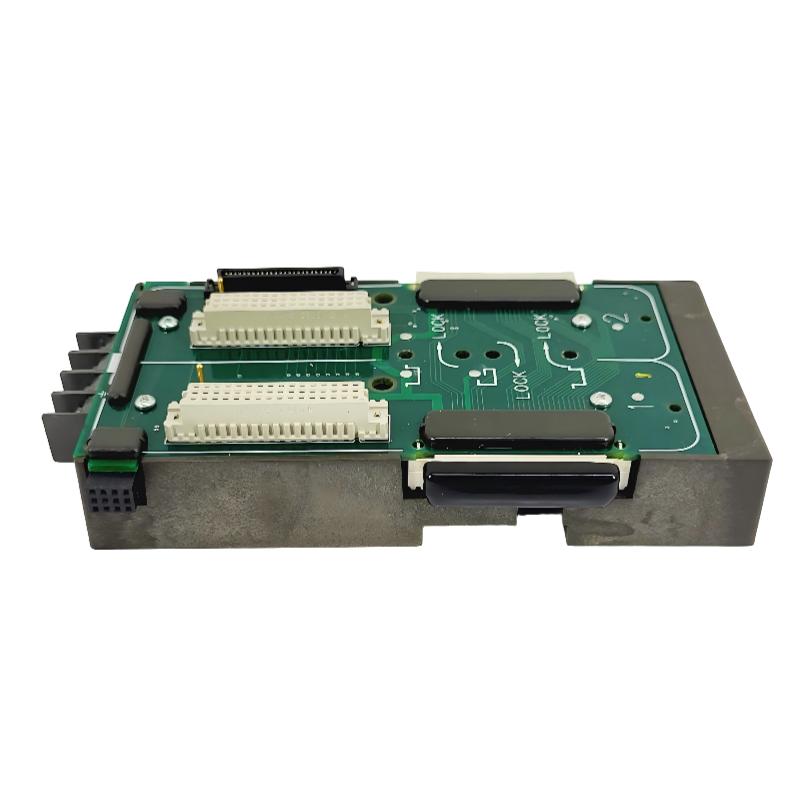

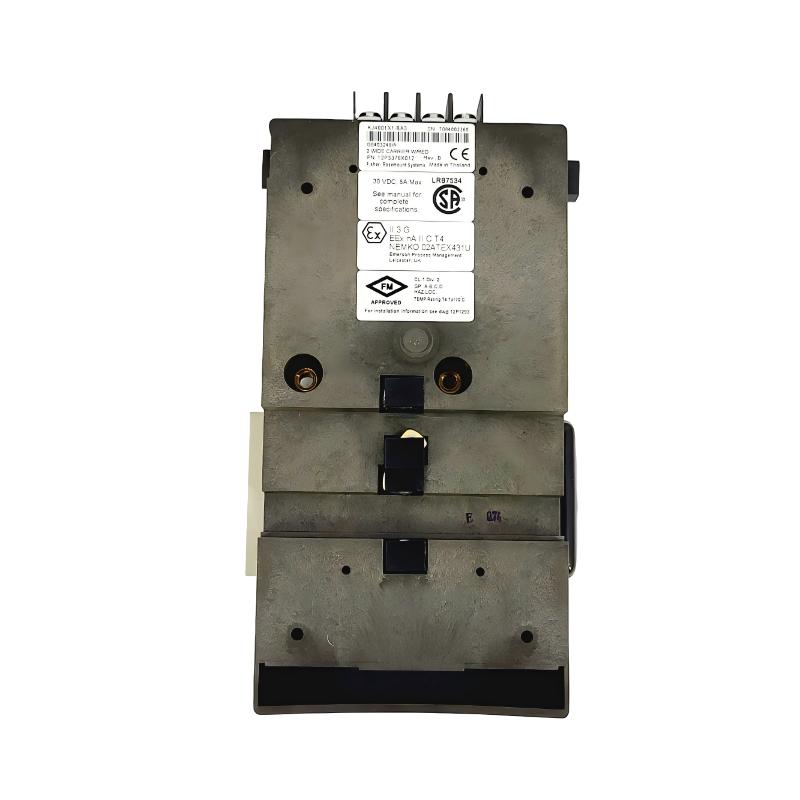

The Emerson VE3051C0 (KJ4001X1-BA3) is a 2-wide power/controller carrier module used in Emerson DeltaV M-series electronic marshalling architectures. It serves as a structural and electrical backbone for hosting I/O and CHARM subsystem modules, providing stable power distribution and reliable backplane communication within the control cabinet.
Designed for high-density automation systems, this carrier ensures secure module mounting, redundant-ready architecture support, and consistent system power integrity—making it a foundational component in modern distributed control environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE3051C0 (KJ4001X1-BA3) |
| Product Type | 2-Wide Power / Controller Carrier Module |
| System Platform | DeltaV M-Series / Electronic Marshalling |
| Function | I/O carrier & internal power distribution |
| Supported Modules | CHARM I/O / DeltaV subsystem modules |
| Power Bus | Internal system power backplane |
| Redundancy Support | Yes (system architecture dependent) |
| Installation Type | Rack / panel mounted carrier |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
| EMC Protection | Industrial noise immunity design |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (H × W × D) | 191 × 19 × 130 mm |
| Weight | Approx. 0.20–0.72 kg (depending on configuration) |
System Integration & Recommended Related Modules
The VE3051C0 KJ4001X1-BA3 is typically deployed as part of a complete DeltaV I/O infrastructure and works alongside:
- Emerson KJ4001X1-BA2 Power Carrier Module
- Emerson SE4059E0C0 I/O Interface Carrier
- Emerson SE4053S2B11 Analog Input Plus Card
- Emerson SE4055S2B5 Analog Output Plus Card
- Emerson SE4083S2B11 Redundant Input Module
- Emerson SE4082S1T2B8 Digital Output Module
- Emerson VE3006 MD Plus Controller Module
These components form a scalable and fault-tolerant automation architecture used in continuous process industries.
Common Emerson DeltaV Carrier & Power Modules
Widely used related carrier systems include:
- VE3051C0 KJ4001X1-BA3 2-Wide Carrier
- KJ4001X1-BA2 Redundant Carrier Variant
- SE4059E0C0 I/O Interface Carrier
- DeltaV CHARM Baseplate Carrier Systems
- M-series Power Distribution Carriers
