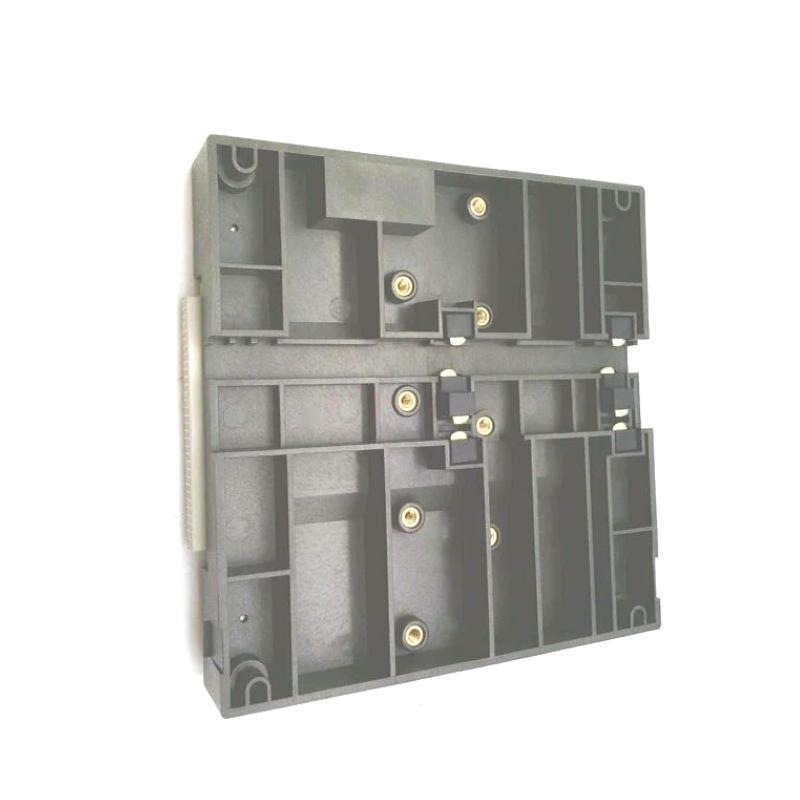

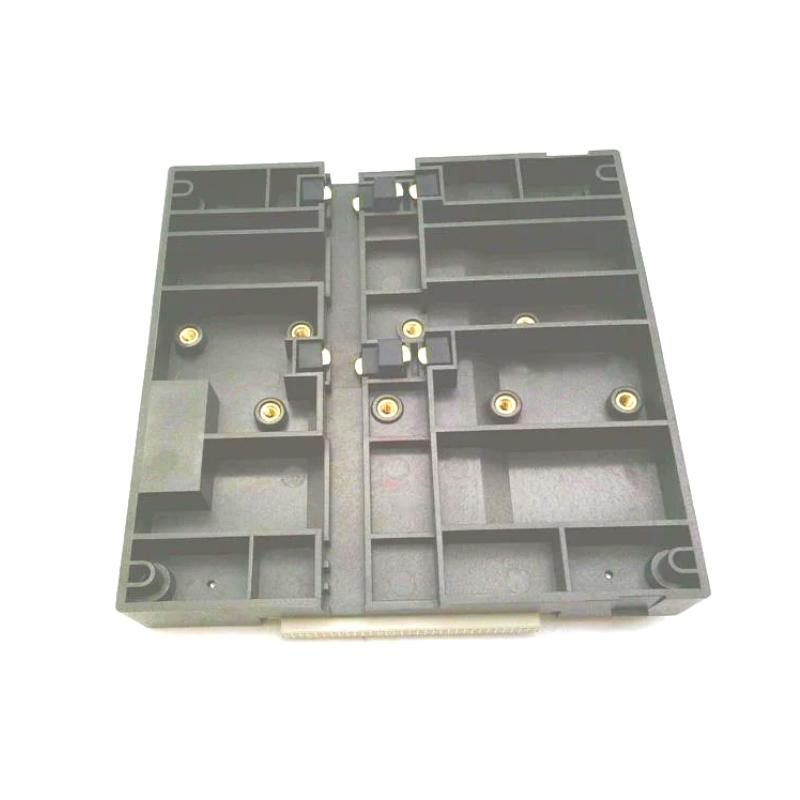

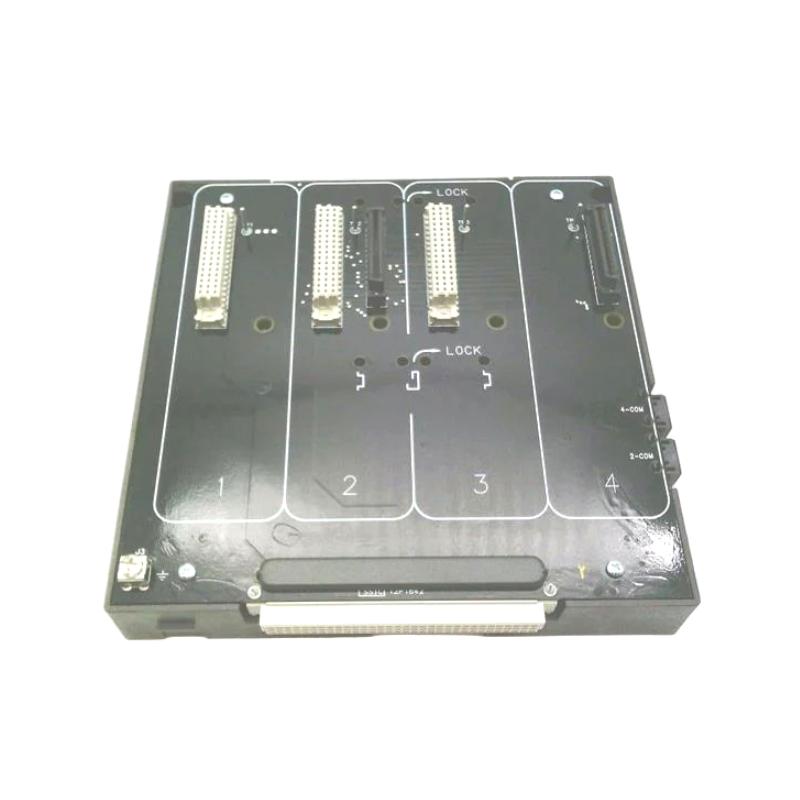

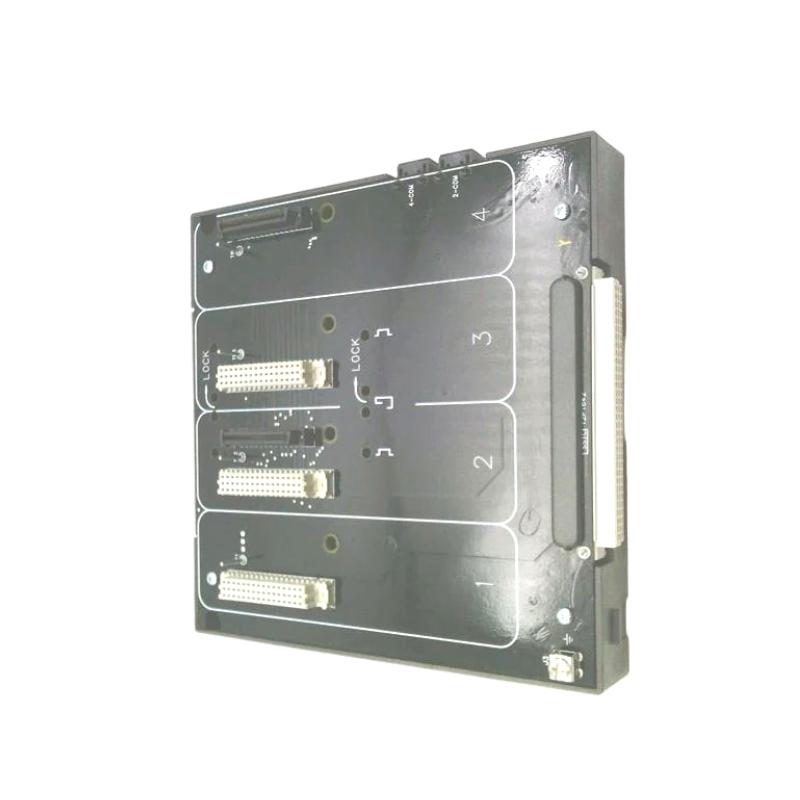

The Emerson VE3055M1 is a DeltaV system power supply module designed to deliver stable, regulated power to controller and I/O carrier assemblies within Emerson DeltaV distributed control systems. It plays a critical role in maintaining continuous operation of automation infrastructure by ensuring clean and reliable DC power distribution across the control system backplane.
Engineered for industrial-grade environments, the VE3055M1 supports high availability architectures and is commonly deployed in process industries where uninterrupted control system power is essential for safe and stable operations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE3055M1 |
| Product Type | DeltaV Power Supply Module |
| System Platform | DeltaV M-Series / Electronic Marshalling |
| Input Power | 24–30 V DC system input |
| Output Function | Regulated DC power distribution to carriers |
| Output Capacity | System dependent (carrier load sharing) |
| Protection Features | Overvoltage, overcurrent, short-circuit protection |
| Redundancy Support | Yes (system configuration dependent) |
| Hot-Swap Capability | Supported in compatible systems |
| Mounting Type | DeltaV carrier / rack mounted |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
| EMC Compliance | Industrial noise immunity design |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (H × W × D) | 130 × 51 × 191 mm |
| Weight | Approx. 0.25–0.60 kg (varies by revision and configuration) |
System Integration & Recommended Related Modules
The VE3055M1 is typically used as part of a complete DeltaV system power architecture and integrates with:
- Emerson VE3051C0 / VE3051C1 Carrier Modules
- Emerson KJ4001X1-BA3 Power/Controller Carriers
- Emerson VE3006 MD Plus Controller Module
- Emerson VE3004 M5 Plus Controller Module
- Emerson SE4059E0C0 I/O Interface Carrier
- Emerson SE4053S2B11 Analog Input Plus Card
- Emerson SE4055S2B5 Analog Output Plus Card
- Emerson SE4083S2B11 Redundant Input Module
- Emerson SE4082S1T2B8 Digital Output Module
These components together form a stable and scalable power and control infrastructure for DeltaV automation systems.
Common Emerson DeltaV Power & Carrier Modules
Frequently used related modules include:
- VE3055M1 Power Supply Module
- VE3055M2 Redundant Power Supply Variant
- VE3051C0 / VE3051C1 Carrier Modules
- KJ4001X1-BA3 2-Wide Carrier Platform
- SE4059E0C0 I/O Interface Carrier System
