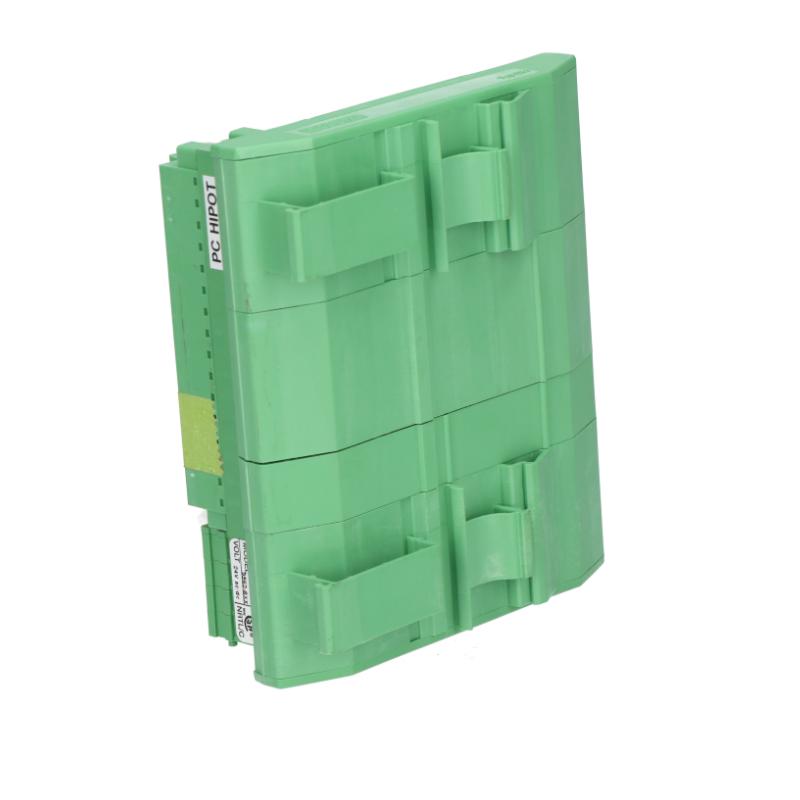

Name: Invensys Triconex 9563-8XX Digital Input Terminal Panel
Brand: Invensys Triconex
SKU: 121
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The Invensys Triconex 9563-8XX Digital Input Terminal Panel provides reliable, high-density digital input acquisition for Triconex safety and process control systems. Its rugged industrial design ensures signal integrity under challenging conditions, while its compact footprint allows efficient rack integration. Designed for safety-critical applications, this panel supports real-time monitoring and precise signal delivery for mission-critical industrial processes.

Technical Specifications

Specification	Details
Number of Inputs	32 Digital Inputs
Input Voltage	24V DC nominal
Redundancy	Supports dual-redundant systems
Operating Temperature	-25°C to 70°C (-13°F to 158°F)
Weight	0.38 kg
Dimensions	114.3 ×127 × 107.95 mm
Certifications	IEC 61508 SIL 3, CE
Connectivity	Screw terminal blocks

Recommended Related Models

Triconex 3303 Controller
Triconex 4311/4312 I/O Module
Triconex 3502 Power Supply

Popular Related Models

Triconex 9543 Digital Input Terminal Panel
Triconex 9562 Terminal Panel Module
Triconex 8321 Control Module

Applications

The Triconex 9563-8XX Digital Input Terminal Panel is designed for robust and scalable digital signal acquisition in industrial automation and safety systems. Typical applications include:

Chemical and petrochemical plants requiring high-density input monitoring
Oil & gas production and refining facilities with complex control networks
Power generation plants needing accurate real-time digital inputs
Manufacturing and process automation systems with redundant safety architectures
Critical infrastructure where timely and reliable digital input detection is essential

Advantages

High-Density Inputs: Consolidates multiple digital signals into a compact, space-saving panel.
Industrial-Grade Durability: Engineered for vibration, temperature variations, and electrical noise resistance.
Seamless Integration: Fully compatible with Triconex 3000 and 4000 series controllers and I/O modules.
Diagnostic Feedback: LEDs provide immediate visual status of inputs and fault conditions.
Safety Certified: IEC 61508 SIL 3 compliant, ensuring reliable SIS performance.
