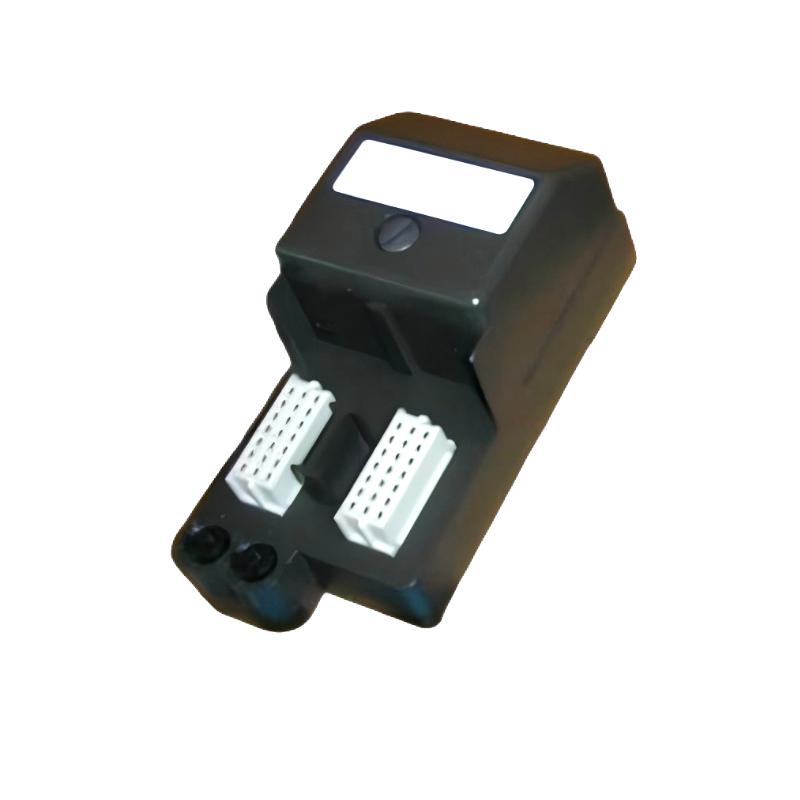

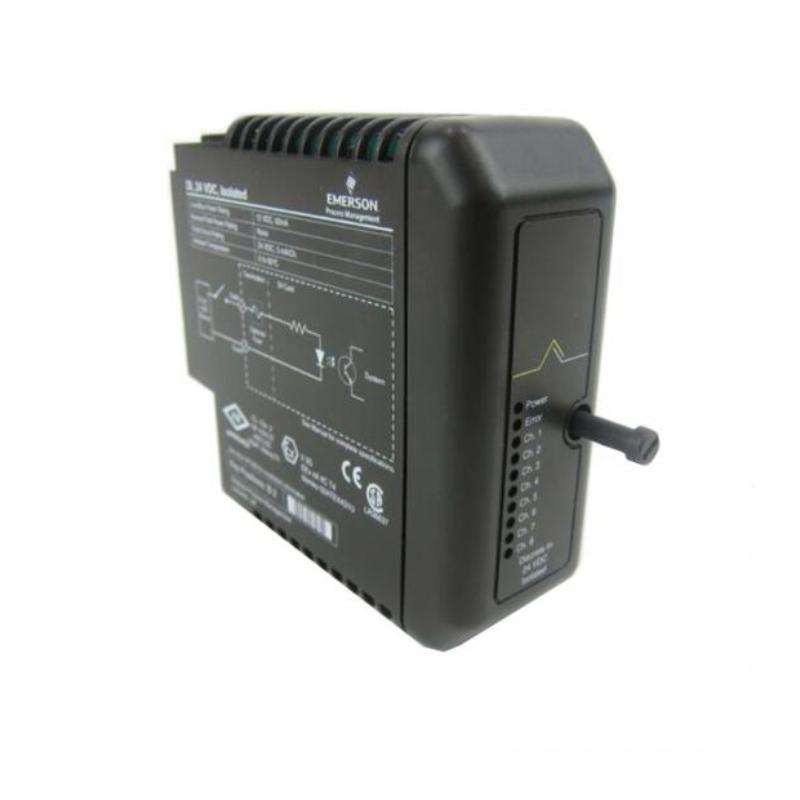

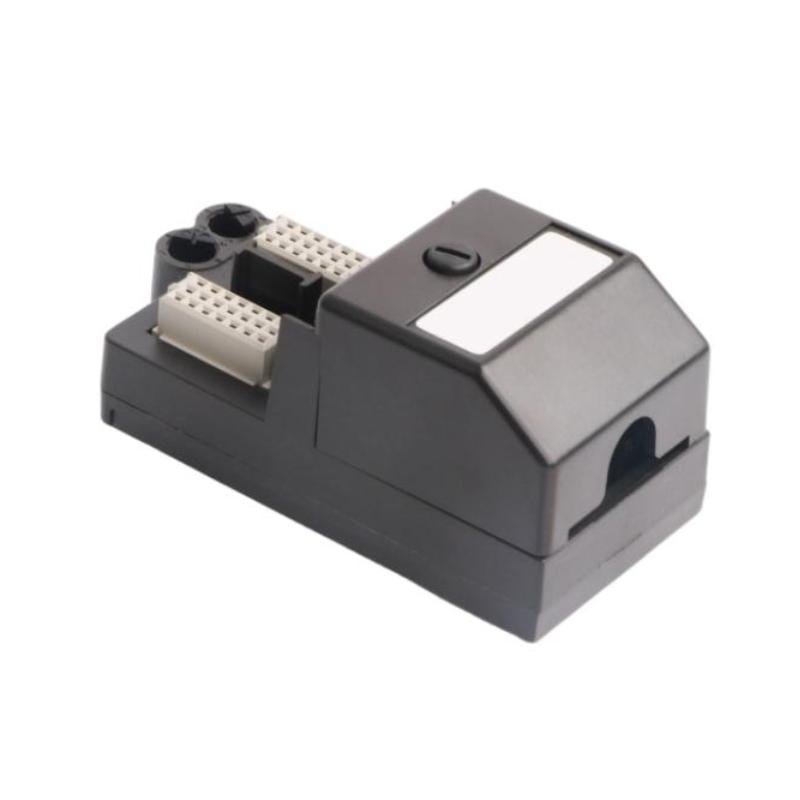

The Emerson VE4001S2T2B5 (KJ3203X1-BA1 + KJ4001X1-CK1) is a high-performance analog output assembly developed for Emerson DeltaV distributed control systems. Combining the KJ3203X1-BA1 analog output module with the KJ4001X1-CK1 termination block, this solution delivers precise and stable analog control signals to a wide variety of field devices, including control valves, actuators, dampers, and variable frequency drives.
Designed for industries where accuracy and reliability are essential, this module assembly offers outstanding signal integrity, simplified field wiring, and advanced diagnostics, helping operators maintain optimal process performance and plant availability.
Technical Overview
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4001S2T2B5 |
| Module Part Number | KJ3203X1-BA1 |
| Terminal Block Part Number | KJ4001X1-CK1 |
| Product Type | Analog Output Module |
| Platform | DeltaV Series 2 |
| Output Channels | 8 Channels |
| Output Signal | 4–20 mA |
| Resolution | 16-bit |
| Signal Accuracy | High-Precision Control Grade |
| Isolation | Channel-to-System Isolation |
| Diagnostics | Continuous Output Monitoring |
| Wiring Interface | Mass Termination Assembly |
| Mounting | DeltaV I/O Carrier |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | 5%–95% Non-Condensing |
| EMC Protection | Industrial-Class Immunity |
Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 285 × 215 × 45 mm |
| Weight | Approx. 0.60 kg |
Frequently Paired Modules
The VE4001S2T2B5 assembly is often installed together with the following DeltaV components:
- Emerson VE3006 MD Plus Controller Module
- Emerson VE3008 MQ Controller Module
- Emerson VE4003S2B1 Analog Input Module
- Emerson VE4005S2B1 Analog Output Module
- Emerson VE4033S2B1 Redundant I/O Module
- Emerson VE4001S2T2B1 Discrete Input Module
- Emerson VE4001S2T2B4 Analog Output Assembly
- Emerson SE4053S2B11 Analog Input Card
- Emerson SE4055S2B5 Analog Output Card
- Emerson KJ3241X1-BA1 Serial Interface Module
