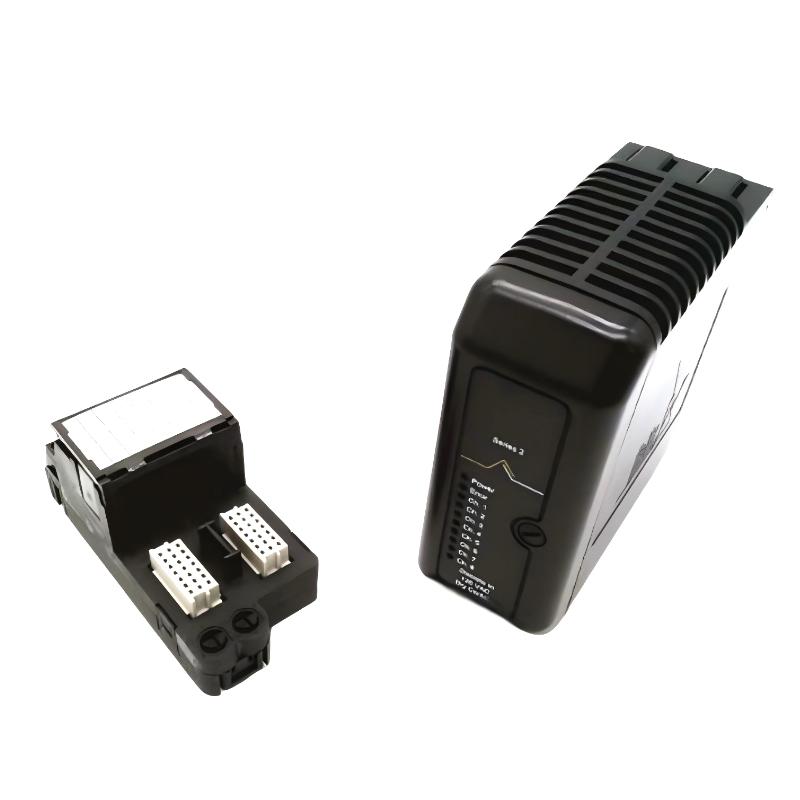

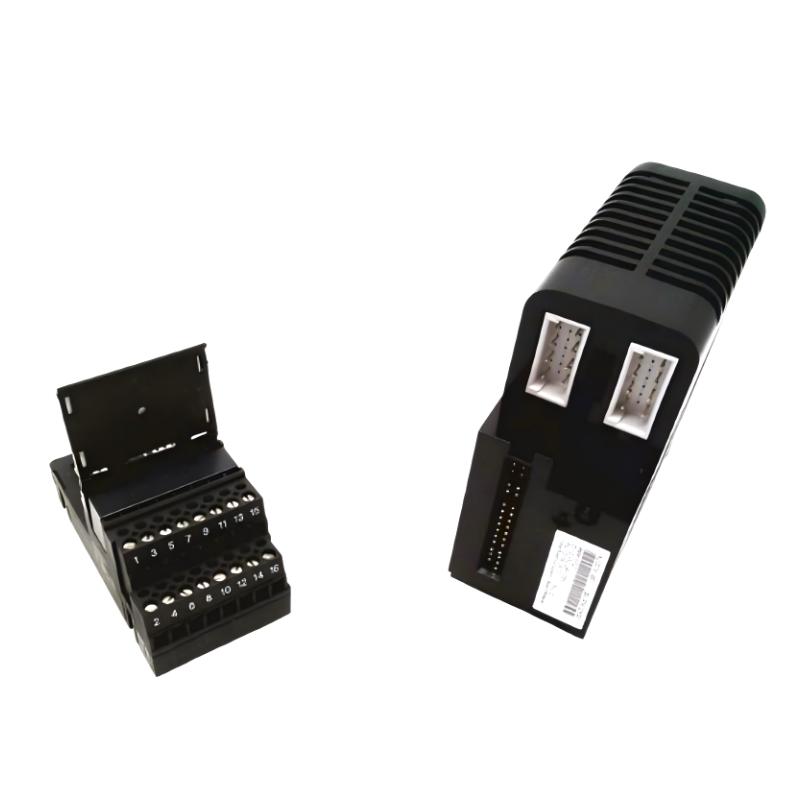

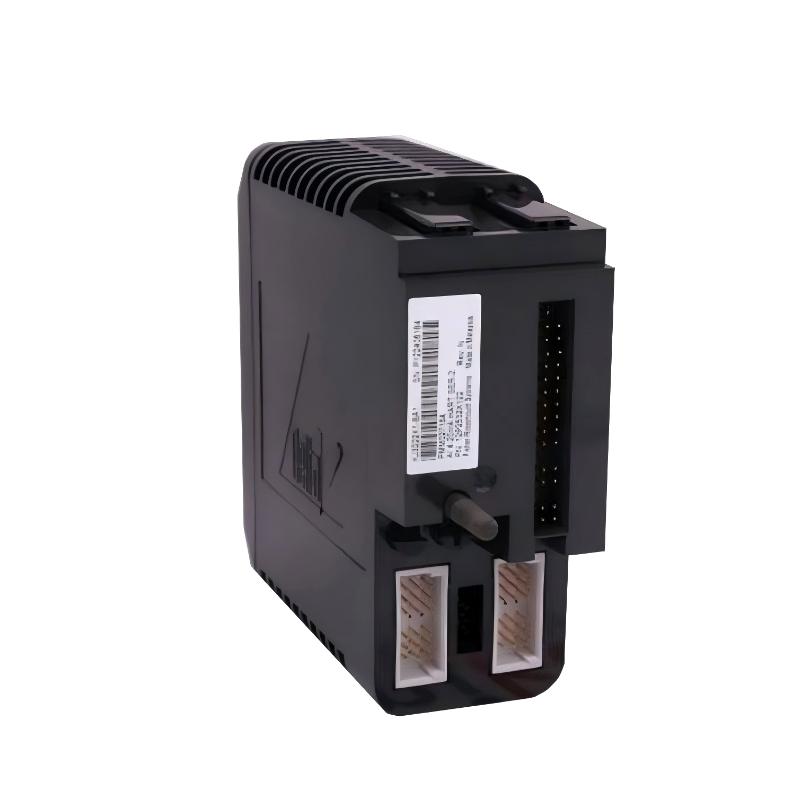

The Emerson VE4001S2T2B1 (KJ3201X1-BA1) is a DeltaV Series 2 discrete input module designed for accurate acquisition of 24 V DC digital signals in industrial automation systems. It is widely used to monitor ON/OFF field device states such as switches, limit switches, relay contacts, pushbuttons, alarm circuits, and safety interlocks.
Built for continuous industrial operation, this module provides stable signal detection, strong electrical isolation, and integrated diagnostics, making it a dependable component in Emerson DeltaV distributed control systems across process industries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4001S2T2B1 |
| Module Part Number | KJ3201X1-BA1 |
| Product Type | Discrete Input Module (DI) |
| System Platform | DeltaV Series 2 I/O |
| Input Channels | 8 channels |
| Input Type | 24 V DC dry contact / digital input |
| Field Voltage | 24 V DC nominal |
| Signal Function | ON/OFF status monitoring |
| Response Time | ≤ 1 ms (typical) |
| Isolation | Optical / channel-to-system isolation |
| Diagnostics | Channel status and fault detection |
| Mounting Type | DeltaV I/O carrier mounted |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
| EMC Protection | Industrial-grade noise immunity |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (H × W × D) | 105 × 125 × 42 mm |
| Weight | Approx. 0.20–0.40 kg |
