Product Overview

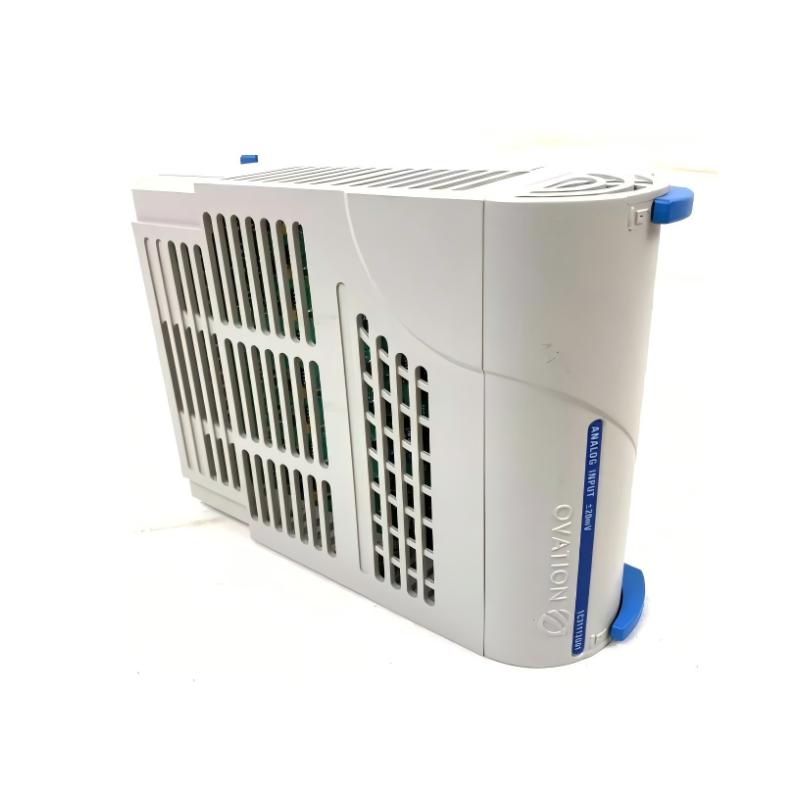

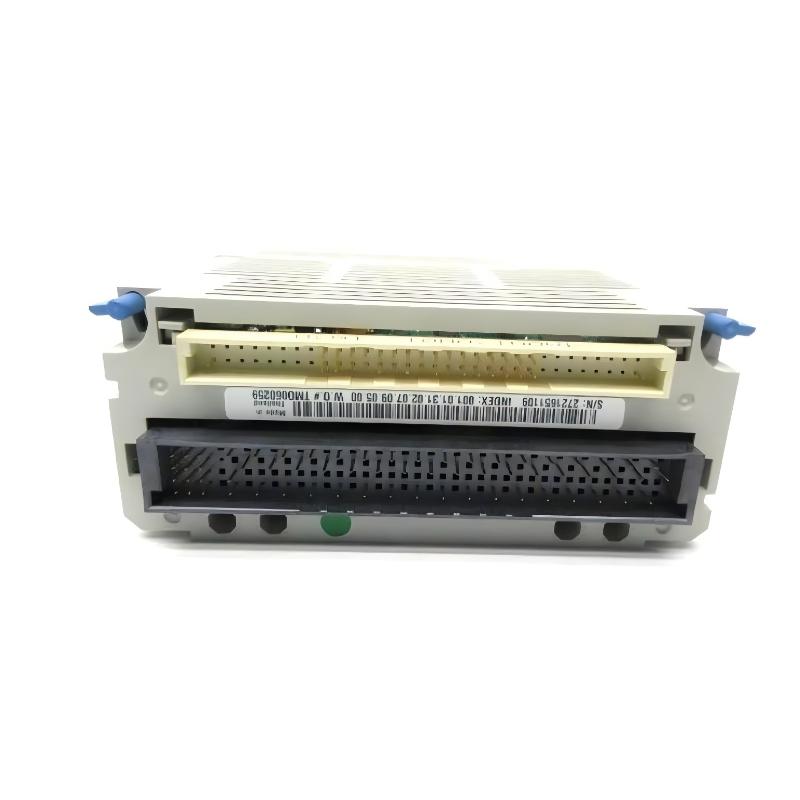

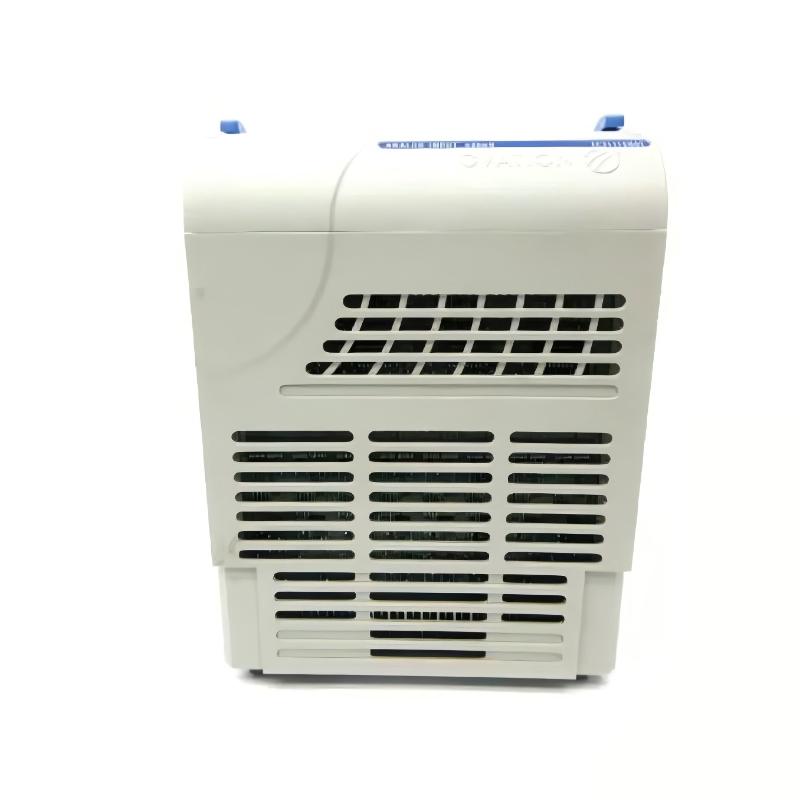

The Ovation 1C31113G01 Analog Input Module delivers precise, reliable analog signal acquisition for Ovation automation systems. Its robust construction, large form factor, and seamless integration make it ideal for both new installations and system expansions. By ensuring accurate input monitoring and uninterrupted operation, the 1C31113G01 enhances process efficiency, system reliability, and overall operational safety.

Technical Specifications

Feature	Specification
Dimensions	279 mm × 127 mm × 165 mm
Weight	1.02 kg
Function	Analog signal acquisition for Ovation control systems
Signal Type	Voltage and current signals
Mounting	DIN rail or control panel installation
Operating Temperature	-20°C to +60°C (-4°F to +140°F)
Diagnostics	Monitored via Ovation controller
Construction	Industrial-grade, vibration-resistant
Firmware	Not required
Compatibility	Ovation analog input modules
Application	Industrial process monitoring and automation

Recommended Related Models

Ovation 1C31114G02 Analog Input Module
Ovation I/O Expansion Modules
Ovation Distribution Boards

Popular Related Models

Ovation 1C30010G01 CPU Modules
Ovation Control System Cabinets
Ovation Contactor and Digital Input Modules

Applications

The Ovation 1C31113G01 Analog Input Module is designed for accurate measurement and monitoring of analog signals in industrial automation systems. It enables precise data acquisition from sensors and field devices, providing reliable input to Ovation control systems. Ideal for power plants, process industries, and large-scale manufacturing, it supports real-time process monitoring and ensures system efficiency and safety.

Advantages

High-Precision Analog Input: Accurately captures voltage and current signals for dependable process control.
Robust Industrial Design: With dimensions of 279 × 127 × 165 mm and weight of 1.02 kg, it offers a strong, durable construction for harsh industrial environments.
Seamless System Integration: Fully compatible with Ovation automation platforms and associated I/O modules.
Enhanced Diagnostics: Facilitates troubleshooting and system monitoring via Ovation controller.
Easy Maintenance: Modular design allows for quick replacement and minimal downtime.

Technical FAQs

What is the primary function of the 1C31113G01?
Provides high-accuracy analog signal acquisition for Ovation control systems.
Which systems is it compatible with?
Ovation distributed control systems and compatible analog input modules.
What types of signals does it handle?
Voltage and current analog signals from field devices and sensors.
What is the operating voltage?
System-specific voltage per Ovation specifications; typically 24 VDC.
What is the operating temperature range?
-20°C to +60°C (-4°F to +140°F).
Can it be installed in standard control panels?
Yes, supports DIN rail or panel mounting.
Does it provide diagnostics?
Status and signal integrity are monitored through the Ovation controller.
What are the module’s dimensions and weight?
Dimensions: 279 × 127 × 165 mm, Weight: 1.02 kg.
Is it suitable for industrial environments?
Yes, built with industrial-grade components for reliable operation.
Is firmware required or upgradeable?
No firmware is required; it functions as a passive analog input module.
